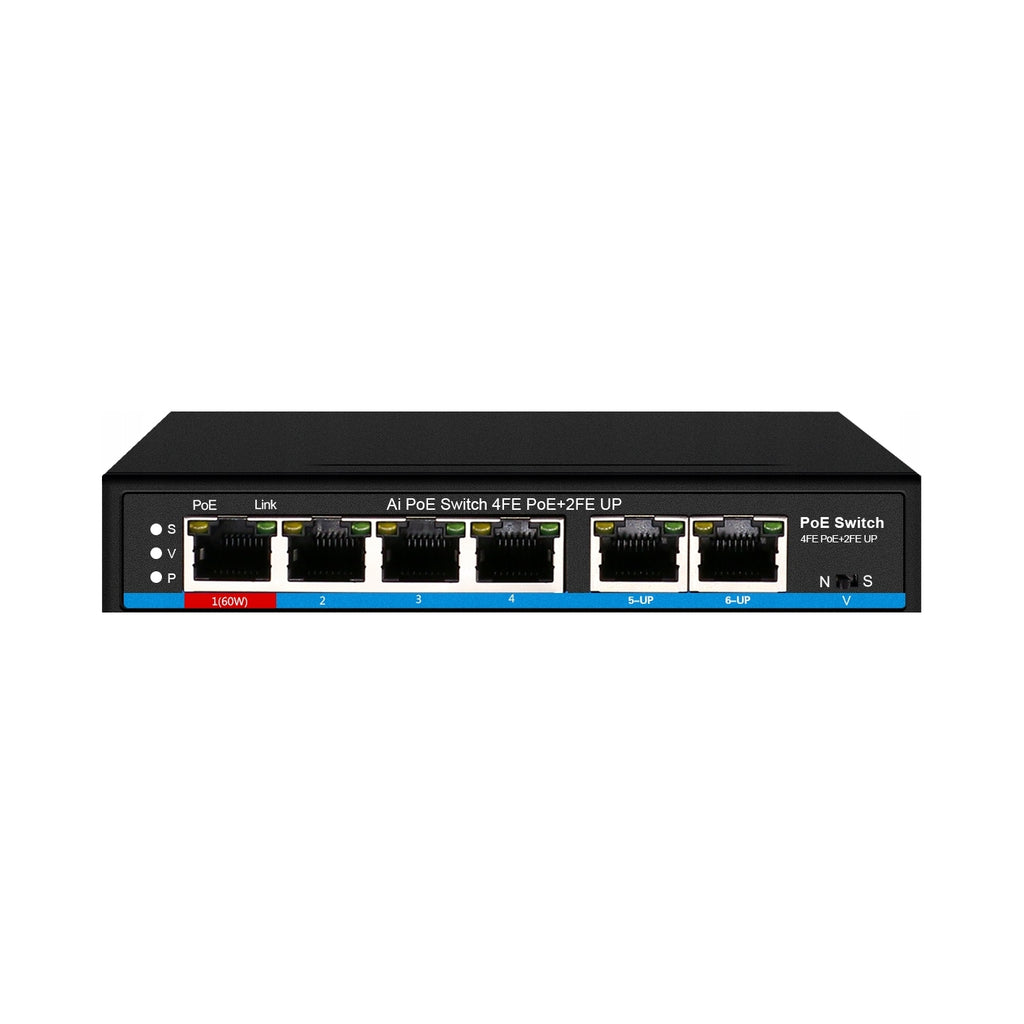

Tinklo jungiklis APER, 4x PoE prievadai, 2x uplink, 65 W, 2 vnt.

Trumpai apie prekę

Prekė: Tinklo jungiklis APER, 4x PoE prievadai, 2x uplink, 65 W, 2 vnt.. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Zintronic
• Modelis: APER

Switch POE dedicated for IP monitoring. The device is ideal for small and medium-sized monitoring systems.

It is a 6-port unmanaged 10/100Mbps switch that requires no configuration and provides 4 PoE ports. It has 1 port to support HI-POE 65W.

All 6 ports support automatic MDI/MDIX, which allows the use of any type of cable.

MAIN FEATURES OF THE PRODUCT:

• 4 ports 100Mbps RJ45
• 4 PoE ports 802.3 af/at
• (Port1) Support 803.3bt 60W Hi PoE
• Watchdog function
• PoE support: up to 30W per port
• Power supply 52V/1.25A
• Total power: 65W
• Long range PoE mode, up to 250m
• Support for VLAN port isolation

PURPOSE OF THE SWITCH:

• Switch APER enables up to 250 m of data and power transmission range for monitoring systems.
• No configuration is required.
• The high budget of PoE makes the device ideal for small and medium-sized monitoring systems.
• The automatic functions of this switch make installation and operation easy and hassle-free.

SKU: APER

• Number of ports: 6
• Network port: · 4 PoE ports 10/100Mbps RJ45 (port 1~port 4)
• Network port: 2 Uplink ports 10/100Mbs RJ45 (port 5~port 6)
• Switch type Unmanaged
• Network protocols: IEEE 802.3i, EEE 802.3u, IEEE 802.3x, IEEE 802.3af/at
• Poe standard: IEEE 802.3af/at/PoE++
• Power of one port: 15.4W
• Total power: 65W (PoE Port: 1～4)
• Throughput: 1.6 GBps
• Dimensions: 140x30x28mm
• Weight: 0.5kg
• Humidity: 10%~90% (non-condensing)
• Power supply: 52V/1.25A
• Producer: Zintronic

Polish manual

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	Zintronic
Parametry	Product weight with unit packaging	1 kg
Parametry	Number of ports	6
Parametry	Number of LAN (RJ-45) ports	6
Parametry	EAN (GTIN)	5903900678957
Parametry	Manufacturer code	APER
