Tinklo jungiklis Abart Pro, 4x 2,5GbE PoE, 2x 10GbE SFP+, valdomas L2 Web Smart

Trumpai apie prekę

Prekė: Tinklo jungiklis Abart Pro, 4x 2,5GbE PoE, 2x 10GbE SFP+, valdomas L2 Web Smart. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Abart Pro
• Modelis: ABP-SW4X25G2X10GMP

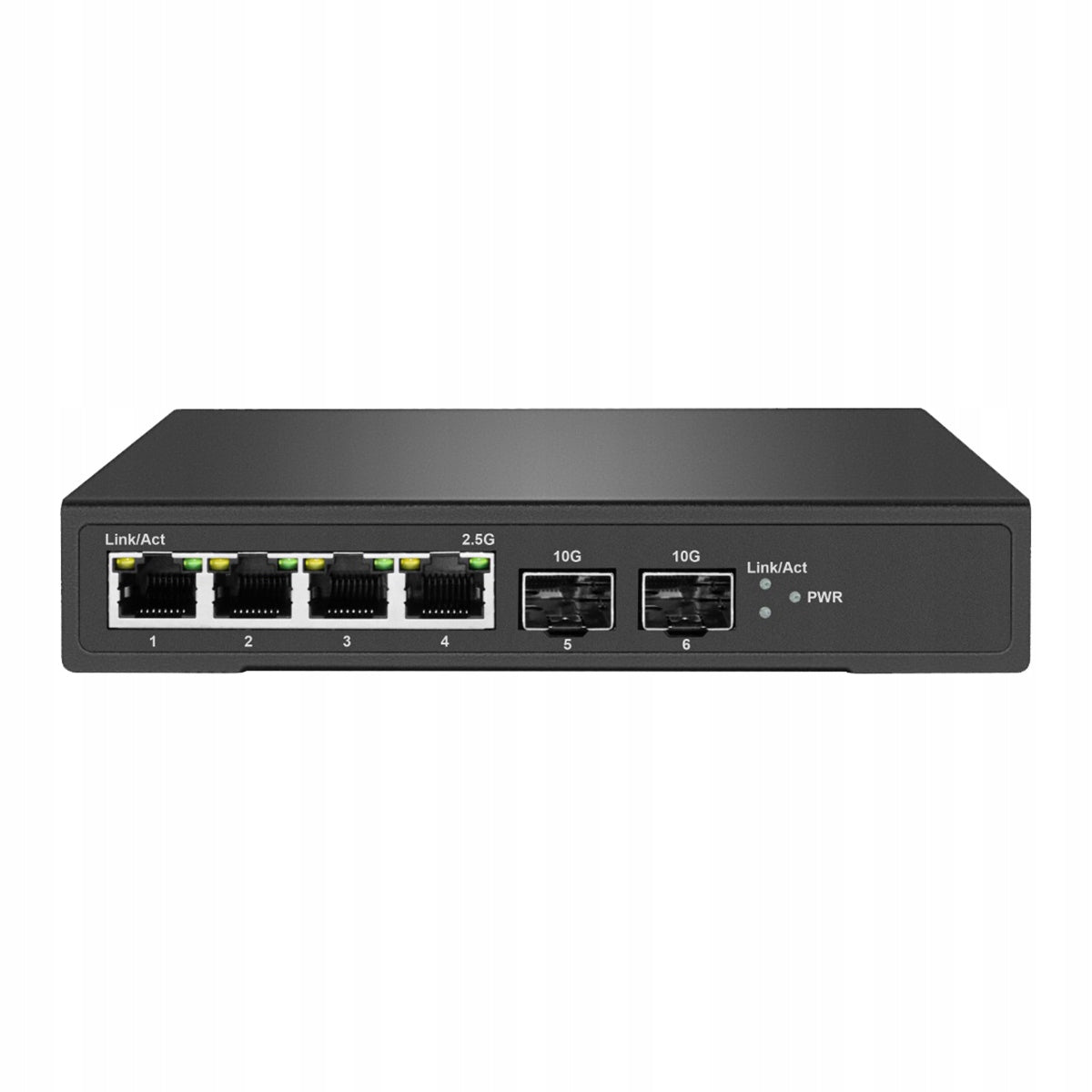

The Abart Pro ABP-SW4X25G2X10GMP Web Smart PoE is a 6-port network switch that is the perfect solution for upgrading your computer network to a high-performance, reliable, and manageable network that meets the demands of advanced users. The switch configuration is greatly simplified with the web-based user interface and its management tool. It has, among others, port aggregation and PoE functions in the 802.3at/a standard on all RJ45 2,5GbE ports.

Network administrators can effectively monitor network traffic using Port Mirroring and Cable Diagnostics. To optimize corporate network traffic, the Abart Pro ABP-SW4X25G2X10GMP Web Smart PoE switch offers Port-based/802.1p/DSCP QoS functionality, which provides smooth and interference-free latency-sensitive traffic.

In addition, port-based, tag-based and MTU VLAN features can improve security and meet more network segmentation requirements. The switch also has a port aggregation function, which is useful when connecting devices with several network ports to the network, such as: modern NAS servers.

Plus, with its innovative, energy-efficient technology, the ABP-SW4X25G2X10GMP can save up to 58% on energy, making it an eco-friendly solution for your corporate network.

Main features

• Support IEEE 802.3i, 802.3u, 802.3ab, 802.3z, 802.3x, 802.3at, 802.3af, 802.3az standards.
• Equipped with 4 RJ45 10/100/1000/2500M ports and 2 10G SFP+ slots.
• 4 POE ports support 802.3af/at standard, up to 30W per port, 60W PoE power.
• VLAN tag based on IEEE 802.1Q standard.
• Convenient and easy to use visual management via web interface.
• Supports 4K MAC addresses.

Technical specification

• Power supply: 54 V/1,2 A
• Standards: IEEE 802.3/802.3u/802.3ab/802.3bz/802.3x/802.3cb/802.3af/802.3at
• Ports: 4 RJ45 10/100/1000/2500 Mbps ports, 2 10G SFP slots
• LEDs: 4 connection/activity indicators 10/100/1000 Mbps, 4 connection/activity indicators 2,5 Gbps, power supply
• Network (cable carrier): 10Base-T: UTP cable category 3, 4, 5 (max. 100 m), 100Base-Tx: UTP cable category 5, 5e (max. 100 m), 1000Base-T: UTP cable category 5e, 6 (max. 100 m), 1G/2,5GBase-T: UTP Category 5e Cable, 6 (Max. 100 m)
• PoE ports: 4 802.3at/af standard POE
• Pin PoE: 1/2(+),3/6(-)
• PoE power 50 W
• Total power 64,8 W
• Transfer Method: Store-and-Forward
• MAC Address Table: 4K
• Switching bandwidth: 60 Gbps
• Packet forwarding speed: 44,64 Mpps
• Package Buffer: 8 Mbit
• Frame: Jumbo 10 KB
• Dimensions 160*95*30 mm
• Operating Temperature: 0℃ ~45℃ (0℉~113℉)
• Storage temperature: -40℃ ~70℃ (-40℉ ~158℉)
• Operating humidity: 10%~90% non-condensing
• Storage humidity: 5%~95% non-condensing

Software Features

L2 switching functions

• • IGMP Snooping
• • Link aggregation (Support static link aggregation)
• • Copy ports
• • Cable test

VLAN

• • Supports up to 32 VLANs (with 4K VLAN IDs)
• MTU/Port/802.1Q VLAN

Quality of Service (QoS)

• • Supports port/802.1p/DSCP based priorities
• • Supports 4 priority queues
• • Limiting bandwidth
• • Storm control

Management

• • Graphical user interface (GUI) based on the web
• • Smart-Configuration Utility

• Ethernet protocols

• IEEE 802.3 10BASE-T
• IEEE 802.3u 100BASE-TX/FX
• IEEE 802.3ab 1000BASE-T
• • IEEE 802.3x flow control
• • IEEE 802.1q VLANs/VLAN tagging
• IEEE 802.1p QoS
