Tinklo jungiklis 4x10GbE RJ45 + 4x10GbE SFP+, L3 valdomas, verslui

Trumpai apie prekę

Prekė: Tinklo jungiklis 4x10GbE RJ45 + 4x10GbE SFP+, L3 valdomas, verslui. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Abart Pro
• Modelis: ABP-SW10GM04C04F

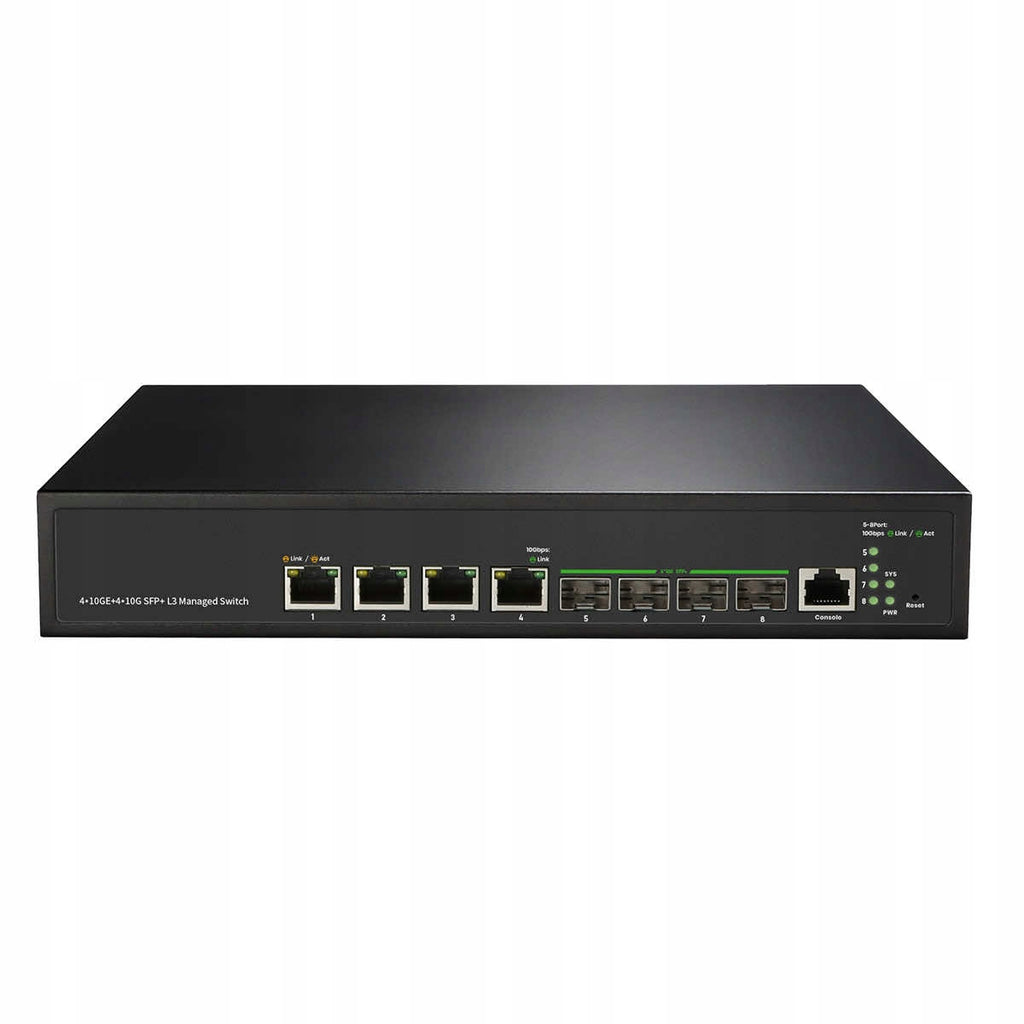

Abart Pro ABP-SW10GM04C04F is an 8-port, managed L3 10GbE network switch that provides the ideal solution for a small to medium-sized high-performance computer network that meets the requirements of advanced users. The switch configuration is greatly simplified with the web-based user interface and its management tool. With its extensive management features, the ABP-SW10GM04C04F switch is capable of providing high bandwidth to even the most demanding workgroups at the edge of the network, and in small networks, it can act as a backbone for Gigabit switches and high-speed servers. The ABP-SW10GM04C04F switch is equipped with 4 RJ45 10GbE ports and 4 SFP+ 10GbE ports.

The Abart Pro ABP-SW10GM04C04F network switch is designed to meet the network needs of growing businesses that require a fast, manageable, and stable computer network. It offers a wide range of management and security features. These devices are cost-effective for small and medium-sized businesses, providing ideal solutions for a variety of network scenarios.

Main features

• Supports IEEE 802.3i, 802.3u, 802.3ab, 802.3z, 802.3x standards.
• It has 4x 100M/1000M/2.5G/5G/10Gbps RJ45 ports and 4x 10G SFP+ ports.
• Supports automatic MAC address learning and automatic aging.
• It works in storage and forwarding mode.
• Supports QoS, port mirroring, link aggregation protocol.
• Fully metal housing.

Strong business process capabilities

• With IEEE 802.1Q VLAN support, VLANs can be flexibly divided as needed.
• It supports VLAN for voice, configures QoS parameters for voice data streams, increases the priority of voice data streams, and ensures call quality.
• It supports QoS, three priority modes based on Endpoint, 802.1P and DSCP, and four queue scheduling algorithms: Equ, SP, WRR and SP+WRR.
• It supports ACLs, according to matching rule configuration, action processing, and temporary packet filtering permissions, and provides flexible security access control policies.
• It supports the IGMP V1/V2 and IGMP Snooping multicast protocol for multi-station HD monitoring and video conferencing access.
• It supports VLAN multicasting and multicast filtering for efficient data transmission, saving network bandwidth and reducing network load.
• It supports port monitoring by copying packet copies of the monitored port to the monitoring port to enable network monitoring.

Complete safety protection mechanism

• It supports quad-linking of IP address, MAC address, VLAN and port to filter packets.
• It supports ARP protection against ARP spoofing and ARP flooding attacks, such as grid spoofing and indirect attacks, which are common in local area networks.
• It supports IP source protection to prevent illegal address spoofing, including MAC spoofing, IP spoofing, and MAC/IP spoofing.
• It supports 802.1X authentication, which provides authentication for local network computers and controls the authorization status of controlled endpoints based on authentication results.
• Supports port security and stops the learning process when the maximum number of MAC addresses is reached to prevent attacks on MAC addresses and control the flow of port networks

Various reliability protection

• It supports STP/RSTP/MSTP spanning tree protocols, eliminating Layer 2 loops and enabling link backups.
• It supports spanning tree security to prevent any form of malicious attacks on devices on the spanning tree network.
• Static and dynamic aggregation is supported to effectively increase bandwidth, achieve load balancing, back up links, and improve link reliability.

Easy operation and maintenance

• It supports various management and maintenance methods such as Internet management, CLI commands (console, Telnet) and SNMP (V1/V2/V3).
• Supports HTTPS, SSL V3, TLSV1, SSHV1/V2 encryption for more secure management.
• RMON, system logs and end-to-end traffic statistics for network optimization and transformation.
• It supports cable detection, Ping detection, and Tracert detection, making it easy to analyze faulty network nodes.
• It supports the LLDP protocol to make it easier for the network management system to check and evaluate the status of link communications.
• It supports CPU monitoring, memory monitoring, operational and time permissions, and provides a flexible access control strategy.

Technical specification

• AC power supply 100 – 240 V 50/60 Hz
• Standards: IEEE 802.3/802.3u/802.3ab/802.3bz/802.3x/802.3cb/802.3an
• 4 x 100M/1000M/2.5G/5G/10Gbps ports, 4x 10Gbps SFP+, 1 console port
• Indicators (LEDs): connection/activity indicators, 10G speed indicators, power indicator, system operation indicator.
• Media network (cable): 100BASE-TX: UTP/STP category 5 or higher (max. 100 m), 1000BASE-T: UTP/STP category 5e or higher (max. 100 m), 2,5GBASE-T: UTP/STP category 5e or higher (max. 100 m), 5GBASE-T: UTP/STP category 5e or higher (max. 100 m), 10GBASE-T: UTP category 6 (max. 55 m) or STP category 7 (max. 100 m), 1000Base-X:MMF,SMF
• Transfer Method: Storage and Transfer
• MAC Address Table: 16K
• Switching capacity: 160 Gbps
• Packet forwarding speed: 119,04 Mpps
• Buffer 12 Mbit
• Jumbo frame: 12 KB
• Dimensions 271*182*45 mm
• Operating Temperature: 0℃ ~45℃ (0℉~113℉)
• Storage temperature: -40℃ ~70℃ (-40℉ ~158℉)
• Operating humidity: 10%~90% non-condensing
• Storage humidity: 5%~95% non-condensing

Programme functions

• L3 Switching Features
• • Static Routing (IPv4/IPv6)
• Address Resolution Protocol (Static ARP)
• L2 Switching Features
• • 16K MAC Address Table
• • 12K Jumbo Frame
• Flow Control (802.3x (Full-duplex), Back-Pressure (Half-duplex))
• • Spanning Tree
• - IEEE 802.1D (STP)
• IEEE 802.1w (RSTP)
• IEEE 802.1s (MSTP)/16 instances
• - Auto Edge Port
• - BPDU Filtering
• - ERPS
• • Link Aggregation
• IEEE 802.3ad LACP
• - Static Trunk
• Max 8 Group
• Max 8 Ports/Group
• - Traffic Load Balancing
• VLAN
• • Surveillance VLAN
• 16 OUI Mode (Auto/Manual)
• • Voice VLAN
• 16 OUI Mode (Auto/Manual)
• QinQ (IEEE 802.1ad)
• - Basic
• GARP VLAN Registration Protocol (GVRP)
• 4096 Static VLAN/Port-based
• IEEE 802.1Q Tagged-based
• • 8 groups Protocol-based
• • 256 MAC-based
• Multicast
• • Common
• 256 Multicast Groups
• - Immediate Leave
• - Static/Forbidden Router Port
• - Static/Forbidden Forward Port
• - 128 profiles Filtering
• - Throttling
• • IGMP Snooping
• - IGMP v1/v2
• - IGMP v3 Basic (BISS)
• - IGMP v2/v3 Querier
• • MLD Snooping
• - MLD v1/v2
• Multicast VLAN Registration (MVR)
• - IPv4
• Quality of Service (QoS)
• Trusted QoS/Priority 8 Queue
• • Queue Scheduling
• - WRR
• - WFQ
• - Strict Pripority
• Hybrid(WRR+SP or WFQ+SP)
• • Class of Service
• - Port-based
• - 802.1p
• - IP TOS Precedence
• - IP DSCP
• • Rate Limit
• - Port-based (Ingress/Egress)
• Access Control List (ACL)
• • ACL Type
• - L2/L3/L4
• 512 MAC-based
• 512 IPv4-based
• 512 IPv6-based
• • Access Rules
• - 1024
• Security
• • AAA Authentication
• • 8 TRAYS+
• • 8 RADIUS
• • Authentication Manager
• - IEEE 802.1X
• - MAC Auth
• - Web Auth
• - Guest VLAN
• - Port-based
• - Host-based
• • Account Manager
• - Local Authenticatoin
• 8 Multiple User Accounts
• - Multi-Level Securiy (Manager/Operator)
• Password Recovery Procedures
• • Management Access
• - Management VLAN
• 256Management ACL
• • SSL
• - SSLv2
• - SSLv3
• - TLSv1
• • WebUI
• - HTTPS
• • CLI
• - SSH v1/v2
• • Port Security
• 256 Dynamic Lock
• • Storm Control
• - Broadcast
• - Unknown Multicast
• - Unknown Unicast
• • Spanning Tree
• - BPDU Guard
• Protected Port (Port Isolation)
• • Black Hole MAC
• • CPU Defence Engine
• • DoS Prevention
• DHCP Snooping (with Option 82)
• Dynamic ARP Inspection
• 256 IP Source Guard
• IP/MAC/Port Binding (IMPB)
• Dynamic VLAN Assignment
• IPv6
• • IPv6 Host
• - Auto Configuration
• - Static IPv6 Address and Prefix Length
• - Static IPv6 Default Gateway
• - IPv6 Neighbor Discovery (ND)
• - IPv6 Duplicate Address Detection
• - ICMPv6
• • IPv6 Application
• - HTTP/HTTPS
• - TELNET
• - SSH
• - SNMP
• - TFTP
• - Syslog
• - PING
• - DHCPv6
• Management
• • CLI
• - 3 sessions Console
• 3 sessions Telnet (RFC854)
• • WebUI
• - HTTPS
• • SNMP(v1,v2c,v3)
• • File Management
• - Firmware Upgrade/Backup
• - Dual Images
• - Configuration Download/Backup
• - Multiple Configurations
• • Upload/Download
• TFTP (RFC783)
• - HTTP
• - UART
• • Time Management
• - Local
• - SNTP
• • Port Management
• - Friendly Port Name (Port Description)
• - Error Disabled Recovery
• • Line Management
• - Console
• Telnet (RFC854)
• - SSH v1/v2
• • DHCP
• - Client
• • DNS
• - Client
• • Software Reset Button
• IEEE (802.3az)
• • 32 entries / type RMON Management
• Discovery
• IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
• ANSI/TIA-1057 LLDP Media Endpoint Discovery (LLDP-MED)
• Diagnostics
• • UDLD
• • Mirroring
• - 4 sessions port-based (Many to One)
• • Syslog (RFC3164)
• - Local RAM
• - Local Flash
• 8 Remote Server
• • Diagnostics system
• - CPU Utilization
• - Memory Utilization
• - Port Utilization
• Technical Support Log
• • Port Diagnostics
• - Cable Test
• - Fiber Module Status
• • Network Diagnostics
• - Ping Test
• - Traceroute
• MIB
• RFC1213 MIBII (System & Interface groups)
• RFC2819 RMON I (1,2,3, & 9 groups)
• RFC1215 Generic Traps
• RFC1493 Bridge
• RFC2674 Bridge MIB Extensions
• RFC2737 Entity
• • RFC3635 Ethernet-Like
• RFC2863 Interface Group
• • SNMP-Community-MIB
• • SNMPv3-MIB
