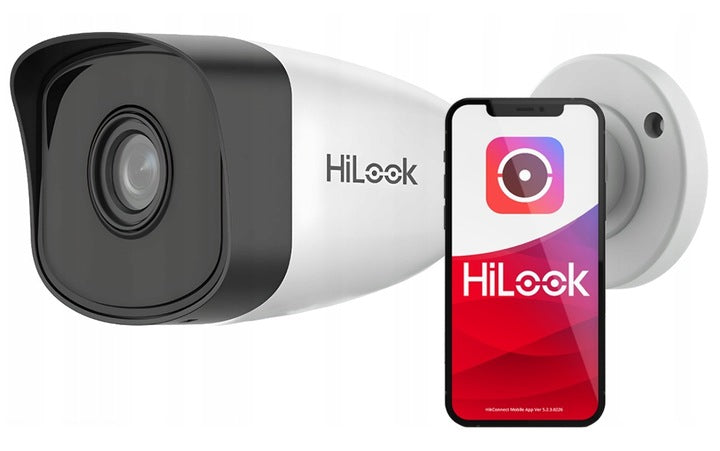

Tinklo IP kamera HiLook IPCAM-B2, IR apšvietimas 30 m, H.265+, IP67

Trumpai apie prekę

Prekė: Tinklo IP kamera HiLook IPCAM-B2, IR apšvietimas 30 m, H.265+, IP67. Kategorija: IP kameros.

• Gamintojas: HiLook
• Modelis: IPCAM-B2+DS-1280ZJ-XS

IP / 2Mpx / 2.8mm / IR30m / IP67 / H.265 / PoE

IPCAM-B2 is an ergonomic IP CCTV camera dedicated to small and medium-sized surveillance cameras in locations such as a home, business or store.

The camera generates high-quality images in FullHD 1080p quality and has a motion detection function, allowing you to send motion notifications directly to the user.

Most important features:

• High resolution image in FullHD - 1920x1080 pixels
• IP67 sealed housing,
• IR illuminator with a range of 30 meters
• Easy installation and operation
• PoE power supply

• Converter: 1/2.8” 2MPx
• Image resolution: 1920x1080p
• Lens: wide-angle 2,8 mm
• Image compression: H.265, H.264+, H.264, MJPEG
• Double Stream: Yes
• Wide dynamic range: DWDR
• Digital Noise Cancellation: Yes - 3D DNR
• Infrared range: up to 30 m
• P2P(cloud) support: Yes - a feature that allows remote access without port forwarding and public IP address
• Support in mobile app HiLook App: Yes
• Assembly: external or internal
• Power Supply: 12v orPoE
• Protection class: IP67

The adapter allows you to hide cable connections, protecting them from exposure to harsh weather conditions, such as humidity, temperature, and precipitation.

In addition, it protects cable connections from access by unauthorized persons to work with the camera installed.

• Color: White
• Material: Aluminium
• Dimensions: Ø137×53,4mm
• Weight: 530g
• Max capacity: 4.5kg
• Mounting: wall, ceiling
• Application: internal, external

Includes mounting screws and opening template.

HiLook monitoring systems can be controlled, configured and operated using the intuitive mobile application HiLook App for smartphones and tablets and the iVMS-4200 program for PCs. Thanks to this, the user has constant control and supervision over the monitored space from anywhere on earth with access to the network. The application and program allow you to:

• live image preview
• remote playback of recordings
• creating motion detection scenarios and rules
• control of rotary cameras
• receiving notifications about events within the system

The application uses the P2P cloud, so that the system does not have to have redirected ports on the router.

The IPCAM-B2 model has a built-in motion detection algorithm - when detecting moving objects on stage, the camera can send an alarm notification to the program and application.

What’s more, recording in motion detection mode, the camera allows you to save a very large amount of space on the hard drive, which positively affects its lifespan.

The camera is equipped with automatic night mode - this means that when the ambient lighting drops, the camera goes into black and white mode, supported by an infrared illuminator with a range of 30m.

This function allows you to record images via 24/7 in any lighting conditions.

The camera uses an efficient image compression standard, designated H.265. This standard is a direct successor to the popular H.264 technology and allows for almost double the bandwidth load. This translates into significant space saving on the hard disk and extending the archiving time of recordings on the disk.

Optics

• Converter: 1/2.7" CMOS Progressive Scan
• Transmission standard: IP
• Maximum resolution: 2Mpx @1920x1080
• Sensitivity: 0.01 Lux (colour, AGC ON), 0 Lux at IR
• Shutter speed: 1/3 s to 1/100,000 s
• Slow shutter mode: supported
• Auto-Iris: N / A
• Focus: N / A
• Lens: 2.8 mm (optional 4mm)
• Recording angle (horizontally): horizontal FOV 112.1°, vertical FOV 60.0°, diagonal FOV 132.2°
• Head adjustment range: Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°

IR illuminator

• IR range: IR wavelength
• up to 30m: 850nm

Image compression

• Video compression: Main stream: H.265/ H.264Auxiliary stream: H.265/H.264/MJPEG
• H.264: Base Profile/ Main Profile/ High Profile
• H.264+: Main stream
• H.265: Main profile
• H.265+: Main stream
• Video Bitrate: 32 Kbps to 8 Mbps


• Main stream - max. frame rate: 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
• Auxiliary stream - max. frame rate: 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
• Image functions: BLC, 3D-DNR, D-WDR
• Image settings: Saturation, exposure, contrast, sharpness, AGC, white balance
• Day/night mode: automatic / manual switching
• Motion detection: Yes

Network

• Network interface: 1x RJ45 Ethernet 10/100 Mbps self-adaptive
• Network protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
• Compatibility: ONVIF, ISAPI
• Selected functions: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
• Simultaneous preview: up to 6 channels
• Alarm trigger: Motion detection, video sabotage, unauthorized login
• Number of users/hosts: up to 32 users3 permission levels: Administrator, Operator, User
• Customer software: iVMS-4200 (lite), HiLook App, iVMS-5200
• Supported browsers WEB: IE10+, Chrome 57.0+, Firefox 52.0+

General

• Power supply: 12 VDC or PoE (802.3af, Class 3)
• Power consumption: Max: 5W
• Material: metal + plastic
• Protection class: IP67
• Temp. work / Permissible humidity: -30 °C to 60 °C, < 95% (non-condensing)
• Dimensions: 186.3 mm × 71.4 mm × 66.7 mm
• Weight: 270g
