Tinklo ilginys EXT-POE2 PULSAR

Kaina:
€115,21
Sandėlys:
Yra sandėlyje

Trumpai apie prekę

Prekė: Tinklo ilginys EXT-POE2 PULSAR. Kategorija: Jungikliai ir koncentratoriai.

  • Gamintojas: Pulsar
  • Modelis: 569554755

Features of the device:

  • Input voltage range 44÷57VDC
  • Power supply from PoE switch
  • IEEE802.3af/at compliant PoE IN input
  • OUT1/2 PoE outputs compliant with IEEE802.3af standard
  • Increases Ethernet data range and PoE power by another 100 meters
  • Designed to work in 10/100Mbps networks
  • Optical signaling of operating status
  • Security: overvoltage (PoE input) overload OLP short-circuit SCP

Description:

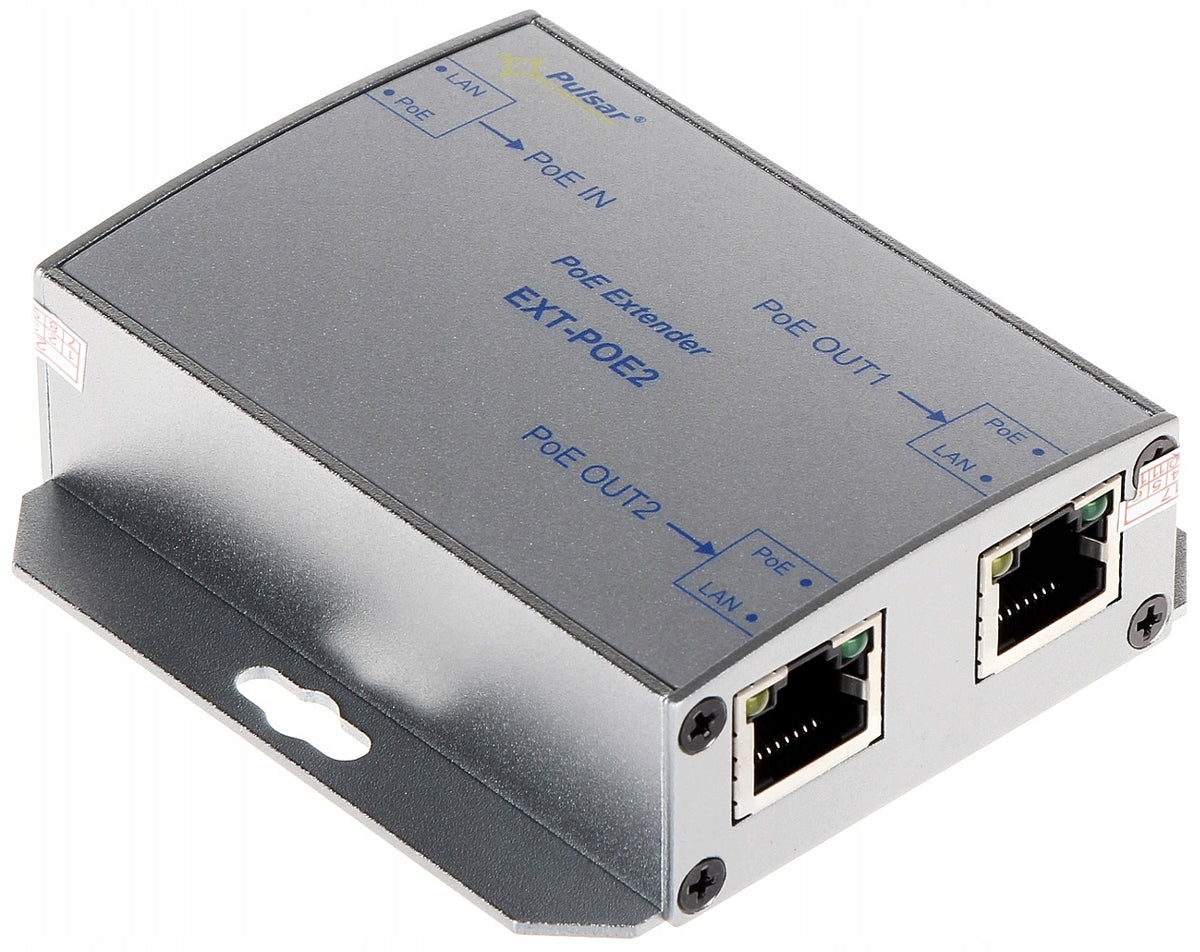

Extender EXT-POE2 is a device designed to increase the transmission distance of PoE power and Ethernet data using UTP cat. 5/5e for another 100m.

The extender is powered from a PoE switch or other PoE-compliant device (PoE IN input). Output voltage and data are available on PoE OUT1, PoE OUT2 outputs to which cameras or other IP devices using PoE power must be connected.

The maximum load current is 0,4A (0,3A/port). For power transmission on PoE OUT1, PoE OUT2 ports, 4/5 (+) 7/8(-) pairs are used, which according to the Ethernet standard are not used for data transmission (data transmission is carried out using 1/2 and 3/6 pairs).

Technical specification:

  • Power Supply:Compliant with 802.3af (44 ÷ 57VDC)
  • Current consumption of module circuits: < 30mA
  • Module power: 20W max.
  • Output voltage: Compatible with 802.3af
  • Output current: 0,3A/port (S=0,4A max.)
  • Input power pairs PoE IN: 1/2 (+) 3/6 (-) or 4/5 (+) 7/8 (-)
  • Output PoE OUT1/2 power pairs: 4/5 (+) 7/8 (-)
  • OLP overload protection; SCP short-circuit protection: 105% ÷ 150% of rated output current, automatic return
  • Optical operating signal: LED LAN (yellow) – LAN connection status; LED PoE (green) – presence of voltage on the I/O. power supply
  • Working conditions: II environmental class, -10°C ÷40°C
  • Dimensions: 81 x 77 x 26 [mm]
  • Mounting: Mounting screws x2 (holes Ø 6mm)
  • Connectors: - I/O. PoE: RJ45 8P8C
  • Net/gross weight: 0,33kg / 0,38kg
  • Storage temperature: -20ºC...+60ºC
  • Declarations: CE, RoHS

Specifications

Group Name Value
Parametry Condition new
Parametry Invoice With VAT invoice
Parametry Manufacturer Pulsar
Parametry Number of ports 3
Parametry EAN (GTIN) 5908066380317
Parametry Manufacturer code 569554755
