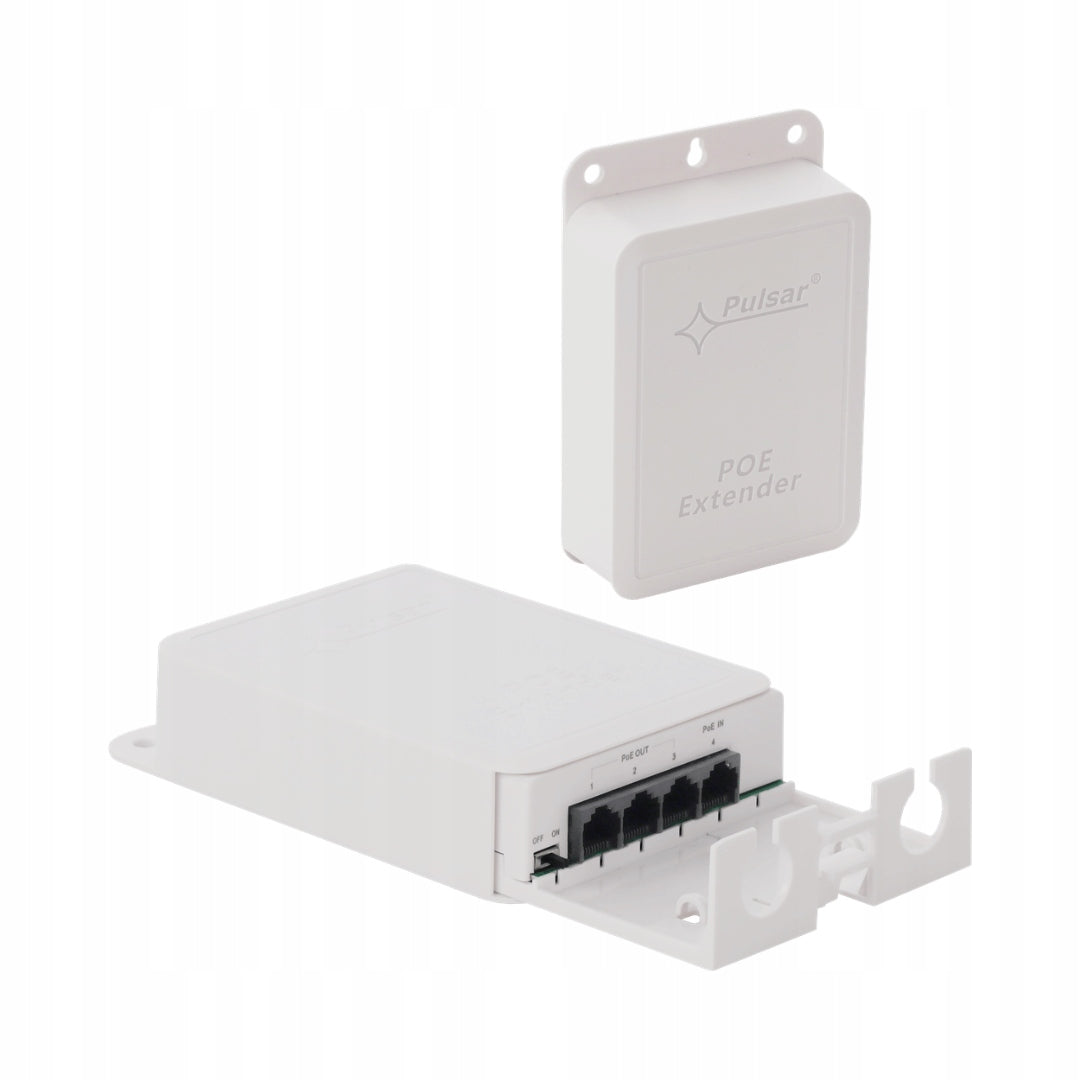

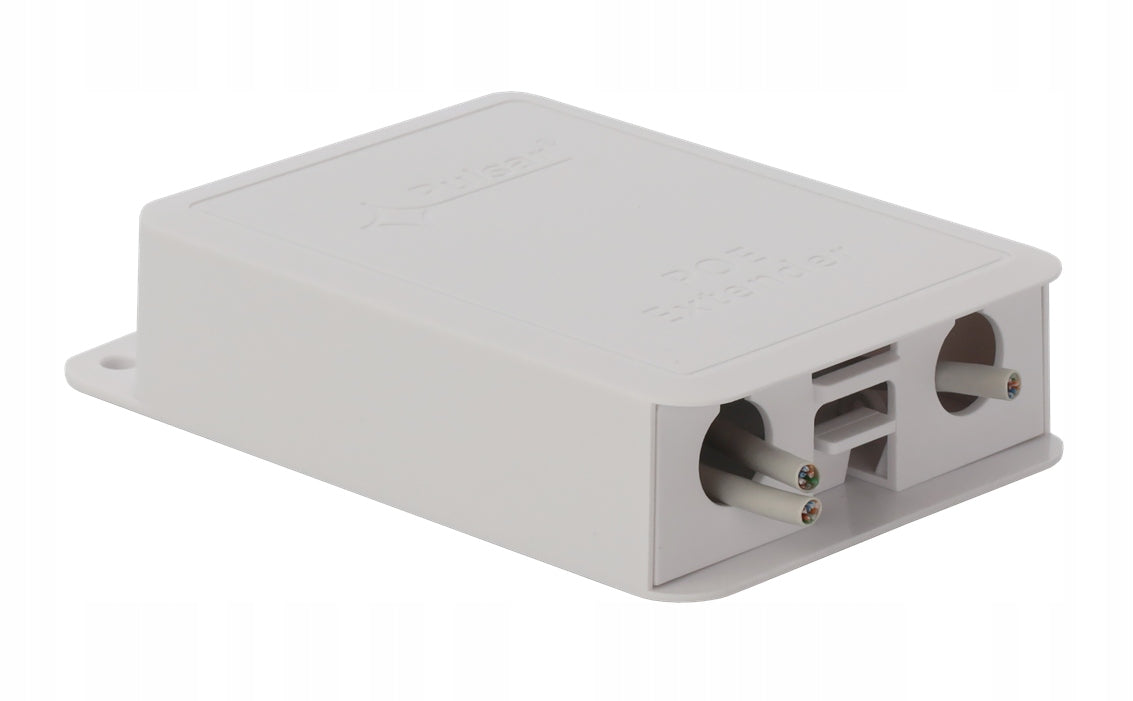

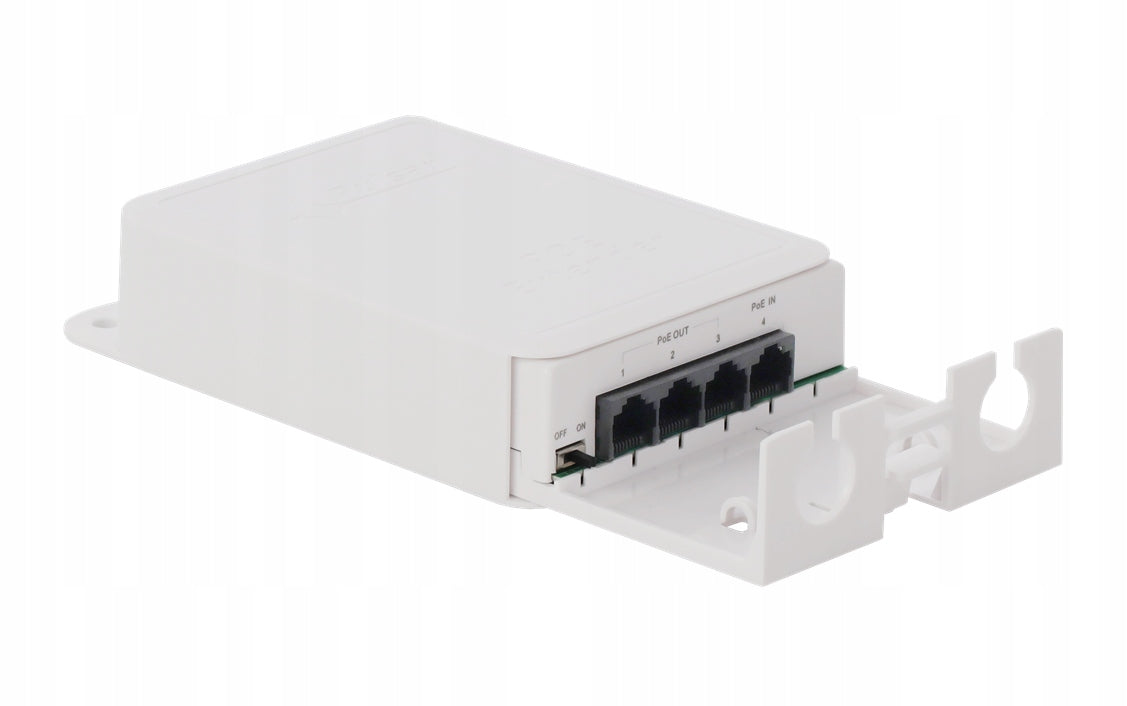

Tinklo ilgintuvas PULSAR EXT-POE3-OTD, išorinis

Trumpai apie prekę

Prekė: Tinklo ilgintuvas PULSAR EXT-POE3-OTD, išorinis. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Pulsar
• Modelis: EXT-POE3-OTD

Extender EXT-POE3-OTD is a device designed to increase the transmission distance of PoE power supply and Ethernet data using UTP cat. 5/5e for another 100m. The extender is powered from a PoE switch or other device compliant with the PoE standard (PoE IN input). Output voltage and data are available on PoE OUT 1 – 3 outputs, to which cameras or other IP devices using PoE power supply should be connected.

Technical parameters:

• Power supply - Compatible with 802.3af/at (48 – 57 V DC)
• Power consumption by module circuits - < 20mA
• Module power - 25 W max.
• Ports - 4 ports 10/100 Mbps (1 x PoE IN + 3 x PoE OUT) with automatic connection speed negotiation, Auto MDI/MDIX automatic patching)
• Output voltage - Compliant with 802.3af/at
• Output current - 0,5A/port (∑=0,5A max.)
• Input power pairs PoE IN -1/2 (+) 3/6(-)

-4/5 (+) 7/8 (-)

• Output PoE power pairs OUT 1 – 3 - 1/2 (+) 3/6(-)
• OLP overload protection
• SCP short-circuit protection 105% – 150% of rated output current, automatic return
• Optical operating signal:

LEDs (green) Ports 1 – 4:

Lights up - connected device 10/100 Mbps

Pulses - data transmission

Power Supply:

Lights up - the device is powered

Does not light up - no power

• Working conditions - -10ºC – +50ºC
• Dimensions(LxWxH) - 98 x 35 x 149 [+/- 2mm]
• Attachment - Mounting screws x2 (76mm spacing)
• Connections: I/O. POE - RJ45 8P8C
• Net weight/gross - 0,15 / 0,18 [kg]
• Storage temperature - -20ºC...+60ºC
• Declarations, warranty - CE, RoHS, 2 years

Extender is intended for installation by a qualified installer with appropriate (required and necessary for a given country) permits and permissions to connect (interference) to low-voltage installations. The device is recommended to be installed in a place protected from direct weather conditions and high sunlight with temperatures in the range of -10°C to +50°C.

The device is designed to work in Ethernet networks with a bandwidth of 10 Mb/s or 100 Mb/s. Connections between the extender and the network device should be made with a cable category min. UTP CAT.5e.
