Tinklo adapteris Sonnet Solo 10G Thunderbolt į 10GbE Base-T Ethernet

Trumpai apie prekę

Prekė: Tinklo adapteris Sonnet Solo 10G Thunderbolt į 10GbE Base-T Ethernet. Kategorija: Tinklo plokštės.

• Gamintojas: Sonnet Solo
• Modelis: SOLO10G-TB3

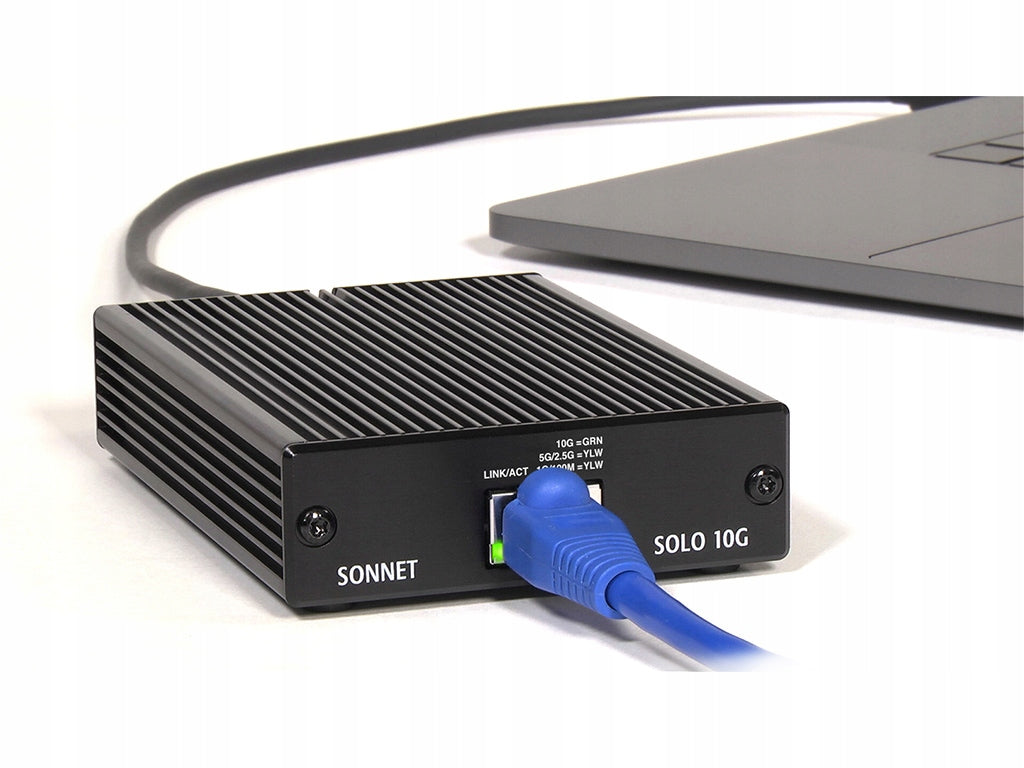

Sonnet Solo 10G Thunderbolt 3 to 10Gb Base-T Ethernet Adapter

External Sonnet adapter from Thunderbolt 3 (USB-C) to 10GBase-T Ethernet (RJ-45)

In recent years, content creation and production has quickly shifted from HD to 4K and beyond, making 10Gb Ethernet the new standard for data transfer for post-production workgroups, storage and other bandwidth-intensive jobs. Very affordable 10 Gbps Ethernet switches in RJ45 standard have significantly reduced the cost of 10 GbE infrastructure configuration. Even the new iMac Pro™ includes 10 Gb Ethernet as the standard network interface. Now, for computers with a Thunderbolt™ 3 port, an equally affordable Thunderbolt 3 to 10Gb Ethernet adapter is available - the Sonnet Solo 10G ™ Thunderbolt 3 Edition Adapter This is an extremely simple solution that adds incredibly fast 10GBASE-T 10GbE network connectivity to any Mac® or Windows®1o computer with Thunderbolt 3 ports.

The Solo 10G adapter is equipped with a single RJ45 socket, which allows you to connect to a 10GbE infrastructure using inexpensive CAT 6 or CAT 6A copper cabling at distances of up to 55 or 100 meters.

Support for AVB

Support for audio-video bridging (IEEE 802.1Qav, AVB) makes the adapter ideal for use in professional audio and video applications where synchronization of data streams is crucial.

Key features

• Adds 10GBASE-T 10GbE connectivity - Adds RJ45 10 Gigabit Ethernet port to computer with Thunderbolt 3 ports

• Cost-effective - cheap adapter connects to 10GbE infrastructure using inexpensive CAT 6 or CAT 6A cables at distances of up to 55 or 100 meters, respectively

• Thunderbolt 3 40 Gbps interface - connects to any Thunderbolt 3 computer port or at the end of the Thunderbolt 3 device chain

• Supports NBASE-T standard - 5 Gbps 2,5 Gbps speeds supported by inexpensive CAT 5e cabling (or better) up to 100 meters away using a switch or multi-Gigabit router

• Advanced Features - Supports audio-video bridging (IEEE 802.1Qav, AVB) and energy-saving Ethernet (IEEE 802.3az)

• Easy setup - configured via macOS Network Control Panel or Windows Device Manager

• Small and quiet - the adapter can be tucked into your pocket and does not use a fan, ideal for use in noise-sensitive environments

• Bus powered, energy efficient - powered by Thunderbolt connector, Solo 10G does not require a power supply

• Durable construction - aluminum housing withstands heavy use

• Thunderbolt certified for Mac and Windows

Technical specification

• Sonnet product code: SOLO10G-TB3

• Standard: Thunderbolt 3 adapter

• External connectors: One RJ45 socket

• 10GbE Controller: Aquantia AQC-107S

• Network support:

10GBASE-T

- 100 meters using CAT 6A cabling

- 55 meters using CAT 6CAT 6 cabling

5 GBASE-T, 2,5 GBASE-T4, 1000BASE-T4, 100BASE-TX

- 100 meters using CAT 5e cabling (or better)

• Packages: Maximum packet size: 16352 bytes (large frames), 9000 bytes in macOS®

• Supported data speeds: 10 Gbps, 5 Gbps, 2,5 Gbps, 1 Gbps, 100 Mbps

• Advanced features

- Flow control support

- MSI (interrupts signaled by a message)

- RSS (scaling on the receiving side)

- Ability to interrupt connection

- Multicast filtering

- Energy-saving Ethernet (IEEE 802.3az)

- AVB (IEEE 802.1Qav, audio-video bridging)

- Supports 64-bit addresses for systems that use more than 4 GB of physical memory

• Stateless relief

- Offload TCP, UDP and IPv4 checksum

- TSP (TCP segmentation offload, AKA high sending offload)

- LRO (Large Receive Offload)

- RSS (receiver side scaling)

• Operating temperature: 0ºC to 35ºC (32ºF to 95ºF)

• Dimensions (W) X D. X H ): 3.1 x 4.5 x 1.1 inch (79.5 x 114 x 27.2 mm)

• Weight: 0,54 lbs. (0,24 kg)

• RoHS Compliant: Yes

• Package Contents:

- Solo 10G Thunderbolt 3 Edition, 10GBASE-T/NBASE-T Ethernet Thunderbolt 3 Adapter with Built-in 0,5 Meter Thunderbolt 3 Cable (40Gbps)

- Documentation
