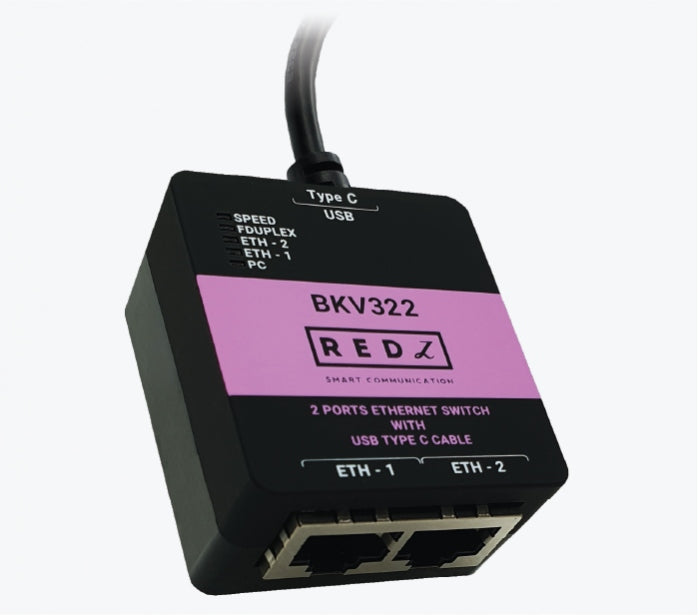

Tinklo adapteris REDZ BKV322 su USB-C, 2 Ethernet jungtys

Trumpai apie prekę

Prekė: Tinklo adapteris REDZ BKV322 su USB-C, 2 Ethernet jungtys. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: no brand
• Modelis: REDZ-BKV-322

BKV322 is a compact device that allows you to connect two Ethernet network devices to a computer or control system via the USB 2.0 Type-C port. The device acts as a 2-port Ethernet switch, allowing you to extend the communication capabilities of your computer or industrial device.

The converter is equipped with two Ethernet ports 10/100Base-T(X) and a USB Type-C cable with a length of 3 m, which allows convenient connection to laptops and computers equipped with a USB-C port.

The device can be used in industrial automation systems, telemetry, measurement systems and integration of network devices.

• conversion USB 2.0 → 2-port Ethernet Switch
• 2 Ethernet ports 10/100Base-T(X)
• Full-Duplex and Half-Duplex support
• automatic detection of MDI / MDI-X
• USB Type-C cable – length 3 m
• built-in LEDs indicating operating status

USB

• Compatible with Hi-Speed USB 2.0
• Support for modes:

  HS – 480 Mbps

  FS – 12 Mbps

Ethernet

• 2 RJ45 10/100 Mbps ports
• Compliance with standards:

  IEEE 802.3

  IEEE 802.3u

Supported network standards

• 10BASE-T
• 100BASE-TX
• Support for Full-Duplex and Half-Duplex

The device has LEDs informing about the operating status:

SPEED LED

• LED on – 100 Mbps connection
• LED off – 10 Mbps connection

FDUPLEX LED

• LED on – Full-Duplex mode
• LED off – Half-Duplex mode

ETH1 / ETH2 LED

• lights up during the activity of a given Ethernet port

PC LED

• lights up when the device is connected to the computer via USB and is powered

The device can be used in:

• Industrial automation systems
• Measurement and telemetry systems
• integration of network devices
• IoT systems and monitoring
• diagnostic and service installations

Specifications
