Tinklo adapteris AXAGON HMC-6M2 USB-C 3.2 Gen 1 šakotuvas

Trumpai apie prekę

Prekė: Tinklo adapteris AXAGON HMC-6M2 USB-C 3.2 Gen 1 šakotuvas. Kategorija: USB šakotuvai.

• Gamintojas: Axagon
• Modelis: HMC-6M2

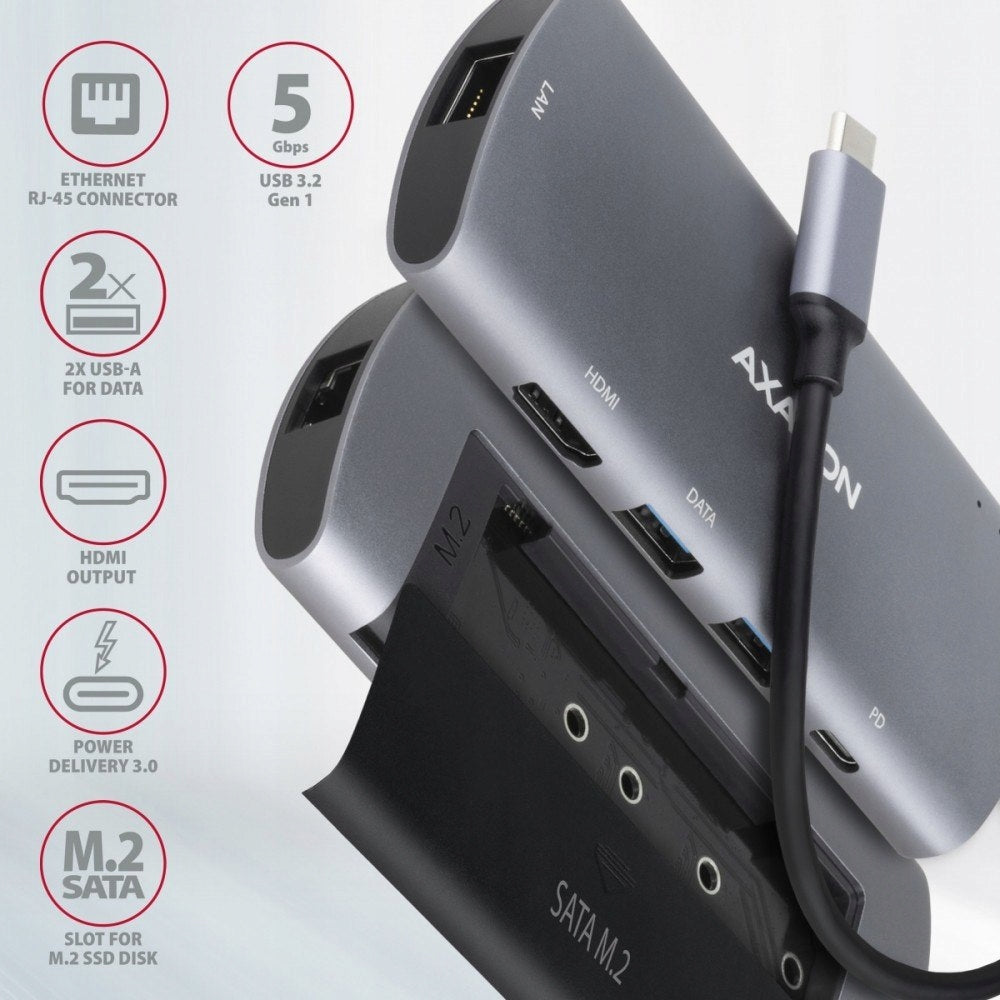

AXAGON Network card HMC-6M2 USB-C 3.2 Gen 1 hub w. M.2 SATA + HDMI + GLAN + 2x USB-A + PD 100W

The multiport USB-C 3.2 Gen 1 AXAGON HMC-6M2 COMBO 6in1 hub extends the functionality of your laptop, computer or phone with four ports and an external M.2 drive enclosure.

You can easily and quickly connect two USB devices to your computer at the same time, Gigabit Ethernet, HDMI display and SATA M.2 SSD using a double-sided USB-C connector. You can also power your laptop with Power Delivery technology. The USB-C hub will provide a simple and compact 6in1 docking station for notebooks like the MacBook Pro.

The USB hub offers two USB ports with standard USB-A connectors. The hub can also support a constant connection of two external drives at the same time. With its high-speed USB 3.2 Gen 1 interface, the transfer is supported at speeds up to 5Gb/s.

The USB-C connector is dedicated to power a laptop or mobile phone using Power Delivery 3.0 technology with power up to 100W. Connect the USB-C Power Delivery charger to the hub and connect it to your laptop. You save one port. The condition is a laptop with Power Delivery charging support from the USB-C port and a compatible PD charger.

HDMI output delivers high-quality images with up to 4K/30Hz Ultra HD resolution and support for multi-channel audio transmission. A USB-C or Thunderbolt 3 port with DisplayPort Alternate Mode (DP Alt Mode) support is required to properly support video output.

Gigabit network card extends the computer with a fast and stable network connection, adds the missing RJ-45 network connector, or other network card. The network adapter is compatible with 10/100/1000 Mbit/s speeds and offers a wide range of features such as IPv4/IPv6 checksum, crossover detection and auto-correction, Wake-on-LAN, VLAN support, or advanced power management features.

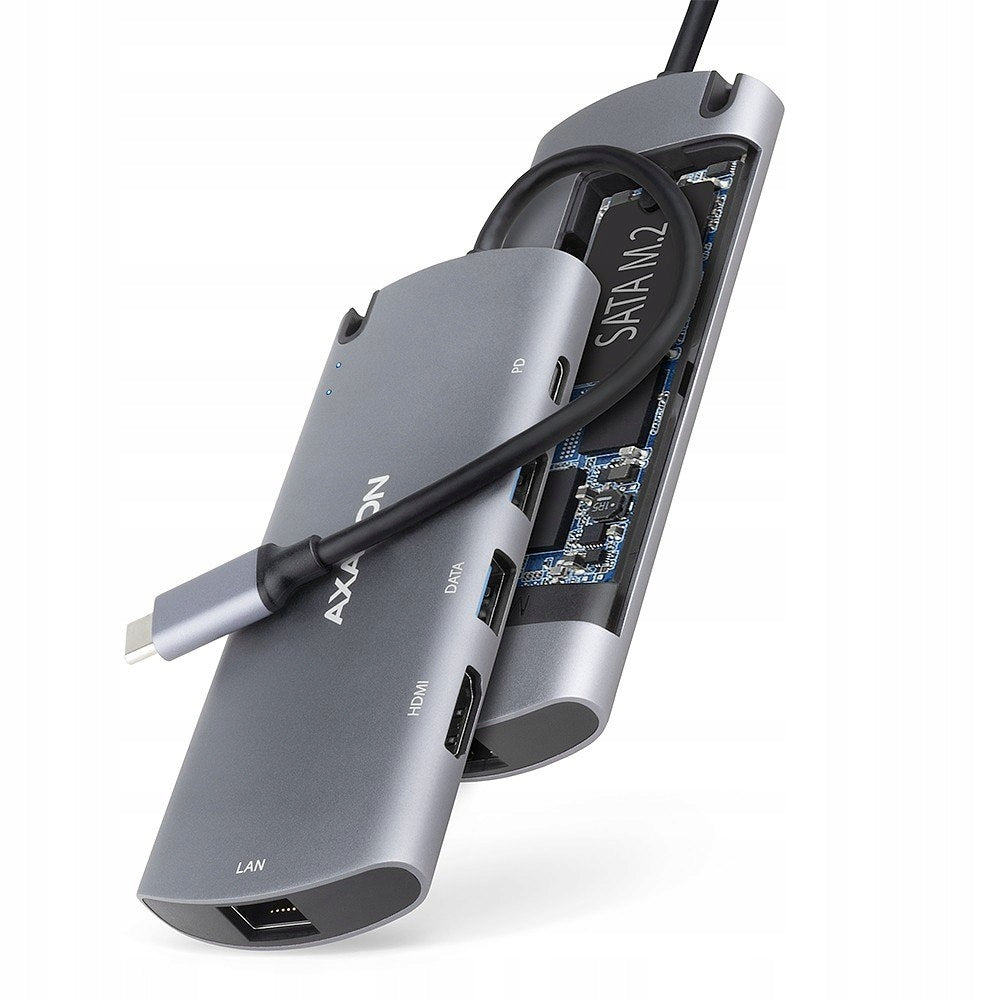

With a built-in slot on the back, you can also connect a SATA M.2 SSD. The multiport hub thus becomes an external drive. M.2 cards can be single-sided or double-sided, up to a size of 22x80 mm. The M.2 external enclosure has no capacity limitations for SSDs and supports modern features such as TRIM.

The elegant aluminum housing provides mechanical resistance and high-quality cooling. The perfectly finished surface on which fingerprints are invisible will delight you. The Port Replicator is the perfect accessory for laptops with a small number of USB-A ports, a card reader, and video output. Fixed USB-C cable with a length of 18 cm.

You can use USB peripherals that you already own instead of buying new ones. Thanks to Plug And Play and Hot Plug functions, connecting devices to the hub is very simple, without complicated installation. You can also connect and disconnect peripherals while the computer is running. Hub is not afraid of connections with phones with USB-C connector, you can connect a pendrive, keyboard, mouse, monitor, TV or projector to the phone.

Entry:

1x USB 3.2 Gen 1 / SuperSpeed USB port, USB-C male connector.

Backwards compatible with USB 3.1 Gen 1 / USB 3.0 and USB 2.0.

Compatible with Thunderbolt 3.

USB connection port with type C male connector located on 18 cm long cable.

USB Output:

2x SuperSpeed USB port, USB-A female connector.

1x SuperSpeed USB Power Delivery port (for charging only), USB-C female connector.

Support 5.000 / 480 / 12 / 1.5 Mbps (SuperSpeed / High / Full / Low speed).

The overall permeability / transmission rate of the enclosure is given by the USB 3.2 Gen 1 interface used (theoretical. up to 5 Gbit/s).

The USB-C hub can permanently support two external drives.

HDMI Output:

HDMI .

HDMI A (F) female connector.

Maximum supported 4K/4096 x 2160 @ 30Hz resolution.

A USB-C port with DisplayPort Alternate Mode (DP Alt Mode) or USB-C support with Thunderbolt 3 support is required to properly support video output. We also require a suitable operating system. The video output function will not be available when these requirements are not met.

Hot Plug (Hot-Plug-Detect) support.

TMDS (Transition Minimized Differential Signaling) support.

Full support for HDCP 1.4 and 2.3 (High-bandwidth Digital Content Protection).

Audio up to eight LPCM channels, support for audio compression (AC-3, DTC) and HBR audio.

Sampling rate up to 192 kHz and support for 24-bit audio - depends on the source and target device, e.g. notebook/phone and TV/display/AV receiver.

RJ-45 Output:

Gigabit Ethernet interface with RJ-45 connector for UTP or STP cable connection.

Support Ethernet 10/100/1000 Mbps transmission rate.

Support IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T specification.

10/100/1000 Mbit/s auto-discovery.

Support IPv4/IPv6 packet Checksum Offload Engine (COE) to reduce CPU load total IPv4 IP/TCP/UDP/ICMP/IGMP & IPv6 TCP/UDP/ICMPv6 control and checksum generation.

Support TCP Large Send Offload V1 and V2.

Support IEEE 802.1P Layer 2 priority encoding & decoding.

Support IEEE 802.1Q VLAN tagging.

IEEE 802.3az EEE (Energy Efficient Ethernet) support – reduce power consumption at rest.

Support Jumbo frame.

It supports full duplex transmission with IEEE 802.3x flow control and half duplex transmission with reverse flow control.

Auto MDI/MDIX support - crossover detection and autocorrection eliminates the need for crossover cables.

Hardware support for Cyclic Redundancy Check (CRC) to discover transmission errors.

Support Pair Swap/Polarity/Skew Correction.

Support Wake-on-LAN function in different modes:

Support sleep and remote excitation modes with Magic paket, Microsoft Wakeup Frame, Microsoft Wake Packet Detection, ECMA-393 proxZzzy for sleeping hosts, RealWoW! Link Change Wake-up.

Advanced Power Management Features:

The adapter supports advanced management and advanced power saving when disconnected from an Ethernet cable. Support for Advanced Configuration Power management Interface (ACPI) Link Power Management (LPM) or IEEE 802.3az EEE (Energy Efficient Ethernet) and others.

Power Delivery:

Support Power Delivery 3.0 - continuous power supply of the device from the network adapter via USB-C hub.

Maximum power supply via PD output USB-C hub 100W - 20V/5A.

Required notebook or phone with Power Delivery support from USB-C port and corresponding network PD adapter.

SATA M.2 socket:

SATA M.2 SSDs.

Designed for M.2 SSD SATA (AHCI) B+M-key or B-key cards without maximum capacity limitation.

NGFF 75-pin B-key slot for SATA M.2 drives.

Support M.2 drives with dimensions - 2230, 2242, 2260, 2280 mm.

Support M.2 single-sided and double-sided SSDs.

Compliant with Serial ATA 3.2 specification (SATA/600), transmission rates up to 6 Gbps (600 MB/s).

Compliant with USB Mass Storage Class specification.

UASP (USB Attached SCSI) support for faster data transmission in W1nd.0ws 8 and later.

Support TRIM to reduce slow SSD performance degradation over time.

Support with SSD in external enclosure.

Further properties:

Possibility to connect the device behind the run thanks to Hot Plug support.

Total Plug and Play support.

Standby support.

Power supply via USB bus - power supply via USB bus or from PD network charger.

The durable aluminum housing is designed to better cool the hub. Higher surface temperature is not a problem the heat generated by the hub and M.2 drive is better dissipated and transmitted to the environment.

Two LEDs - white LED signals connection to the USB port of the computer (permanent illumination), blue LED signals data transmission in the M.2 slot (flashing).

The high-quality shielded cable guarantees high communication speed and minimal unwanted interference.

Dimensions 123 x 51 x 14 mm.

Weight 72 g (total cable).

Length of USB cable 18 cm.

Supported Operating Systems:

Microsoft W1nd.0ws 10, Mac OS, Linux, Android and Chrome OS.

Compatibility depends on the operating system and device manufacturer support.

Note 1: Drivers are included with supported operating systems and are installed automatically. No other drivers need to be installed.

Note 2: DisplayPort Alternate Mode (DP Alt Mode) is only supported on updated operating systems and also depends on the support from the device manufacturer (notebook, phone).

The package includes:

USB-C hub with 18 cm cable permanently,

mounting material,

printed installation manual in CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN / ARA,

packed in a cardboard box with a hole for hanging.

Product Information

Type

Accessories included: 3 M2 screws, M.2 slot spacer, graphics card holder

Product width: 53.6 cm

USB-C

I/O ports

1 x 10/100/1000 Mbit/s

1 x HDMI

2 x USB 3.0 Type A

1 x USB 3.0 Type-C

Current 1,5 A "

802.3

802.3ab

802.3u

Supported Operating Systems

W1nd.0ws 11

Chrome OS

Linux

Mac OS

W1nd.0ws 10

front USB connector

Accessories included

• USB-C hub with 18 cm cable permanently
• Mounting material
• Printed installation instructions
• Packaged in a cardboard box with a hole for hanging

Dimensions

• 123 x 51 x 14 mm
• Length of USB cable 18 cm

Libra

72 g

Other parameters

Entry:

• 1x USB 3.2 Gen 1 / SuperSpeed USB port, USB-C male connector.
• Backwards compatible with USB 3.1 Gen 1 / USB 3.0 and USB 2.0.
• Compatible with Thunderbolt 3.
• USB connection port with type C male connector located on 18 cm long cable.

USB Output:

• 2x SuperSpeed USB port, USB-A female connector.
• 1x SuperSpeed USB Power Delivery port (for charging only), USB-C female connector.
• Support 5.000 / 480 / 12 / 1.5 Mbps (SuperSpeed / High / Full / Low speed).
• The overall permeability / transmission rate of the enclosure is given by the USB 3.2 Gen 1 interface used (theoretical. up to 5 Gbit/s).
• The USB-C hub can permanently support two external drives.

HDMI Output:

• HDMI .
• HDMI A (F) female connector.
• Maximum supported 4K/4096 x 2160 @ 30Hz resolution.
• A USB-C port with DisplayPort Alternate Mode (DP Alt Mode) or USB-C support with Thunderbolt 3 support is required to properly support video output. We also require a suitable operating system. The video output function will not be available when these requirements are not met.
• Hot Plug (Hot-Plug-Detect) support.
• TMDS (Transition Minimized Differential Signaling) support.
• Full support for HDCP 1.4 and 2.3 (High-bandwidth Digital Content Protection).
• Audio up to eight LPCM channels, support for audio compression (AC-3, DTC) and HBR audio.
• Sampling rate up to 192 kHz and support for 24-bit audio - depends on the source and target device, e.g. notebook/phone and TV/display/AV receiver.

RJ-45 Output:

• Gigabit Ethernet interface with RJ-45 connector for UTP or STP cable connection.
• Support Ethernet 10/100/1000 Mbps transmission rate.
• Support IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T specification.
• 10/100/1000 Mbit/s auto-discovery.
• Support IPv4/IPv6 packet Checksum Offload Engine (COE) to reduce CPU load total IPv4 IP/TCP/UDP/ICMP/IGMP & IPv6 TCP/UDP/ICMPv6 control and checksum generation.
• Support TCP Large Send Offload V1 and V2.
• Support IEEE 802.1P Layer 2 priority encoding & decoding.
• Support IEEE 802.1Q VLAN tagging.
• IEEE 802.3az EEE (Energy Efficient Ethernet) support – reduce power consumption at rest.
• Support Jumbo frame.
• It supports full duplex transmission with IEEE 802.3x flow control and half duplex transmission with reverse flow control.
• Auto MDI/MDIX support - crossover detection and autocorrection eliminates the need for crossover cables.
• Hardware support for Cyclic Redundancy Check (CRC) to discover transmission errors.
• Support Pair Swap/Polarity/Skew Correction.

Support Wake-on-LAN function in different modes:

• Support sleep and remote excitation modes with Magic paket, Microsoft Wakeup Frame, Microsoft Wake Packet Detection, ECMA-393 proxZzzy for sleeping hosts, RealWoW! Link Change Wake-up.

Advanced Power Management Features:

• The adapter supports advanced management and advanced power saving when disconnected from an Ethernet cable. Support for Advanced Configuration Power management Interface (ACPI) Link Power Management (LPM) or IEEE 802.3az EEE (Energy Efficient Ethernet) and others.

Power Delivery:

• Support Power Delivery 3.0 - continuous power supply of the device from the network adapter via USB-C hub.
• Maximum power supply via PD output USB-C hub 100W - 20V/5A.
• Required notebook or phone with Power Delivery support from USB-C port and corresponding network PD adapter.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	Axagon
Parametry	Product weight with unit packaging	0.15 kg
Parametry	EAN (GTIN)	8595247905796
Parametry	Manufacturer code	HMC-6M2
