Tikslioji frezavimo staklės FF 230 Proxxon

Trumpai apie prekę

Prekė: Tikslioji frezavimo staklės FF 230 Proxxon. Kategorija: Frezos.

• Gamintojas: Proxxon
• Modelis: PR24108
• Įtampa: 220 V

Precision table milling machine FF 230 PROXXON 24108

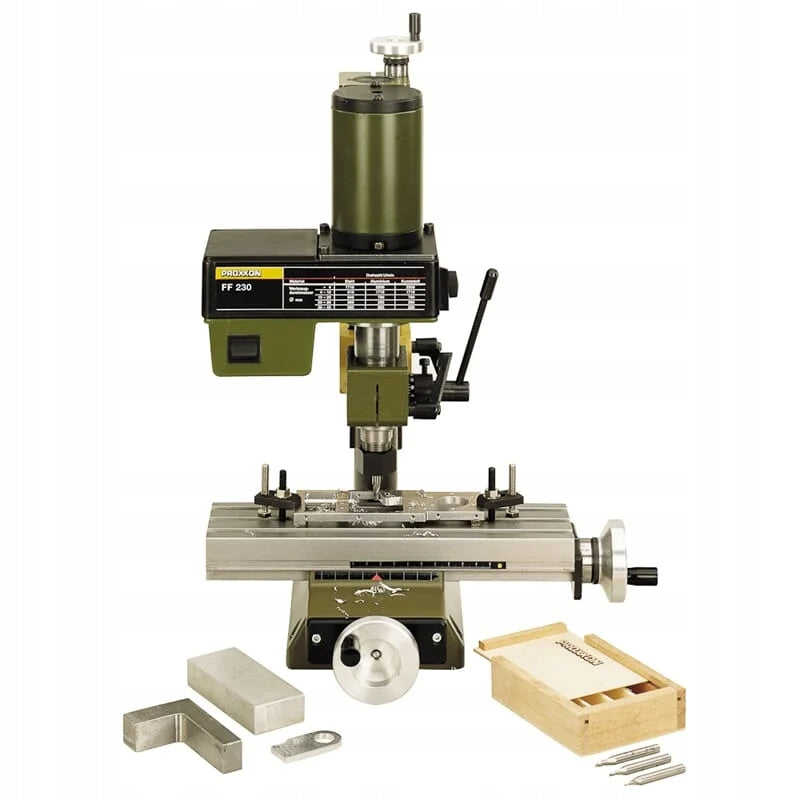

The PROXXON FF230 precision milling machine is an advanced machining tool that turns the PROXXON PD230/E, PD250/E or PD400 lathe into a complete milling and drilling center. The device is equipped with a drilling head that can be rotated 360° and a solid cross table, which ensures high precision and versatility of work.

Product Features:

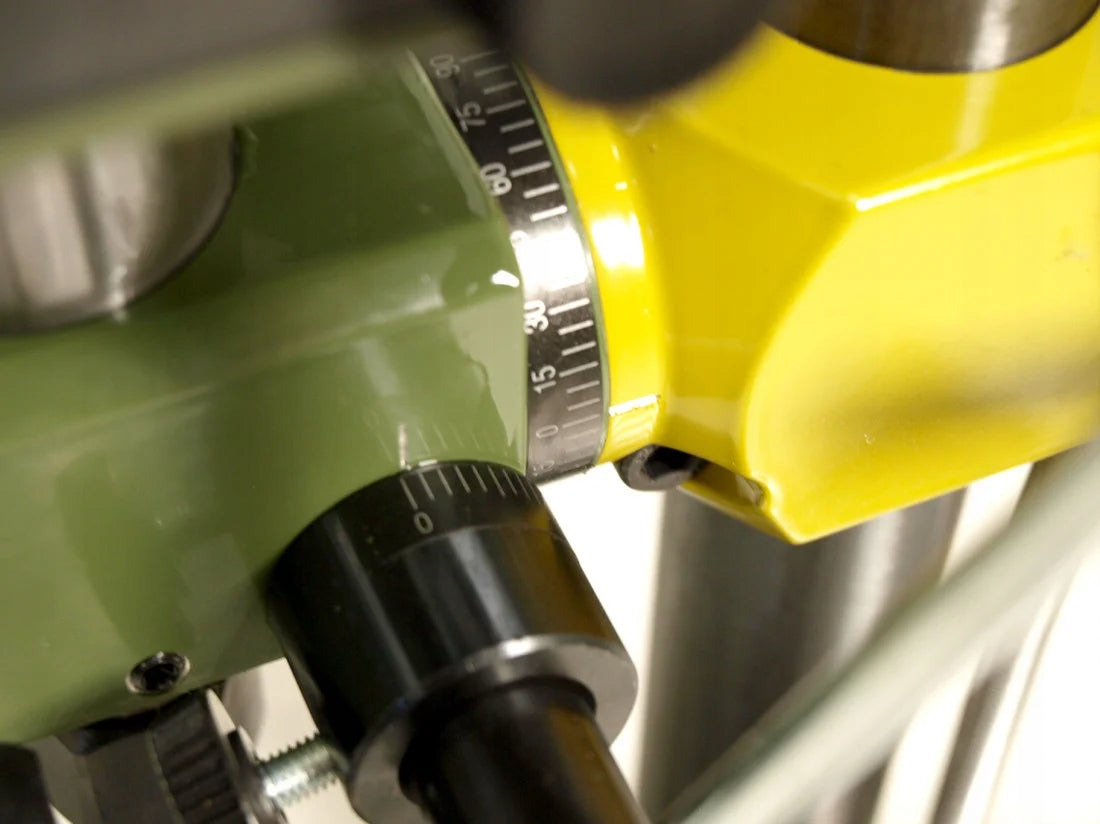

• Rotating drilling head: Can be rotated 360° with a scale, which allows milling phases.
• Drilling depth indicator: Pen with drilling depth indicator using a scale ring on the lever (1 graduation line = 1 mm).
• Powerful PM motor: Provides high performance, especially in the lower speed range.

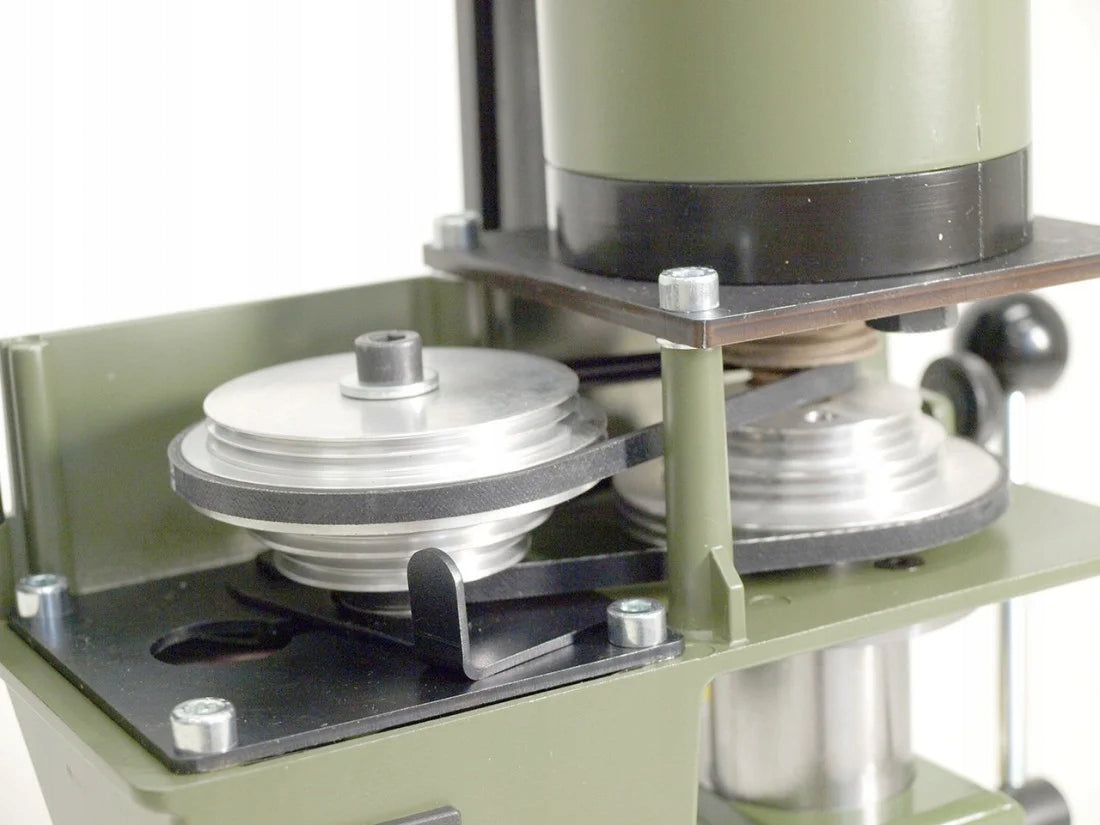

• Transmission with multi-ribbed belt: Provides high torque.
• Tool holder: Equipped with collets (6, 8 and 10 mm diameters included).
• Solid cross table: Made of steel with 3 T-grooves (MICROMOT standard 12 x 6 x 5 mm).
• Precise adjustment: Hand wheels with adjustable scale ring (1 turn = 1 mm; 1 pitch = 0,05 mm).

Technical data:

• Connection voltage: 220 - 240 V / 50/60 Hz
• Power consumption max.: 140 W
• Fuse required: At least 16 amps
• Spindle rotational speeds: 280 - 550 - 870 - 1200 - 1500 - 2200 rpm (adjustable by changing the position of the strap)
• Pen stroke: 30 mm
• Column: 35 x 400 mm
• Max. height of clearance between the fitting nut and the coordinate table: 210 mm (the length of the fixed cutter must be taken into account)
• Table size: 270 x 80 mm
• X-axis pitch (transverse): 170 mm
• Y-axis stroke (longitudinal): 65 mm
• Mounting area: 180 x 130 mm
• Total height: Approx. 500 mm

Scope of delivery:

• 1 x FF230 precision milling machine with cross table set
• 1 x set of Ø 6, 8 and 10 mm collets, including coupling nut
• 1 x Operational Tool
• 1 x User Manual (Multilingual) and Safety Regulations

Note on the scope of delivery:

• Mounted precision feeder 24140 is NOT included in the scope of delivery.
• Mounted fastening claw 24257 is NOT included in the scope of delivery.

Recommended accessories:

• PROXXON 24046 Universal dividing head UT250 for KT150, FF230, FF500/BL
• PROXXON 24144 Set of collets (for fixing smaller cutters)
• PROXXON 24140 fine feed
• Step clamps PROXXON 24256 for workpiece thickness up to 20 mm
• Step clamps PROXXON 24257 for workpiece thickness 35 mm
• Set of end mills PROXXON 24610 (milling machine Ø2-3-4-5 mm)
• Set of end mills PROXXON 24620 (milling machine Ø6-7-8-10 mm)
• Centering drill PROXXON 24630
• Set of edge finders PROXXON 24434
• Machine vise PROXXON 24255
• Dividing head PROXXON 24131 TA 230
• Drill chuck PROXXON 24110
• PROXXON 24266 parallel documents
• Set of 2 precision prisms PROXXON 24262

The PROXXON FF230 precision milling machine is an indispensable tool for professionals who need a precise and versatile milling and drilling device. An ideal choice for those who value quality, precision and functionality.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Proxxon
Parametry	Series	Proxxon Micromot FF 230
Parametry	Milling machine type	plunge
Parametry	Power supply	mains
Parametry	Maximum power	140 W
Parametry	Supply voltage	220 V
Parametry	Maximum no-load speed	2200 RPM
Parametry	Device weight	17 kg
Parametry	Product weight with unit packaging	17.4 kg
Parametry	Manufacturer code	PR24108
Parametry	EAN (GTIN)	4006274241084
Parametry	Batteries included	no
Parametry	Packaging status	original
