TIG/MMA suvirinimo aparatas IDEAL EXPERT TIG 220 AC/DC PULSE

Trumpai apie prekę

Prekė: TIG/MMA suvirinimo aparatas IDEAL EXPERT TIG 220 AC/DC PULSE. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: EXTIG220AC
• Ilgis: 510 mm
• Plotis: 150 mm
• Aukštis: 310 mm

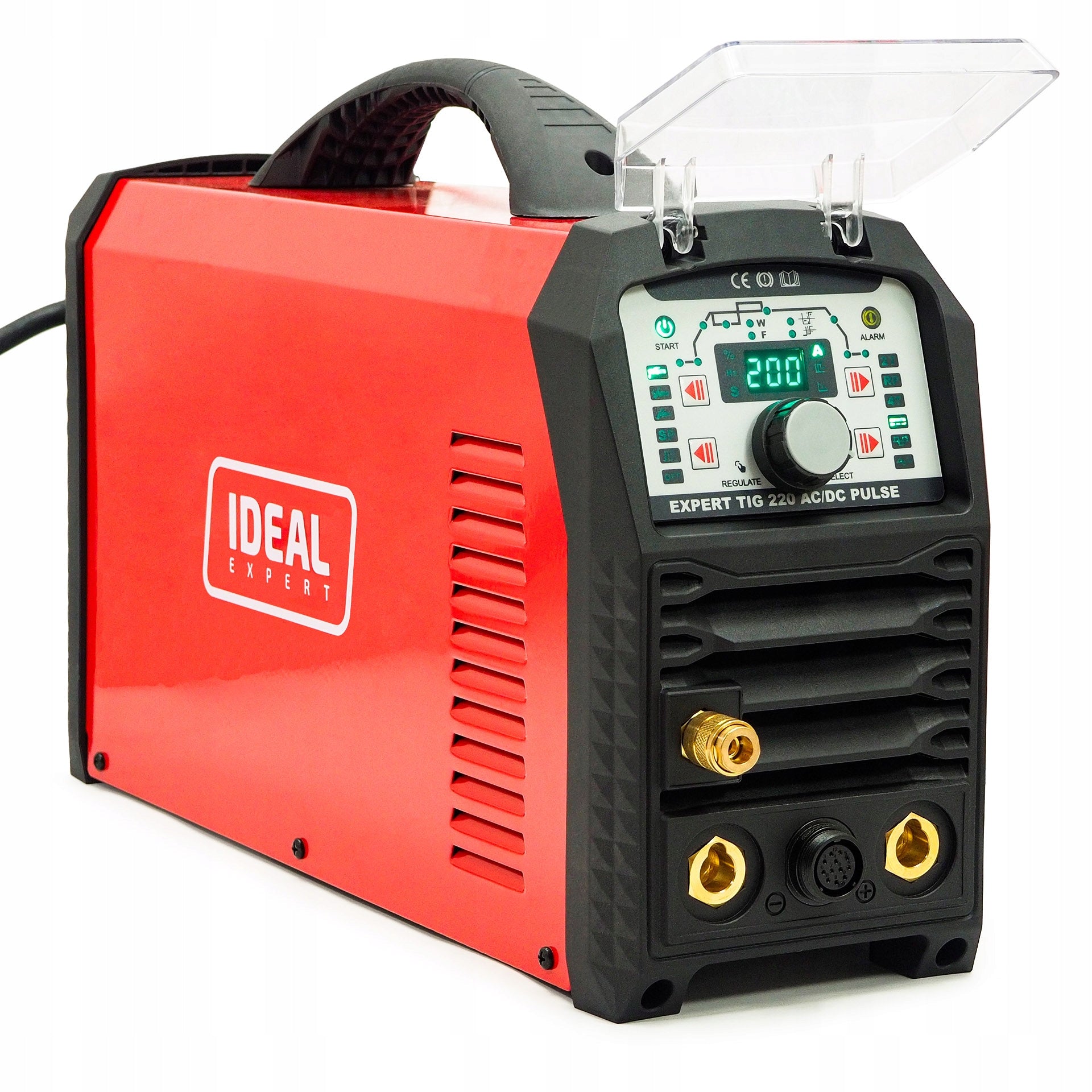

EXPERT TIG 220 AC/DC PULSE is a portable power source, made in the IGBT technology, designed for welding using the TIG and TIG PULS method with alternating current (AC), constant current (DC), and the MMA method with a direct current (DC) electrode. The small size and weight make the device perfect for both workshop work and field work.

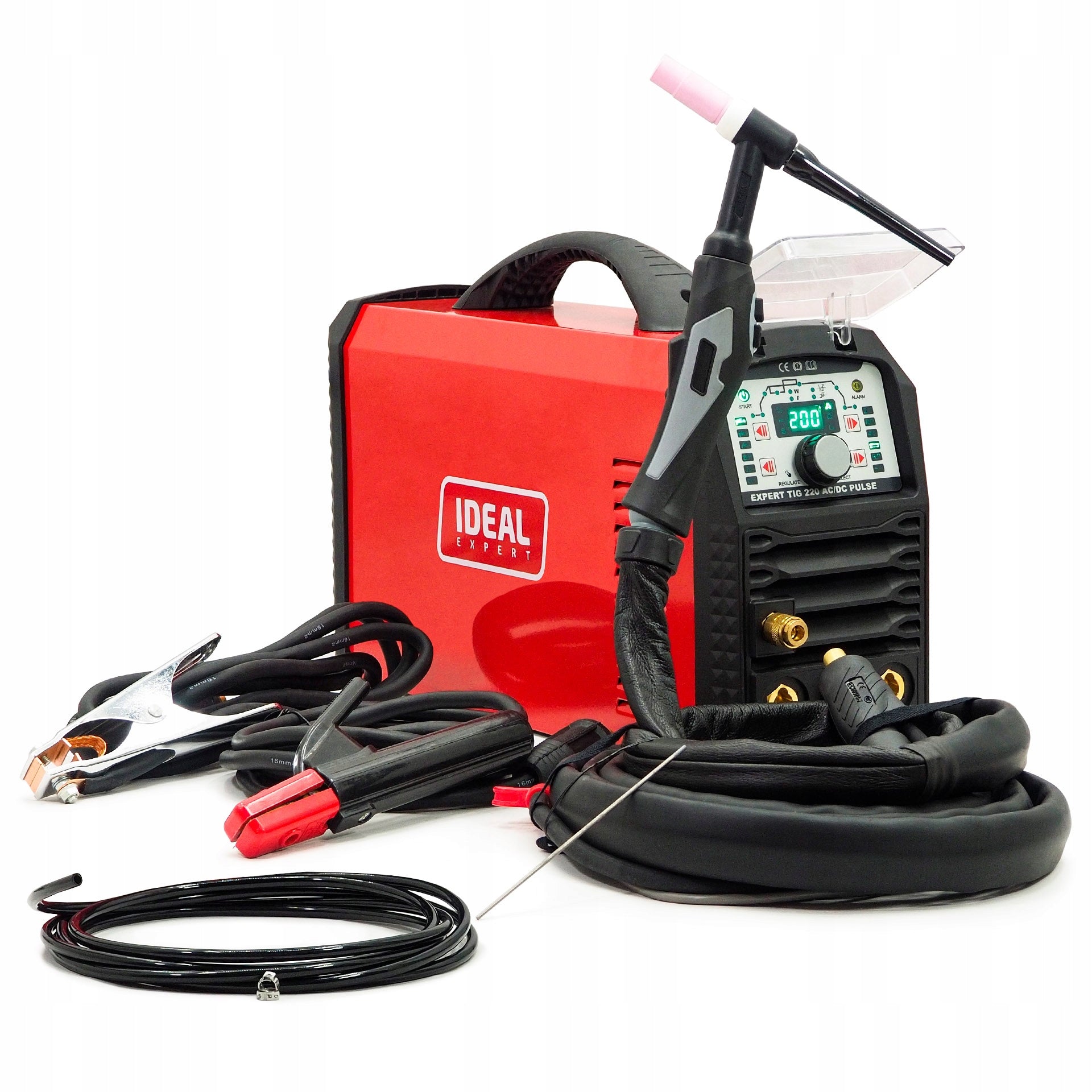

The set includes:

• IDEAL EXPERT TIG 220 AC/DC PULSE
• Welding torch TIG 26 with remote adjustment 4m
• Electrode cable 3m
• Mass cable 3m

The device has welding modes: TIG DC, TIG DC PULS, TIG AC, TIG AC PULS, MMA.

The TIG DC and TIG DC PULS functions are used for welding stainless steel, carbon and low alloy steels, copper and titanium.

TIG AC and TIG AC PULS: allows welding of aluminium and its alloys and brass.

By adjusting the parameters of pulse welding TIG PULS we have an impact on the shape of the weld and the focus of the arc. Pulse welding also reduces the amount of heat supplied to the material and is applicable when welding thin materials.

Arching occurs in non-contact (HF) or touch mode (LIFT). The LIFT function is used during welding in environments with a high risk of electromagnetic interference affecting the environment.

Both with HF non-contact and LIFT touch ignition, we have the option of selecting the button function in the TIG handle between operation in 2-bar or 4-bar mode (button lock for long welds).

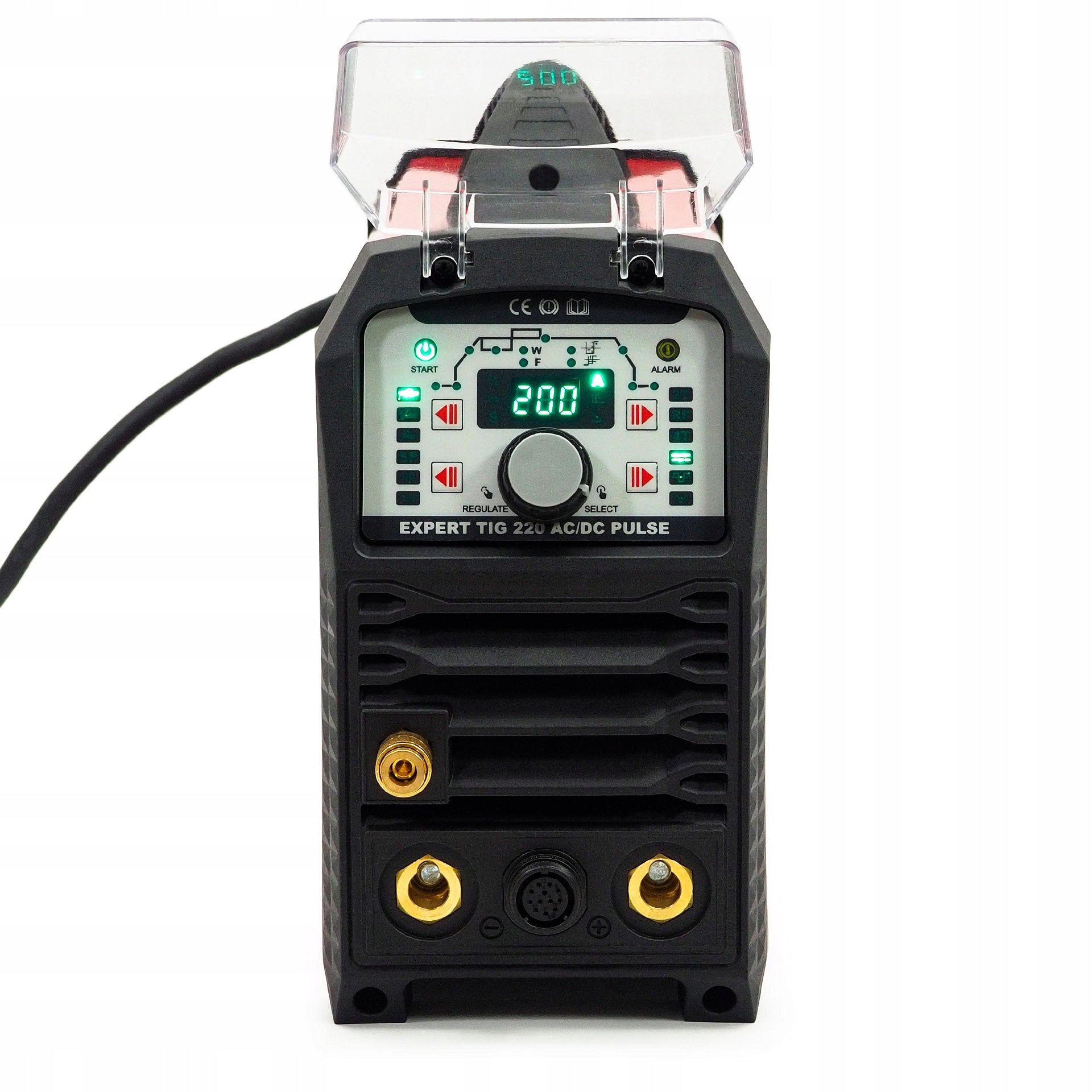

Clear and easy to use digital control panel allows accurate adjustment of the device, ensures stable parameters and high welding quality.

The device has 9 places of recording of user welding programs.

Digital displays make it easy to adjust the parameters of the welding machine:

• Initial outflow of shielding gas
• Initial current
• Time of electricity build-up
• Welding current
• Base current
• Time of falling current
• Final current
• Final outflow of shielding gas
• Pulse length
• Pulse Frequency
• Balas AC
• Frequency AC
• The value of HOT START
• The value of ARC FORCE

From the control panel we can choose the course of the AC voltage curve:

• TIG AC – triangular voltage waveform
• TIG AC – rectangular voltage waveform
• TIG AC – sine wave voltage waveform

The welder also has functions facilitating the welding process using the MMA method with a wrapped electrode:

ARC FORCE: short-circuit current adjustment (manual) - facilitates the transfer of a drop of molten electrode to the welded material, preventing the arc from extinguishing when the drop of electrode contacts the welding lake

HOT START: hot start adjustment (manual) - facilitates the ignition of the electrode by providing more welding current with each arc.

ANTI STICK: anti-short-circuit - automatically turns off the welding voltage if the electrode sticks to the welded material, which facilitates its detachment and prevents the accidental formation of a welding arc

PHYSICAL PARAMETERS

• Degree of protection: IP 23
• Weight of the device / set: 13 / 16 kg
• Overall dimensions L x W x H: 620x270x390 mm

TECHNICAL PARAMETERS

• Power build-up time (s): 0 - 10
• Power drop time (s): 0 - 10
• Pulse frequency Hz: 0,5 - 999
• Pulse length (%): 5 - 95
• Gas after (s): 0 - 10
• Gas before (s): 0,1 - 2
• Power: 5 kW
• Idle voltage: 86 V (TIG) / 57 V (MMA)
• Final current: 5 - 220 A
• Maximum current: 220 A - 35%
• Power at work 100%: 110 A
• Power at work 60%: 200 A
• Starting current: 5 - 220 A
• Diameter of welding electrode: 1,6 - 4,0
• Welding current adjustment range: 5 - 220 A

POWER SUPPLY PARAMETERS

• Power supply network protection: C16 A
• Rated supply voltage: 230 V, 50-60Hz, 1ph
