TIG LIFT rankena su vožtuvu MIGOMATU balionui, skirta pilnam argonui, elektrodo reduktorius

Trumpai apie prekę

Prekė: TIG LIFT rankena su vožtuvu MIGOMATU balionui, skirta pilnam argonui, elektrodo reduktorius. Kategorija: Įrankių rinkiniai.

• Gamintojas: Spartus
• Modelis: Z-UTIG-17V-35-50-Butla

HANDLE FROM A REPUTABLE MANUFACTURER

Welding handle T-17V (with gas valve in the burner head)) is a gas-cooled handle for welding using the TIG Lift method (non-melting electrode). It is made on the basis of parts imported from the European Union and Asia. Typical length is 4m. The current connection is equipped with a DINSE plug with a gas quick coupler plug and a standard handle in a rubber-carved cover.

It gives the possibility of TIG welding (in argon shield), when connected to an ordinary MMA inverter welding machine (for buffer electrodes) and to a multifunctional welding device (migomat) type: MIG + MMA + TIG LIFT, can be welded using TIG method. Such possibilities are provided by the use of a gas valve in the handle and a gas connection integrated with the plug.

In addition to the handle, cylinder with Argon (+gas cable + bands + reducer), we offer you 2 complete, universal sets of accessories for electrode welding with a diameter of 1,6mm and 2,4mm. The set includes: electrode, terminal bushing, current connector, 4 gas-ceramic nozzles, 2 plugs (long and short).

WHY IS IT WORTH BUYING FROM US?

- our set is complete - you just start welding

- the handle has a very flexible cable package. It is very pliable and easy to wind on the hand

- 2 sets of weapons for the most popular diameters of 1,6 and 2,4 mm

• You get a signed product, not NO-NAME - the handles are folded in Poland.

FOR WHOM?

For a person who wants to extend the migomat / welding machine with TIG Lift welding function - compatible with all welding machines with TIG LIFT or TIG/MMA function

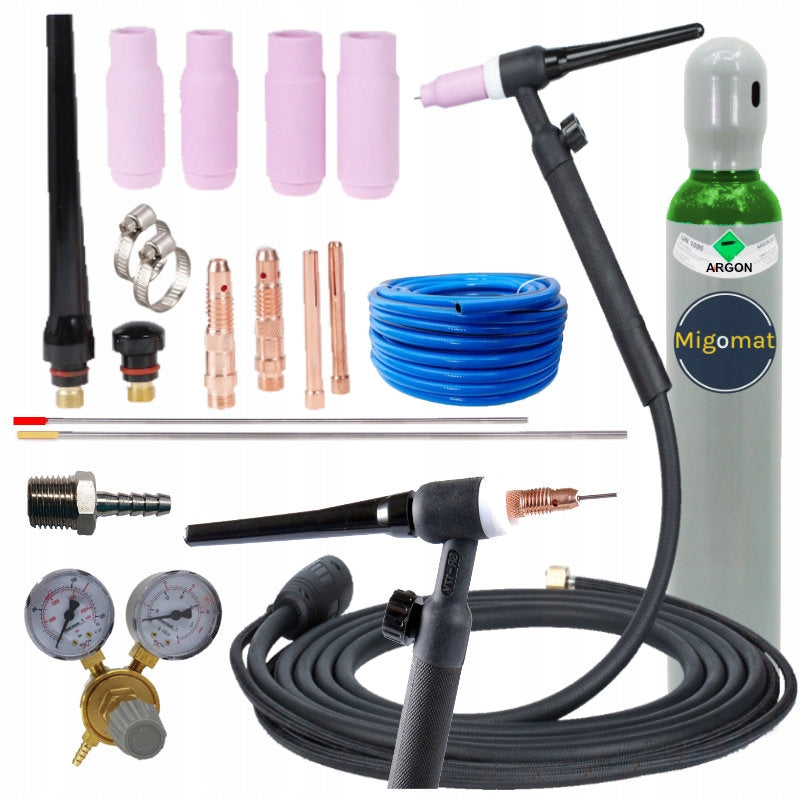

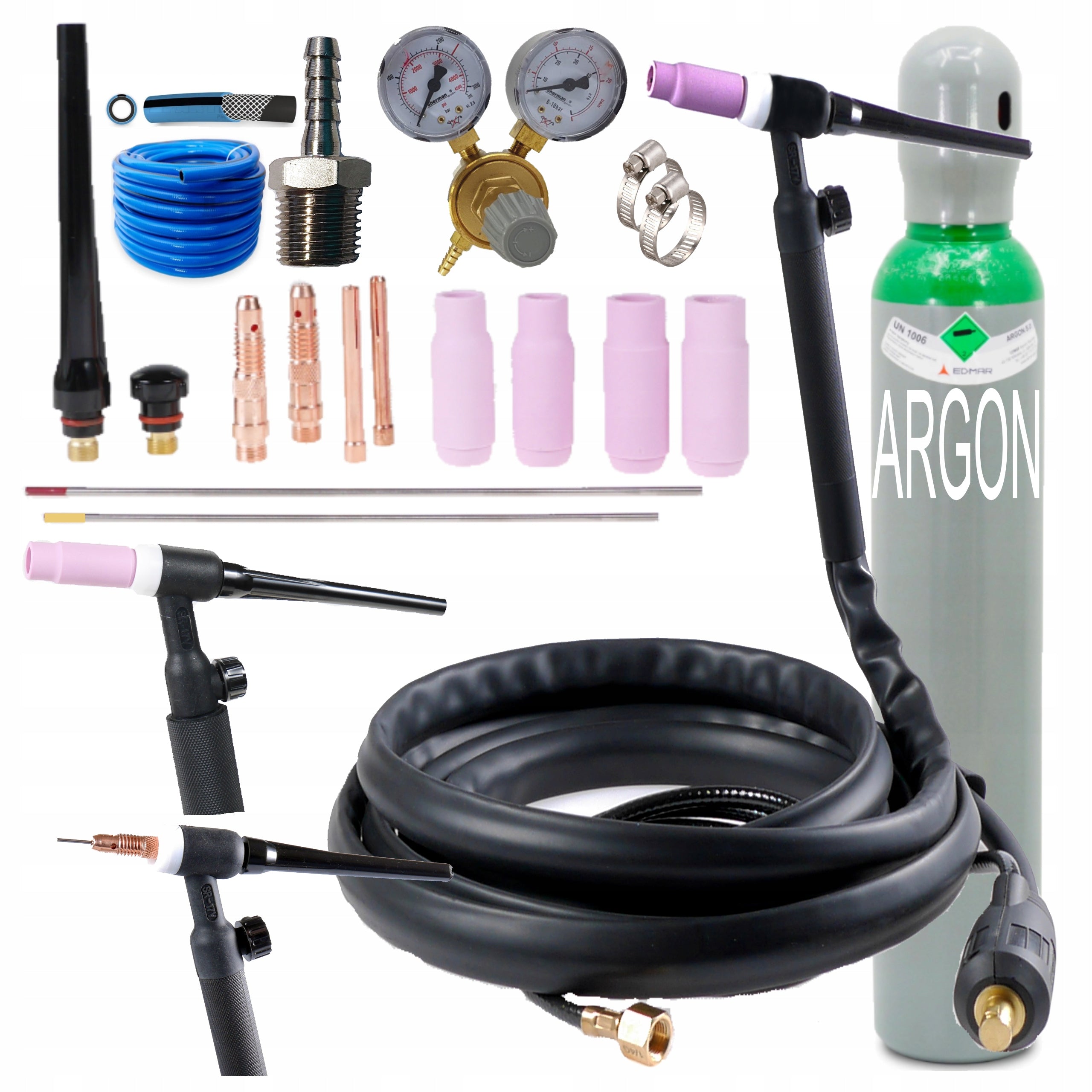

SET INCLUDES:

• TIG SR-17V welding torch (with gas valve in the burner head) - 4m - 1pcs
• Pure Argon cylinder 8l- FULL with legalization-150 bar
• Reducer
• Additional gas connector
• Clamp ties+gas line

+ complete set of parts for two electrode sizes (1,6mm and 2,4mm)

• Tungsten electrode 1,6mm red/gold (random) - 1 pc.
• Tungsten electrode 2,4mm red/gold (random) - 1 pc.
• Terminal bushing 1,6mm -1 pcs.
• Terminal bushing 2,4mm -1 pcs.
• Current switch (TIG diffusor SR17 / SR18 / SR26) - 1,6mm- 1 pc.
• Current switch (TIG diffusor SR17 / SR18 / SR26) - 2,4mm- 1 pcs.
• Ceramic gas nozzles - 4 pcs.
• Long cork - 1pcs
• Short cork - 1pc.

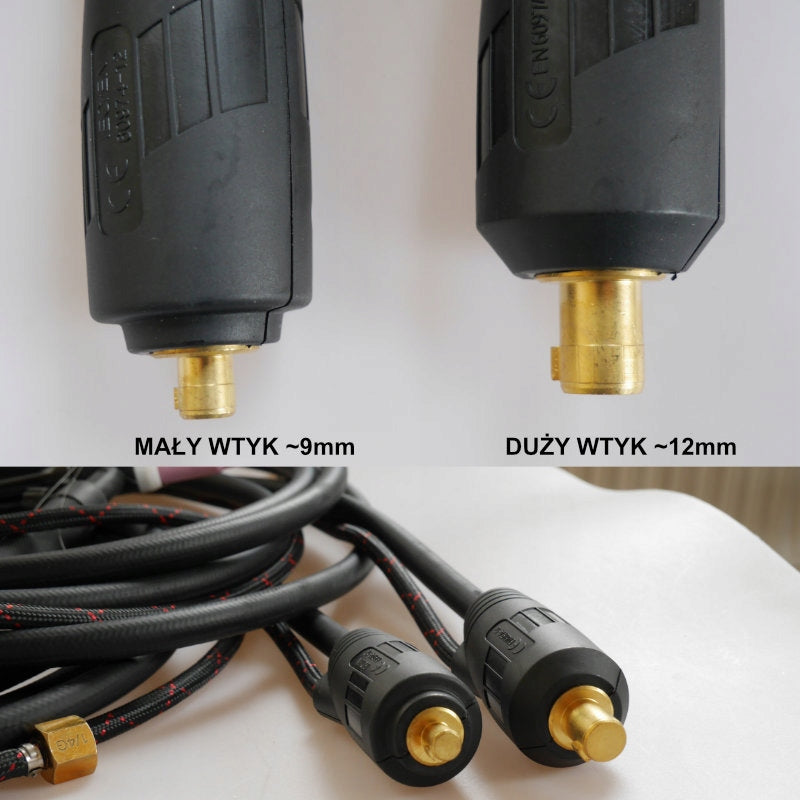

Important: handle equipped with welding plug Łw/Łp-35 (plug diameter approx.12,75 mm, so-called "large"). The holder is also available at our other auction with the Łw/Łp-25 plug (plug diameter approx.8,75 mm, so-called. "small"). The photo below will allow you to choose the right plug:

Specifications of the handle:

Welding methods: TIG-LIFT

Handle type: T-17V

Types of cooperating welding machines: MMA and TIG: AC and DC + so-called. 3in1 welding machines (MIG, MMA, TIG LIFT)

Electrode diameters: 0,5-3,2mm

Handle length with connection ŁW 35 (m) - 4 M

Working cycle current capacity X 35(A) - AC: 115

Working cycle current capacity X 35(A) - DC: 150

Electrode diameter range / electrode length (mm): 0,5 - 3,2 / 175

Protective gas flow rate (l/min): 7-15

Type of cooling: shield gas

Arc initiation type: tactile (TIG-LIFT, TIG-SCRATCH)

GAS CYLINDER

Pure Argon CLASS 4,8 (99,998%): - is currently the most popular shielding gas in the TIG Lift welding process. Operating pressure 150 bar. Capacity 8l - 1,5m3 gas.

The cylinder is new, full and has legalization.

The cylinder comes with a sturdy metal cap, protecting the gas valve during transport and storage.

The cylinder and valve are made in accordance with EN 1964: 1999, and have the Π mark of compliance with ADR/RID requirements – approved for marketing throughout the European Union. Powder coating of cylinders in accordance with PN-EN standards.

The cylinder is lightweight, compact, easy to transport.

The bottle can be filled at any point of filling gas cylinders.

Capacity [l]: 8

Max working pressure [bar]: 150

Amount of gas: 1,5m3

Dimensions (W x H) [mm] 136 x 820

Weight [kg]:13,5

GAS REDUCER

Single-stage reducer for argon, mixture and carbon dioxide. It allows you to reduce the pressure of gases taken from the cylinder to the required outlet pressure (working pressure) and ensures that this pressure is maintained as constant as possible regardless of changes in the inlet pressure.

• Nominal inlet pressure [bar]: 185
• Exhaust pressure range [bar]: 0.5 - 10
• Rated throughput [m3/h]: 20 m3/h
• Thread at the inlet: W 21.8x1/14
• Thread of nut at outlet: G 1/4
• Exhaust connector (ø) [mm]: 6,3

GAS CONNECTOR

The TIG handle is terminated with a nut, which in some welding machines can be screwed directly into the welding machine (gas then flows directly from the welding machine). If your welding machine does not have such an output, you will find a connector in the set, which you will connect the gas pipe with the gas hose, and this one will plug into the gas cylinder.

The connector comes in three versions - we send randomly depending on availability.

GAS HOSE

Hose connecting the welding machine to the reducer and then to the gas cylinder. Our hose is additionally reinforced. Inner diameter of gas hose- (fi)- 6mm.

GAS HOSE BANDS

Worm bands for gas hose to adjust with a screwdriver.

NOTE:

Depending on the batch of deliveries, the wire finish can be with or without additional rubber cover. This does not affect the functionality of the handle.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Spartus
Parametry	Manufacturer code	Z-UTIG-17V-35-50-Butla
Parametry	Product weight with unit packaging	19 kg
Parametry	EAN (GTIN)	5906526718502
Parametry	Number of items in the set	16
Parametry	Packaging status	original
