Trumpai apie prekę

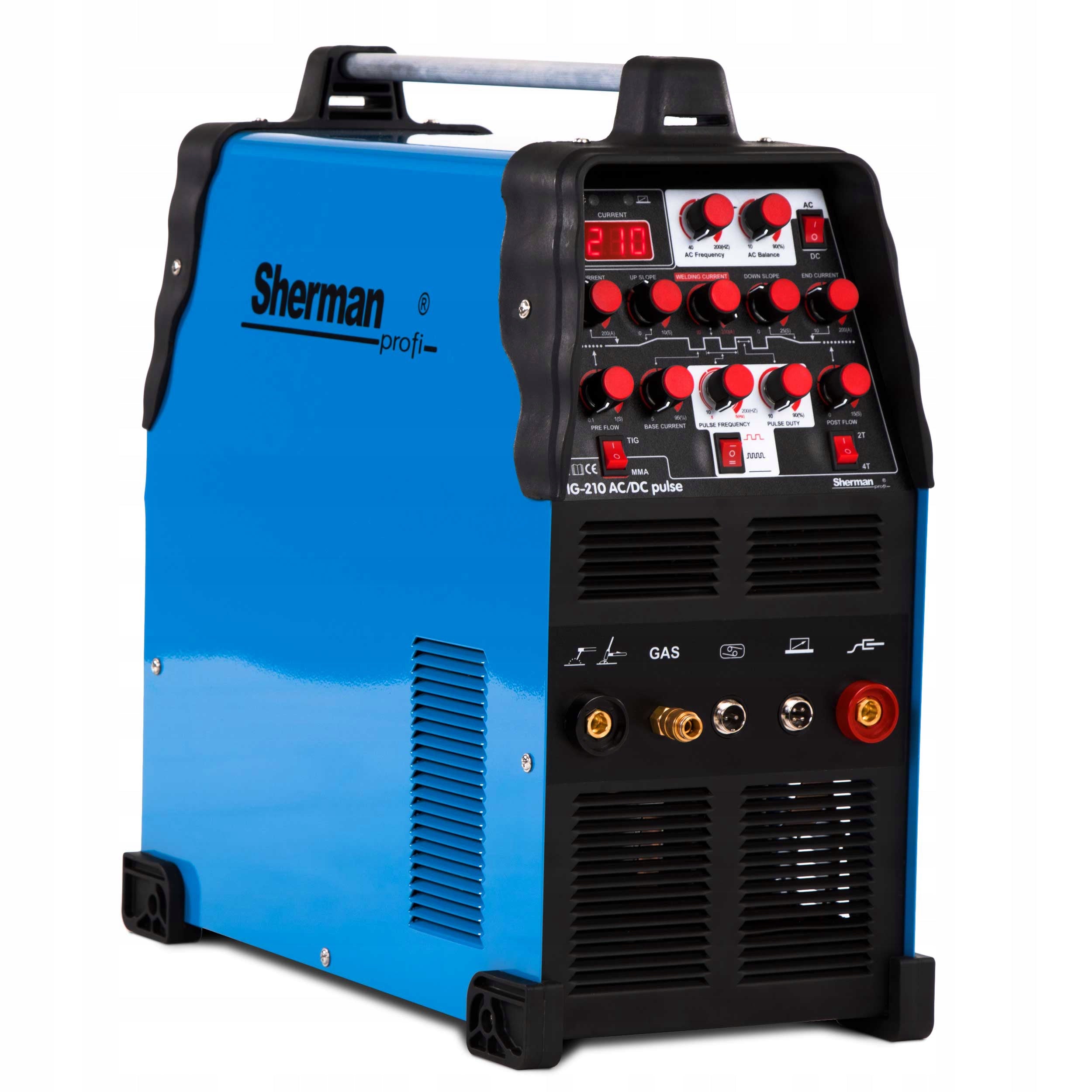

Prekė: TIG AC/DC suvirinimo aparatas Sherman 210 Pulse 200A 2in1 MMA. Kategorija: Inverteriniai suvirinimo aparatai.
- Gamintojas: Sherman
- Modelis: SINW-TIG210ACDCP
ALUMINUM WELDING MACHINE WITH PULSE. BET ON A HIGH-POWER WELDING MACHINE!
Manufacturer: SHERMAN ║ Welding methods: TIG AC/DC, PULS, MMA ║ Power supply: 230V ║ Welding current: 200A ║ Efficiency: 60%
- High efficiency 60% at current 200A
- Easy control over the welding lake and the amount of heat
- High quality and purity of the weld

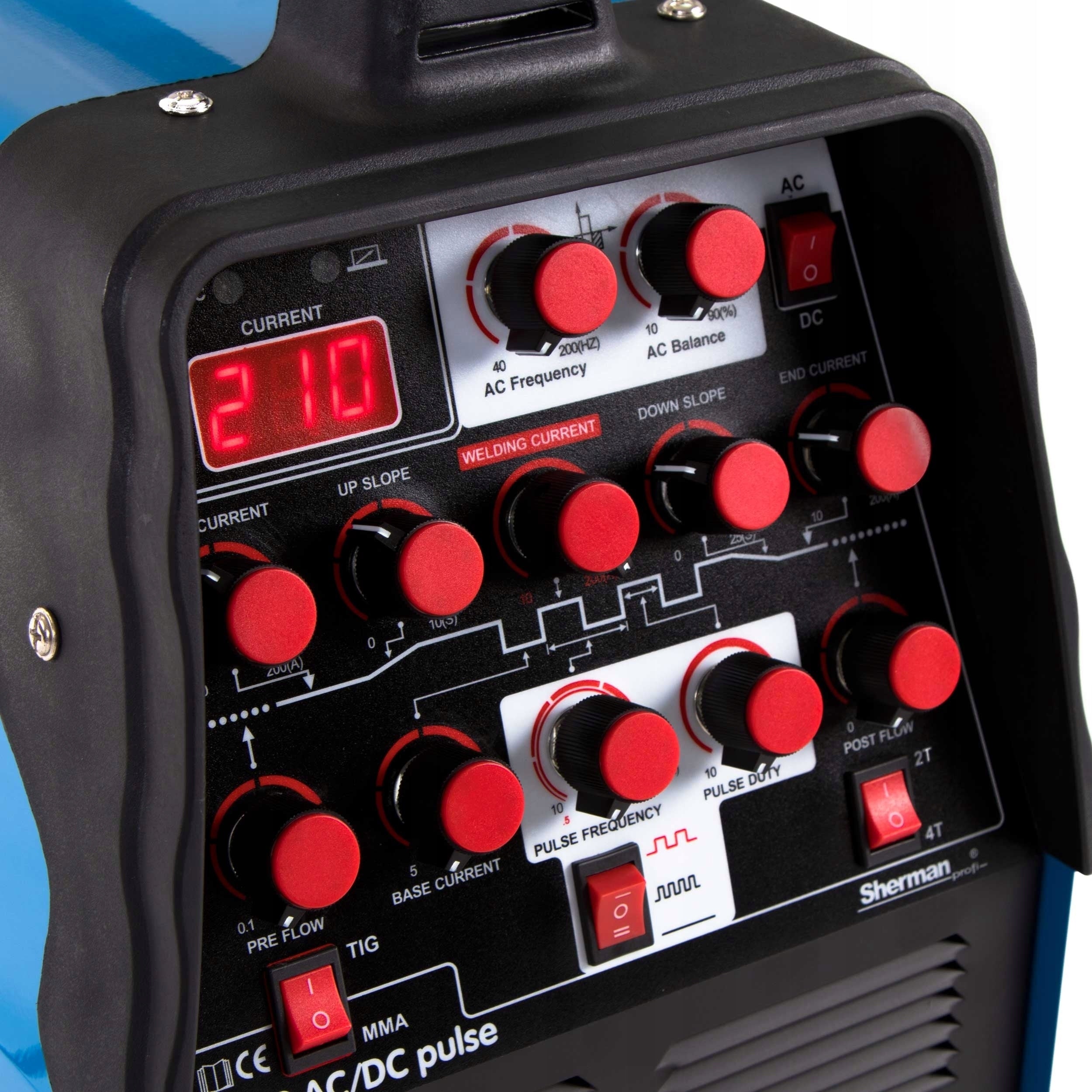

- Easy-to-use panel with knobs
- Contactless arc initiation HF
- Welding TIG PULS and AC with full adjustment
- Ideal for heavy welding tasks
- Great for household
- Built-in overheat protection of the device
- Full adjustment allowing you to adjust each pulse parameter
- AC and DC alternating current welding
- Professional welding torch 4m
- FUNCTION HOT START
- ARC FORCE FUNCTION
- display indicating welding current
- Manufactured in IGBT technology
- Overload switch
- 2T and 4T
- Efficient cooling
- Possibility of connecting remote control.
BET ON PROVEN EQUIPMENT. EXPLORE THE OTHER FEATURES AND BENEFITS OF TIG 210 ACDC PULSE!
Functional inverter welding machine SHERMAN TIG210 AC/DC PULSE is the perfect device for anyone looking for a TIG welding machine with PULS function. The device is ideal for welding thin and thick elements. Contactless arc initiation is another plus of this device. The equipment has 2T and 4T operating mode. In addition, it has the possibility of using a remote control pedal. 210P AC DC is a welding machine that has simple and friendly control. The operator sets the machine with knobs - this is an ideal solution for beginners and professionals.
POWER SUPPLY PARAMETERS
- Power supply: 230V
- Frequency: 50Hz
- Number of phases: 1ph
- Maximum power consumption: 36,5A
- Network security: 25A
TECHNICAL PARAMETERS
- Nominal voltage in unloaded condition: 70V
- Rated welding current: 200A
- Work cycle: 60%
- Before gas outflow: 0,1 – 1s
- After gas outflow: 1 – 15s
- Power build-up: 0 - 10s
- Power drop: 0 – 25s
- Initial current: 10 - 200A
- TIG welding current: 10-200A MMA: 10-180A
- Base current: 5 – 95% welding current
- Crater current: 10 - 200A
- Pulse frequency: 10 - 200Hz
- PULSE WIDTH: 10 – 90%
- AC frequency: 40 – 120Hz
- Balance AC: 10 – 90%
ADDITIONAL FUNCTIONS
- PULSE function: YES
- HF function: YES
- 2T/4T function: YES
- PRE GAS: YES
- POST GAS: YES
- Increase in electricity: YES
- Power drop: YES
PHYSICAL PARAMETERS
- Degree of protection: IP21
- Weight: 15kg
- Dimensions: 510 x 235 x 510mm
IGBT - the welding machine uses modern transistors, a solution that provides a minimum of electromagnetic interference small power losses in basic systems, allowing to increase the efficiency and reliability of the power source.
2T/4T - when the start button is pressed, the welding process is stopped after releasing the button - when the button is pressed and released for the first time, the welding process takes place at the second press, it is a more convenient solution for longer welds.
PULS - Pulse welding not only allows for better weld quality, but also allows for welding in various positions and welding of very thin elements. Reducing the linear energy of the arc, and thus reducing overheating or burnout of welded materials.
OVERLOAD SWITCH - built-in protection against overheating of the device, prolonging its service life.
FULL ADJUSTMENT OF TIG AC DC PARAMETERS - pulse frequency and balance, regulation of gas outflow time after welding and before welding, regulation of current rise and fall time.
HF - the device is equipped with an ionizer that allows contactless viewing of the welding arc. using high frequencies. Thanks to this technological solution, it is possible to eliminate weld contamination with tungsten.

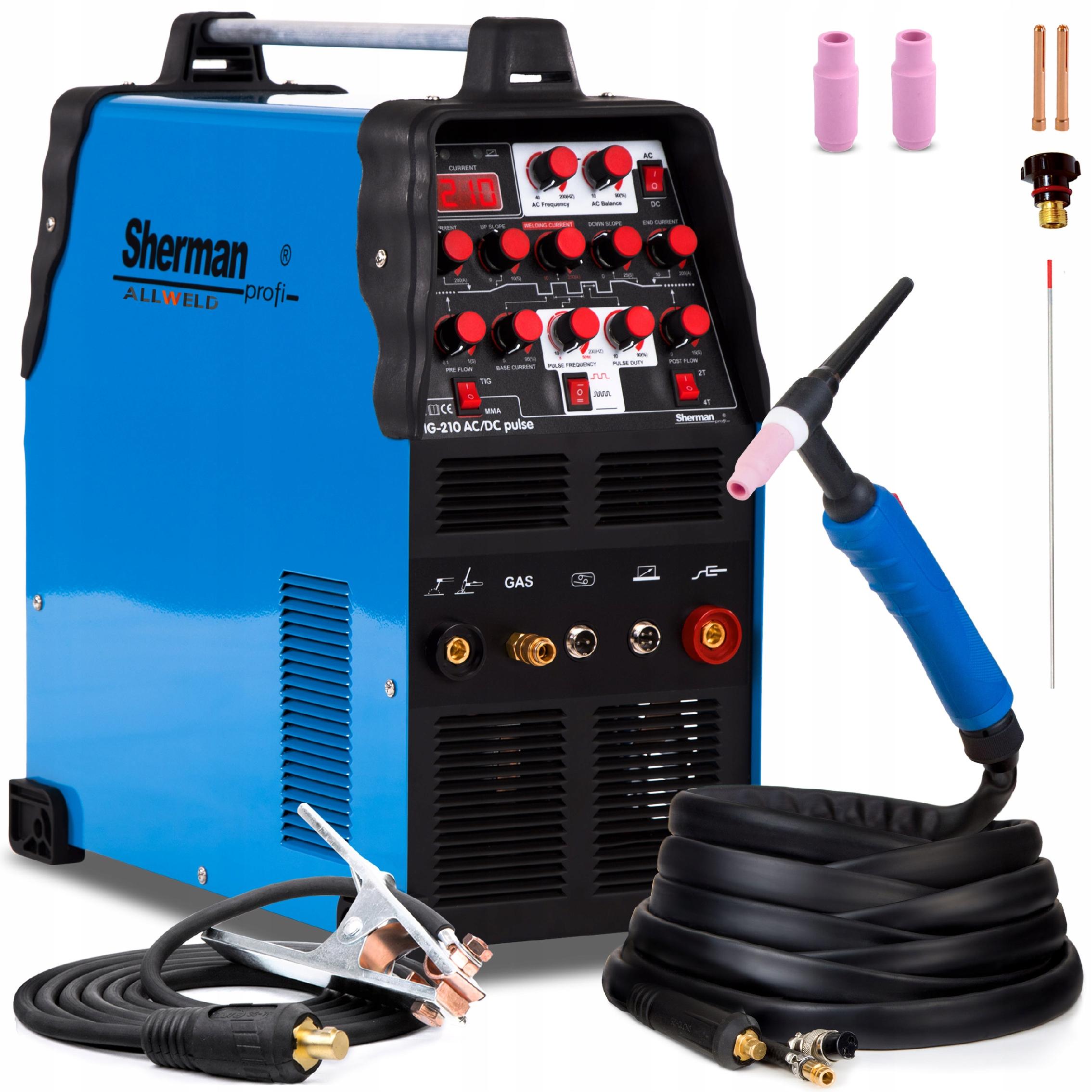

THE SET INCLUDES:
- Welding machine SHERMAN 210P AC/DC
- Welding torch TIG type SR26 - 4m
- Bulk holder - 3m
- Operating manual and warranty card
+ ADDITIONAL ACCESSORIES:
- Operating elements of the TIG handle (cork, bushing, ceramic nozzles)
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Sherman |
| Parametry | Power consumption | 4.6 kVA |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 60% |
| Parametry | Maximum electrode diameter | 4 mm |
| Parametry | Device weight | 15 kg |
| Parametry | Welding range | 10–200 A |
| Parametry | Length of ground cable | 250 cm |
| Parametry | Welding cable length | 400 cm |
| Parametry | Product weight with unit packaging | 23.54 kg |
| Parametry | Manufacturer code | SINW-TIG210ACDCP |
| Parametry | EAN (GTIN) | 5906372629106 |
| Parametry | Packaging status | original |
| Parametry | Welding methods | MMA,TIG |
| Parametry | Additional features | welding mask included,infinitely adjustable welding current,EURO handle,LCD display |
