Termovizorius Mileseey TR256C WiFi GPS lazeris 256x192 550C 5000mAh

Trumpai apie prekę

Prekė: Termovizorius Mileseey TR256C WiFi GPS lazeris 256x192 550C 5000mAh. Kategorija: Detektoriai.

• Gamintojas: Mileseey
• Modelis: TR256C

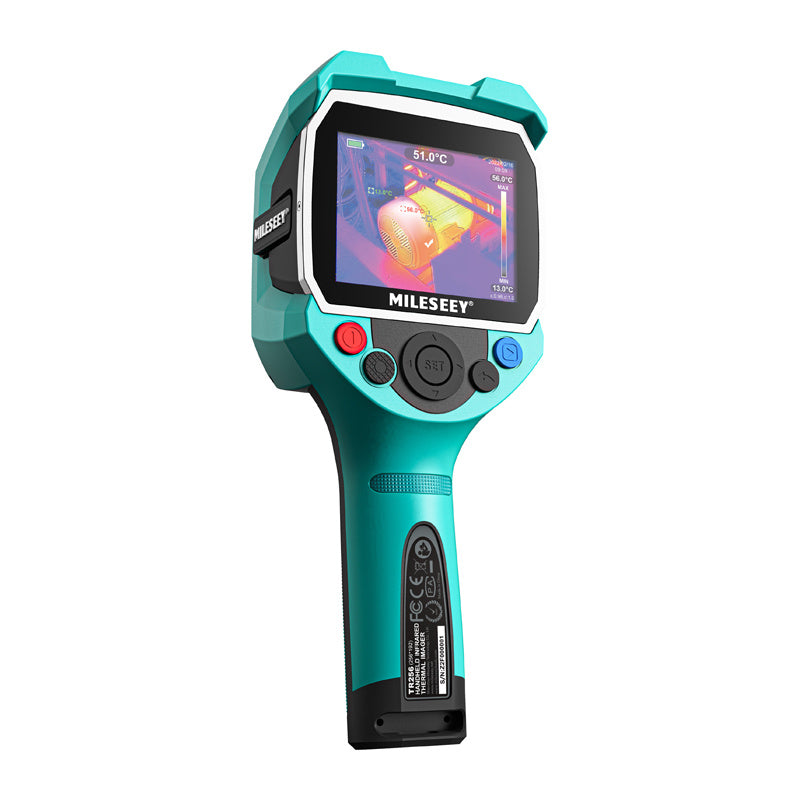

The Mileseey TR256C Wi-Fi thermal imaging camera combines advanced infrared imaging technology with a visible light camera, offering a clear and detailed view of the analyzed objects. With a high resolution of 256× 192 pixels, a wide temperature range from -20°C to 550°C and automatic detection of hot and cold spots, the device allows you to quickly identify potential problems. Built-in GPS module, laser rangefinder and the possibility of wireless transmission of images over Wi-Fi significantly expand its functionality. It is a comprehensive tool designed for professional diagnostics, which will work well in both technical work and field inspections.

Manufacturer: Mileseey

Product Code: TR256C

⚙ Specification:

• Manufacturer: Mileseey
• Model: TR256C
• Thermal resolution: 256 × 192 (49 152 pixels)
• Measured distance range: from 0,3 m to 3 m
• Visible light resolution: 2 megapixels
• Additional features: GPS positioning, laser rangefinder, Wi-Fi projection
• Spectral range: from 8 μm to 14 μm
• Temperature range: from -20°C to 550°C
• Color palettes: 6 color palettes
• Refresh rate: ≤ 20 Hz
• Pixel size: 12 μm
• Battery: Lithium battery with a capacity of 5000 mAh
• Weight: 555 g
• Dimensions: 238 × 95 × 85,5 mm

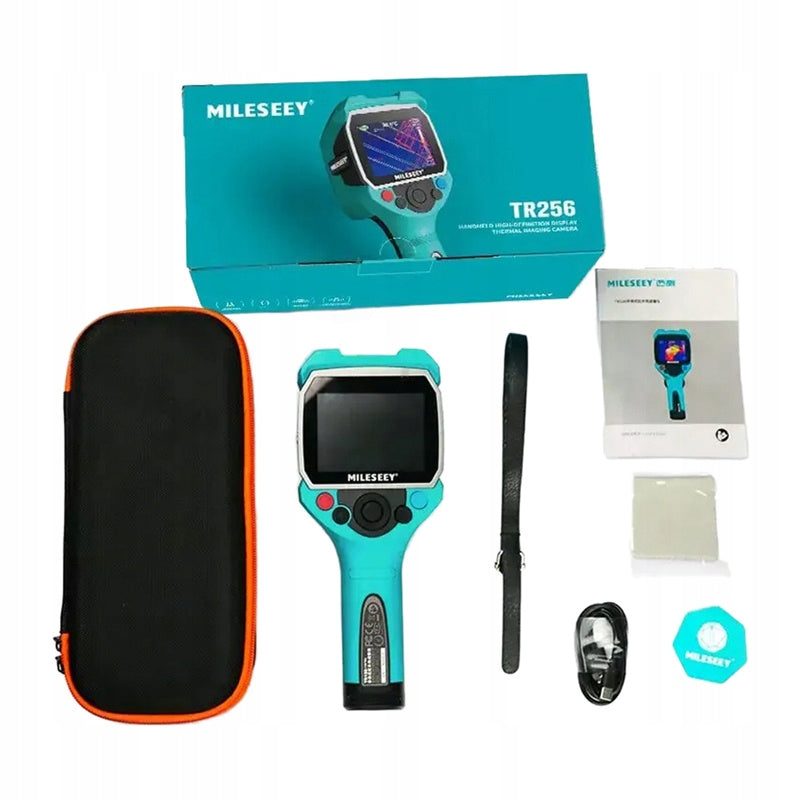

🔘 Included:

• Thermal imaging camera
• Storage case
• Pendant
• Charging cable
• User manual

✅Advantages:

✔ Thermal and real image at the same time – the combination of a thermal imaging camera 256 × 192 px with a visible image facilitates quick location of faults

✔ Wide temperature measurement range – measurement from -20°C to 550°C works well for diagnostics of electrical, heating and cooling systems

✔ Automatic detection of hot and cold spots – the camera instantly indicates places that require attention, accelerating analysis

✔ GPS, laser rangefinder and Wi-Fi – precise location, distance measurement and wireless data transfer increase the convenience of field work

🔘 Thermal and real image in one device 🔘

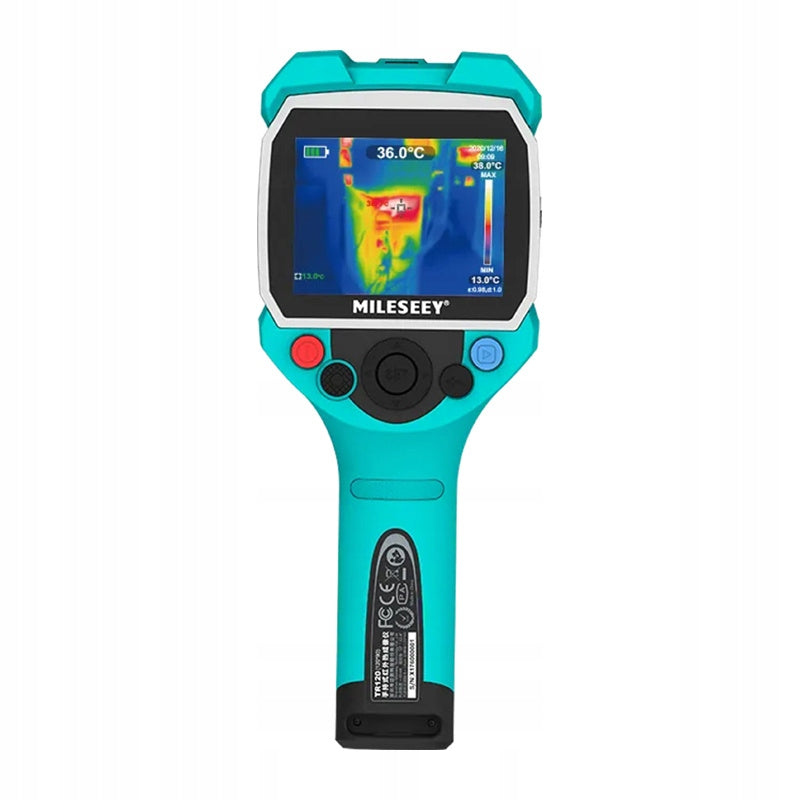

Mileseey TR256C offers a unique combination of thermal and visible images, so you can simultaneously analyze the temperature and the actual appearance of the object. The camera captures infrared images at a resolution of 256 × 192 pixels (49 152 measuring points), and an additional visible light sensor of 640 × 480 allows for an even more clear visual context. This combination significantly facilitates the localization of faults and interpretation of measurement results in practice.

🔘 Automatic temperature analysis and fast response 🔘

The device is equipped with automatic tracking of the warmest and coldest points, which allows you to detect irregularities instantly. The wide measuring range from -20°C to 550°C makes the camera suitable for both control of electrical installations and diagnostics of heating or cooling systems. In addition, you can use six color palettes (High Resolution Rainbow, Hot Red, Lava, Rainbow, Iron Red and White Heat) that improve image readability and facilitate analysis.

🔘 Clear picture and comfort of work in all conditions 🔘

The large, 3,5-inch high-resolution LCD screen provides a convenient real-time view of the results. The 56° × 42° wide field of view allows you to cover a larger area without having to change positions, which speeds up work and increases its efficiency. With its high-quality display, you can easily capture even subtle temperature differences.

🔘 Precise location thanks to GPS 🔘

The built-in GPS module allows you to accurately determine the location of detected temperature anomalies. Each photo taken can automatically save coordinates, which significantly facilitates documentation and subsequent tracking of problems in the field. This is a particularly useful solution for professionals working on inspections of installations, infrastructure or industrial facilities.

🔘 Distance measurement and greater control over analysis 🔘

The camera is equipped with an integrated laser rangefinder, which allows you to precisely determine the distance from the test object. Thanks to this, you can analyze the results even more accurately and better interpret the measurement data, especially when working at longer distances or in hard-to-reach places.

🔘 Wireless transmission and convenient data analysis 🔘

The Wi-Fi projection feature allows you to quickly transfer thermal images directly to your computer, without the need for cables. This allows you to conveniently analyze data in dedicated PC software, create reports and archive measurement results in a more advanced way.

🔘 Extensive memory and readiness to act 🔘

Mileseey TR256C offers memory that allows you to save up to 2000 photos, which allows long-term work without the need to rip data frequently. The built-in lithium battery provides mobility and convenience for off-road use, eliminating the need for external power sources. It is a practical and reliable tool that is always ready to operate where fast and precise diagnostics count.
