Trumpai apie prekę
Prekė: Temperatūros indikatorius su relės valdymu, 12V DC. Kategorija: Termometrai.
- Gamintojas: no brand
- Modelis: moduł sterujący przełącznikiem przekaźnikowym
- Spalva: colorless

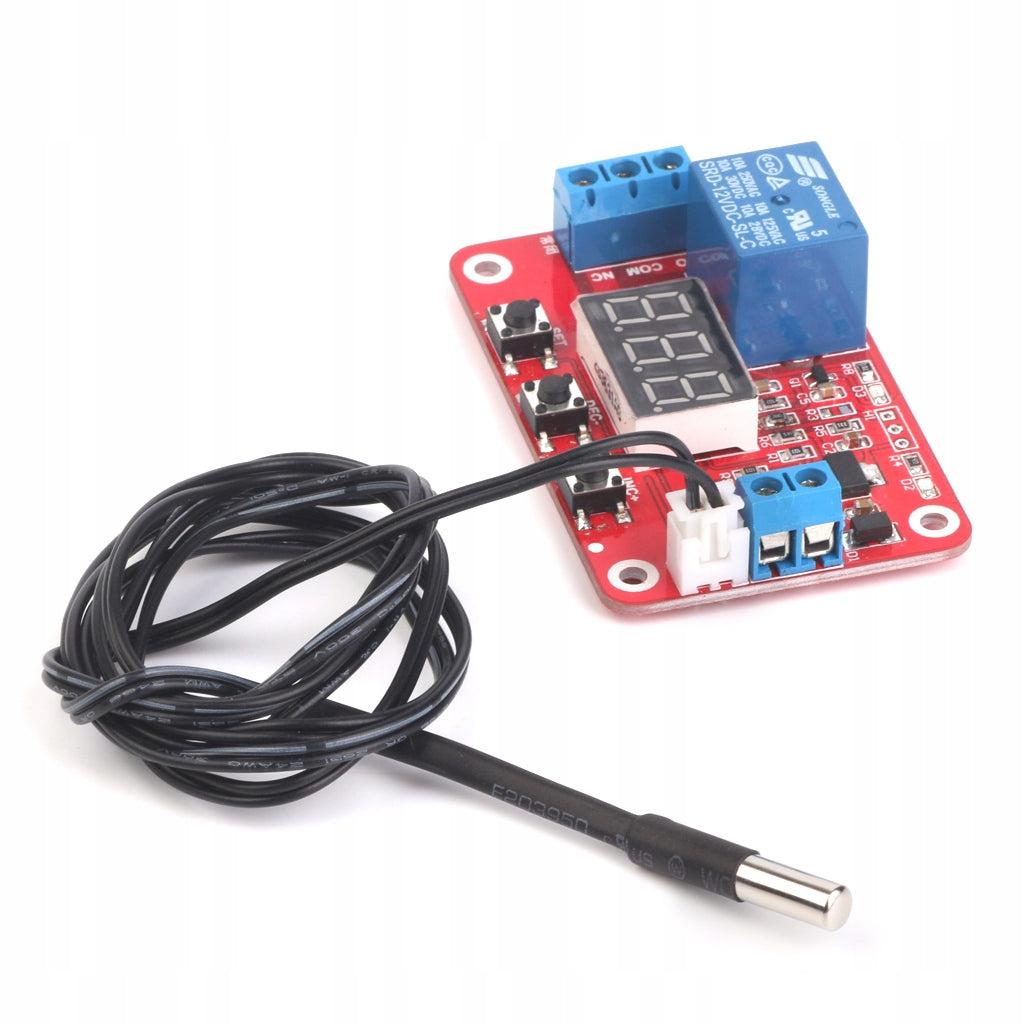

DC 12V Temperature Display Module Sensor Relay Switch Control
Description:
SCM control, intelligentize, easy operation, low power consumption
Outage setting, automatic memory
Control accuracy 0.1 ℃
Size: Approx. 67 x 42 x 18mm / 2.64 x 1.65 x 0.71 inch
Patch cord length: Approx. 1M / 39.37 inch, 2 pin port
Technical parameters:
Temperature control range: -20-100℃
Resolution ratio: -9.9~99.9: 0.1℃, other temperature ℃
Temperature measurement accuracy: 0.1 ℃
Control accuracy: 0.1 ℃
Return difference accuracy: 0.1 ℃
Refresh rate: 0.5 S
Input power supply: DC 5V, DC 12V, DC 24V
Measuring inputs: NTC(10K 0.5%)waterproof sensor
Output: 1 channel relay output, capacity =20A 125VAC.20A 14VDC
Environmental requirement: -10~60℃, humidity: 20%-85%
Size: Approx. 48.5 x 40mm / 1.9 x 1.5 inch
Overall power consumption: Quiescent current: ≤10MA, operating current ≤65MA
Indicator light direction: Flash shows delay of refrigeration or heating, keep lighting shows the relay has closed
Nixie tube: LL state shows open for sensor; please connect the sensor base on instruction, HH state shows exceed measurement range, temperature controller would peremptory turn off the relay, --- state shows high temperature alarm
Package Includes:
1 x Temperature display module
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | Without VAT invoice |
| Parametry | Medical device | no |
| Parametry | Kind | other |
| Parametry | Brand | no brand |
| Parametry | Color | colorless |
| Parametry | Display | other |
| Parametry | Model | moduł sterujący przełącznikiem przekaźnikowym |
| Parametry | EAN (GTIN) | 0768495273940 |
