Suvirinimo invertorius IDEAL TIG 220 AC/DC PULSE MMA 200A ALIUMINIS IGBT HF

Trumpai apie prekę

Prekė: Suvirinimo invertorius IDEAL TIG 220 AC/DC PULSE MMA 200A ALIUMINIS IGBT HF. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: EXTIG220AC
• Ilgis: 510 mm
• Plotis: 150 mm
• Aukštis: 310 mm

SMALL, EFFICIENT WELDING DEVICE FOR WORKSHOP WORK AS WELL AS FIELD WORK

Manufacturer: IDEAL ║ Welding methods: TIG AC DC, PULS, MMA ║ Power supply: 230V ║ Welding current: 200A ║

DISCOVER ALL THE ADVANTAGES OF THE IDEAL EXPERT 220 TIG MMA WELDING MACHINE:

• Welding methods: TIG AC/DC, MMA
• Power 200A in cycle 60%
• Powered by at 230V
• Latest IGBT inverter technology
• 2T/4T - for short and long welds
• Full adjustment of welding parameters
• Professional handle with control in the handle
• PULS-em in the AC/DC method with regulation
• Welding of all metals including aluminium and stainless steel
• Possibility to connect remote control pedal
• HF and Lift - contactless and contact arc glow
• Possibility to save up to 9 welding settings on the device
• Optimal size and weight of the device
• For work in the workshop and in the field
• Great work in an environment with a high risk of electromagnetic interference

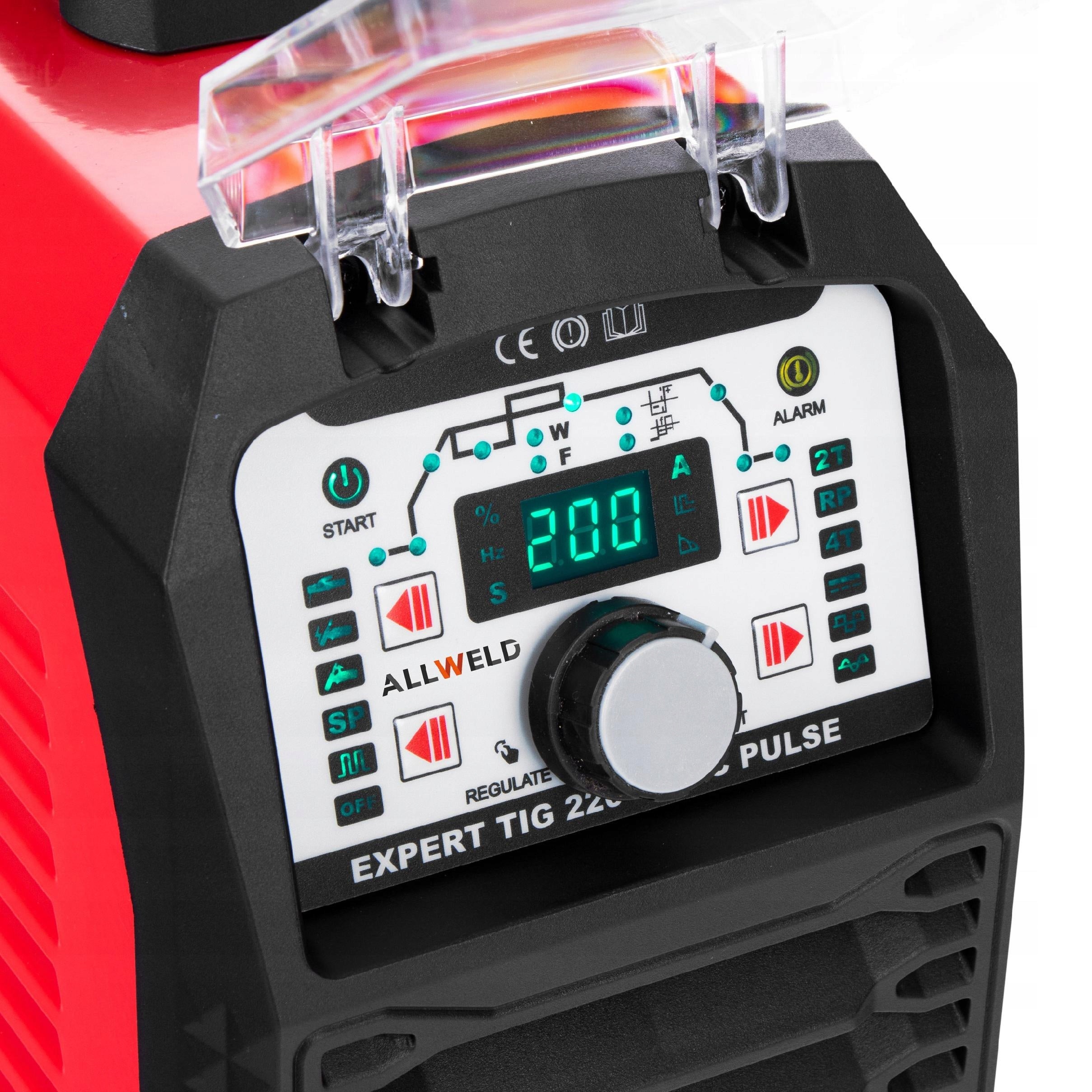

• easy to use, easy to read and soft control panel
• Flap protecting front panel from chipping
• Efficient fan cooling system
• Security against overload

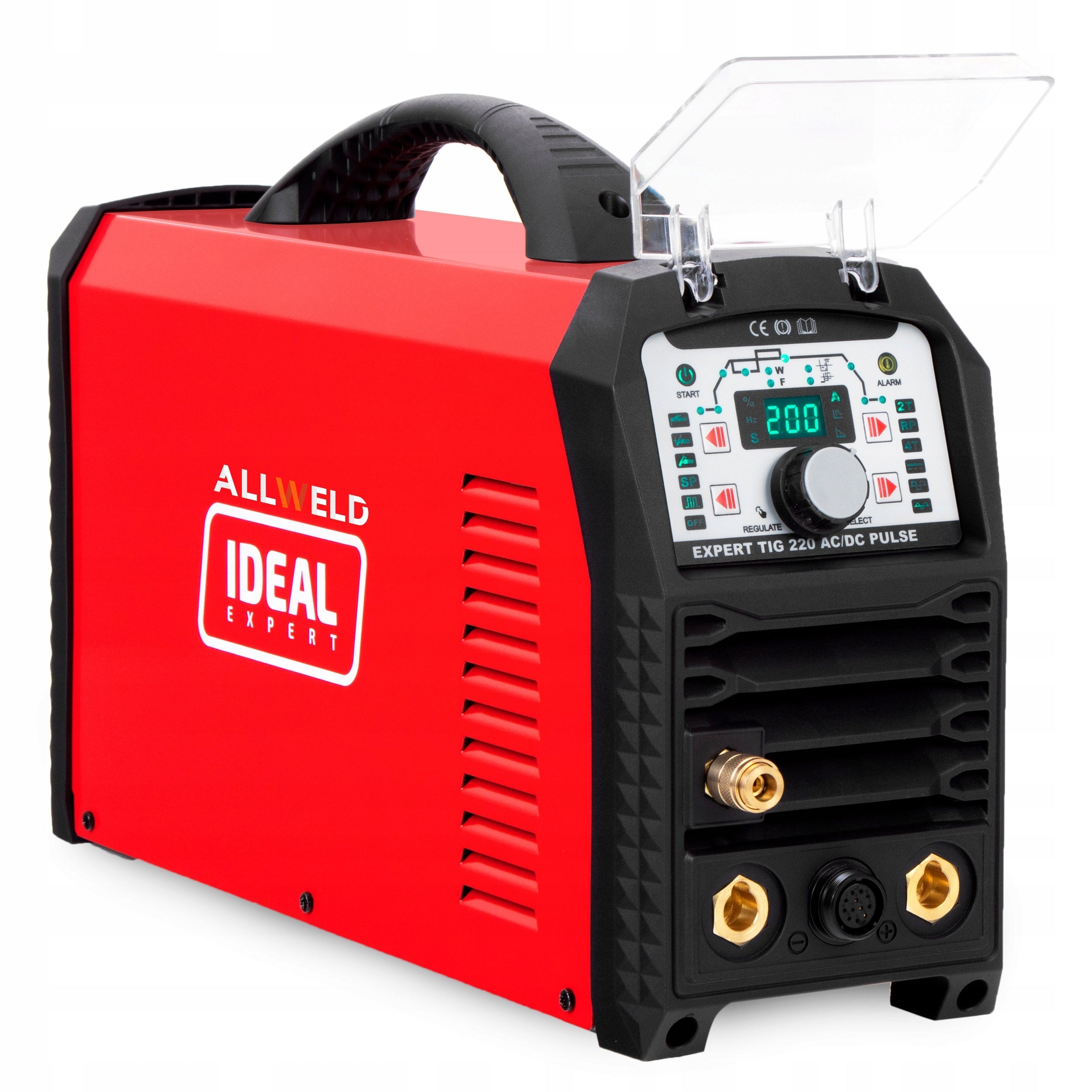

The EXPERT TIG 220 AC/DC PULSE welding machine is a small and easily portable power source, made in IGBT technology, designed for TIG and TIG PULS welding with alternating current (AC), constant current (DC), and MMA method with a direct current (DC) electrode. By adjusting the parameters of pulse welding TIG PULS we have an impact on the shape of the weld and the focus of the arc. Pulse welding is used when welding thin materials. Arching occurs in non-contact (HF) or touch mode (LIFT). Clear and easy to use digital control panel allows accurate adjustment of the device, ensures stable parameters and high welding quality.

PULS - Pulse welding not only allows for better weld quality, but also allows for welding in various positions and welding of very thin elements. Reducing the linear energy of the arc, and thus reducing overheating or burnout of welded materials.

2T/4T - when the start button is pressed, the welding process takes place, while after releasing the button, the welding process is stopped. Four bars is particularly useful for long welds as well as during work when we need to freely maneuver the handle, e.g. during welding of pipes. After pressing and releasing the button, the arc is lit only again pressing and releasing completes the process.

AC TIG – AC welding function, enabling qualitative welding of aluminium. It allows you to effectively remove aluminum oxides and keep the lake clean.

IGBT - modern IGBT transistors are used in the welding machine, the solution ensures lower electricity consumption, greater resistance to interference, voltage drops, but also trouble-free operation.

SETTINGS MEMORY - Built-in memory allows you to save and read up to 9 sets of settings, which definitely facilitate work, especially when we have repeatability of cycles.

OVERLOAD SWITCH - built-in protection against overheating of the device, prolonging its service life.

ANTI STICK - anti-short-circuit - automatically turns off the welding voltage if the electrode sticks to the welded material, which facilitates its detachment and prevents the accidental formation of a welding arc

HOT START function - this is a temporary increase in welding current to facilitate the ignition of the electric arc and the preheating of the welded material.

ARC FORCE “arch dynamics” – shortening the arc length is accompanied by an increase in welding current, which stabilizes the arc, regardless of its length.

POWER SUPPLY PARAMETERS

• Power supply: 230 V
• Frequency: 50-60Hz
• Number of phases: 1ph
• Network security: C25A MMA / C20A TIG
• Maximum power consumption: 5 kW

TIG AC/DC WELDING PARAMETERS

• Welding current range: 5 - 200 A
• Welding current voltage: 200 A
• Power build-up time: 0 - 10s
• Power drop time: 0 - 10s
• Pulse length: 5 - 95s
• Pulse frequency: 0,5 - 999Hz
• Gas flow after welding: 0 - 10s
• Gas flow before welding: 0,1 - 2s
• Working cycle: 60%
• Idle voltage: 86 V (TIG) / 57 V (MMA)

ADDITIONAL FUNCTIONS

• PULSE function: YES

PHYSICAL PARAMETERS

• Degree of protection: IP 23
• Weight: 13kg
• Cooling: Fan
• Dimensions: 510 x 150 x 310 mm

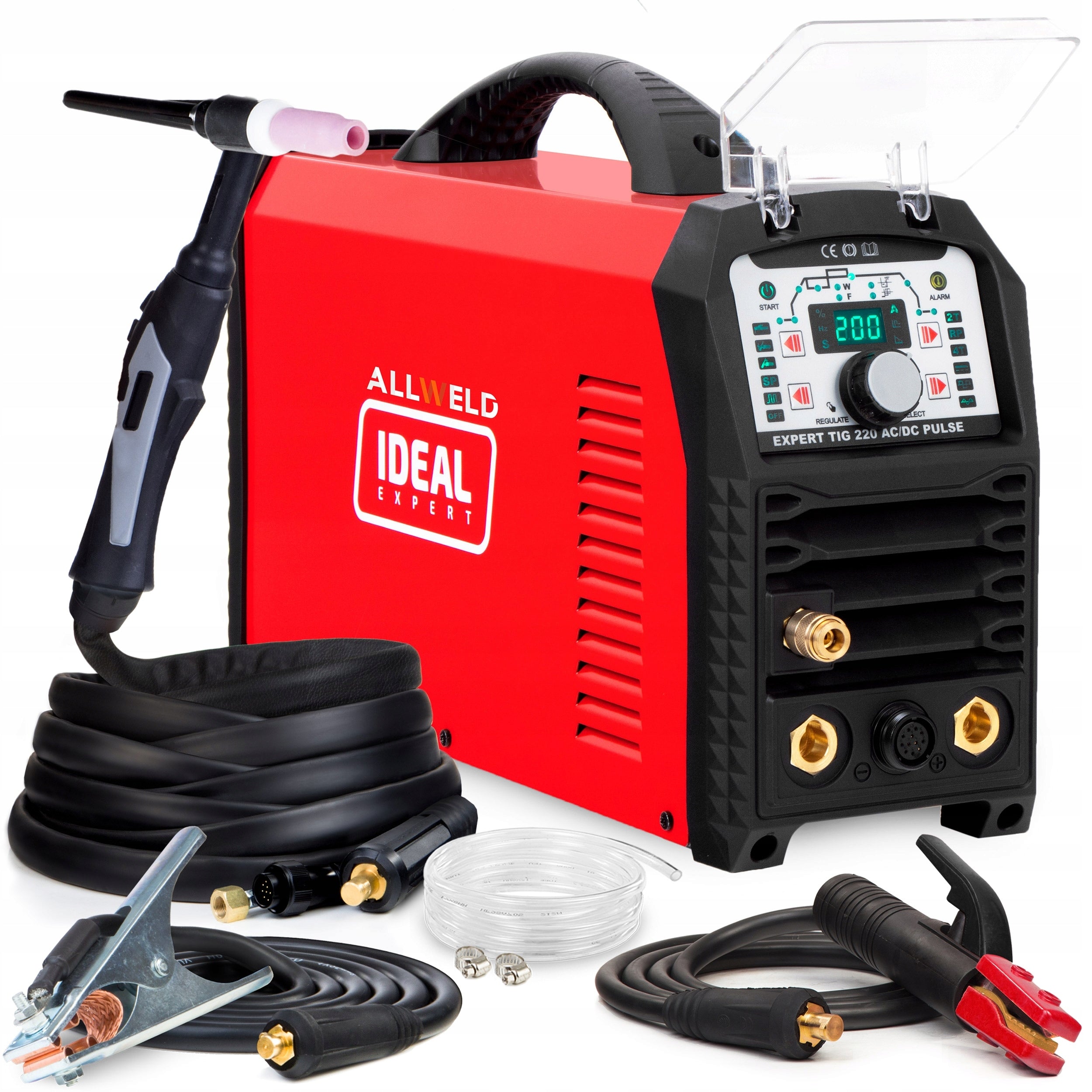

• EXPERT TIG 220 AC/DC PULSE welding machine
• Welding torch TIG Type 26 with remote adjustment - 4m
• Electrode holder- 3m
• Bulk holder - 3m
• Hose - 1pcs
• User manual in Polish

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	IDEAL
Parametry	Power consumption	5 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	40 mm
Parametry	Device weight	13 kg
Parametry	Welding range	5–200 A
Parametry	Height	310 mm
Parametry	Length	510 mm
Parametry	Width	150 mm
Parametry	Length of ground cable	300 cm
Parametry	Welding cable length	400 cm
Parametry	Product weight with unit packaging	16 kg
Parametry	Manufacturer code	EXTIG220AC
Parametry	EAN (GTIN)	5903991100177
Parametry	Packaging status	original
Parametry	Welding methods	MMA,TIG
Parametry	Additional features	infinitely adjustable welding current,EURO handle,LCD display
