Trumpai apie prekę
Prekė: Suvirinimo inverteris WELDMAN TORNADO TIG 210 AC/DC HF Pulse 103037. Kategorija: Pusiau automatiniai suvirinimo aparatai.
- Gamintojas: Weldman
- Modelis: TORNADO TIG 210
- Ilgis: 490 mm
- Plotis: 240 mm
- Aukštis: 400 mm

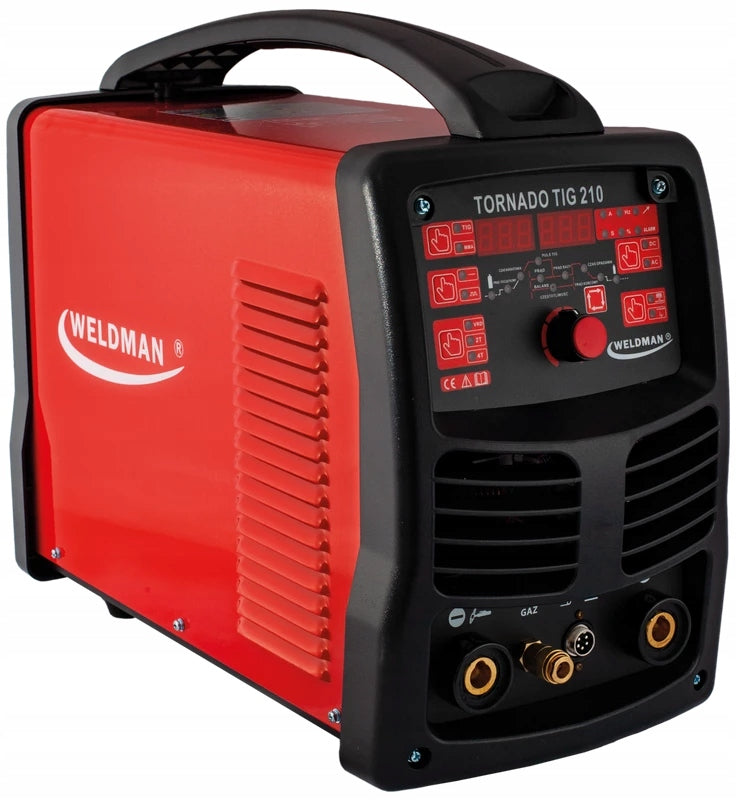

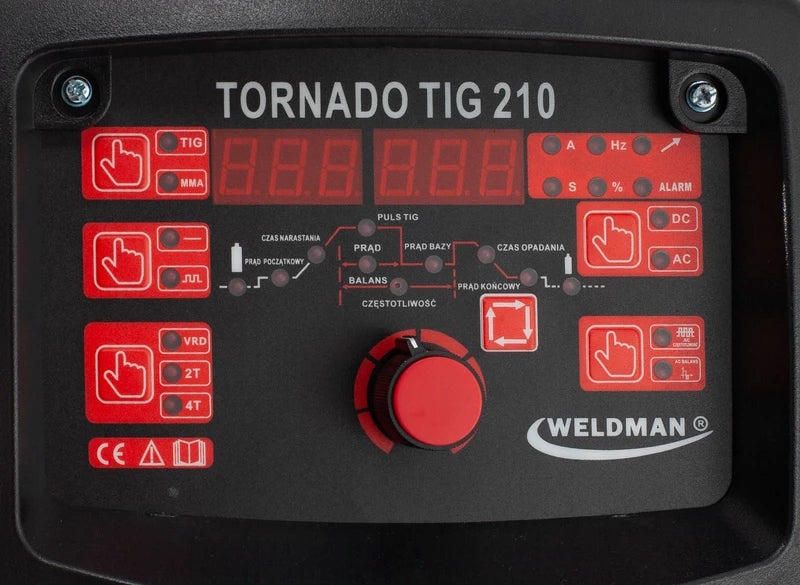

TORNADO TIG 210 AC/DC inverter welder TIG AC/DC inverter welder made in IGBT technology for TIG AC/TIG AC PULS/TIG DC/TIG DC PULS/MMA welding. The welder allows you to work in 2-bar and 4-bar mode with contactless (TIG HF) arc ignition. It is adapted to external control of the welding machine operation. Settings of operating parameters with individual knobs, panel in Polish. Regulation of all TIG operating parameters with or without PULSE. When working with TIG AC method, it is possible to adjust the AC balance value and AC frequency.
Designed for welding all metals, including aluminum in service work, e.g. air conditioning systems, exhaust systems, etc.
Intuitive operation and a wide range of possibilities make this device very well suited for industrial activities as well as in workshops.

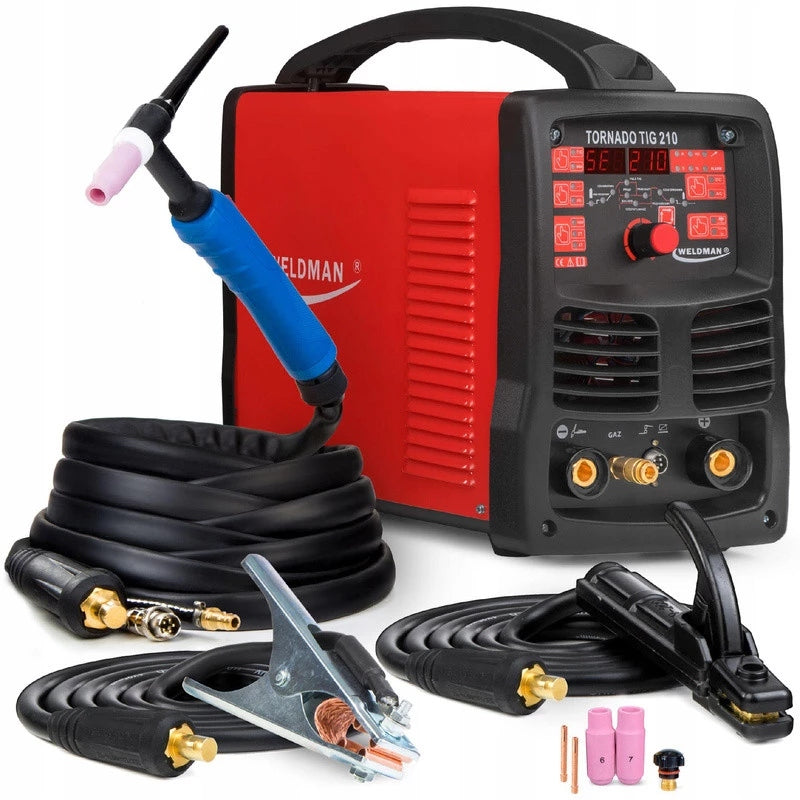

EQUIPMENT:
- 2m power cord with 230V plug
- TIG WP welding torch 26 4m (DX50)
- 2m welding wire with electrode holder 200A (DX50)
- 2m mass cable with 200A terminal (DX50)
- Gas connection for technical hose 8mm
- 5-Vertical Handle Control Socket and Gas Socket
- Quick coupler mini type 21
TECHNICAL DATA:
- Code 103 037
- Type of device TORNADO TIG 210
- Supply voltage [V] 230
- Idle current voltage [V] 65
- Welding current adjustment range [A] TIG – 10-210
- MMA – 10-210
- Max efficiency at 40°C 210A@60%
- 163A@100%
- Protection class [IP] 21
- Dimensions [cm] 49x24x40
- Weight [kg] 17
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Weldman |
| Parametry | Power consumption | 8 kVA |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 60% |
| Parametry | Maximum electrode diameter | 4 mm |
| Parametry | Wire diameter (mm) | 0,8-1,2 |
| Parametry | Device weight | 17 kg |
| Parametry | Welding range | 10–210 A |
| Parametry | Height | 400 mm |
| Parametry | Length | 490 mm |
| Parametry | Width | 240 mm |
| Parametry | Length of ground cable | 200 cm |
| Parametry | Welding cable length | 400 cm |
| Parametry | Product weight with unit packaging | 19 kg |
| Parametry | Manufacturer code | WELDMAN TORNADO TIG 210 HRS5 |
| Parametry | EAN (GTIN) | 5902701751258 |
| Parametry | Model | TORNADO TIG 210 |
| Parametry | Welding methods | MMA,TIG |
| Parametry | Additional features | infinitely adjustable welding current,EURO handle,LCD display |
