Suvirinimo inverteris WELDMAN TORNADO 200 TIG AC DC MMA PULSE 200A 230V ALU

Trumpai apie prekę

Prekė: Suvirinimo inverteris WELDMAN TORNADO 200 TIG AC DC MMA PULSE 200A 230V ALU. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Weldman
• Modelis: 103 037
• Ilgis: 480 mm
• Plotis: 240 mm
• Aukštis: 400 mm

Manufacturer: WELDMAN ║ Welding methods: TIG AC/DC, PULS, MMA ║ Power supply: 230V ║ Welding current: 200A ║ Efficiency: 60%

TIG welder for aluminium, steel and INOX easy to operate! Popular and proven model of good brand WELDMAN!

The WELDMAN TORNADO inverter welding machine allows for quality welding of all weldable materials. Very high efficiency of the device allows for a wide range of applications and rapid adjustment of current to changes in parameters during welding. One of its most important advantages is the ability to obtain a clean, high-quality weld.

ADVANTAGES OF THE DEVICE:

• Quality welding of aluminium and its alloys
• Full TIG panel - AC/DC
• High efficiency 60% at 200A
• Contactless arc initiation - HF ionizer
• Welding TIG PULS with full adjustment
• Professional welding torch 4m

WELDMAN TORANDO TIG is a proven model that stands out for its robustness and reliability. The welding machine will work well in both small workshops and large production plants.

ADDITIONALLY A COMPLETE WELDING KIT:

GAS CYLINDER, REDUCER, HOSE

IGBT TECHNOLOGY

The TORNADO TIG is an inverter welding machine made of technologically advanced components. The use of inverter technology resulted in a reduction in the dimensions and weight of the device, which makes it possible to work in hard-to-reach places.

WELDING WITH PULSE

Thanks to the pulse welding function and the ability to adjust its parameters, we have an impact on the focus of the arc and the shape of the weld, as well as the possibility of welding thin elements. This guarantees the purity and high quality of the weld. The arc is ignited using a built-in HF ionizer, which allows for contactless ignition of the welding arc .

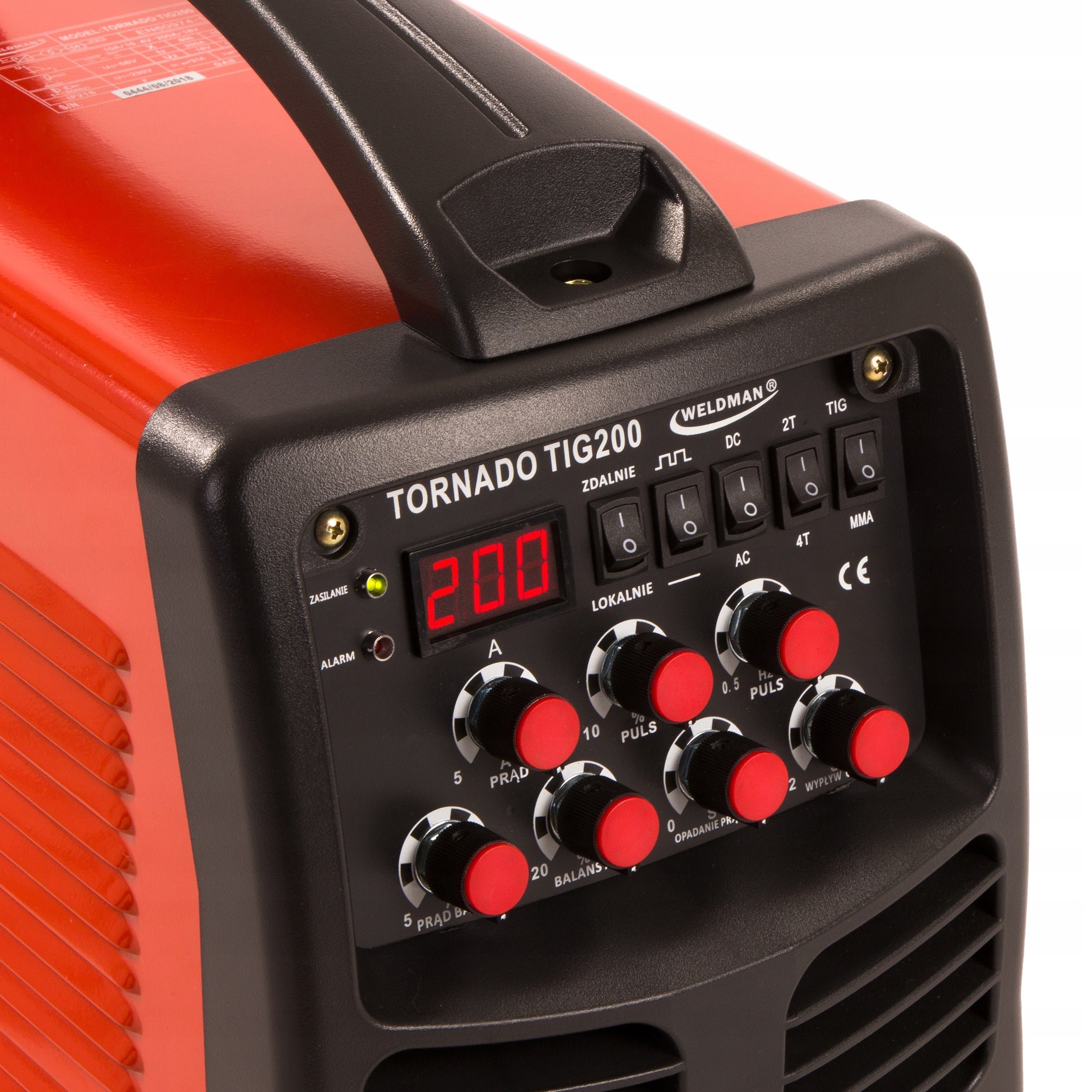

INTUITIVE CONTROL

The welder has quick and easy-to-use control using dedicated knobs. Each is responsible for a different parameter and allows you to precisely set the desired value. What’s more, from the control panel using buttons, you can choose the welding method and the 2T function (welding with the handle button pressed), or 4T used for longer welds (without having to hold the handle button).

PROFESSIONAL TIG WELDING TORCH - 4m

The welding machine is equipped with a professional welding torch TIG type SR 26, with a length of 4m. The handle cable is equipped with a handle with a joint, so it does not restrict movement and greatly facilitates work.

REMOTE CONTROL

A big advantage of the welding machine is the function of adjusting the welding current using the remote control pedal. Thanks to this, it is possible to remotely, wired regulation of welding current.

Remote control will work well for work where frequent changes in current are needed, e.g. welding of rims or aluminium structures.

ATTENTION!!!

The pedal is not included, but is available at our other auctions.

(copy and paste the link in your browser window)

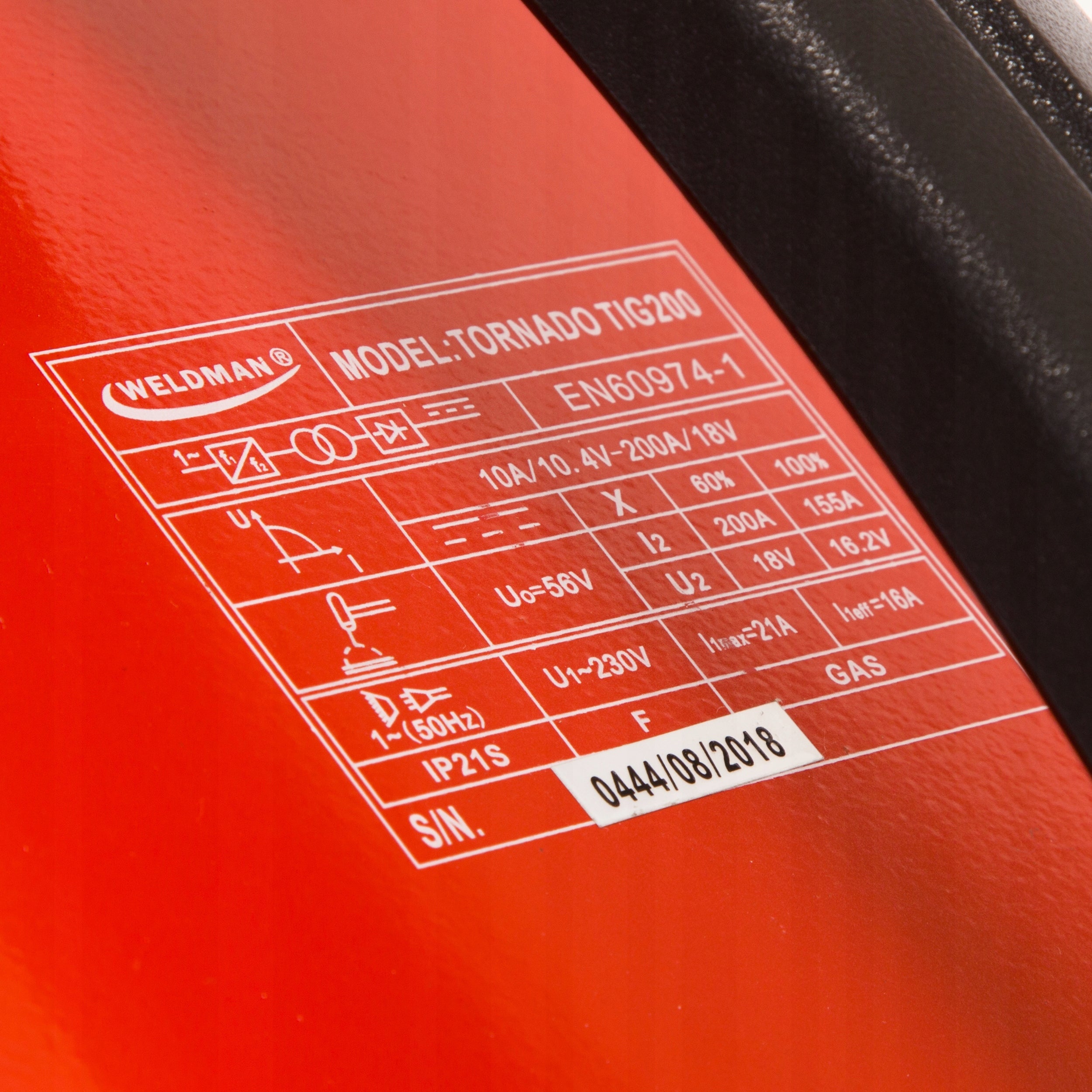

POWER SUPPLY PARAMETERS

• Power supply: 230V
• Frequency: 50Hz
• Number of phases: 1ph
• Idle current voltage: 62V
• Network security: 20A

TECHNICAL PARAMETERS

• TIG welding current: 10-200A
• TIG duty cycle: 60%
• TIG welding current voltage: 10,4 - 18V
• MMA welding current: 10-200A
• MMA work cycle: 60%
• MMA welding current voltage: 20,4 - 28V

ADDITIONAL FUNCTIONS

• PULSE function: YES
• AC function: YES - welding aluminium
• DC function: YES
• HF function: YES
• 2T/4T function: YES

PHYSICAL PARAMETERS

• Isolation class: IP21S
• Degree of protection: F
• Weight: 17kg
• Dimensions: 480x240x400mm

COMPOSITION OF THE SET:

• Factory new reusable cylinder with Argon gas with a capacity of 8l and a pressure of 200bar. The cylinders have 10-year-old legalizations and can be filled at any point with technical gases.
• Reducer with rotameter - precise reducer with adjustment. Our model features a pressure gauge for cylinder pressure control and a rotameter for precise operating pressure setting.
• Gas hose - for connecting the reducer to the welding machine.

NECESSARY SET NEEDED TO START WELDING WORK WITH TIG WELDING MACHINE

Welding visor, you can choose yourself, looking at our other auctions or rely on our help.

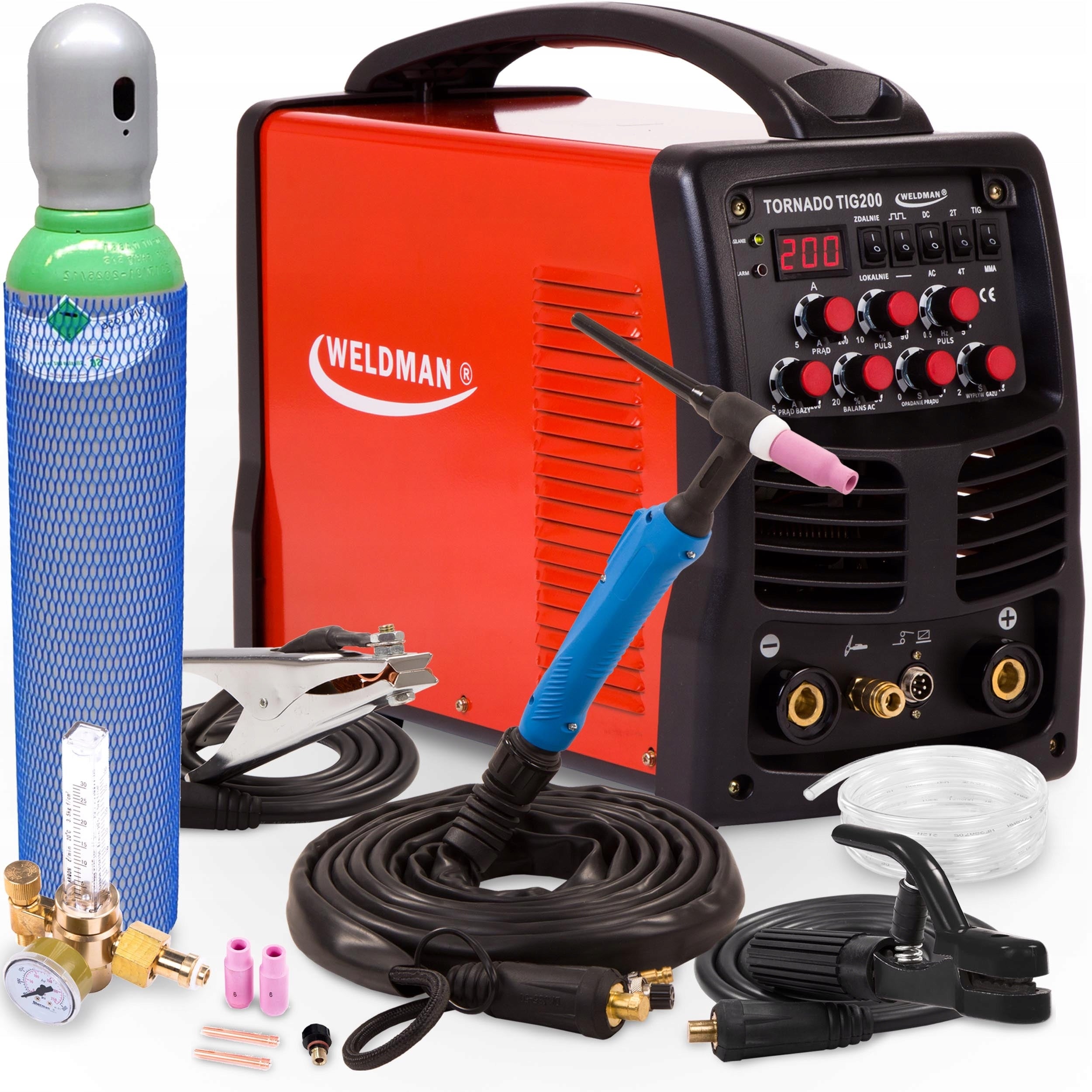

THE SET INCLUDES:

• Welding machine WELDMAN TORNADO TIG 200
• Welding torch TIG type SR26 - 4m
• Bulk holder - 2m
• Electrode holder - 2m
• User manual and warranty card

+ WELDING ACCESSORIES:

• Gas cylinder Argon 8l
• Cylinder reducer Ar/CO2 with rotameter
• Gas hose

+ HANDLE CONSUMABLE PARTS:

• Ceramic nozzle - 3pcs.
• Short cork - 1pcs
• long cork - 1pcs
• Current switch - 1pcs
• Bushing - 3pcs.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Weldman
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	4 mm
Parametry	Device weight	17 kg
Parametry	Welding range	10–200 A
Parametry	Height	400 mm
Parametry	Length	480 mm
Parametry	Width	240 mm
Parametry	Length of ground cable	200 cm
Parametry	Welding cable length	400 cm
Parametry	Manufacturer code	103 037
Parametry	EAN (GTIN)	5902701751265
Parametry	Packaging status	original
Parametry	Welding methods	MMA,TIG
Parametry	Additional features	infinitely adjustable welding current,LCD display
