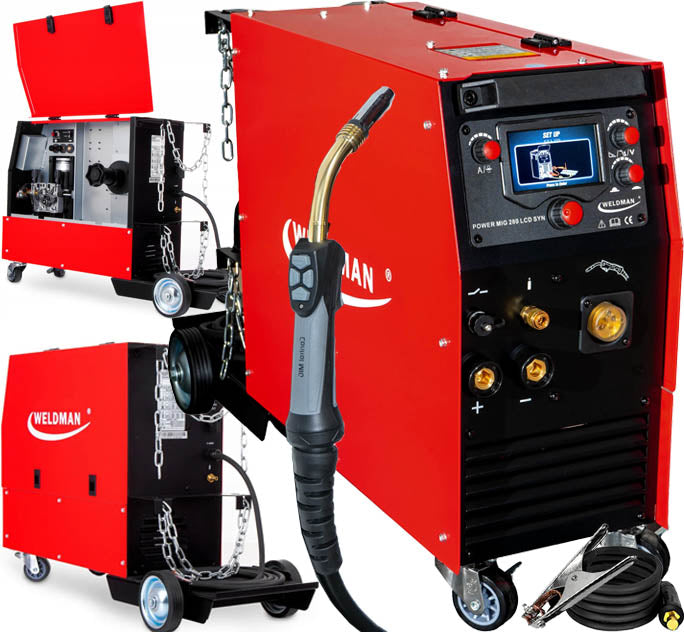

Suvirinimo inverteris WELDMAN POWER MIG 280 LCD 4x4 SYNERGY 400V

Trumpai apie prekę

Prekė: Suvirinimo inverteris WELDMAN POWER MIG 280 LCD 4x4 SYNERGY 400V. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Weldman
• Modelis: SPAWARKA POWER MIG 280 LCD

POWER MIG 280 LCD WELDING MACHINE

it is a professional, technologically advanced semi-automatic welding machine designed for welding using the following methods:

➡ MIG/MAG:

Arc welding in gas shields (CO2 or Argon+CO2) is one of the most commonly used processes for the production of welded structures. The semi-automatic welding process involves melting the edges of the welded object and the welding material (welding wire on a roll) with an electric arc produced between the welding wire fed by the handle and the welded material.

Available Modes:

• MIG SYN - MIG/MAG welding with synergistic settings,
• MIG MAN - MIG-MAG welding in manual (traditional) mode,
• FLUX / FCAW - self-shielding wire welding. This is a similar welding process as MIG/MAG but does not require a gas cylinder. On the wire there is a thin layer of powder, which at the time of arc formation produces gas covering the working area.

➡ TIG LIFT DC - welding with a non-melting electrode (tungsten) in an inert gas shield (Argon) using an additional handle. In the TIG DC Lift mode, the arc glow occurs when the electrode with the welded element is contacted (the button in the handle does not ignite the arc, the gas is connected directly from the reducer to the handle). In TIG Lift DC mode, the current is constant.

➡ MMA - classic welding with wrapped electrodes (rutile, alkaline, acidic).

POWER MIG 280 LCD welding machine is used for welding:

✔ stainless steels (MMA, MIG/MAG, TIG Lift DC),

✔ low carbon steel (MMA, MIG/MAG, TIG Lift DC),

✔ low alloy steels (MMA, MIG/MAG, TIG Lift DC),

✔ cast iron (MMA, MIG/MAG, TIG Lift DC),

✔ aluminium and its alloys (MIG),

✔ other weldable metals and alloys

The device has been designed for all kinds of welding work in automotive, locksmith, repair, industrial workshops etc.

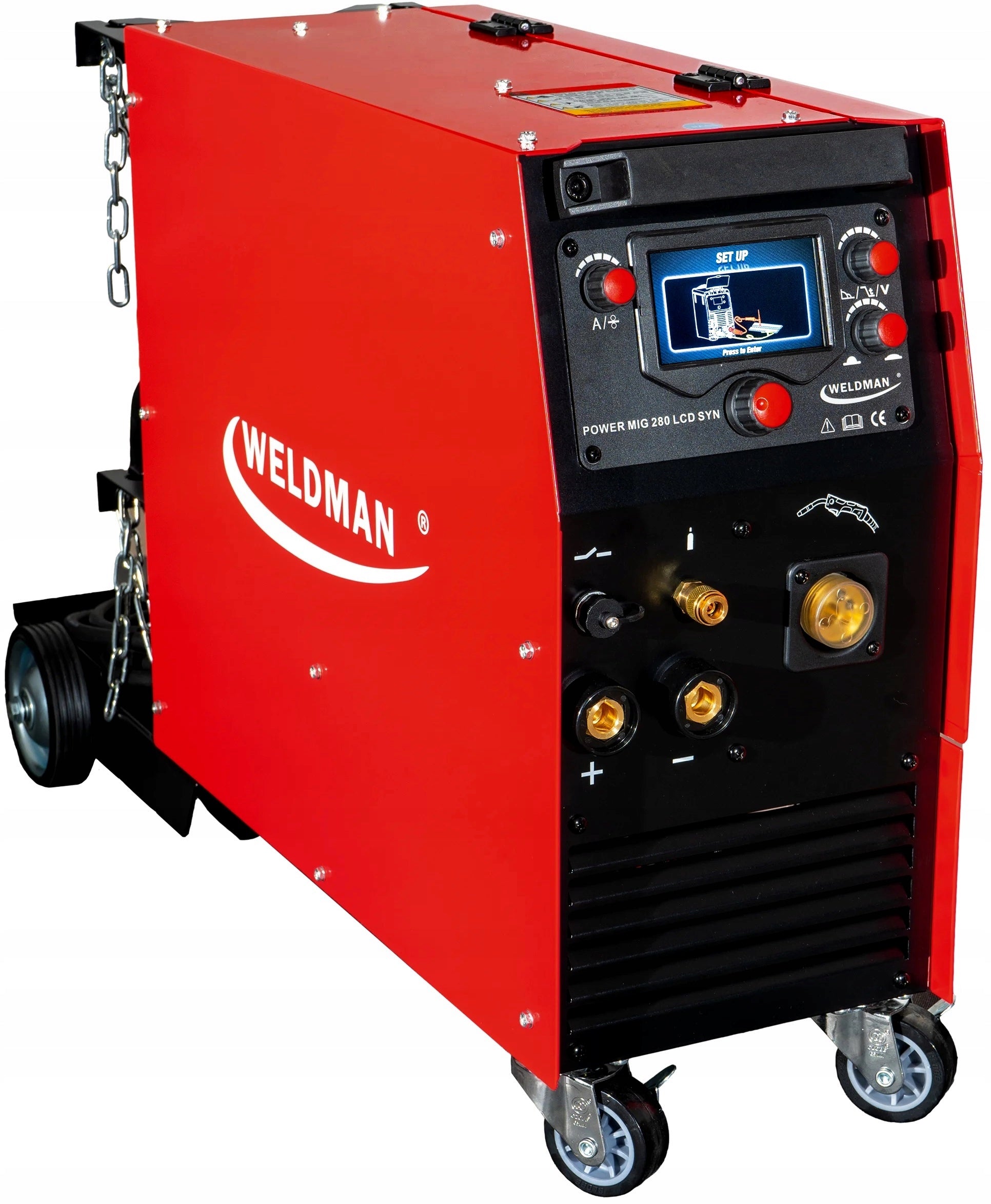

WELDMAN POWER MIG 280 LCD has a readable and easy to use function panel, which has i.a.:

• The knob for adjusting the current in TIG/MMA and the wire feed speed in MIG,
• LCD display,
• Power supply control knob in MIG / current drop in TIG/ARC FORCE in MMA,
• Inductance control knob (0-10) and gas outflow time after welding,
• Control knob (by pressing we approve the selection).

When setting individual operating parameters on the LCD display , we see further screens with selected operating parameters:

• Welding process selection screen,
• Selection screen of welded material,
• External settings screen,
• Curtain mixture type selection screen,
• Wire diameter selection screen,
• Selection screen for handle operation type,
• Material thickness screen,
• Welding parameters screen.

✔ INDUCTANCE ADJUSTMENT - function is useful during welding using the MIG/MAG method of thin elements, preventing them from burning out and soldering galvanized elements. Changing the inductance value also reduces the amount of welding chips during CO2 shielded welding. Thanks to the inductance adjustment, the welding machine is suitable for lutowelding. Depending on the model of the welding machine, the adjustment is automatic or can be adjusted manually.

✔ MANUAL MODE - the ability to manually set the welding machine and make adjustments to synergistic settings (most synergistic welding machines currently available on the Polish market do not have a fully manual mode, and thus it is not possible to manually set the m.in wire feed speed, which is not always in synergy tailored to our needs).

✔ SYNERGY - is a very helpful feature available in professional welding equipment class PREMIUM. By setting the appropriate program or entering parameters, the device will independently select most welding settings, such as wire feed speed or appropriate voltage, according to the programmed data.

✔ SPOOL GUN - SpoolGun welding torch with built-in wire feeder is used for MIG/MAG welding. It is mainly used in car workshops and in welding thin sheets.

✔ TWO-BAR 2T - pressing the button initiates gas outflow and welding current, releasing the button turns off welding current and gas outflow.

✔ FOUR-BAR 4T - pressing and releasing the handle button initiates gas outflow and welding current, re-pressing and releasing the button turns off the welding current and gas outflow.

✔ FAN STOP - function that turns off the fan at low load of the welding machine, which reduces noise and improves the comfort of use of the device.

✔ ARC FORCE - is a function that facilitates the transfer of a drop of molten electrode to the welded material, preventing the arc from being extinguished when the drop of electrode contacts the welding lake.

✔ HOT START - facilitates the ignition of the electrode by providing more welding current with each arc.

✔ ANTI STICK - anti-short-circuit function - reduces the welding current to a minimum value when the welder makes a mistake and the electrode is glued to the welded material. This makes it easier to detach the electrode from the welded material and protects the electrode holder from damage.

✔ BURN BACK - It is possible to adjust the time for which the voltage at the output of the device still occurs after stopping the wire feeding. This feature prevents the welding wire from getting stuck in the welded material and prepares the end of the wire for the next arc. Higher function values cause the wire to burn closer to the current tip.

✔ EUROCONNECTOR - allows you to quickly change the handle and allows you to change the polarity for welding with self-shielding wire.

✔ INVERTER TECHNOLOGY IGBT - is a modern technology based on bipolar transistors with an isolated gate. It combines the ease of control of field transistors with high breakdown voltage and switching speed of bipolar transistors. The use of IGBT technology has the effect of significantly extending the reliable operation of welding equipment.

✔ WORK IN INDUSTRY - thanks to its high quality and multifunctionality, the device can be used in professional and hobby work.

✔ CONTROL PANEL - The welding machine is equipped with an easy-to-use control panel and display, so it can be used even by amateurs.

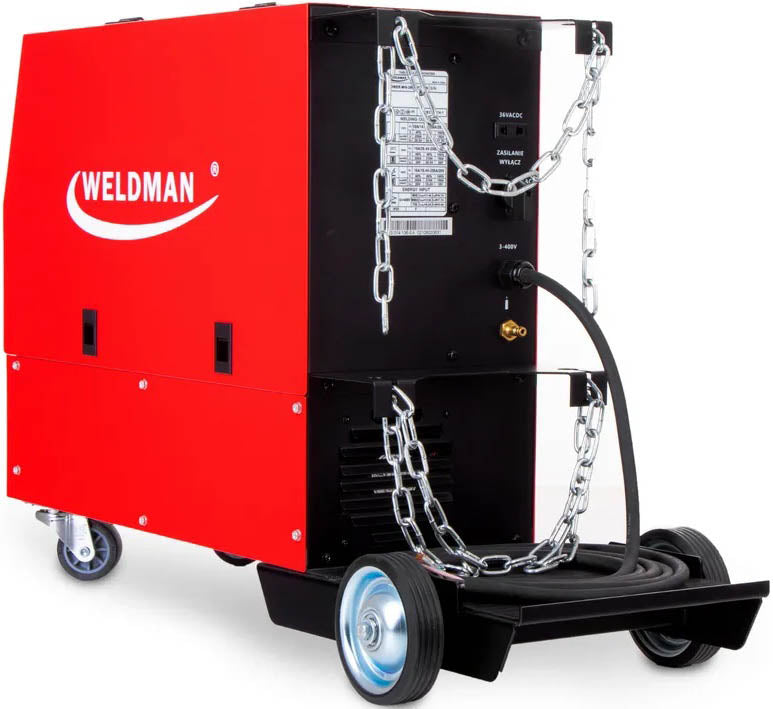

✔ CHASSIS - The semi-automatic machine is also equipped with a solid chassis, equipped with durable bearing wheels that guarantee high mobility and give the possibility of moving the welding machine on uneven ground.

EFFICIENT OPERATION THANKS TO PROFESSIONAL WIRE FEEDER

The welder is equipped with a solid wire feeder, which guarantees stability and continuity of operation of the device.

The 4x4 feeder allows precise extension of the welding wire excluding its slippage.

The feeder has a quick wire change knob as well as a wire feed roller.

➡ The device is equipped with overload protection, which increases its reliability.

❄ The device has a fan cooling system which significantly increases its efficiency.

⏩ TECHNICAL DATA:

• Power supply voltage: 400V/50Hz
• Power supply network protection: 3x 20A
• Idle voltage: 55 V

⏩ MIG PARAMETERS:

• MIG/MAG welding current: 10 - 250 A
• Welding current at work 40%: 250 A
• Welding current at 60% operation: 210 A
• Welding current at work 100%: 150 A
• Current voltage at 40%: 26,5 V
• Current voltage at 60%: 24,5 V
• Current voltage at 100%: 21,5 V
• Power supply current max: 11,4 A
• Power supply current ef: 6,7 A
• Wire spool size: max 15 kg
• Wire feeder: 4x4
• Wire diameter: FE: 0,6-1,2 SS: 0,8-1,2 AL : 0,9-1,2 FLUX: 0,9-1,2

⏩ MMA PARAMETERS:

• Welding current MMA: 10 - 250 A
• Welding current at work 40%: 250 A
• Welding current at 60% operation: 210 A
• Welding current at work 100%: 150 A
• Current voltage at 40%: 30 V
• Current voltage at 60%: 28,4 V
• Current voltage at 100%: 26 V
• Power supply current max: 12,9 A
• Power supply current ef: 7,7 A

⏩ PARAMETERS OF TIG DC LIFT:

• Welding current TIG DC LIFT: 10 - 250 A
• Welding current at work 40%: 250 A
• Welding current at 60% operation: 210 A
• Welding current at work 100%: 150 A
• Current voltage at 40%: 20 V
• Current voltage at 60%: 18,4 V
• Current voltage at 100%: 16 V
• Power supply current max: 9,2 A
• Power supply current ef: 5,4 A

⏩ OTHER:

• Cooling: fan
• Degree of protection: IP 23
• Isolation class: F
• Weight of the device : 18 kg
• Dimensions: 51x23x42 cm

WHEN YOU BUY FROM US, YOU WILL RECEIVE:

• Welding machine WELDMAN POWER MIG 280 LCD - 1 pc.
• Welding torch PRO25 REMOTE PARWELD (type MIG 24KD) - 4 m - 1 pc.
• Bulk cable - 1 pc.
• Power cord - 3 m
• Instructions service in Polish

SET 1 LARGE MIG INDUCTANCE MB24.
