Trumpai apie prekę
Prekė: Suvirinimo inverteris TIGER 1500 HF TIG DC Pulse MMA, 230V, 150A, su rankena, 4 m. Kategorija: Pusiau automatiniai suvirinimo aparatai.
- Gamintojas: Tiger
- Modelis: SPAWARKA TIG DC PULS MMA TIGER HF
SOLID AND POWERFUL WELDING MACHINE OF EUROPEAN PRODUCTION ! LONGER PROTECTION OF EQUIPMENT - UP TO 24 MONTHS WARRANTY PERIOD
Manufacturer: TIGER ║ Welding methods: TIG DC, PULS, MMA ║ Power supply: 230 ║ Welding current: 150A ║ Efficiency: 30% (at temp. 40°C)
DISCOVER THE ADVANTAGES OF THE TIGER 1500 HF WELDING MACHINE
- Digital display with excellent contrast
- Ideal for welding stainless steel, copper and other alloys.
- Smooth adjustment of welding parameters
- Welding TIG with PULSE
- HOT START function
- ARC FORCE function
- ANTI STICK,
- CYCLE function (transition between two current values)
- Operating mode 2T/4T
- Smoothly running control panel - zero jams!
- TIG DOWN SLOPE - crater filling
- PRE-GAS and POST-GAS
- European production - Czech producer !
- Excellent and stable arc properties

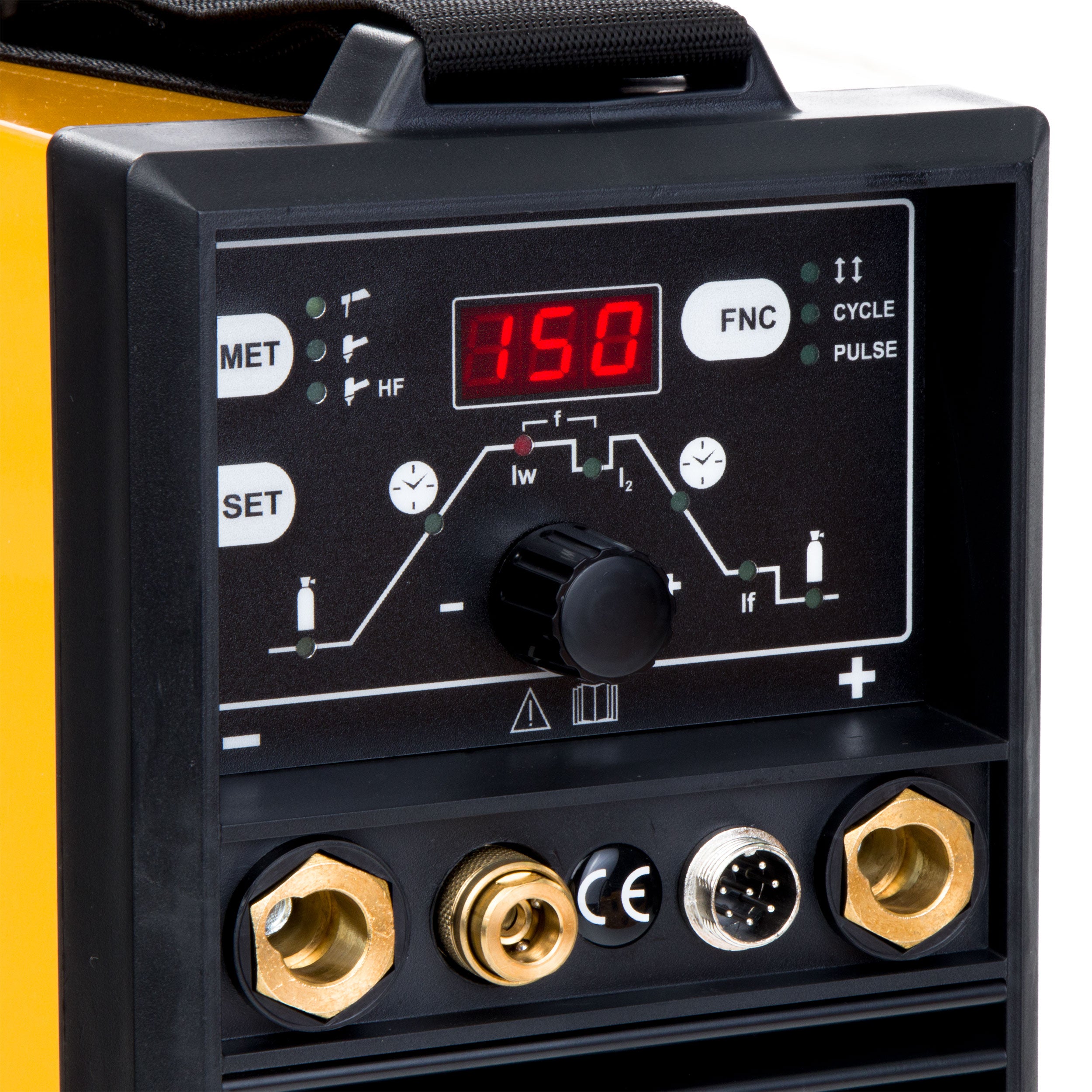

- Durable and solidly made panel control
- Control socket
- Non-contact arc HF
- Digital microprocessor control
- Optimal size and weight.
- Large and robust EURO sockets
- Easy to use
BET ON PROVEN EUROPEAN PRODUCTIONS!
TIGER 1500HF is a TIG welding machine with quick microprocessor adjustment. Designed for welding using the TIG HF method with non-contact arc (HIGH Frequency) and the MMA method. TIGER 1500HF are the perfect combination of an electrode welding machine with a device equipped and designed for welding steel using the TIG method. TIGER 1500 HF is richly equipped with professional functions facilitating welding using the TIG DC method and the MMA method. Using the TIG and TIG PULS method, it welds materials of black steel, acids, stainless steel, copper and its alloys. TIGER equipment is manufactured in the Czech Republic in the latest production technology, the brand is also characterized by fast operation of the manufacturer's service in case of service issues (easily available parts, etc. ). The control panel of the welding machine is characterized by durable and solid workmanship. The strong and proven construction of the equipment guarantees us work without jams even in harsh conditions. TIGER welding machines are ideal for construction sites, production plants, repair plants and factories where you need solid and well-made equipment !
POWER SUPPLY PARAMETERS
- Power Supply: 230V
- Number of phases: 1ph
- Security required: 16A
TECHNICAL PARAMETERS
- TIG welding current: 10-150A
- Welding power at 100% cycle: 95A
- Welding power at 60% cycle: 120A
- Welding power at 30% cycle: 150A
- Idle voltage: 88V
ADDITIONAL FUNCTIONS
- PULSE function: YES
- HF function: YES
- 2T/4T function: YES
- HOT START function: YES
- ARC FORCE function: YES
- PRE GAS: YES
- POST GAS: YES
PHYSICAL PARAMETERS
- Housing protection class: IP21
- Weight: 6,6 kg
- Dimensions: 390x245x143mm
MAGNUM PRO HANDLE WITH A LENGTH OF 4 METERS INCLUDED!
The TIGER welding machine comes with a TIG SR 26 handle with a length of 4 meters. Solid production and reinforced construction of the renowned Magnum manufacturer!
The handle is characterized by excellent workmanship and perfect ergonomics of the handle. The holder is mounted on the ŁW 35/50 socket and can be easily replaced if necessary. We add "start" consumable parts to the handle, so that the handle is armed and ready to work. In addition, all spare parts of the handle are easily accessible and can be purchased at attractive prices.
CYCLE FUNCTION, PULSE AND OTHER POSSIBILITIES
PULS - full current modulation, allows welding of thin elements and increases the stability of arc glow.
2T/4T - when the start button is pressed, the welding process is stopped after releasing the button - when the button is pressed and released for the first time, the welding process stops at the second press. This is a more convenient solution for longer welds.
CYCLE (BI-LEVEL) - allowing you to switch between two different welding current values without interrupting operation. Functions used for greater temperature control of the material.
PRE GAS/POST GAS - regulation of gas outflow time before the welding process and time from arc extinction to gas valve closure. This is a helpful feature to cover the welding lake. The lack of additional gas shielding may result in oxidation of the weld.
INCLUDED IN THE SET:
- Factory new reusable cylinder with Argon gas with a capacity of 8l and a pressure of 200bar. The cylinders have 10-year-old legalizations and can be filled at any point with technical gases.
- Reducer with rotameter - precise reducer with adjustment. Our model features a pressure gauge for cylinder pressure control and a rotameter for precise operating pressure setting.
- Gas hose.
+ CONSUMABLES OF THE HANDLE:
- Ceramic nozzle - 3pcs
- Terminal bushing 1,6/2,4/2,0mm - 3pcs
- Connector 1,6/2,4/2,0mm - 3pcs
- TIG cork medium SR 17/18/26 - 1pc
- Electrode TIG red 1,6/2,0/2,4mm - 3pcs - universal electrodes for welding.

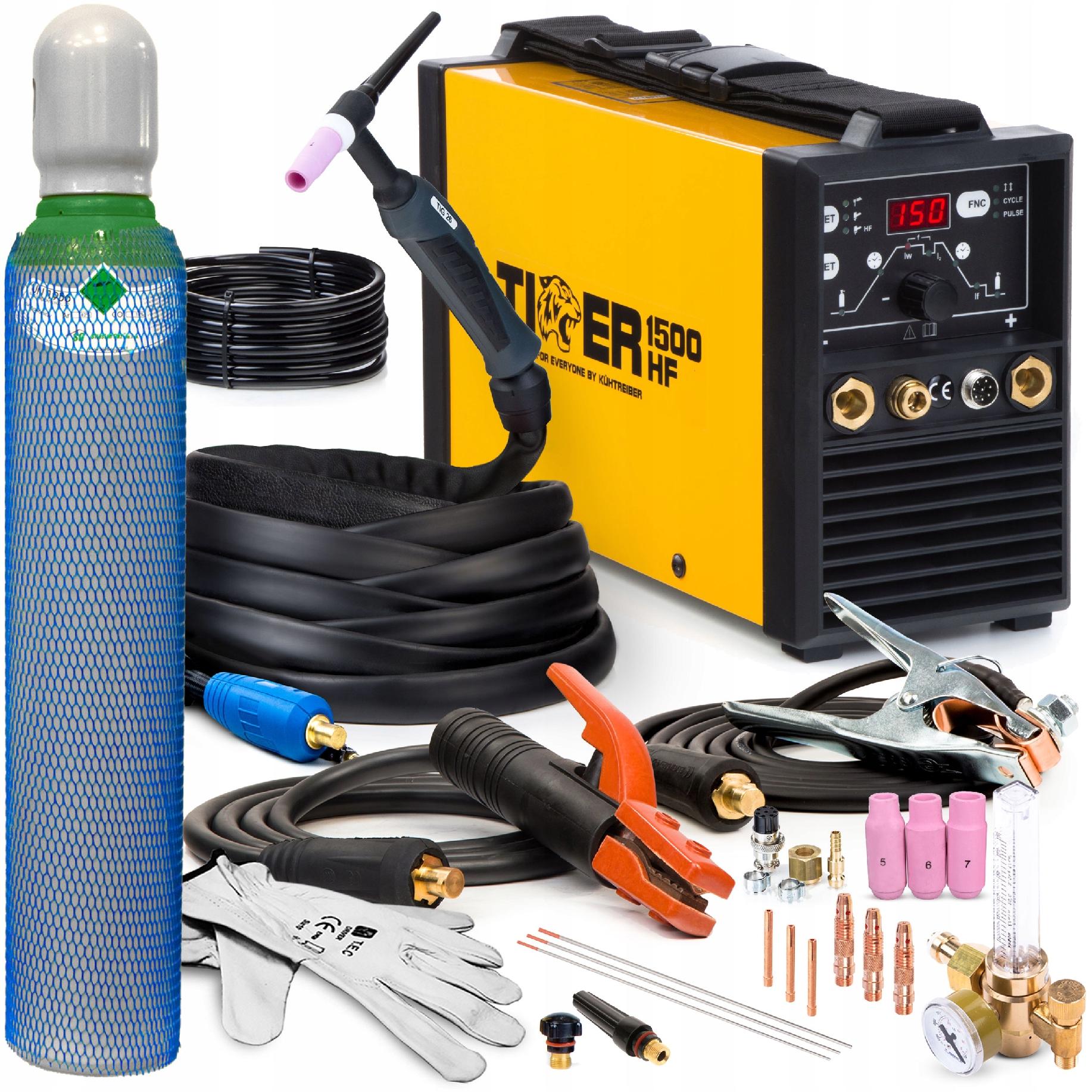

THE SET INCLUDES:
- Welding machine TIGER 1500 HF
- Welding torch TIG PRO SR 26 - 4m
- Electrode holder - 3m
- Bulk holder - 3m
- Clamp ties - 2pcs
- Control plug for handle - 1pcs
- Gas fittings - 1 set
- Gas connection hose - 1pcs
- Carrying frame strap - 1pcs
- Instruction in Polish

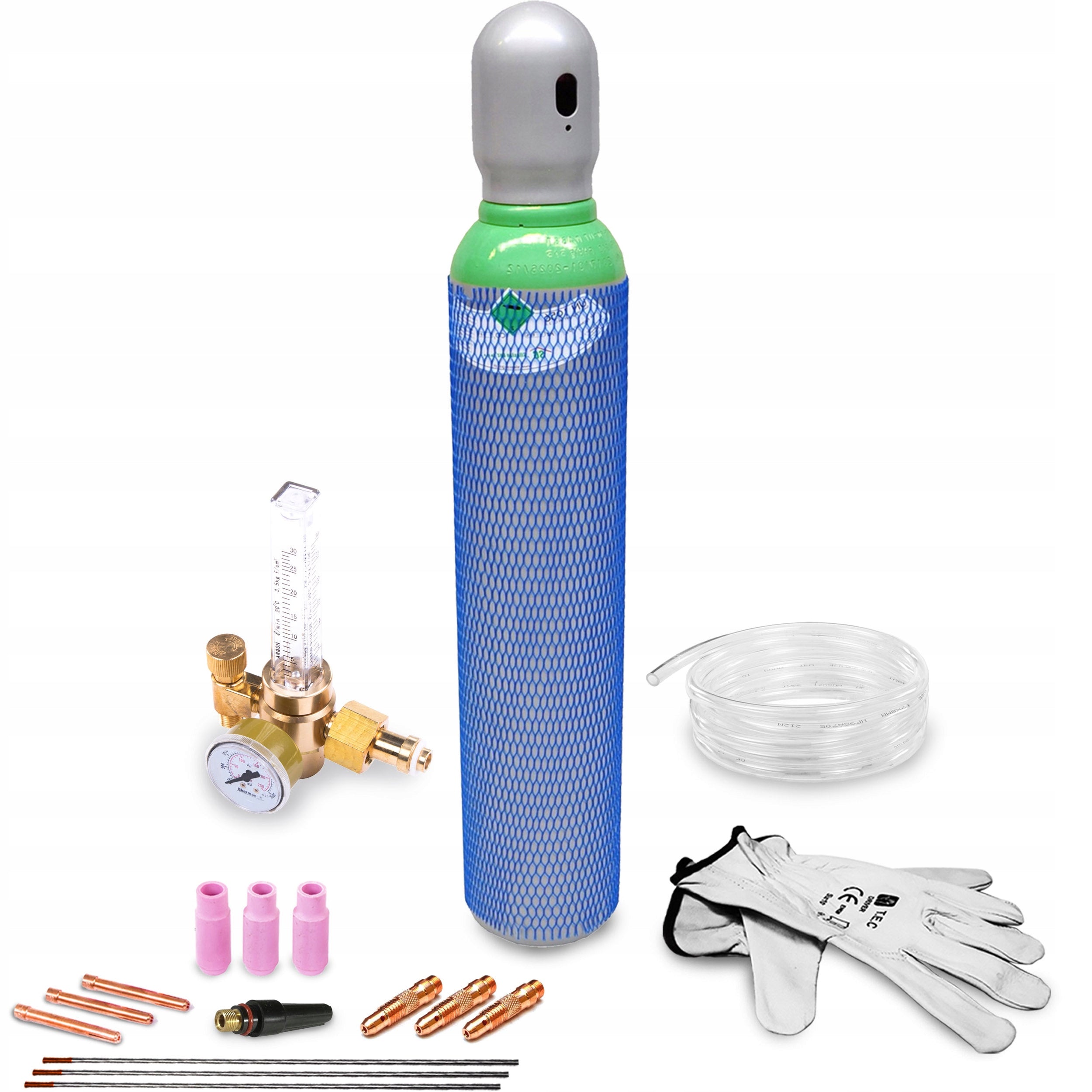

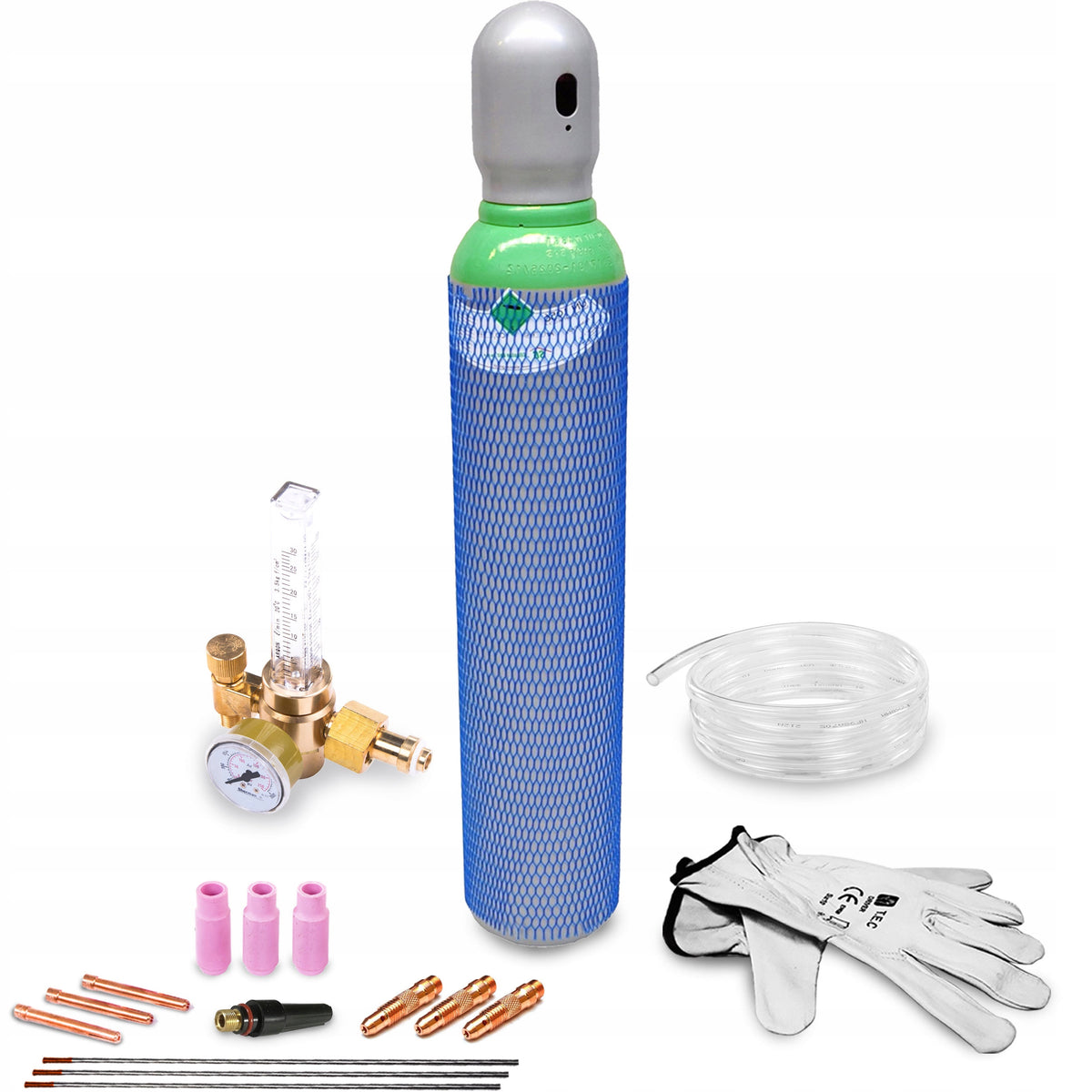

+ ADDITIONAL ACCESSORIES:
- Gas cylinder Argon 8l
- Cylinder reducer Ar/CO2 with rotameter
- Welding gloves TIG
- Gas hose
+ CONSUMABLES OF THE HANDLE:
- Ceramic nozzle - 3pcs
- Terminal bushing 1,6/2,4/2,0mm - 3pcs
- Connector 1,6/2,4/2,0mm - 3pcs
- TIG cork medium SR 17/18/26 - 1pc
- Electrode TIG red 1,6/2,0/2,4mm - 3pcs
THE TIGER BRAND WAS REPLACED BY THE KUHTREIBER BRAND IN 2020. DURING THE TRANSITION PERIOD, THE WELDING MACHINES CAN BE SUPPLIED WITH THE TIGER OR KUHTREIBER LOGO - THE PHOTOS ARE FOR ILLUSTRATIVE PURPOSES ONLY.
WE ENSURE THAT THE QUALITY OF DEVICES IS UNCHANGED - ALWAYS AT THE HIGHEST LEVEL
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Tiger |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 30% |
| Parametry | Device weight | 6.6 kg |
| Parametry | Welding range | 10–150 A |
| Parametry | Length of ground cable | 300 cm |
| Parametry | Welding cable length | 400 cm |
| Parametry | Product weight with unit packaging | 25 kg |
| Parametry | Manufacturer code | SPAWARKA TIG DC PULS MMA TIGER HF |
| Parametry | EAN (GTIN) | 5904305451466 |
| Parametry | Packaging status | original |
| Parametry | Welding methods | MMA,TIG |
| Parametry | Additional features | infinitely adjustable welding current,EURO handle |
