Suvirinimo inverteris SYNERGY MIGOMAT MIG/MMA/TIG 200A majsterPRO MP0121

Trumpai apie prekę

Prekė: Suvirinimo inverteris SYNERGY MIGOMAT MIG/MMA/TIG 200A majsterPRO MP0121. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Majster Polska
• Modelis: MP0121
• Ilgis: 350 mm
• Plotis: 150 mm
• Aukštis: 230 mm

⭐Synergy - by adding ingredients we get more than they are combined

continuing the cult solutions proven in previous generations of devices

welding methods:

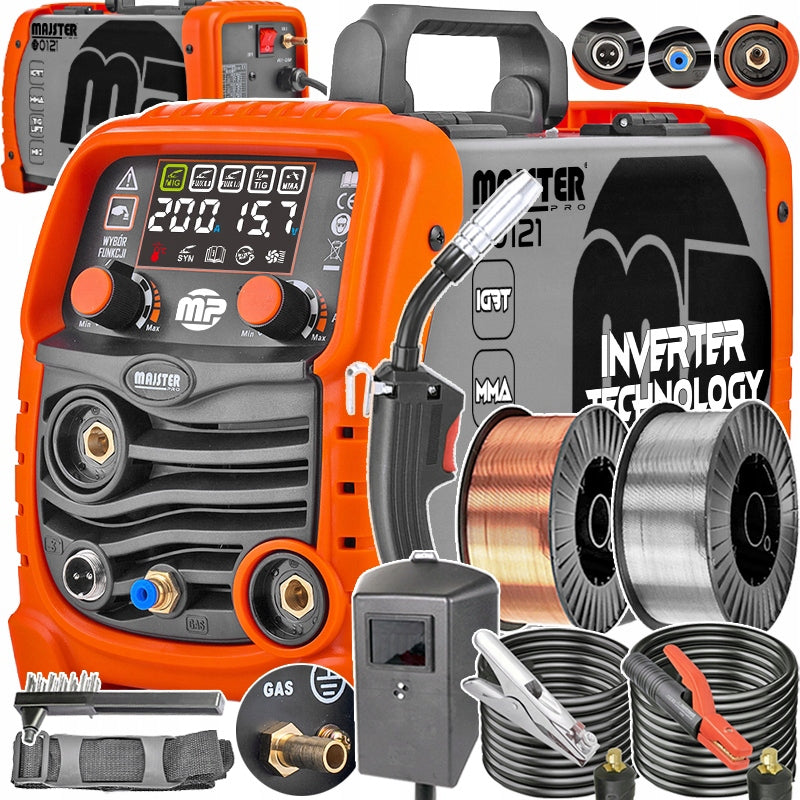

⭐Mass cable 200cm

⭐200cm electrode cable

⭐Handle MIG Mp15 200cm

⭐Flux self shielding wire 0,8mm 0,45kg

⭐Steel wire 0,8mm 1kg

⭐Hand mask

⭐Brush with hammer

(has the ability to connect cylinders)

-

other welding machines do not have a nozzle for connecting and controlling CO2 - they can only weld with FLUX self-shielding powder wire

Stick welding with electrodes from 1.6 - 5.0mm. Connect the ground clamp to the (-) terminal for carbon steel.

For certain special electrodes, connect the ground clamp to the (+) terminal as recommended by the manufacturer.

Pre-set synergistic settings - Welding current controlled by knob.

-

Welding with standard steel wire, 0.8-1.0mm diameter, using gas shielding. Connect the ground clamp to the (-) terminal.

Pre-set synergistic settings - Welding current controlled by knob, wire feed speed controlled by knob.

-

Welding with standard steel wire, 0.8-1.0mm diameter, using gas shielding. Connect the ground clamp to the (-) terminal.

For welding thin aluminum, connect the ground clamp to the (+) terminal.

Pre-set synergistic settings - Welding current controlled by knob, wire feed speed controlled by knob.

-

Welding with flux-cored wire, 0.8-1.0mm. Connect the ground clamp to the (-) terminal.

Pre-set synergistic settings - Welding current controlled by knob, wire feed speed controlled by knob.

-

Welding with an additional TIG torch (not included, available for purchase in our other listings).

In most cases for this type of welding, connect the ground clamp to the (+) terminal. Arc ignition is achieved by scratching the electrode.

Pre-set synergistic settings - Welding current controlled by knob, gas control via integrated torch.

Professional feeder with roller 0,8/1,0 mm, precise wire guidance on ball bearing, powerful electric motor with copper winding.

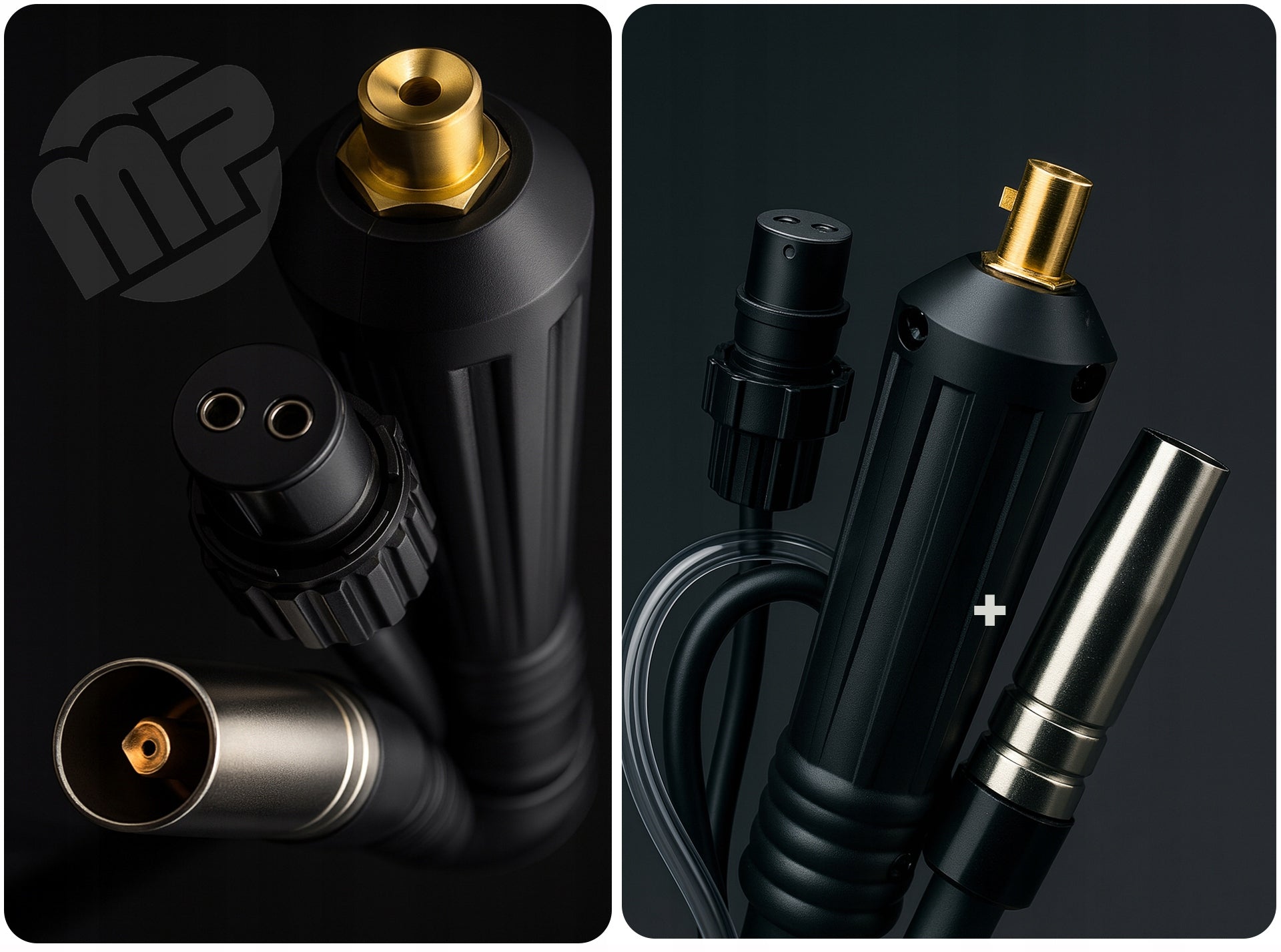

The picture shows a Euro connector (so-called EURO socket), used in MIG/MAG welding machines.

In cheaper welding machines, the MIG handle is sometimes mounted “permanently”, while EURO socket welding machines are much more practical and professional.

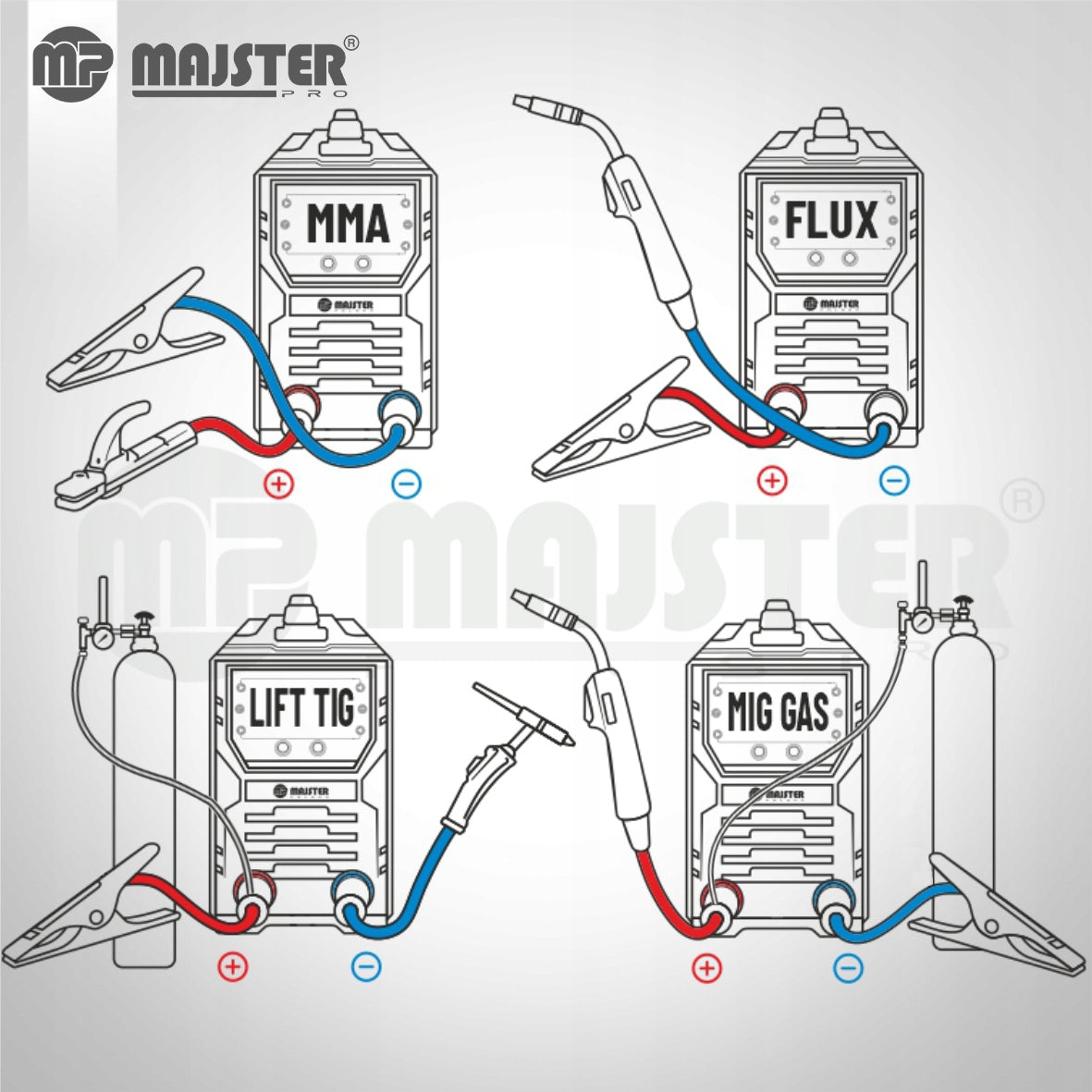

✅ Scheme of connecting wires depending on the chosen welding method

⏩Technical data

• Brand: Majster Pro ❤
• Model: MP-0121 ❤
• Supply voltage: 230V ⭐
• Frequency: 50Hz ⭐
• Welding methods: MIG/MAG, MMA, FLUX - semi-automatic welding with self-shielding wire "without gas" ⭐
• Voltage without load: 60V ⭐
• Wire diameter: 0.8-1.0 mm ⭐
• Electrode diameter: 1.6-5.0mm ⭐
• Wire spool weight: max 1kg ⭐
• Rated welding cycle: 60% ⭐
• Efficiency: 85% ⭐
• Degree of protection: IP21S ⭐
• MIG welding current: 20-200A ⭐
• MIG handle length: 300 cm ⭐
• Protection class: H ⭐
• Weight: 4.5kg ⭐
• Gross weight: 6kg ⭐
• Dimensions: 38 x 29 x 26cm ⭐

Self-shielding welding wire for welding steel elements without the use of shielding gas.

The use of wire allows welding without the need for additional shielding gas.

✅ Ready set for welding WITHOUT GAS!

-

-

-

-

for MIG/MAG welding of low-carbon structural steels, boiler and marine steels and fine-grained carbon-manganese steels in gas shielding.

Welding wire MIG/MAG 0,8mm spool 1 Kg for welding ordinary non-alloy steel coated with copper, for welding with migomats in all positions. High quality weld.

It is designed for welding carbon steels structural and with increased strength.

⏩ The device from the MAJSTER Pro series is a semi-automatic welding machine designed for welding steel in gas shielding and self-shielding wire FCAW (FLUX), MIG/MAG, MMA, as well as TIG Lift method (this requires the purchase of an additional TIG Lift welding handle)

⭐ It is intended for all kinds of welding work, in locksmith workshops, repair workshops, bodywork, farm, etc.

✅ The power source was built on IGBT LATEST GENERATION transistors ensuring minimum electromagnetic interference, small power losses in basic systems, enabling increase in efficiency and reliability of the power source, lower consumption

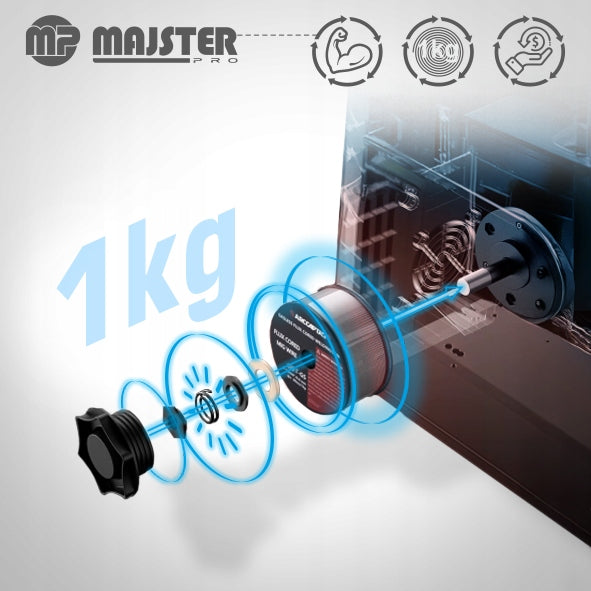

⏩ The welding machine works with 1 kg wire and 0.8-1.0mm diameter

The FCAW method is arc welding with core (powder) wire.

⭐ This is a welding method similar to the MIG/MAG method, except that the wire inside is filled with flux or a chemical that produces protective gases during welding.

⏩ FCAW welding combines the advantages of both wrapped electrode welding and MAG welding: very high efficiency (no need to change the electrode frequently) can also be welded outdoors (the flux also protects against weld oxidation) the welder does not have to have very high qualifications.

⭐ HOT START

Popularly called hot start, it allows by temporarily increasing the welding current above the value set by the welder. HOT START works at the moment of arcing and is designed to prevent the electrode from sticking to the material. It is a great convenience when lighting the electrode.

⭐ ANTI STICK

cuts/minimizes welding voltage and current in case of short circuit of the electrode with the welded material. ANTI STICK allows the welder to detach the electrode more easily.

⭐ ARC FORCE

stabilizes the arch regardless of its length. Regulates the dynamics of the welding arc. By reducing the value of the function, it gives a soft arc and a smaller depth of melt, while increasing the value of the function causes deeper melting and the possibility of welding with a short arc. At the highest value for the ARC FORCE function, it is possible to "press the electrode into a lake of molten metal and burn the material through.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Majster Polska
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	5 mm
Parametry	Wire diameter (mm)	0,8-1,0
Parametry	Device weight	4.5 kg
Parametry	Welding range	20–200 A
Parametry	Height	230 mm
Parametry	Length	350 mm
Parametry	Width	150 mm
Parametry	Length of ground cable	210 cm
Parametry	Welding cable length	210 cm
Parametry	Product weight with unit packaging	6 kg
Parametry	Manufacturer code	MP0121
Parametry	EAN (GTIN)	5904553382239
Parametry	Customs tariff code	85153918
Parametry	Packaging status	original
Parametry	Welding methods	MIG/MAG,MMA,TIG
Parametry	Additional features	welding mask included,infinitely adjustable welding current,EURO handle,LCD display
