Trumpai apie prekę
Prekė: Suvirinimo inverteris SPARTUS EasyTIG 205P DC PULS MMA, 230V, 200A, IGBT, HF. Kategorija: Pusiau automatiniai suvirinimo aparatai.
- Gamintojas: Spartus
- Modelis: EASYTIG205EPULSEDC-PAK-17-4 ZESTAW#0
- Ilgis: 421 mm
- Plotis: 136 mm
- Aukštis: 240 mm

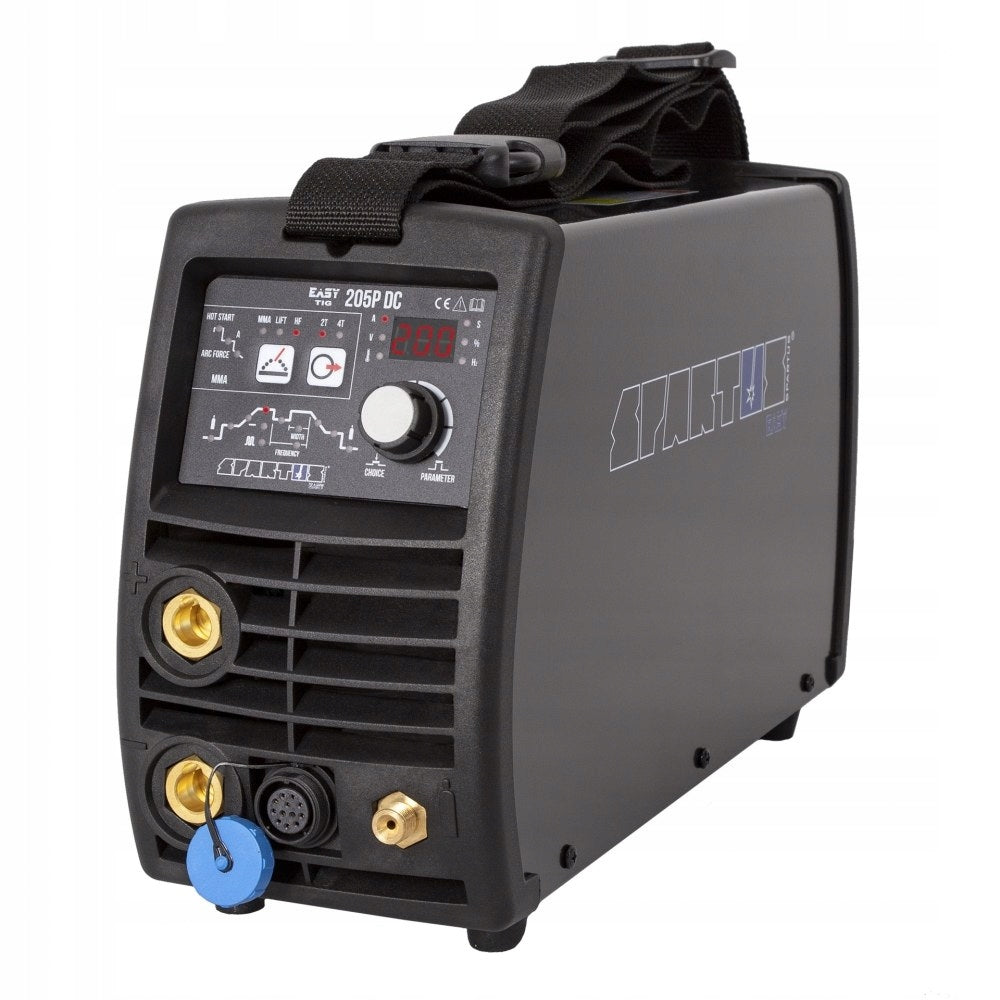

SPARTUS® EasyTIG 205P DC is a modern digitally controlled inverter welding machine, constructed on the basis of IGBT transistors and PWM technology. It enables TIG and MMA welding. The power supply is from a single-phase 230V network.
It is a device designed and manufactured for field work. Small, light and versatile. Ideal for welding stainless and acid-resistant steels. Built-in welding function with adjustable pulse, allows you to combine even very thin elements. The maximum welding current for both methods is 200A, which is why SPARTUS® EasyTIG 205P DC is also suitable for light production work.
Easy to use and intuitive function panel allows for precise control of all the most important welding parameters for TIG and MMA methods.
➡ EXAMPLES OF APPLICATIONS:
- renovation works in the field,
- workshop work,
- light constructions,
- maintenance of traffic.
➡ TECHNICAL PARAMETERS
- Power supply voltage: ~1× 230V ± 10% 50 / 60 Hz
- TIG welding current: 5 - 200A
- TIG duty cycle: 35%
- Pre-gas: 0 - 2s
- Post-gas: 0 - 10s
- Power build-up time: 0 - 10s
- Power drop time: 0 - 10s
- TIG Pulse: yes
- Pulse current: 5 - 200A
- Pulse width: 5 - 95%
- Pulse frequency: 5 - 200Hz
- Working mode 2T/4T: yes
- Arc glow: HF
- Control options: control in UP&DOWN handle, wired foot control, control in potentiometer handle
- MMA welding current: 5 - 200A
- Arc Force: yes
- Hot Start: yes
- Idle voltage: 89V
- Power consumption: TIG 34A / MMA 43A
- Power factor (cosφ): 0.75
- Efficiency η: 85%
- Isolation class: H
- Degree of protection: IP23
- Weight: 7.9kg
- Dimensions: 420 × 135 × 240mm
- Connection: 9SPA - SPARTUS®

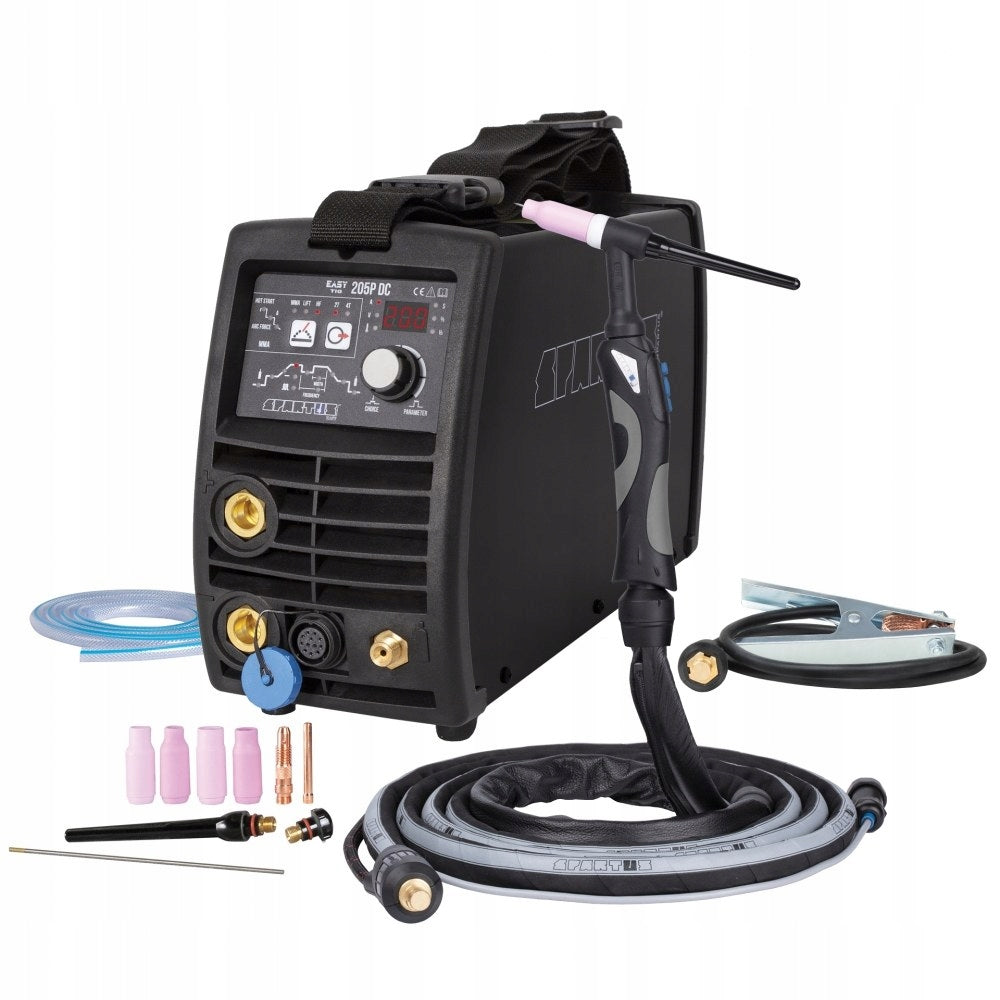

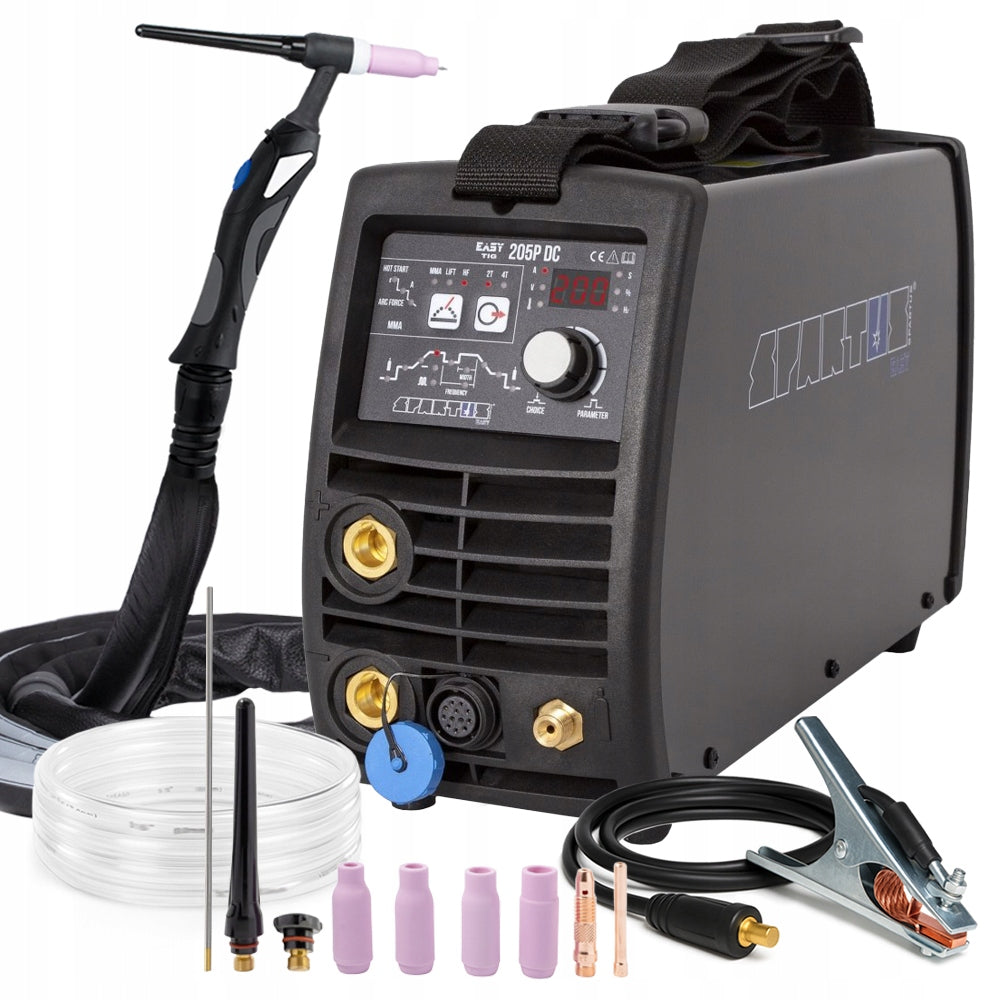

➡ PACKAGE INCLUDES:
- EasyTIG 205P DC
- TIG handle Spartus Easy mini17 4B X 4m
- set of consumable parts
- mass cable 3m
- gas hose
- instruction manual in Polish
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Spartus |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 35% |
| Parametry | Device weight | 9 kg |
| Parametry | Welding range | 5–200 A |
| Parametry | Height | 240 mm |
| Parametry | Length | 421 mm |
| Parametry | Width | 136 mm |
| Parametry | Length of ground cable | 200 cm |
| Parametry | Welding cable length | 400 cm |
| Parametry | Additional features | infinitely adjustable welding current |
| Parametry | Manufacturer code | EASYTIG205EPULSEDC-PAK-17-4 ZESTAW#0 |
| Parametry | EAN (GTIN) | 5907195569754 |
| Parametry | Welding methods | MMA,TIG |
