Suvirinimo inverteris SPARTUS EASYARC 216P PULSE 230V MMA 200A

Trumpai apie prekę

Prekė: Suvirinimo inverteris SPARTUS EASYARC 216P PULSE 230V MMA 200A. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Spartus
• Modelis: Easyarc215
• Ilgis: 270 mm
• Plotis: 130 mm
• Aukštis: 200 mm

➖➖➖➖➖➖➖➖➖➖➖➖➖➖

SPARTUS EASYARC 216P - Single-phase powered inventory welding machine 230V made in IGBT technology, which allows welding using the following methods:

➡ MMA

• MMA - welding with wrapped electrodes (rutile, alkaline, acidic).

➡ TIG

• TIG LIFT DC - welding with a non-melting electrode in an inert gas shield.

The device has a high maximum welding current 200A, with a duty cycle of 60%, which allows welding elements with a thickness of up to 11mm.

➖➖➖➖➖➖➖➖➖➖➖➖➖➖

SPARTUS EASYARC 216P is used for welding:

✔ low alloy steels,

✔ low carbon steel,

✔ alloy steels,

✔ cast iron steels.

The small size and weight make the device perfect for both hobby workshop work and field work.

⭐ IGBT INVERTER TECHNOLOGY - ang. Insulated Gate Bipolar Transistor - is a modern technology based on bipolar transistors with an isolated gate. It combines the ease of control of field transistors with high breakdown voltage and switching speed of bipolar transistors. The use of IGBT technology has the effect of significantly extending the reliable operation of welding equipment.

⭐ EASE OF USE - welding machine is equipped with an easy-to-use control panel so it can be used even by amateurs.

⭐ STRONG METAL HOUSING - reduces the risk of damage to the welding machine.

⭐ MOBILITY OF THE DEVICE - thanks to the light weight of the device and the handle and a solid shoulder strap allows welding in hard-to-reach places.

⭐ VERSATILITY - thanks to its high quality and multifunctionality, the device can be used in professional and hobby work as well as for light, casual workshop work.

⭐ ARC FORCE short-circuit current adjustment - facilitates the transfer of a drop of molten electrode to the welded material, preventing the arc from extinguishing when the drop of electrode contacts the welding lake.

⭐ HOT START - facilitates the ignition of the electrode by providing more welding current with each arc.

⭐ VRD - is a voltage reduction system whose task is to turn off the power supply within a few milliseconds after welding. This function is also responsible for reducing the voltage on the wrapped electrode to a safe level

➡ The device is equipped with overload protection, which increases its reliability.

❄ The device has a fan cooling system which significantly increases its efficiency.

⭐ Pulse function enables more accurate control over the welding process. The welder can adjust pulse parameters such as frequency and amplitude, allowing for precise welding adjustments to specific conditions and materials.

⭐ Pulsed welding can help reduce thermal deformation, which is important especially when welding delicate materials or in places where minimizing deformation is crucial.

⭐ Thanks to the pulse function, the risk of excessive splattering of metal (spilling) can be reduced, leading to cleaner and more precise welds.

➖➖➖➖➖➖➖➖➖➖➖➖➖➖ ➖➖➖➖➖➖➖➖➖➖➖➖➖➖

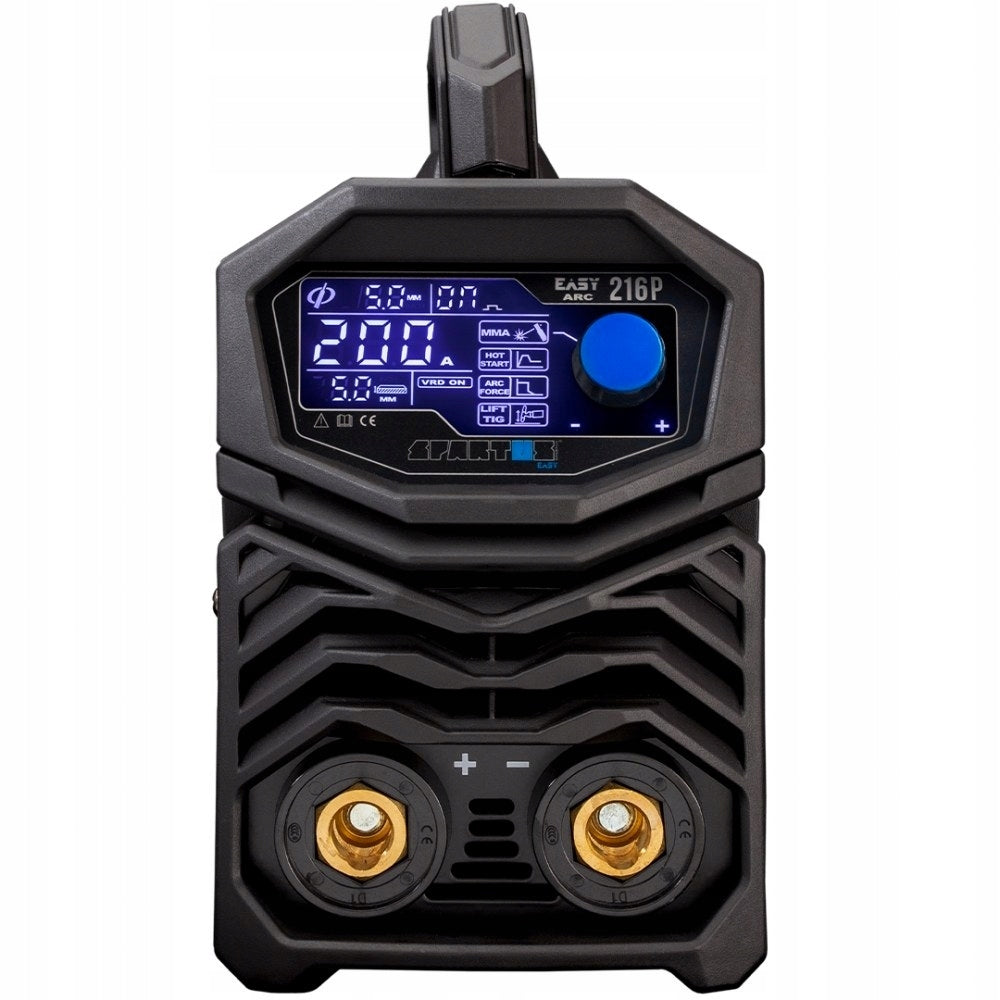

1 Diameter of electrode

2 Welding Current / Arc Force or Hot Start

3 Thickness of material

4 Pulse ON/ Pulse OFF

5 Function Selection and Adjustment Knob: MMA / Hot Start / Arc Force / TIG Lift

6 Function VRD ON / OFF

7 Warning light about overheating of the device

8 Pulse frequency

9 Base current in pulse mode

➖➖➖➖➖➖➖➖➖➖➖➖➖➖

✔ REPAIR WORKSHOPS,

✔ ASSEMBLY SERVICES,

✔ FARMS,

✔ HOUSEWORK.

☀ VERSATILITY OF THE DEVICE ☀

The welding machine from SPARTUS, is a device with a wide range of applications, designed as an inverter power source enabling welding with the MMA buffer electrode, as well as the TIG Lift method.

✔ Welding MMA

In the MMA method, a wrapped electrode is used, consisting of a metal core covered with a sheath. An electric arc is produced between the end of the electrode and the welded material. Arching is created by touching the end of the electrode to the welded material.

✔ Welding TIG DC

In the TIG (Tungsten Inert Gas) method, the electric arc is ignitioned in an inert gas (argon) shield between the welded element and the non-melting electrode, made of pure tungsten or tungsten with additives. In TIG DC Lift mode, the arc glow occurs when the electrode comes into contact with the welded element. In TIG DC mode, the current is constant.

❗❗ TIG method can be welded after connecting an additional handle, available at our auctions ❗❗

➖➖➖➖➖➖➖➖➖➖➖➖➖➖

⏩ TECHNICAL DATA:

• Supply voltage: 230V/50Hz
• Idle Voltage: 82V
• Power factor (cosφ): 0.76
• Efficiency η: 85%

⏩ MMA PARAMETERS:

• Welding electrode diameter: 1,6 - 5,0
• Welding current adjustment range: 10 - 200 A
• Pulse rate: [Hz] 0.5 - 10
• Maximum current: 200 A - 60%
• Current taken from the mains: 42A
• Working cycle: 60% 200A
• Working cycle: 100% 155A

⏩ OTHER:

• Weight: 3.9kg
• Dimensions: 280 x 130 x 200mm
• Degree of protection: IP21
• Insulation class: H

➖➖➖➖➖➖➖➖➖➖➖➖➖➖

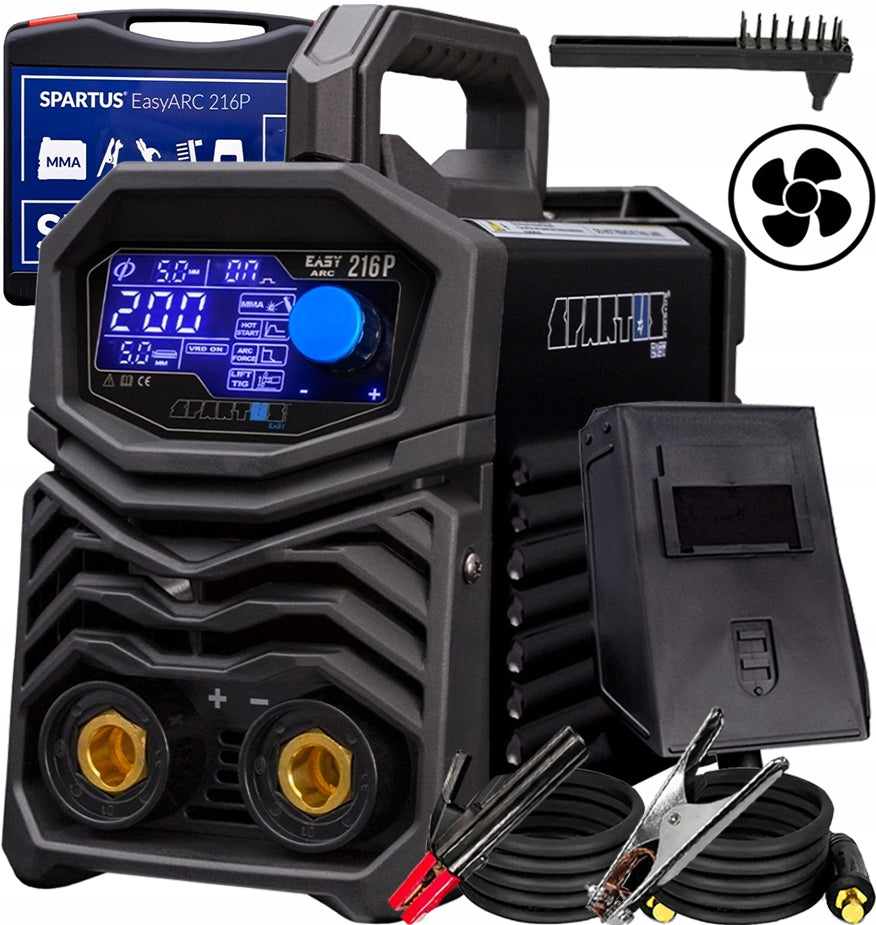

• Inverter welder SPARTUS EasyARC 216P
• Electrode cable MMA
• mass cable
• power cord
• Welding disc
• Hammer with brush
• Shoulder strap
• Plastic case
• User manual in Polish
• Warranty card

➖➖➖➖➖➖➖➖➖➖➖➖➖➖

SET OF 1

PRODUCT GALLERY:

Specifications
