Suvirinimo inverteris SKANDI KRAFT TIG 215 AC/DC MMA 230V 200A su pedalu

Trumpai apie prekę

Prekė: Suvirinimo inverteris SKANDI KRAFT TIG 215 AC/DC MMA 230V 200A su pedalu. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: SKANDI KRAFT
• Modelis: iSimple TIG 215 AC DC

• Manufacturer: SKANDI KRAFT®
• Welding methods: TIG AC/DC, MMA
• Power supply: 230V
• Welding Current: 200A
• Efficiency: 40% at 40°C

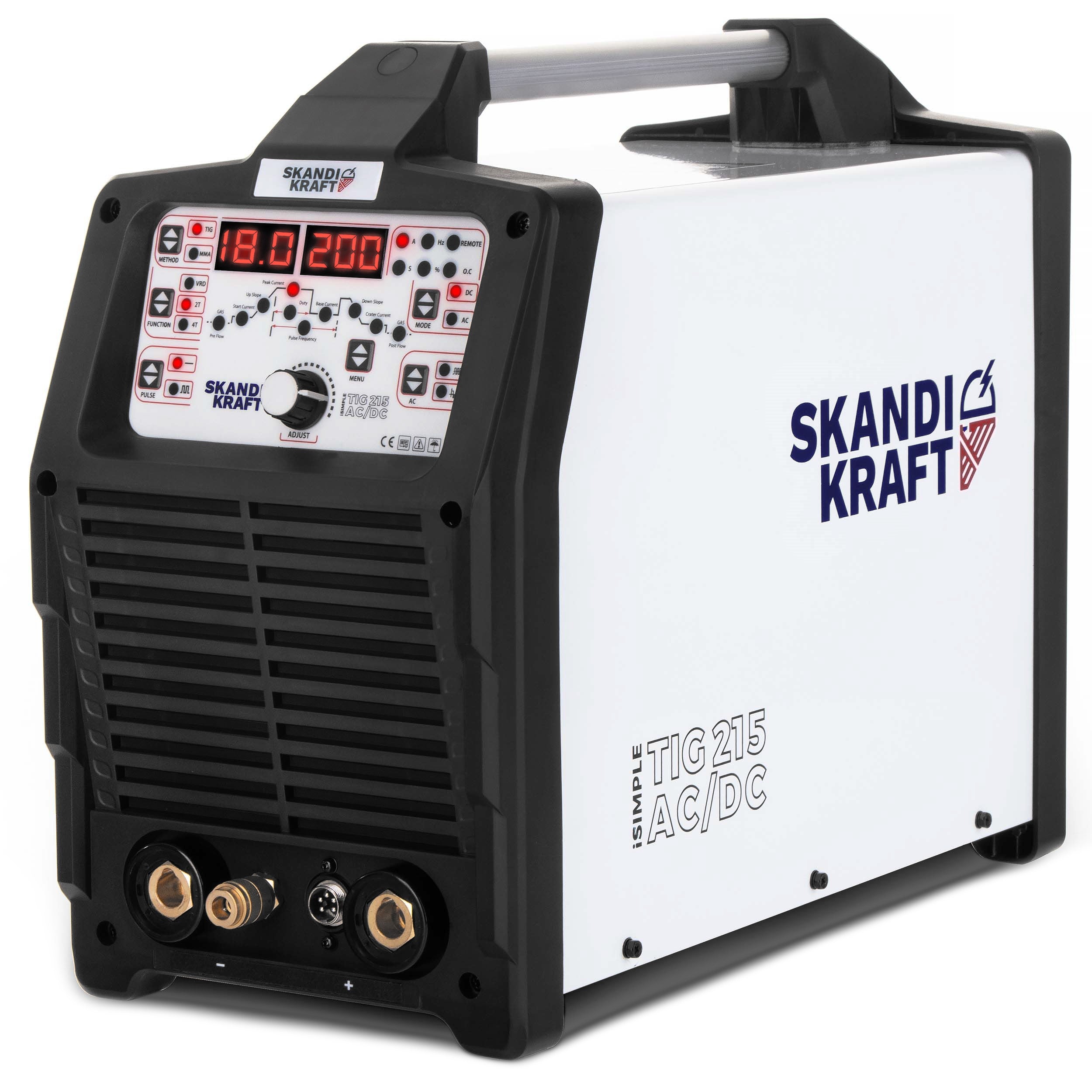

Advanced iSIMPLE TIG 215 AC/DC with convenient digital panel and professional functionality. It enables welding using HF-TIG and MMA methods. The small size, weight of 14.8 [kg] and transport handle make it mobile and convenient to use. It offers comfort, silent operating mode (FAN STOP) with limited power consumption.

The functional MODE button offers a choice of the DC method (black steel, SS stainless steel, titanium) or AC (aluminium and its alloys). Possibility of welding with PULSE with full regulation of frequency, cycle, current in DC and additionally balance and frequency in AC. It has options to work in 2T and 4T and VRD for (MMA).

The device has:

• 4-meter TIG SR26 handle, which allows you to control the welding machine from the handle. The burner has a flexible body (Flex) terminated with a laminar lens (lenses included: 1.6, 2.0, 2.4 [mm]).
• 3-meter fully copper 3x2.5 [mm2] power cable
• 3-meter fully copper 25 [mm2] mass holder
• 3-meter electrode holder.

from 0.1 [mm] to 6 [mm]:

• In the company (aluminum structures, radiators/intercoolers, wheel renovation)
• In workshop work (aluminum tubes, oil pan, exhausts)
• In your home (aluminum frame, stainless steel handrails, art installations)

Additional Features

• PULSE - possibility of full parameter adjustment: Yes
• FAN STOP turning off the fan at rest: Yes
• Connector for quick connection of gas hose (TYPE 21): Yes
• VRD voltage reduction and safety improvement: Yes
• IGBT - built with transistors that are characterized by high efficiency: Yes

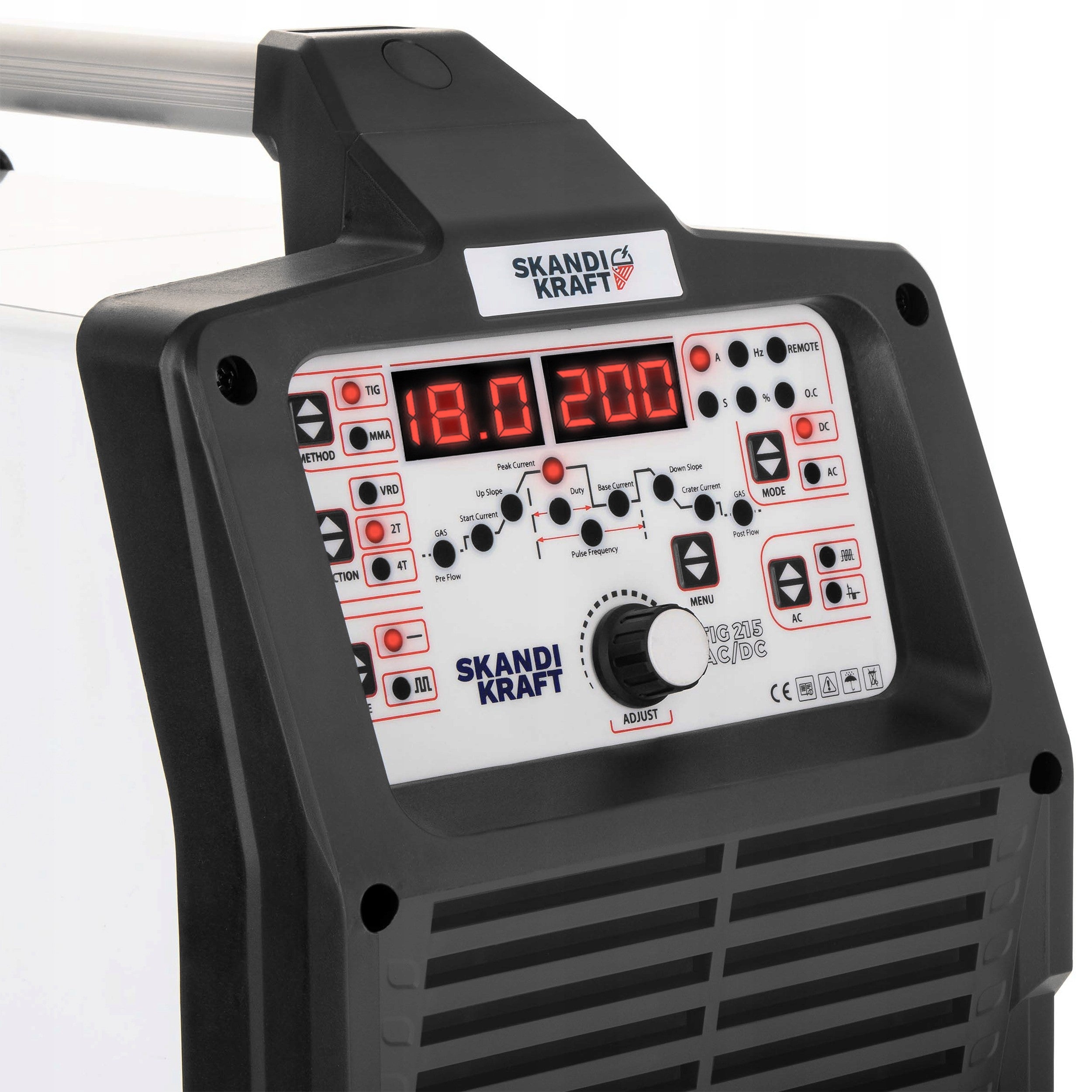

• Convenient knobs and clear panel for easy quick setting of the welding machine, even with welding gloves: Yes

Physical parameters

• Length x width x height: 48 × 21 × 38 [cm]
• Weight: welding machine [net] 14.8 [kg], in carton [gross] 21 [kg]
• Housing protection: IP21S
• Cooling: fan

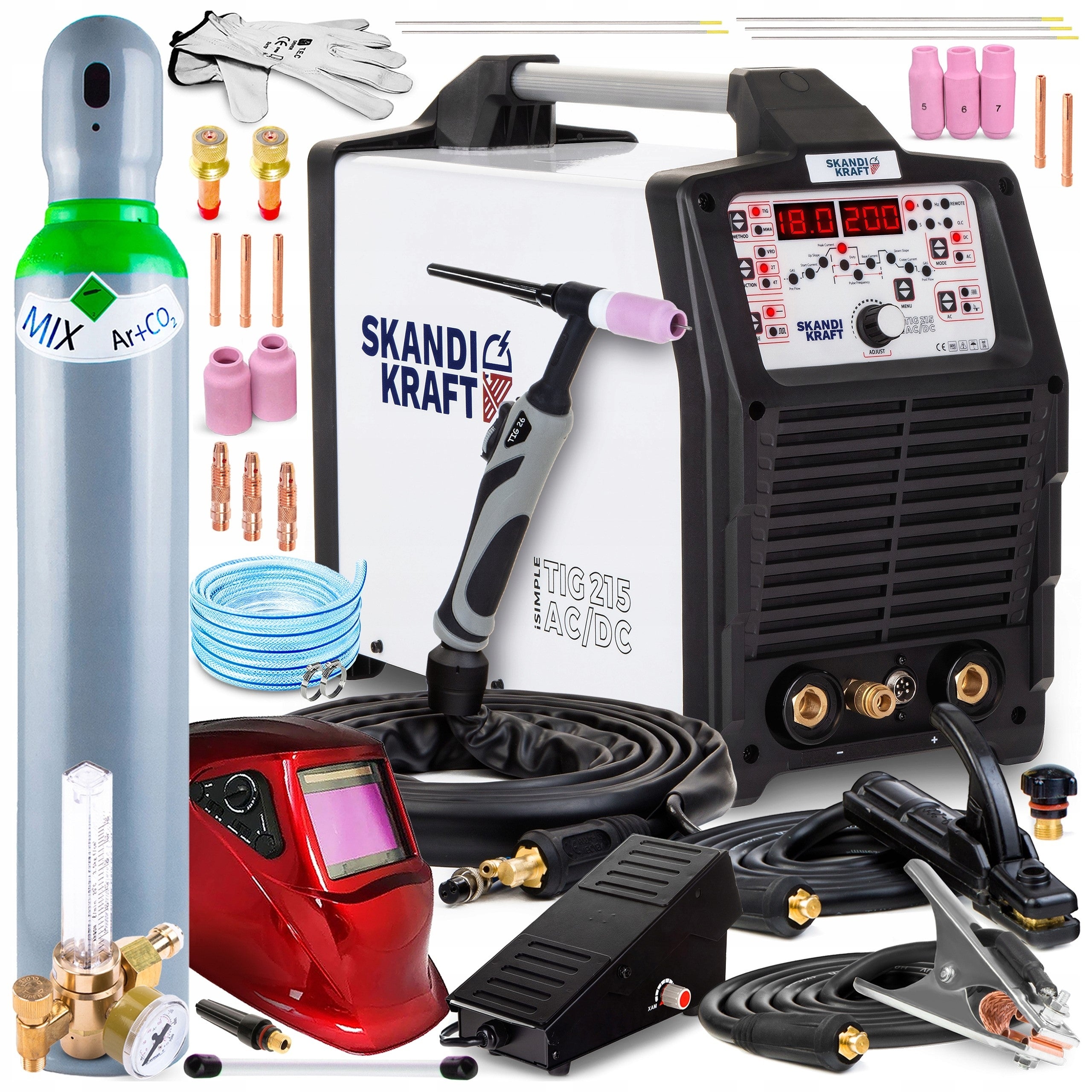

• Welding machine SKANDI KRAFT iSIMPLE TIG 215 AC/DC with integrated power cable with a length of 3 meters and cross-section 3x2,5 [mm2]
• TIG welding torch SR26 Flex 4 meters with the possibility of controlling from the handle
• Mass holder fully copper 3 meters, cross section 25 [mm2]
• Copper electrode holder 3 meters, cross section 25 [mm2]
• 3 x laminar gas lens (1.6; 2.0; 2.4 [mm])
• 3 x tungsten electrode with diameter (1.6; 2.0; 2.4 [mm])
• 3 x stopper for handle (long, medium, short)
• 3 x terminal bushing (1.6;2.0;2.4 [mm])
• 1 x insulator lenses
• 3 x nozzle ceramic "8"
• Gas cylinder mounting elements: 2 x gas reducer mounting band, 2-meter gas hose, key, allen
• Instructions

ADDITIONAL ACCESSORIES:

• Self-tinting welding visor Magnum Turbo - TRUE COLOR
• Gas cylinder Argon 8l
• Cylinder reducer Ar/CO2 with rotameter
• Welding gloves TIG
• Ceramic nozzle - 3 pcs.
• Terminal bushing 1,6/2,4/2,0mm - 3 pcs.
• Connector 1,6/2,4/2,0mm - 3 pcs.
• TIG stopper medium SR 17/18/26 - 1 pc.
• Electrode TIG gold 1,6/2,0/2,4mm - 3 pcs.
• Remote control foot pedal

POWER SUPPLY PARAMETERS:

• Power supply: 230 V
• Frequency: 50/60 Hz
• Idle Voltage: 65 V
• Network security: 20 A

TECHNICAL PARAMETERS

TIG efficiency (for temp. 40°C):

• 40%/200 A/18 V
• 60%/163 A/16.5 V
• 100%/126 A/15 V
• TIG welding current: 10*-200 A
• TIG welding voltage: 10.4-18 V

• PRE GAS: 0-1 [s]
• welding start current START AMP: 10-200 [A]
• current build-up time UP SLOPE: 0-15 [s]
• peak current PEAK AMP: 10-200 [A]
• pulse cycle: 5-95 [%]
• Pulse frequency: 0.1-200 [Hz]
• Pulse Balance: 5-95 [%]
• base current: 15-95 [A]
• DOWN SLOPE: 0-25 [s]
• final current: 10-200 [A]
• gas outflow after POST GAS process: 0.1-10 [s]
• AC current frequency: 40-200 [Hz]
• AC current balance: 10-90 [%]

*average parameter min. current 19 [A]
