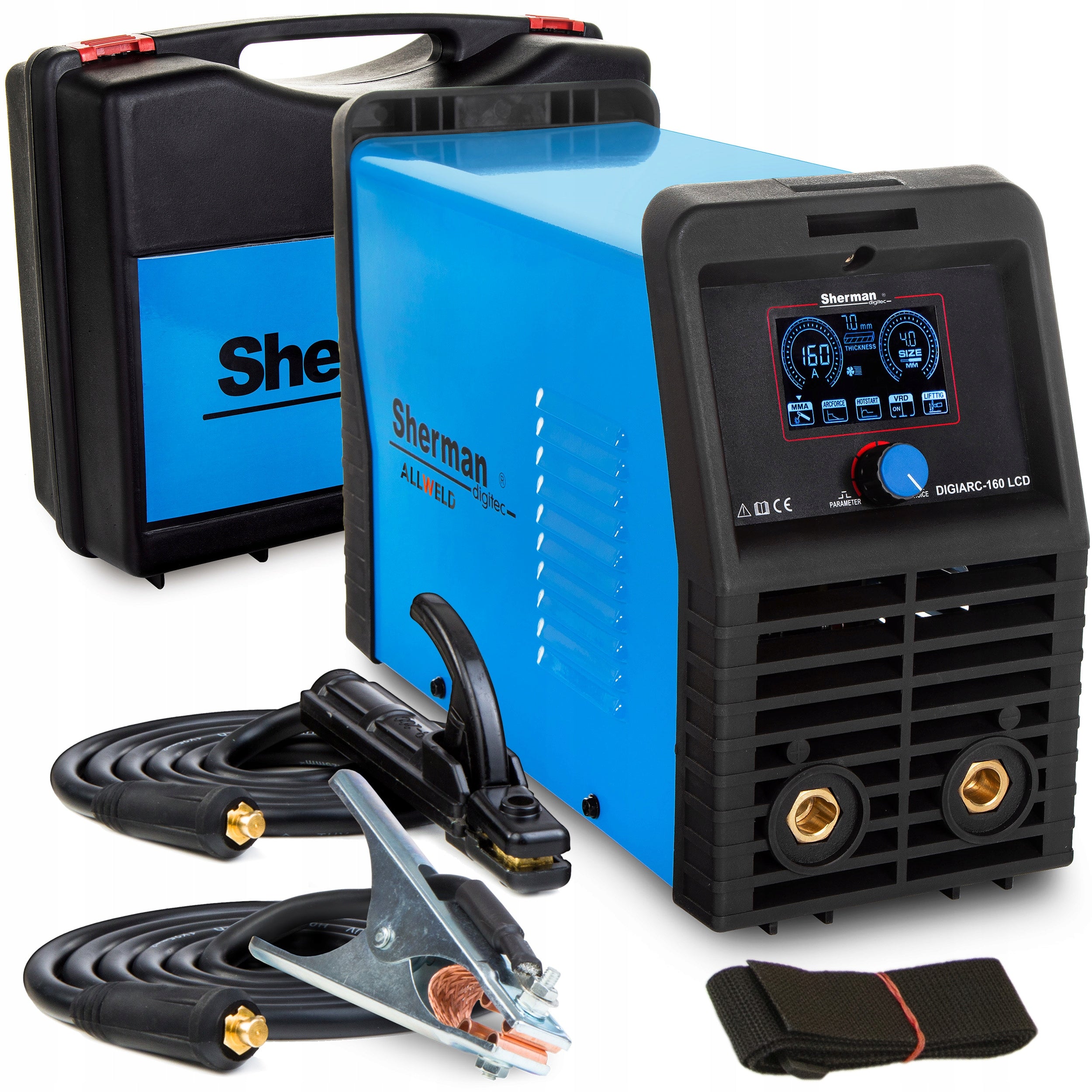

Suvirinimo inverteris SHERMAN DIGIARC 160 LCD MMA TIG 230V 160A

Trumpai apie prekę

Prekė: Suvirinimo inverteris SHERMAN DIGIARC 160 LCD MMA TIG 230V 160A. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Sherman
• Modelis: 7812657

Manufacturer: SHERMAN ║ Welding methods: MMA, TIG Lift ║ Power supply: 230V ║ Welding current: 160 A ║ Efficiency: 60%

• Welding with current 160 A in 60% of the work cycle
• Welding with MMA and TIG Lift
• Made in IGBT technology
• ANTI STICK function to prevent the electrode from sticking to the welded material
• HOT START function, which is a great convenience when arcing
• ARC FORCE function allows you to adjust the dynamics of the welding arc
• VRD minimizes the risk of electric shock
• Built-in protection against overheating
• Diod indicating overheating of the device

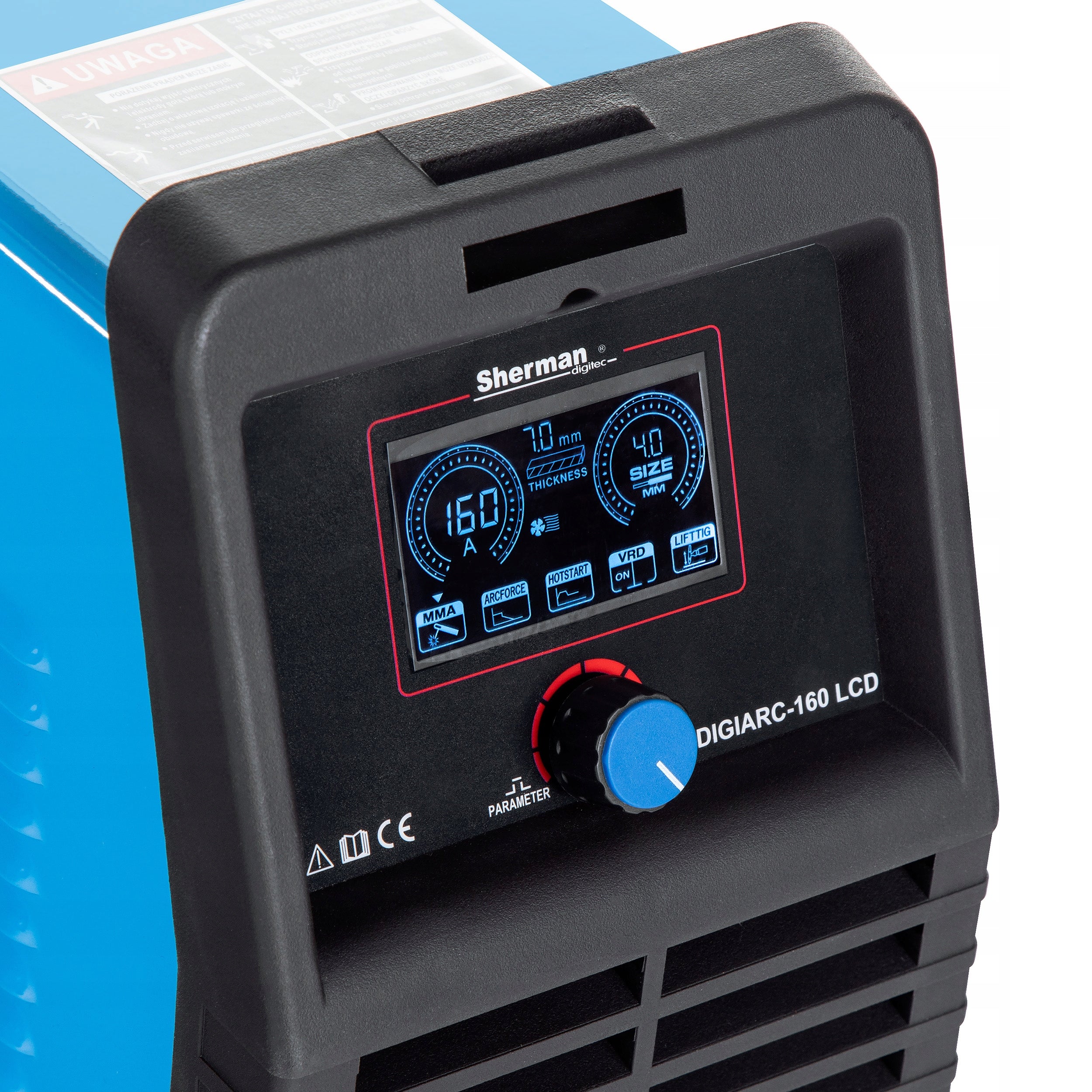

• Simple, easy to read panel control with LCD display and potentiometer
• Efficient cooling with fan
• Light weight, 4,25 kg

The DIGIARC-160 LCD welding machine is used for manual DC welding of steel, cast iron and non-ferrous metals with wrapped electrodes (MMA method). It also allows TIG Lift welding with arc ignition by rubbing (after using an additional handle). It is an inverter device, manufactured from the most technologically advanced components made in IGBT technology. The welder is equipped with an automatic ANTI STICK function, adjustable HOT START and ARC FORCE functions and the VRD function with the possibility of turning it off. The device is suitable for welding all types of electrodes regardless of the type of sheath

The device is used in closed or covered rooms, not exposed to direct weather conditions.

IGBT - the welding machine uses modern transistors, a solution that provides a minimum of electromagnetic interference small power losses in basic systems, enabling increased efficiency and reliability of the power source.

ANTI STICK - consists in cutting off / minimizing the welding voltage and current in the event of short circuit of the electrode with the welded material. ANTI STICK allows the welder to detach the electrode more easily.

VRD - a voltage reduction system whose task is to turn off the power supply within a few milliseconds after welding. This function is also responsible for reducing the voltage on the wrapped electrode to a safe level.

ARC FORCE - allows you to adjust the dynamics of the welding arc. Reducing the value of the function gives a soft arc and a smaller depth of melt, while increasing the value of the function causes deeper melting and the possibility of welding with a short arc. When setting the highest value for the ARC FORCE function, it is possible to press the electrode into the lake of molten metal and burn the material through.

HOT START - this is a temporary increase in welding current to facilitate the ignition of the electric arc and the preheating of the welded material.

OVERLOAD SWITCH - built-in protection against overheating of the device, prolonging its service life.

POWER SUPPLY PARAMETERS

• Voltage power supply: AC 230V
• Frequency: 50Hz
• Maximum consumption power: 5.3 kVA
• Rated voltage without load: 58 V
• Network protection: fuse 25 A

WELDING PARAMETERS

• Nominal welding current: 160 A
• Work cycle: 60%
• MMA welding current: 20 – 160 A
• Welding current TIG Lift: 15 – 160 A

ADDITIONAL FUNCTIONS

• ANTI STICK function
• HOT START function
• ARC FORCE function
• VRD function

PHYSICAL PARAMETERS

• Dimensions: 370 x 146 x 249 mm
• Weight: 4,25 kg
• Grade protection: IP 21S

BY BUYING FROM US YOU GAIN

• DIGIARC-160 LCD welder
• Electrode holder
• Bulk Holder
• Shoulder strap
• Suitcase for welding machine

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Sherman
Parametry	Power consumption	32 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	4 mm
Parametry	Device weight	4.25 kg
Parametry	Welding range	15–160 A
Parametry	Product weight with unit packaging	4.25 kg
Parametry	Manufacturer code	7812657
Parametry	EAN (GTIN)	5903686617522
Parametry	Packaging status	original
Parametry	Welding methods	MMA,TIG
Parametry	Additional features	infinitely adjustable welding current,LCD display
