Suvirinimo inverteris PRAKTIK TIG 200 AC/DC PULSE IDEAL

Trumpai apie prekę

Prekė: Suvirinimo inverteris PRAKTIK TIG 200 AC/DC PULSE IDEAL. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: IDEAL PRAKTIK MIG 200 AC DC 1
• Ilgis: 445 mm
• Plotis: 170 mm
• Aukštis: 295 mm

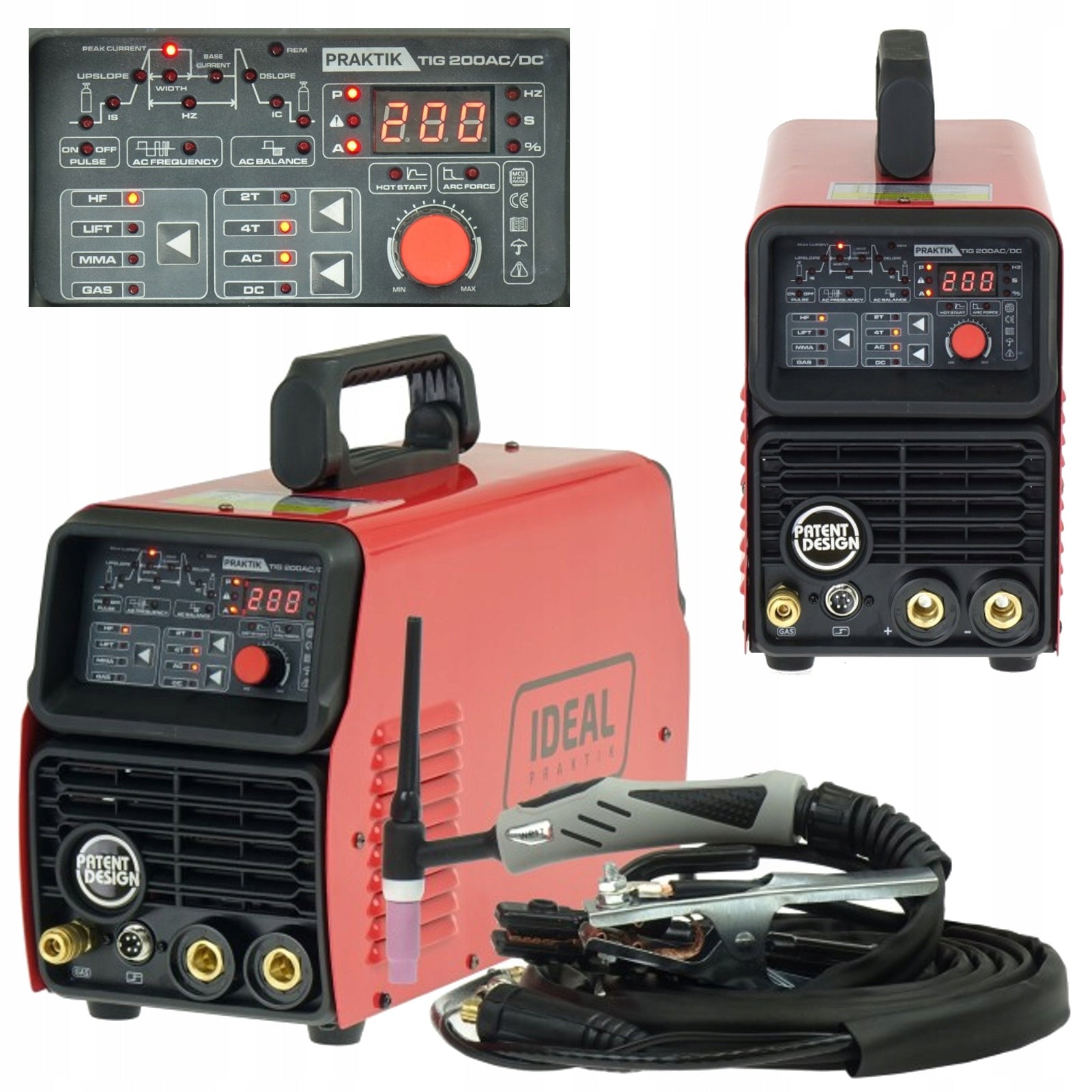

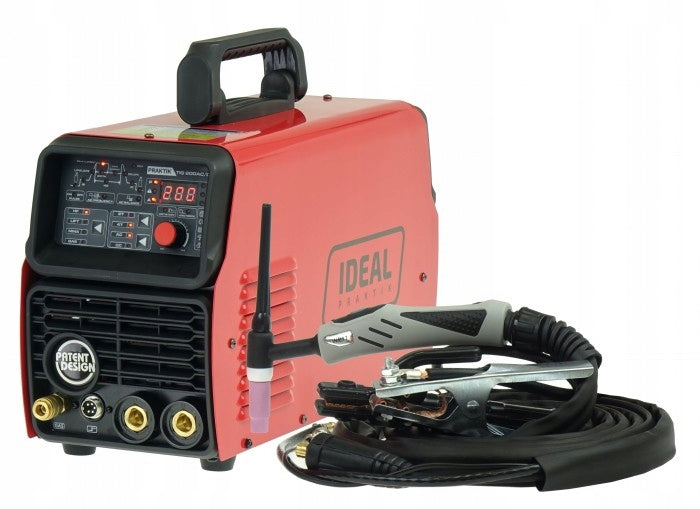

IDEAL PRAKTIK TIG 200 AC/DC is a portable power source, made in the IGBT technology, designed for welding using TIG and TIG PULS alternating current (AC), direct current (DC), and MMA method with a direct current (DC) electrode.

Small size and weight make the device perfect for both workshop work and field work.

✅ The device has welding modes: TIG DC, TIG DC PULS, TIG AC, TIG AC PULS, MMA.

• TIG DC and TIG DC PULS: function is used for welding stainless steel, carbon and low alloy steels, copper and titanium.
• TIG AC and TIG AC PULS: function allows welding of aluminum and its alloys and brass.

Thanks to the regulation of welding parameters of pulsed TIG PULS, we have an impact on the shape of the weld and the focus of the arc.

Pulse welding also allows to reduce the amount of heat supplied to the material and is applicable when welding thin materials.

Arching occurs in contactless (HF) or touch (LIFT) mode. The LIFT function is used during welding in environments with a high risk of electromagnetic interference affecting the environment.

Both with contactless HF and touch LIFT ignition, we have the option of selecting the button function in the TIG handle between operation in 2-bar or 4-bar mode (button lock for long welds).

Readable and easy-to-use digital control panel enables exact adjustment of the device, provides stable parameters and high quality welding.

✅ Digital display makes it easy to adjust welding machine parameters:

• initial outflow of shielding gas
• initial current
• time of electricity build-up
• welding current
• base current
• time of current drop
• final current
• final outflow of shielding gas
• pulse length
• pulse frequency
• frequency AC
• balas AC

✅ The welder also has functions facilitating the MMA welding process with a wrapped electrode:

• ⭐ ARC FORCE: short-circuit current adjustment – facilitates the transfer of a drop of molten electrode to the welded material, preventing the arc from being extinguished when the drop of electrode contacts the welding lake
• ⭐ HOT START: hot start adjustment – facilitates the ignition of the electrode by providing more welding current with each arc.
• ⭐ ANTI STICK: short-circuit – automatically turns off the welding voltage if the electrode sticks to the welded material, which facilitates its detachment and prevents accidental formation of a welding arc

✅ Features of the device:

• ⭐ has a fan cooling system which significantly increases its efficiency.
• ⭐ The quick coupler of the gas connection to the welding torch allows you to immediately connect and disconnect the welding torch without the use of tools.
• ⭐ is equipped with overload protection, which increases its reliability.
• ⭐ Powered single-phase 230V.
• ⭐ has a power plug

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	IDEAL
Parametry	Power consumption	5.9 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	40%
Parametry	Maximum electrode diameter	4 mm
Parametry	Device weight	14.7 kg
Parametry	Welding range	10–200 A
Parametry	Height	295 mm
Parametry	Length	445 mm
Parametry	Width	170 mm
Parametry	Length of ground cable	200 cm
Parametry	Welding cable length	400 cm
Parametry	Product weight with unit packaging	45 kg
Parametry	Manufacturer code	IDEAL PRAKTIK MIG 200 AC DC 1
Parametry	EAN (GTIN)	5903991100320
Parametry	Welding methods	MMA,TIG
Parametry	Additional features	infinitely adjustable welding current,EURO handle,LCD display
