Suvirinimo inverteris PATON STANDARDMIG 250 MMA TIG MIG PULSE 230V 250A

Trumpai apie prekę

Prekė: Suvirinimo inverteris PATON STANDARDMIG 250 MMA TIG MIG PULSE 230V 250A. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Paton
• Modelis: StandardMIG 250 Z4
• Ilgis: 350 mm

➖➖➖➖➖➖➖➖➖➖➖➖➖➖

PATON STANDARDMIG-250 WELDING MACHINE

It is a professional, technologically advanced semi-automatic welding machine designed for welding using the following methods:

➡ MIG/MAG:

Arc welding in gas shields (CO2 or Argon+CO2) is one of the most commonly used processes for the production of welded structures. The semi-automatic welding process involves melting the edges of the welded object and the welding material (welding wire on a roll) with an electric arc produced between the welding wire fed by the handle and the welded material.

• MIG MAN - MIG-MAG welding with manual settings.
• FLUX / FCAW - self-shielding wire welding. This is a similar welding process as MIG/MAG but does not require a gas cylinder. On the wire there is a thin layer of powder, which at the time of arc formation produces gas covering the working area.

➡ TIG LIFT DC - welding with a non-melting electrode (tungsten) in an inert gas shield (Argon) using an additional handle. In the TIG DC Lift mode, the arc glow occurs when the electrode with the welded element is contacted (the button in the handle does not arc, the gas is connected directly from the reducer to the handle). In TIG Lift DC mode, the current is constant.

➡ MMA - classic welding with wrapped electrodes (rutile, alkaline, acidic).

✔ PULS in TIG - method gives the welder full control of the heat introduced into the material - a great function for welding stainless steel and acid-resistant steel.

✔ PULS in MMA - method, thanks to which it is easier to transfer the material from the electrode to the welding lake, better quality of the welded joint.

✔ PULS in MIG/MAG method - easier detachment of metal droplets from the end of the electrode wire, the ability to adjust pulsating current parameters. MIG welding with pulsation is useful for welding stainless steels, acid-resistant steels and aluminum alloys. In addition, pulse welding provides better parameters when soldering CuSi3

⭐⭐⭐⭐⭐

Does the daily use of the welding machine raise concerns about its durability? With PATON you don't have to worry about it! Whether you are buying equipment for private or corporate use, PATON provides you with 5 years of free service in the DOOR-to-DOOR system.

For 60 months from the date of purchase, you can be sure that if the device fails, we will pick it up from you and repair it – quickly and without problems.

The Paton StandardMIG-250 welding machine is used for welding:

✔ low alloy steels (MMA, MIG/MAG, TIG Lift DC),

✔ low carbon steel (MMA, MIG/MAG, TIG Lift DC),

✔ alloy steels (MMA, MIG/MAG, TIG Lift DC),

✔ acid-resistant steels (MMA, MIG/MAG, TIG Lift DC),

✔ aluminium and its alloys (MIG),

✔ other weldable metals and alloys.

➖➖➖➖➖➖➖➖➖➖➖➖➖➖

The equipment of the "Standard" series has been designed for all kinds of welding work in automotive, locksmith, repair, industrial workshops etc.

• ✔ REPAIR WORKSHOPS,
• ✔ AUTOMOTIVE INDUSTRY,
• ✔ LOCKSMITH WORKSHOPS,
• ✔ OF ALL BODYWORK REPAIRS,
• ✔ FARMS,
• ✔ HOMEWORK,

AND WHEREVER RELIABILITY MATTERS!

➡ Robust construction and ease of use make working with the device trouble-free, despite the small size of the welding machine, it allows you to achieve excellent quality of welds.

➡ The use of the completely electronic control method in this series excludes defects that are characteristic in multifunctional systems.

➡ The welding source is set to optimal values, which allows you to start working with it right away.

✔ INDUCTANCE ADJUSTMENT - function is useful during welding using the MIG/MAG method of thin elements, preventing them from burning out and soldering galvanized elements. Changing the inductance value also reduces the amount of welding chips during CO2 shielded welding. Thanks to the inductance adjustment, the welding machine is suitable for lutowelding. Depending on the model of the welding machine, the adjustment is automatic or can be adjusted manually.

✔ DUTY CYCLE - migraines from the Standard series have 45% duty cycle, while the PRO series has 70% duty cycle at the same welding current value. In addition, the PRO series migomates achieve a continuous cycle with a higher welding current than the Standard series migomates.

✔ SOLDERING - is a method that is quite similar to MIG/MAG welding, but the energy supplied in this case is much less. This means that soldering is used to join thin sheets covered with a layer of zinc. The described method is a bonding process during which solder melts, not the material we work with.

✔ PULS - pulsed current welding, in which high and low current are alternately used. This reduces overall heat supply and splatter while providing greater resistance to non-melting. This method can be used to weld both metals with high thermal conductivity and thinner metals without burning them. Additionally, you can get narrower and more penetrating welds on thicker metals.

✔ HOT START - facilitates the ignition of the electrode by providing more welding current with each arc.

✔ ARC FORCE - is a function that facilitates the transfer of a drop of molten electrode to the welded material, preventing the arc from extinguishing when the drop of electrode contacts the welding lake.

✔ VRD - (Voltage Reduction Device) - reduces the resting voltage of the idle state on the electrode to a safe value. Provides shock safety when working in humid environments.

✔ INVERTER TECHNOLOGY IGBT - is a modern technology based on bipolar transistors with an isolated gate. It combines the ease of control of field transistors with high breakdown voltage and switching speed of bipolar transistors. The use of IGBT technology has the effect of significantly extending the reliable operation of welding equipment.

✔ EUROCONNECTOR - allows you to quickly change the handle and allows you to change the polarity for welding with self-shielding wire.

✔ TWO-BAR 2T - pressing the button initiates gas outflow and welding current, releasing the button turns off welding current and gas outflow.

✔ FOUR-BAR 4T - pressing and releasing the handle button initiates gas outflow and welding current, re-pressing and releasing the button turns off the welding current and gas outflow.

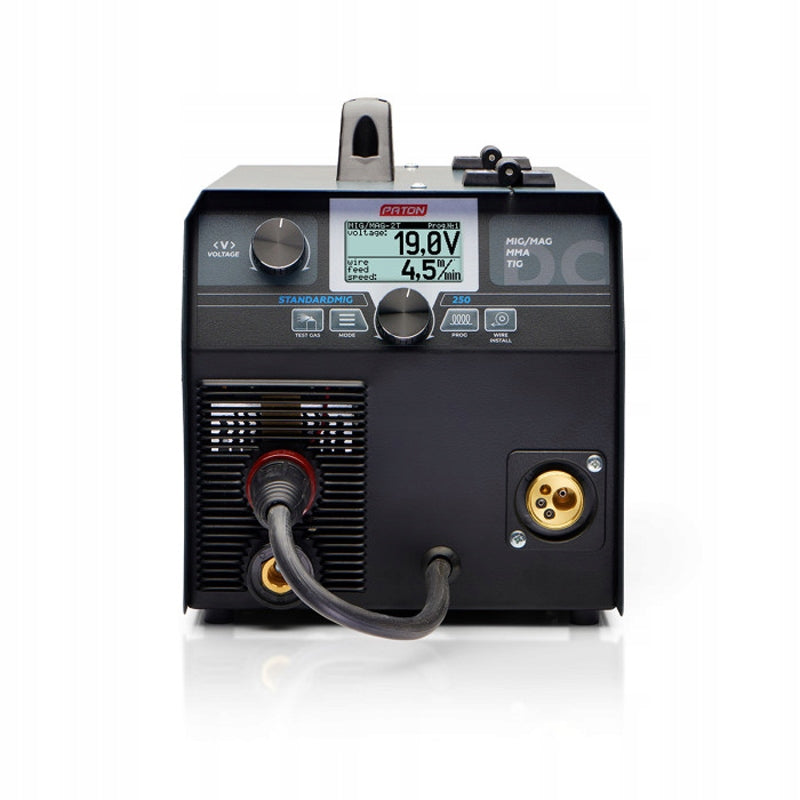

✔ CONTROL PANEL - The welding machine is equipped with an easy-to-use control panel and display, so it can be used even by amateurs.

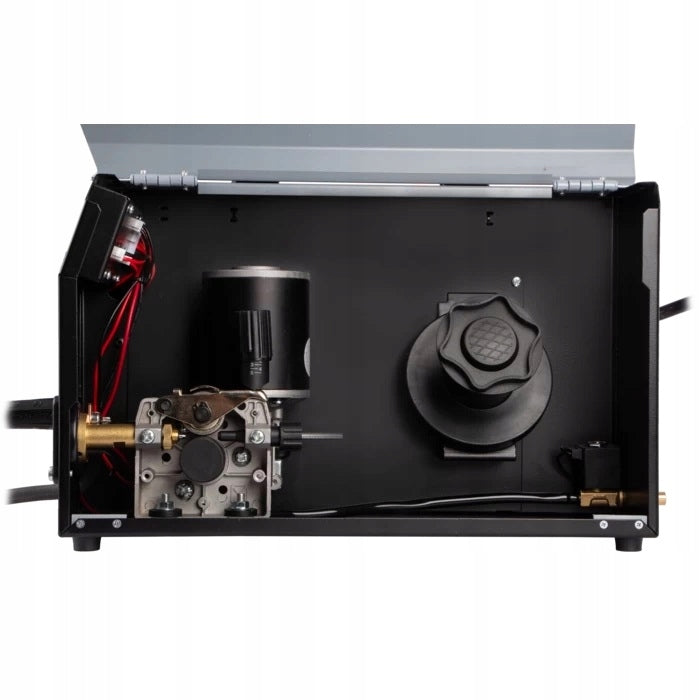

EFFICIENT OPERATION THANKS TO PROFESSIONAL WIRE FEEDER

The welder is equipped with a solid wire feeder, which guarantees stability and continuity of operation of the device.

PATON™ Standard series is equipped with a 2-roll metal wire feeder, and the universal KZ-2 connector type "EURO" allows you to connect a welding torch from a wide range of manufacturers.

The feeder has a quick wire change knob as well as a wire feed roller. Combined with high power and efficiency, it is characterized by low weight and dimensions.

➖➖➖➖➖➖➖➖➖➖➖➖➖➖

The feeder is compatible with 5 kg and 1 kg spools (when purchasing an additional body).

➡ The device is equipped with overload protection, which increases its reliability.

❄ The device has a fan cooling system which significantly increases its efficiency.

• Power supply: 230 V, 50/60 Hz
• Network fuse required: 20C
• Nominal welding current: 250 A
• Maximum welding current: 335 A
• Nominal mains current required: 32 - 36 A
• Working cycle: 45% at 250 A 100% at 167 A
• Power supply voltage range: 160 - 260 V
• Welding current adjustment range: 12 - 250 A
• Welding voltage adjustment range: 12 - 28 V
• Wire feed speed: 2,0 - 16 m/min
• Diameter of wrapped electrode: 1,6 - 6,0 mm
• Number of pressure rollers: 2
• Solid wire diameter: 0,6 - 1,2 mm
• Maximum spool weight: 5 kg

• Pulsing current welding methods:
• MMA - TIG - MIG/MAG
• Hot-Start function (MMA): Adjustable
• Arc-Force function (MMA): Adjustable
• Anti-Stick function (MMA): Automatic
• Idle voltage reduction system: On/Off

• Idle voltage: 12 / 70 V
• Arc current voltage: 110 V
• Nominal power consumption: 6,9 - 7,7 kVA
• Maximum power consumption: 9,3 kVA
• Energy efficiency: 90%

• Cooling: Automatic
• Working temperature range: -25 ... +45 ºC

• Dimensions (L. x W. x H. ): 420 х 245 х 298 mm
• Weight: 11,5 kg
• Degree of protection: IP33

• EN 60204-1:2006
• EN 60974-1:2012
• EN 60974-10:2014

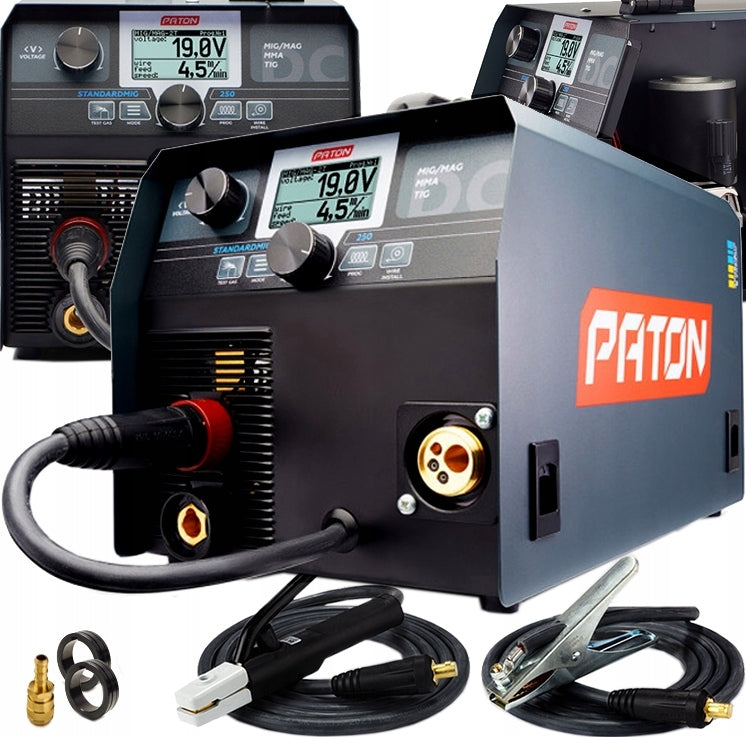

WHEN YOU BUY FROM US, YOU GET:

• PATON™ StandardMIG-250 migomat welder
• Electrode holder 3m
• Bulk holder 3m
• Wire feeder rollers 1x (0,6 - 0,8), 1x (1,0 - 1,2) V
• Quick coupler for gas
• Cardboard packaging
• Operating instructions

➖➖➖➖➖➖➖➖➖➖➖➖➖➖

NOTE set does not include MIG/MAG handle, different handles are available at our separate auctions.
