Suvirinimo inverteris MMA/TIG WELDMAN ARC 230, 230A, 80%

Trumpai apie prekę

Prekė: Suvirinimo inverteris MMA/TIG WELDMAN ARC 230, 230A, 80%. Kategorija: Inverteriniai suvirinimo aparatai.

• Gamintojas: Weldman
• Modelis: ARC 230

MMA / TIG inverter welder ARC 230 WELDMAN 230A 80%

WELDMAN

✅ display of welding current parameters

✅ LED signaling diodes: (green) overload (red)

✅ electronically controlled smooth regulation of welding current

✅ Possibility of electrode welding up to 5 MM

✅ overload protection.

✅ Designed for workshop and field work.

✅ Welding torch 2 meters for large plugs

✅ WELDING CURRENT 20-230 A

✅ Manual parameter adjustment

✅ Possibility of electrode welding up to 5mm

✅ Low weight and mobility of the device

✅ Shoulder strap

✅ Place for gas cylinder

✅High duty cycle 80%

WELDMAN

Weldman is a poland innovative brand that has its roots in passion for modern technologies related to the field of workshop technology. From the very beginning, we have been guided by the idea of creating products of the highest quality, based on the latest technological achievements, at an affordable price Our offer includes a wide range of welding equipment, rectifiers and start-ups, spotters, induction heaters and plasma cutters.

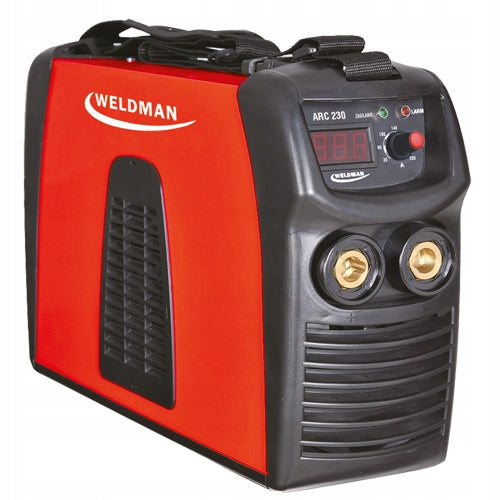

ARC 230 inverter welder for welding with DC electrodes and TIG lift.

Designed for welding with rutile and alkaline electrodes up to 5 mm of various steel grades (low carbon, low alloy, stainless, etc. ) and cast iron. The welding machine has a digital display of welding current.

LEDs on the front panel indicate that the power supply is connected (green LED) or turned off due to overload (red LED).

Electronically controlled smooth regulation of welding current.

Overload protection.

The welder has functions to facilitate welding:

✅ HOT START: increases welding current when arcing to facilitate electrode ignition

✅ ARC FORCE (arch dynamics): shortens the arc length when increasing the welding current by optimizing the transfer of a drop of molten electrode to the welded material, preventing the arc from being extinguished when the electrode comes into contact with the welded material

✅ ANTI STICK: reduces welding current by preventing the electrode from sticking to the welded material

The welder can weld using the TIG method after connecting a torch with a gas valve. Tactile arc glow due to rubbing with tungsten electrode against the welded material (TIG Scratch).

Small and lightweight design makes the device applicable in repair work in workshop conditions as well as in field work.

Transport makes it easy to equip the welding machine with a shoulder strap.

High 80% duty cycle is a huge advantage of this welding machine, 100% duty cycle reaches at 205A current, which makes it possible to weld it with 4,0mm electrodes practically without interruption. ARC 230 is powered from a single-phase 230V network.

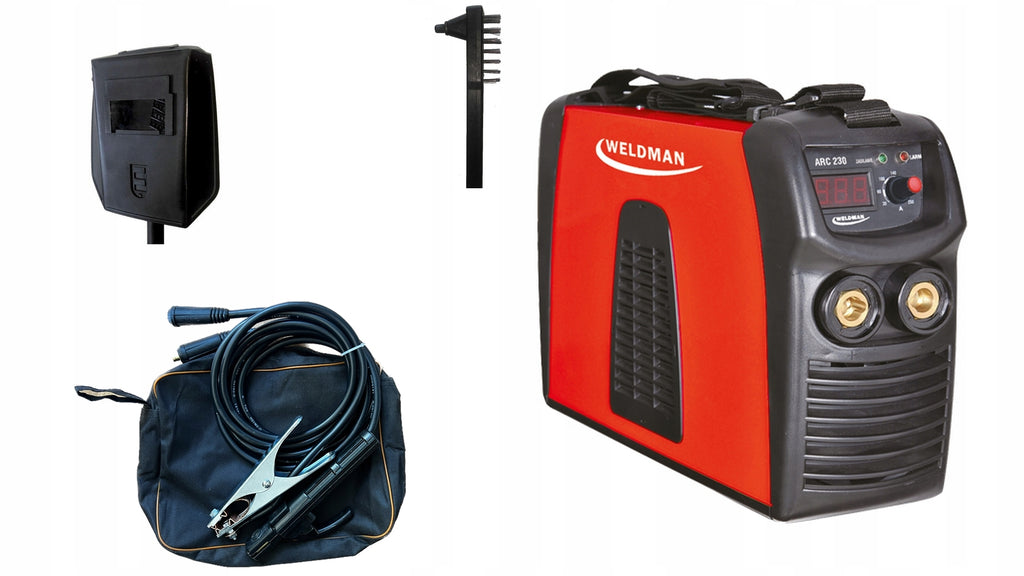

The welder is equipped with:

• power cable 2 m with 230V plug
• welding cable 2 m with electrode holder 200A (DX50)
• mass cable 1,6 m with terminal 200A (DX50)
• welding disc
• hammer for upholstery

Small and lightweight design makes the device applicable in repair work in workshop conditions as well as in field work.Transport facilitates equipping the welding machine with a shoulder strap.

WEIGHT ONLY 7KG

Technical data

• Code:103 011
• Device Type:ARC 230
• Supply voltage [V]:230
• Idle current voltage [V]:56
• Welding current adjustment range [A]:20-230
• Efficiency max at 40°C
• 230A@80%
• 205A@100%
• Electrode diameter [mm]:2-5
• Max. power consumption [kVA] :8,3
• Protection class [IP]:21
• Dimensions [cm]:41x12x24
• Weight [kg]:5

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Weldman
Parametry	Power consumption	9 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	5 mm
Parametry	Device weight	5 kg
Parametry	Welding range	20–230 A
Parametry	Length of ground cable	1.6 cm
Parametry	Welding cable length	2 cm
Parametry	Product weight with unit packaging	9 kg
Parametry	Manufacturer code	103 011
Parametry	EAN (GTIN)	5902701750077
Parametry	Model	ARC 230
Parametry	Welding methods	MMA,TIG
Parametry	Additional features	infinitely adjustable welding current,LCD display
