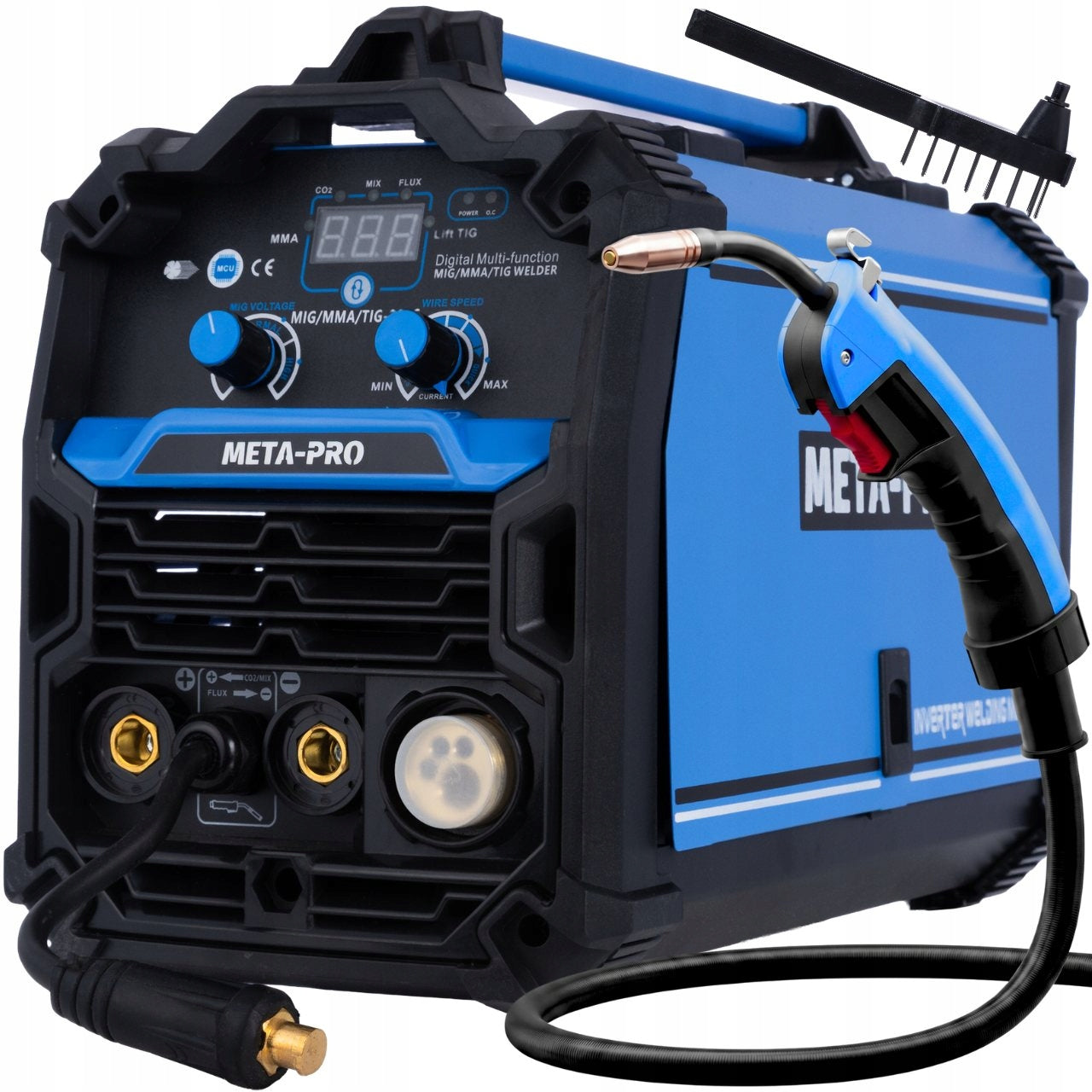

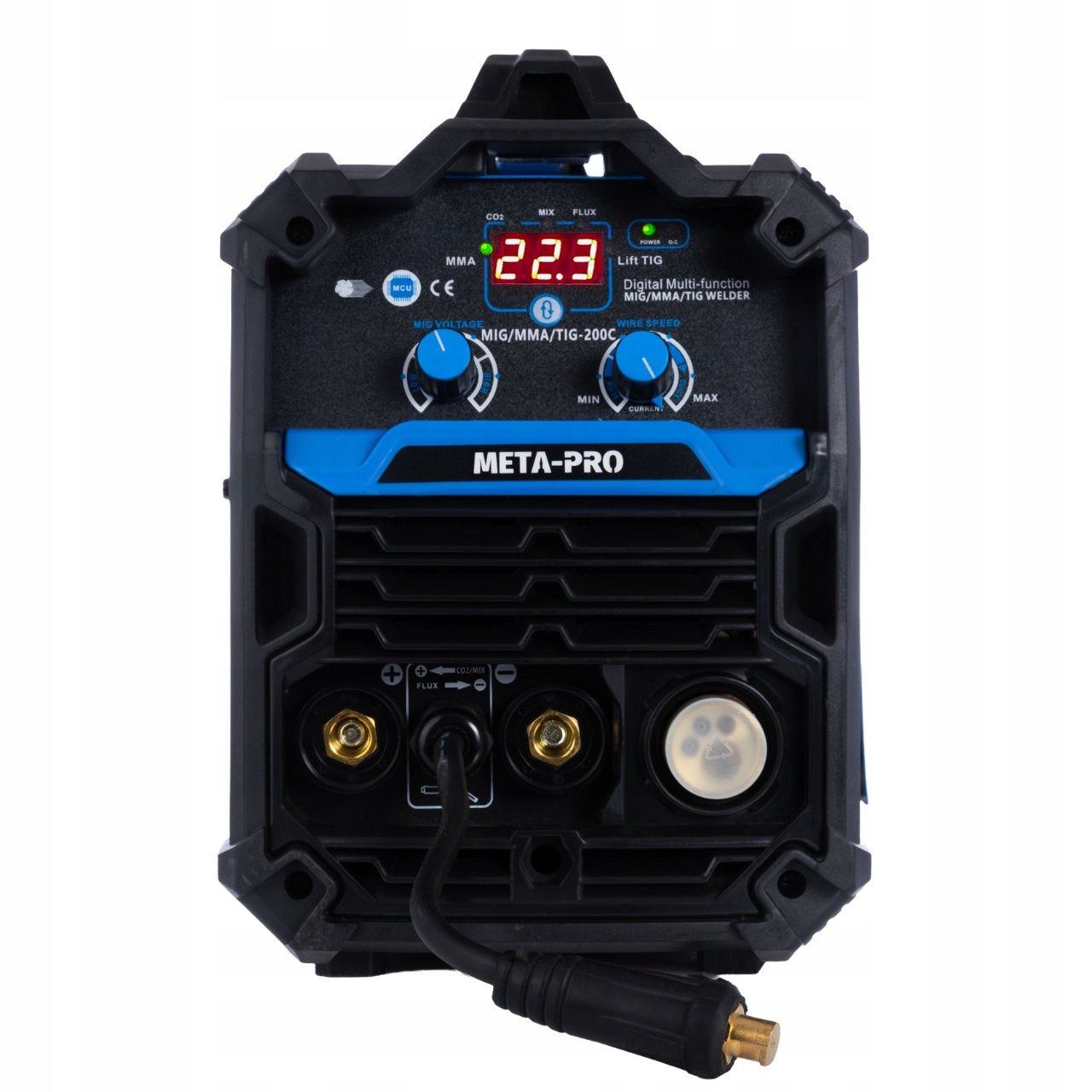

Suvirinimo inverteris MIGOMAT MIG MAG MMA TIG LIFT 200A

Trumpai apie prekę

Prekė: Suvirinimo inverteris MIGOMAT MIG MAG MMA TIG LIFT 200A. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: META-PRO
• Modelis: GY9078

⚫ POLISH BRAND META-PRO ⚫ FULL AFTER-SALES SUPPORT AND SERVICE

► 3in1 DEVICE (MIG/MMA/TIG LIFT) ► WELDING CURRENT UP TO 200A ► SYNERGY ► INDUCTANCE ADJUSTMENT ► SPOOL SPACE 5 KG ► ARC FORCE, HOT START, VRD

TECHNICAL SPECIFICATION:

• Brand: META-PRO
• Power supply voltage: ~1× 230V ± 10% 50 / 60 Hz
• Welding methods: MIG/MAG, MMA, TIG Lift
• MIG welding current: 50 - 200 A (60% duty cycle)
• TIG welding current: 10 - 200 A
• MMA welding current: 10 - 160 A
• Output voltage: 16.5 - 24 V
• Power consumption: MIG 35A / TIG 26A / MMA 33A

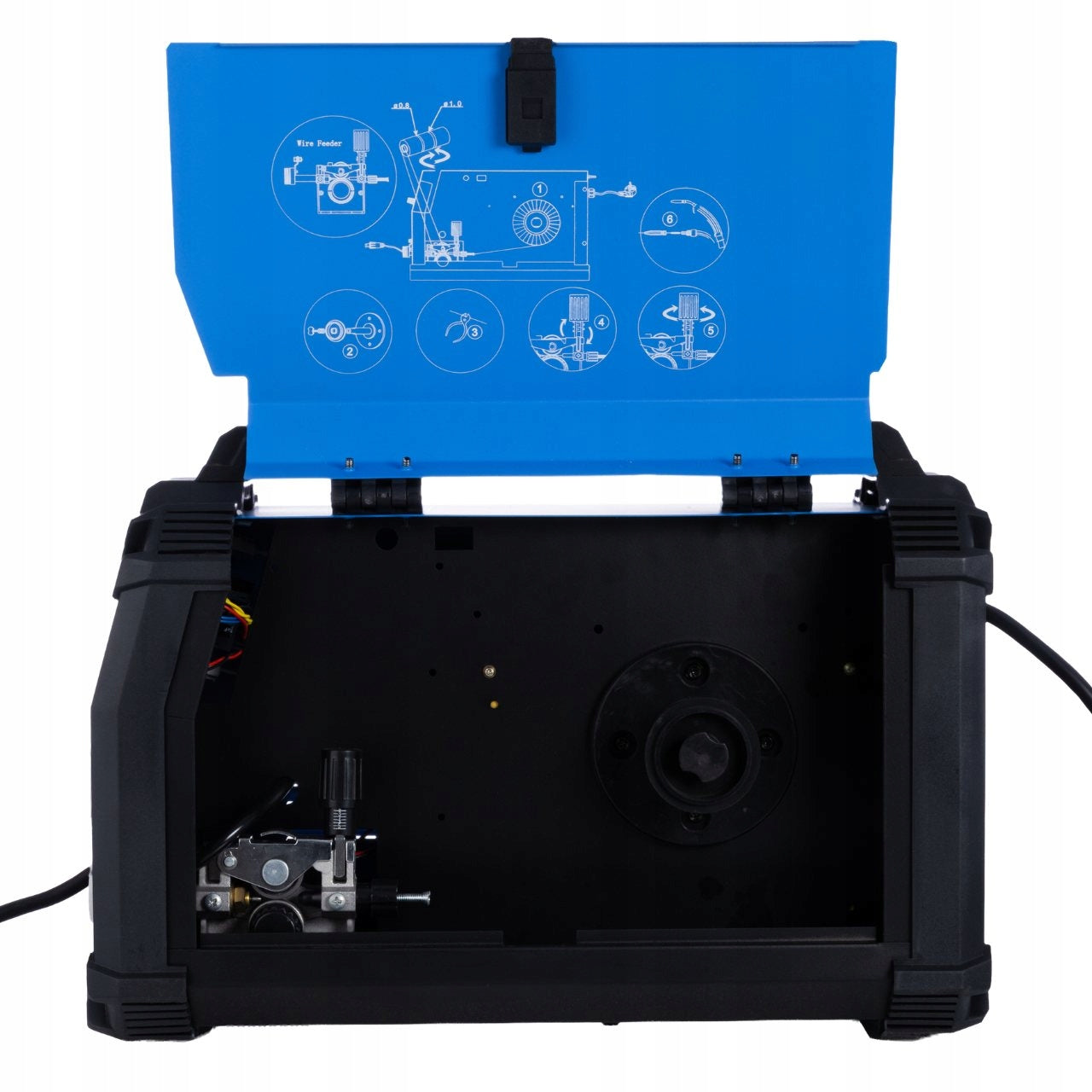

• Feeder type: Built-in, 2-roller
• Wire feed speed: 2 - 12.5 m/min
• Supported wire spool: 5 kg / ∅200 mm
• Diameters of supported wire: 0.6 / 0.8 / 1.0 mm
• Advanced Features: Synergy, 2T/4T, Inductance Adjustment, Polarity Change, Wire Test
• MMA Features: Arc Force, Hot Start, VRD
• Isolation class: H
• Degree of protection: IP21S
• Power factor (cosφ): 0.76
• Efficiency η: 85%
• Weight of the device: 9 kg

⚫ ADVANCED SUPPORT IN MMA MODE

Welding with a wrapped electrode (up to 160A) is supported by a package of flagship functions:

• Hot Start: Temporary increase in current at the start makes it easier to light the arc.
• Arc Force: Automatic arc stabilization, preventing the electrode from "sticking".
• VRD: Idle voltage reduction ensures maximum safety in humid environments.

⚫ INTELLIGENT SYNERGY

You don’t have to be an expert to choose the right parameters! Thanks to the synergistic mode, the device automatically adjusts the wire feed speed to the set voltage and thickness of the material. This is a great convenience, which reduces the preparation time and guarantees perfect melting.

⚫ POWERFUL POWER IN A COMPACT HOUSING

Despite the built-in feeder, the welding machine weighs only 9 kg. The device is characterized by high efficiency (85%) and a duty cycle of 60% at 200A MIG current, which indicates powerful radiators and great cooling inside the machine.

APPLICATION:

• Car workshops: Sheet metal, welding of thin galvanized sheets and repair of silencers.
• Steel structures: Welding of profiles, gates, fences and railings.
• Installation and assembly work: TIG Lift welding (using the appropriate valve holder) allows for precise and aesthetic connection of stainless steel.
• Field work: Possibility of welding with MMA electrode and self-shielding wire (without gas cylinder).
