Suvirinimo inverteris MIGOMAT Magnum MIG 211 Synergy LED 4x4 200A 2T 4T

Trumpai apie prekę

Prekė: Suvirinimo inverteris MIGOMAT Magnum MIG 211 Synergy LED 4x4 200A 2T 4T. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: MIG 211 SYNERGIA LED
• Ilgis: 480 mm
• Plotis: 220 mm
• Aukštis: 360 mm

MANUFACTURER: MAGNUM || WELDING METHODS: MIG/MAG, MMA, FLUX, TIG DC || SELECTED ADVANTAGES: Synergy, 2T/4T, 4-roll feeder || POWER SUPPLY: 230V 1ph

Power supply parameters:

• Supply Voltage: Single Phase 230V
• Technology: IGBT Inverter
• Current taken from the mains: 20A
• Idle Voltage: 55V
• Degree of protection: IP21
• Weight: 11.6kg

MIG/MAG welding parameters:

• MIG/MAG welding current: 40 - 200A
• MIG/MAG duty cycle: 60% 200A, 100% 120A
• MIG/MAG welding voltage: smooth adjustment
• Wire feed speed: smooth adjustment
• Spool with wire: max 5kg (D200)
• MIG/MAG welding polarity change: YES
• Welding Inductance Adjustment: YES

TIG welding parameters:

• TIG welding current: 10 - 200A
• Output Current: DC Constant
• Arch ignition: contact - Lift
• TIG duty cycle: 40% 200A
• TIG welding current regulation: smooth

MMA welding parameters:

• MMA welding current: 10 - 160A
• Electrode diameter: 1,6 - 5,0 mm
• MMA Welding Current Adjustment: Smooth

+ ONLY WITH US ADDITIONALLY ▶ GAS CABLE WITH A LENGTH OF 4M! ◀

▶ MODERN MIGOMAT WITH SIMPLE OPERATION, PERFECT FOR WORKSHOP

MIG 211 Synergy LED 4x4 welding machine is a technologically advanced welding device for MIG/MAG, MMA, TIG LIFT welding.

The device is designed for manual, electric welding of low-carbon steels, low-alloy steels, high-alloy steels, stainless and acid-resistant steels, aluminum and its alloys, etc.

Magnum MIG 211 LED synergy 4x4 is designed for all kinds of welding work performed by professionals in car workshops, locksmiths, repair workshops, industrial, etc., as well as amateurs / hobbyists in home workshops.

Thanks to an extremely simple control panel, a well-chosen algorithm of synergistic programs and digital process control, this device is extremely easy to use and allows a person even without welding experience to clone welded joints.

In addition to synergistic control, the device has the ability to set welding parameters in a traditional (manual) way, bypassing synergy.

The power source is built on high-performance IGBT transistors for high performance, low power consumption, and reliability.

ADVANTAGES OF THE DEVICE:

• smooth adjustment of all welding parameters,
• synergy - the device has synergistic programs,
• manual mode settings,
• four-roll feeder,
• Euro socket- the possibility of using any MIG holder equipped with a EURO plug,
• 2T/4T operating modes - weld as standard in 2T mode or switch to 4T mode when you have a lot of work and long welds to position,
• accurate adjustment of the length of the welding arc,
• regulation of welding inductance - wider face and smaller melt or narrow face and deep melt? Choose the optimal settings for the work you are currently doing,

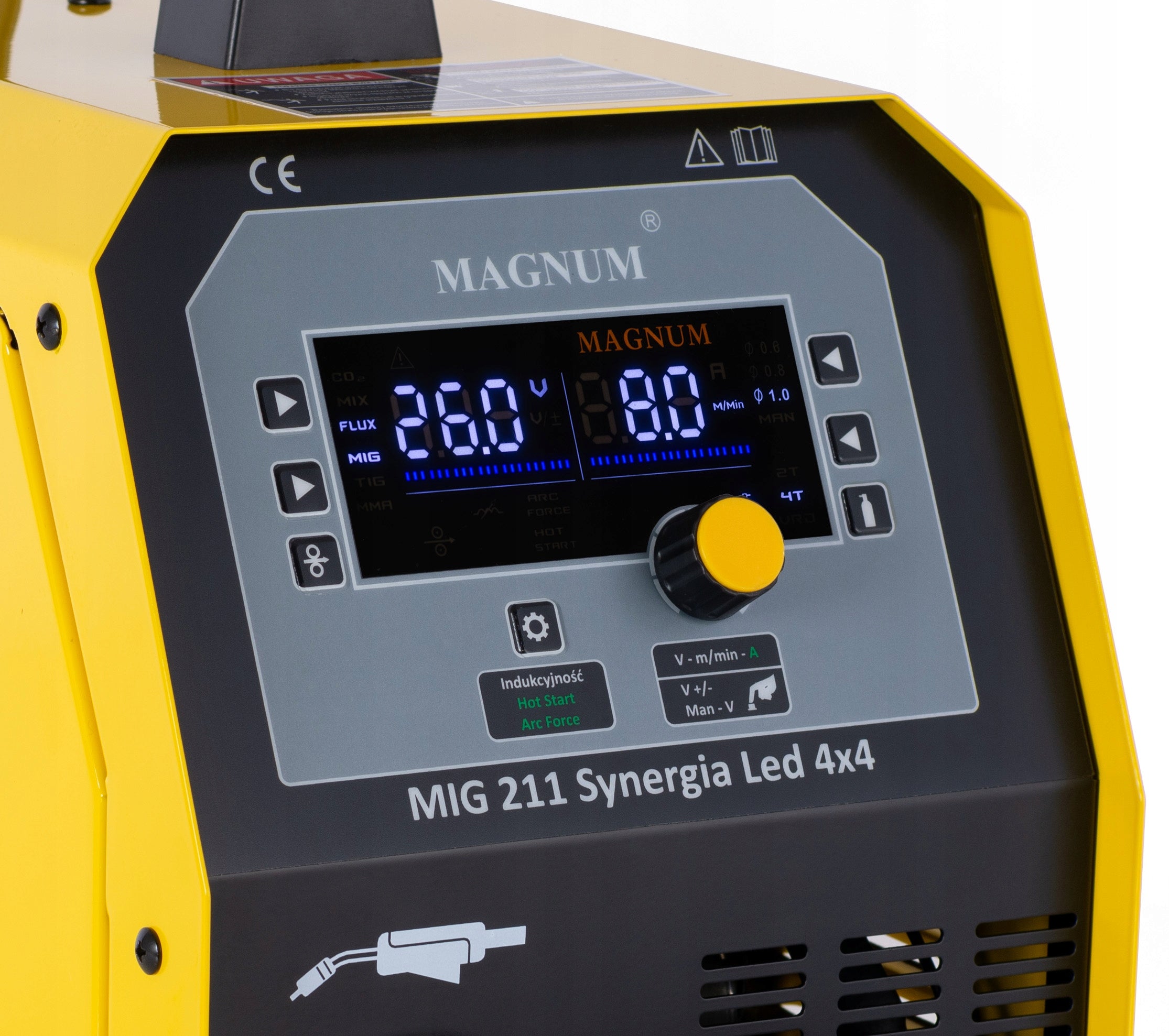

• readable LED display, showing all parameters,
• possibility of TIG DC Lift welding,
• simultaneous change of wire feed voltage and speed,
• change the speed of feeding wire in manual mode,
• change the value of welding current voltage in manual mode.

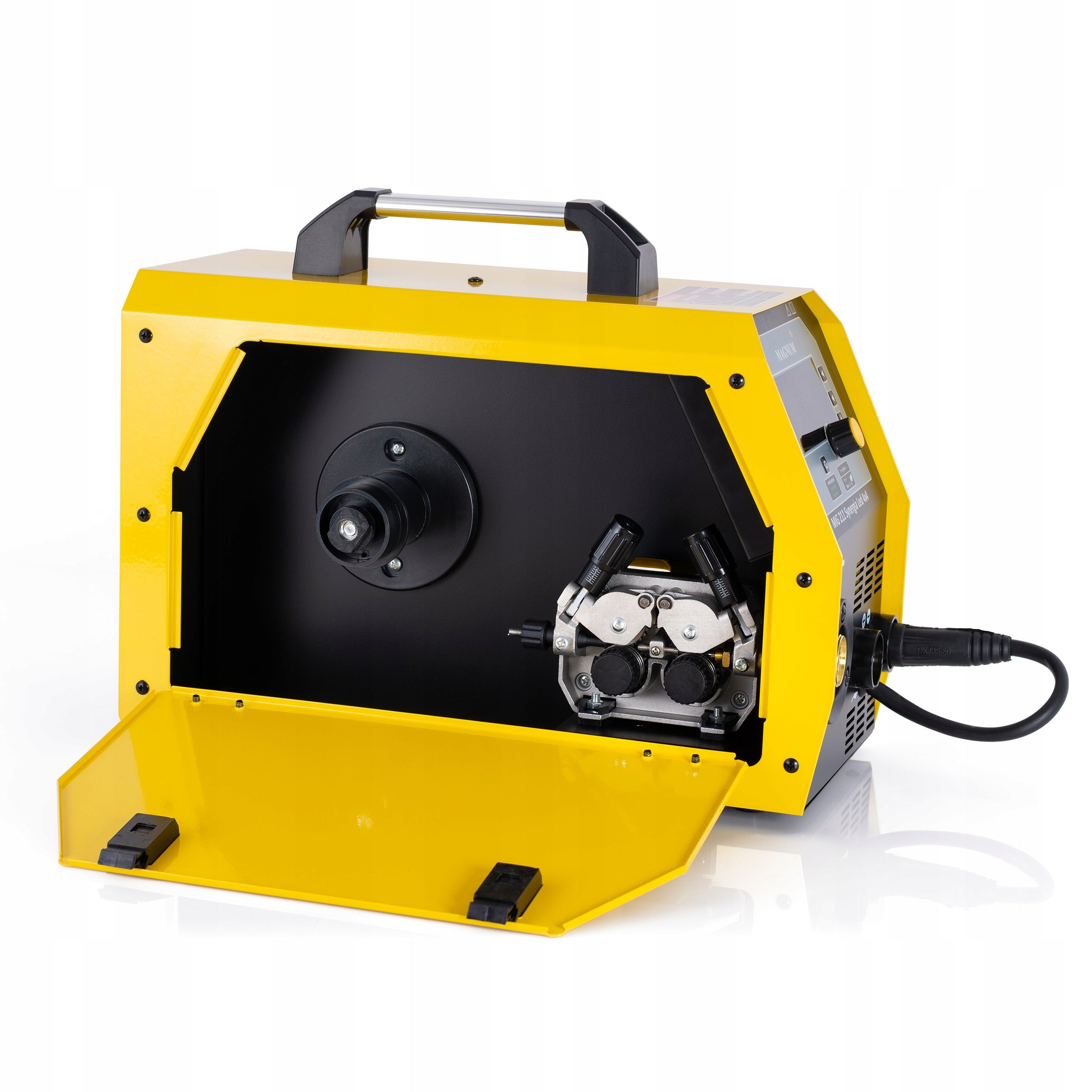

✳ Professional 4R Wire Feeder ✳

Professional 4-roll wire feeder (4x4) - this is a reliable wire feeding regardless of the weight of the spool and the type of welding wire. The proven feeder mechanism has a large impact on the smoothness of wire feeding, and this translates directly into the welding parameters of the device.

Features to improve work in the MMA method

• VRD (Voltage Reduction Device) function - reduces the resting voltage of the idle state on the electrode to a safe value. Provides shock safety when working in humid environments.
• Arc Force: facilitates the transfer of a drop of molten electrode to the welded material, preventing the arc from extinguishing when the drop of electrode contacts the welding lake.
• Hot Start: facilitates the ignition of the electrode by providing more welding current with each arc.

Solid workmanship

The power source is based on IGBT transistors that provide a minimum of electromagnetic interference, allowing you to increase the efficiency and reliability of the device.

The compact and compact design makes the device applicable in workshop and repair work, both in halls and in the field. The transport handle makes it easy to carry the device.

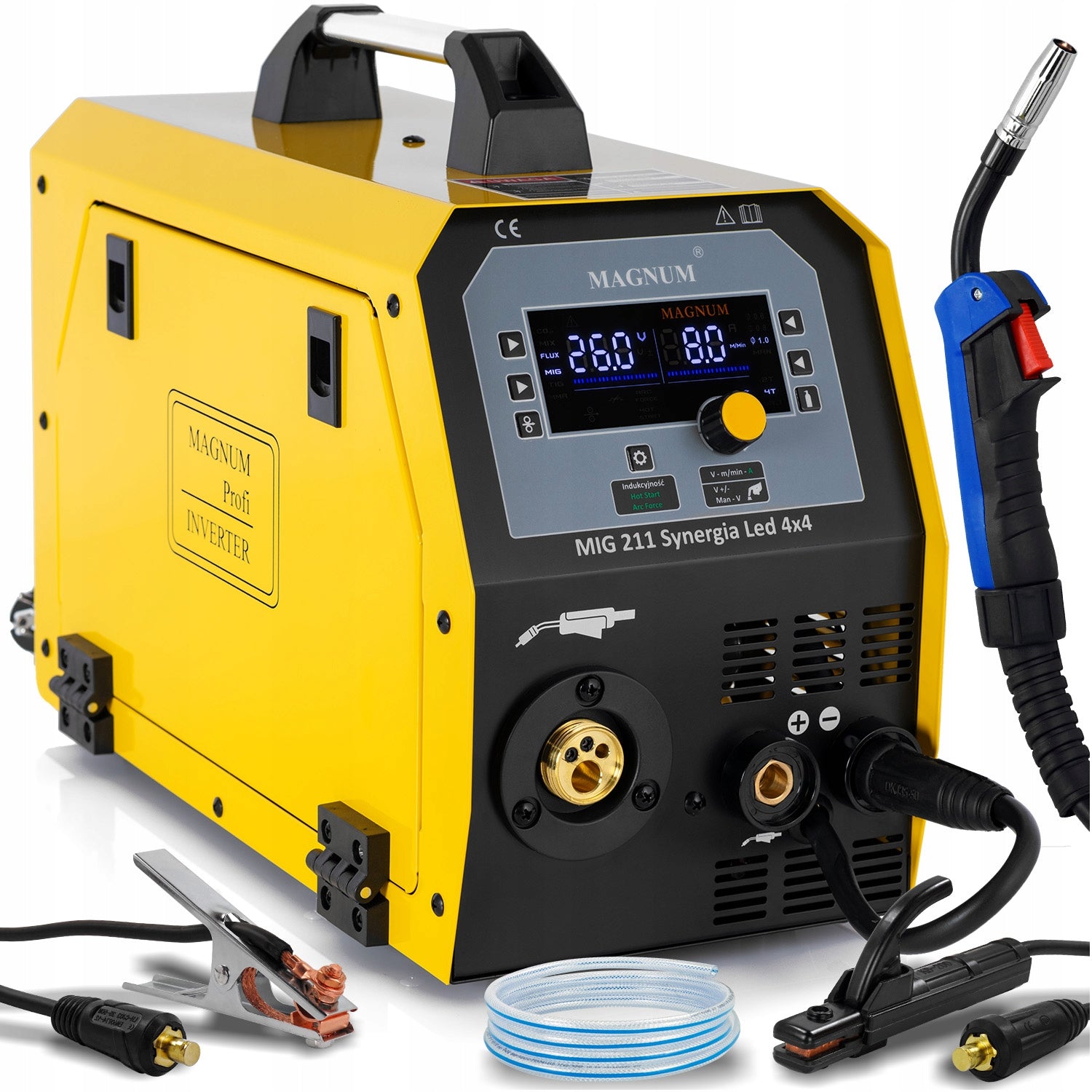

• Device Magnum MIG 211 Synergy LED 4x4
• Welding torch MIG MB-15/3m
• MMA electrode cable
• Bulk cable
• User manual in Polish

▶ + GAS CABLE WITH A LENGTH OF 4M! ◀
