Suvirinimo inverteris MAGNUM THF 238 PRO LCD V2 TIG AC/DC su impulsu, aliuminiui

Trumpai apie prekę

Prekė: Suvirinimo inverteris MAGNUM THF 238 PRO LCD V2 TIG AC/DC su impulsu, aliuminiui. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: THF 238 PRO LCD AC/DC
• Ilgis: 480 mm
• Plotis: 145 mm
• Aukštis: 250 mm

THE WELDING MACHINE OFFERED AT THIS AUCTION COMES WITH A HANDLE WITH 1 BUTTON FOR ARCING.

THERE IS ALSO A VERSION WITH A HANDLE WITH CONTROL IN THE HANDLE

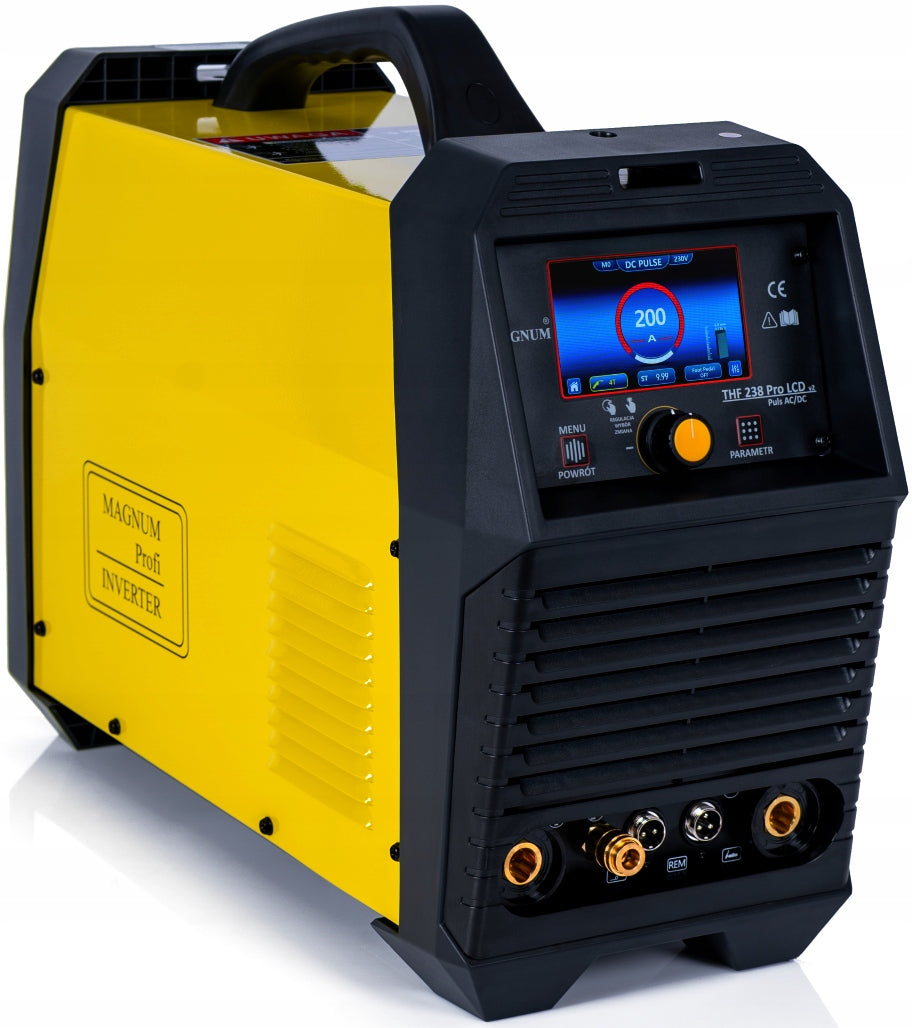

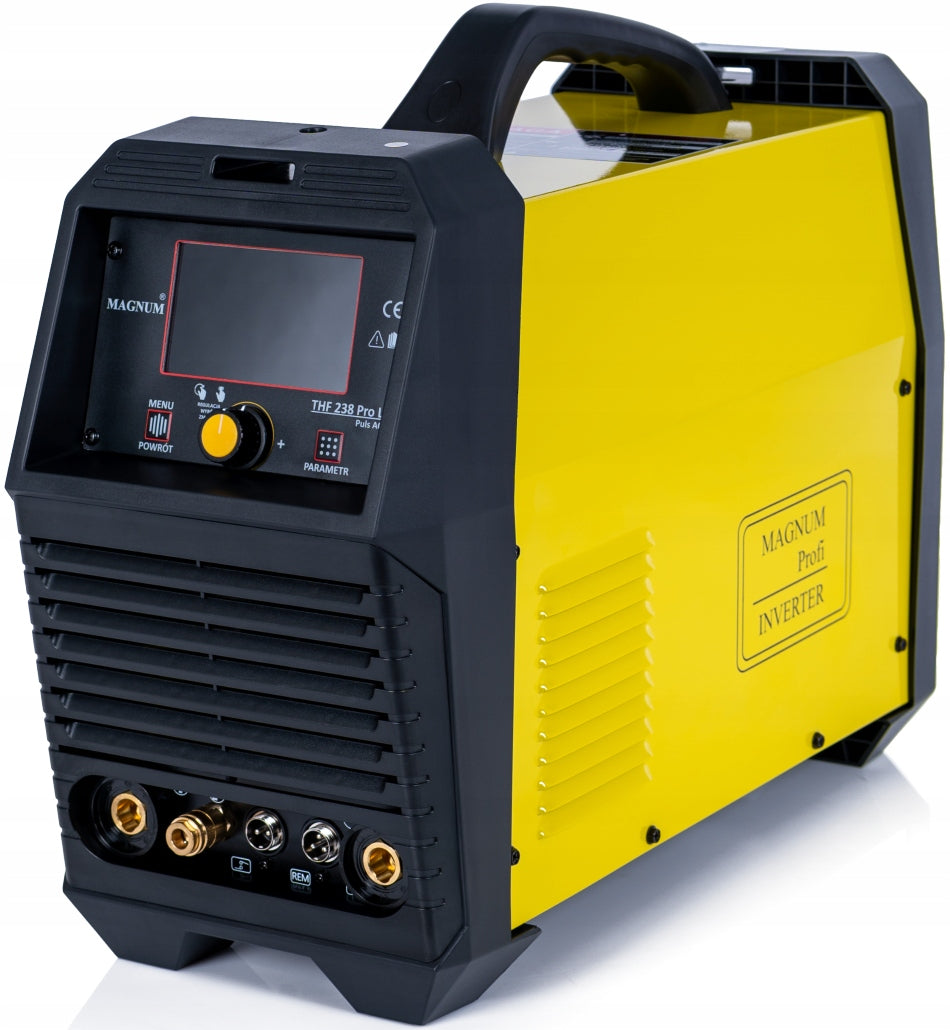

THF 238 PRO LCD V2 PULSE AC/DC

It is a professional inverter welding machine with a modern design. It enables welding with current up to 200A. It is powered from a single-phase 230V network. The welder has:

➡ TIG AC/DC - Welding with a non-melting electrode in an inert gas shield with the possibility of determining the arc TIG HF and TIG LIFT with direct current (DC) and variable (AC) a also in the following modes:

• TIG PULS - pulse welding.

➡ MMA - Direct current wrapped electrode (DC) and variable (AC).

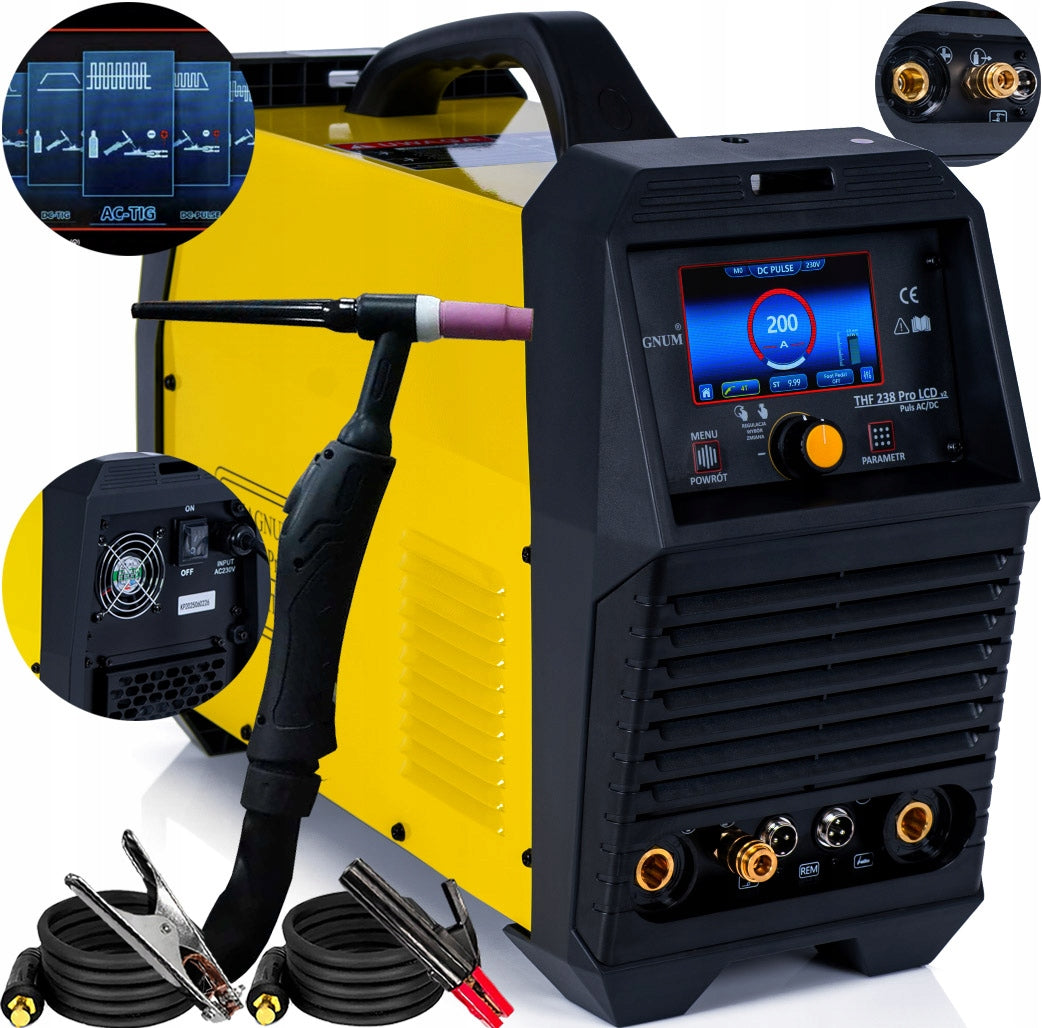

THE WELDING MACHINE IS EQUIPPED WITH A PROFESSIONAL TIG WP-26/4M HANDLE, AS WELL AS AN ELECTRODE AND MASS HOLDER!

MAGNUM THF 238 PRO LCD V2 PULS AC/DC provides excellent welding performance:

✔ aluminium and its alloys,

✔ non-alloy steel,

✔ low alloy steel,

✔ high-alloy steel,

✔ titanium,

✔ other weldable metals and alloys.

The welding machine is characterized by a wide range of applications, it is dedicated to all kinds of welding work in factories, industrial plants, locksmith workshops, repair workshops, etc.

The MAGNUM THF 238 PRO LCD V2 PULS AC/DC welder has a clear and easy-to-use function panel, which has m.in.:

• 7. Input button to the main menu - selection of welding method - and return from the menu after using other buttons (8 and 9).
• 8. Knob and button in one. The value setting knob of all available parameters. After entering the main menu, select and approve the welding method (turn and press).
• 9. Input button to the menu of parameters available for TIG welding and their selection (parameters on the current ladder).

Welding machine MAGNUM THF 238 PRO LCD V2 PULS AC/DC has:

✔ Selection view of TIG method options,

✔ Home screen view, after selecting TIG AC-PULSE option,

✔ Home screen view, after selecting DC-TIG option,

✔ Home screen view, after selecting AC-TIG,

✔ Home screen view, after selecting DC-PULSE option,

✔ Home screen view, after selecting AC-PULSE.

ADJUSTABLE

• Clean depth - cleaning. Adjust the depth of removal of oxides from the welding lake.
• Clean width - cleaning. Adjust the width of the removal of oxides from the welding lake.
• Both of the above parameters (Clean depth; Clean width) are based on the balance of polarity change (regulation of the polarity duration ratio plus to minus). The positive half-wave allows the top layer of oxides to be pierced, while the negative half-wave, accompanied by a drop in electrode temperature and heat flow to the welded element, promotes deeper arc penetration. By adjusting the AC balance, you can precisely adjust the proportions between the distributing and penetrating action of the electric arc.

The TIG DC and TIG DC PULS functions are used for welding stainless steel, carbon and low alloy steels, copper and titanium. Welding is carried out in an inert gas shield. .

The TIG AC and TIG AC PULS functions allow welding of aluminium and its alloys and brass.

By adjusting the parameters of pulse welding TIG PULS we have an impact on the shape of the weld and the focus of the arc. Pulse welding also reduces the amount of heat supplied to the material and is applicable when welding thin materials.

✔ REPAIR WORKSHOP

✔ LOCKSMITH WORKSHOP

✔ FACTORIES

✔ FARMS

✔ HOMEWORK

AND WHEREVER RELIABILITY MATTERS!

✔ TIG WELDING WITH PULSE - thanks to the regulation of pulsed welding parameters, we have an impact on the shape of the weld and the focus of the arc. Pulse welding also reduces the amount of heat supplied to the material and is applicable when welding very thin materials.

✔ SPOT WELDING - consists in making a small area of joining materials of small thickness. Most often, spot welding of sheet metal is carried out. This procedure is also referred to as one-sided welding.

✔ MIKROTIG - cold welding of thin sheets

✔ PANEL LCD 4,3” – transparent display allows quick access to all settings

✔ POST GAS - regulation of gas outflow time after welding arc extinction. This is a helpful feature to cover the welding lake. The lack of additional gas shielding may result in oxidation of the weld.

✔ PRE GAS - gas outflow before arcing. Protects the lake from the harmful effects of atmospheric air. Regulation expressed in seconds.

✔ TWO-BAR 2T - pressing the button initiates gas outflow and welding current, releasing the button turns off welding current and gas outflow.

✔ FOUR-BAR 4T - pressing and releasing the handle button initiates gas outflow and welding current, re-pressing and releasing the button turns off the welding current and gas outflow.

✔ ANTI STICK - anti-short-circuit function - reduces the welding current to a minimum value when the welder makes a mistake and the electrode is glued to the welded material. This makes it easier to detach the electrode from the welded material and protects the electrode holder from damage.

✔ HOT START - regulation of hot start - facilitates the ignition of the electrode by providing more welding current with each arc.

✔ ARC FORCE - is a function that facilitates the transfer of a drop of molten electrode to the welded material, preventing the arc from extinguishing when the drop of electrode contacts the welding lake.

✔ VRD - is a voltage reduction system whose task is to turn off the power supply within a few milliseconds after welding. This function is also responsible for reducing the voltage on the wrapped electrode to a safe level.

✔ INVERTER TECHNOLOGY IGBT - is a modern technology based on bipolar transistors with an isolated gate. It combines the ease of control of field transistors with high breakdown voltage and switching speed of bipolar transistors. The use of IGBT technology has the effect of significantly extending the reliable operation of welding equipment.

✔ WORK IN INDUSTRY - thanks to its high quality and multifunctionality, the device can be used in professional and industrial work.

✔ FOOT CONTROL CAPABILITY.

➡ The device is equipped with overload protection, which increases its reliability.

❄ The device has a cooling system, which significantly increases its efficiency.

⏩ GENERAL PARAMETERS:

• Power supply: 230 V – 50/60 Hz
• Rated idle: 70 V / 7,9 V with VRD
• Network security: 25 A (type C)
• Power consumption max.: ~ 7,2 kW
• Efficiency: 60%

⏩ PARAMERTY TIG:

• TIG AC/DC welding current: 10-200 A

⏩ PARAMERTY MMA:

• MMA welding current: 40-160 A

⏩ OTHER:

• Weight: 16 kg
• Cooling of the device: air
• Degree of protection: IP21S

• INVERTER WELDER MAGNUM THF 238 PRO LCD V2 PULS AC/DC - 1 pc.
• WELDING HANDLE TIG WP-26 - 4M - 1 pc.
• MASS HANDLE - 1pcs.
• ELECTRODE HOLDER - 1pcs
• INSTRUCTION FOR OPERATING in Polish

SET OF 15 TIG AC/DC
