Suvirinimo inverteris MAGNUM THF 203P TIG DC MMA PULSE IGBT 230V 200A HF

Kaina:
€420,83
Sandėlys:
Yra sandėlyje

Trumpai apie prekę

Prekė: Suvirinimo inverteris MAGNUM THF 203P TIG DC MMA PULSE IGBT 230V 200A HF. Kategorija: Pusiau automatiniai suvirinimo aparatai.

  • Gamintojas: Magnum
  • Modelis: U I THF 203P
  • Ilgis: 350 mm
  • Plotis: 140 mm
  • Aukštis: 280 mm

Manufacturer: MAGNUM ║ Welding methods: TIG DC, PULS, MMA ║ Power supply: 230V ║ Welding current: 200A ║ Efficiency: 60%

LEARN ABOUT THE BENEFITS OF THE DEVICE:

  • Power 200A at efficiency 60%
  • Welding with PULS
  • Pulse with adjustment option
  • Current regulation from 5A !
  • 2T/4T mode
  • Welding of black steel, acids and stainless steel
  • Soft control panel
  • Contactless HF
  • Light weight - 6kg
  • Robust Hardware Housing
  • Handle for easy transport
  • In the package 4-meter handle
  • Made in inverter technology IGBT

The Magnum THF 203P DC Professional inverter welder is a device that allows us to operate with a maximum current of 200A. The equipment is ideal for working with black, acid-resistant and stainless steel. An additional advantage of the device is the contactless HF and the possibility of welding with Pulse.

POWER SUPPLY PARAMETERS:

  • Power supply voltage: 230V
  • Number of phases: 1ph
  • Power Current Frequency: 50Hz
  • Current protection: 25A(C)

TECHNICAL PARAMETERS:

  • TIG DC welding current range: 5-200A
  • Efficiency: 60%
  • Regulatory scope: liquid
  • Idle voltage: 64 V

ADDITIONAL FUNCTIONS

  • PULSE function: YES
  • HF function: YES
  • 2T/4T function: YES
  • Pulse function: YES

PHYSICAL PARAMETERS:

  • Degree of protection: IP21S
  • Cooling: fan
  • Size: 350x140x280mm
  • Weight: 6kg

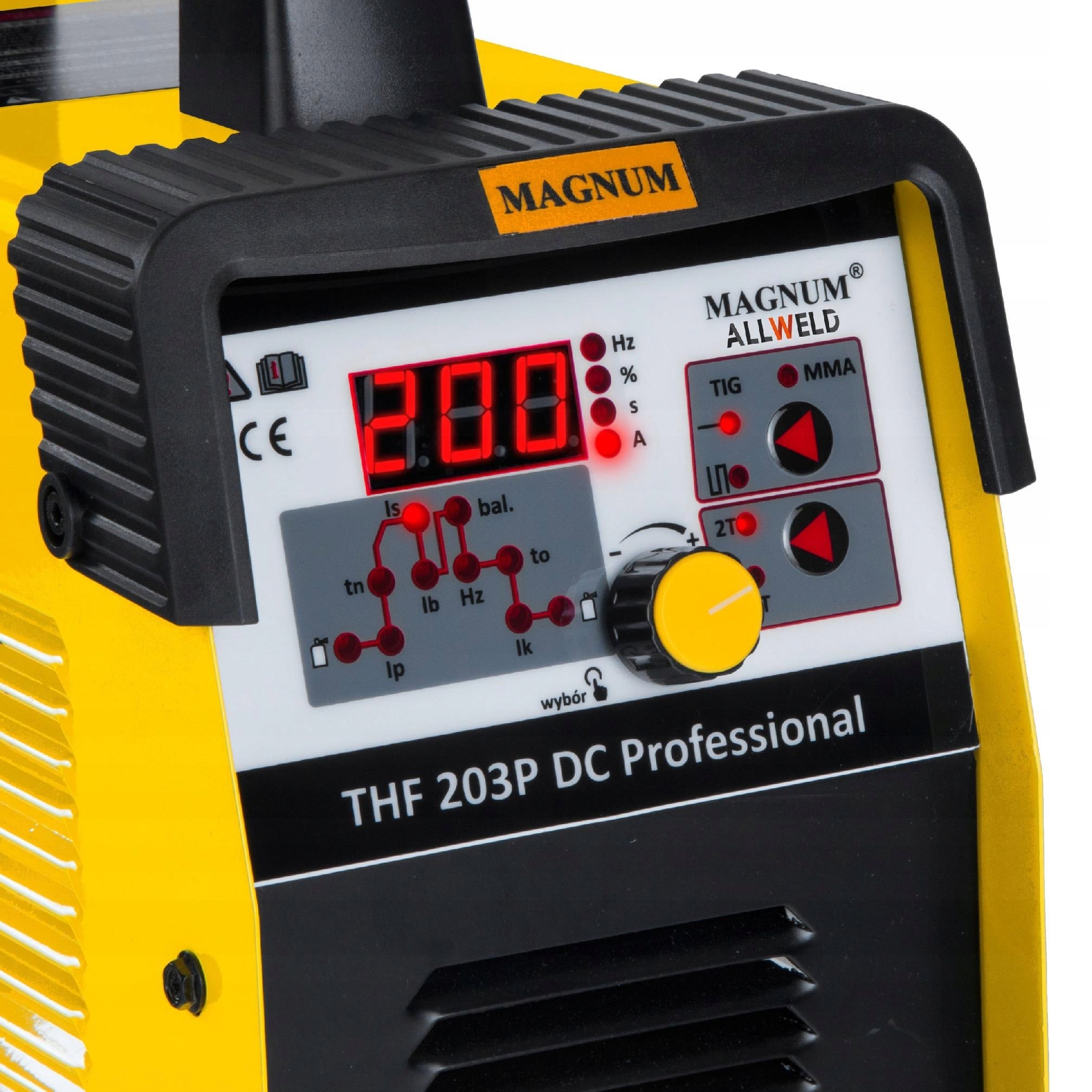

INTUITIVE OPERATION

Welding can be carried out classically using the 2T method or the 4T method used for longer welds. The device has a clear and transparent "soft panel", and parameter adjustments are made using the multifunctional knob and two buttons, making setting the welding machine very easy and intuitive.

HANDLE INCLUDED

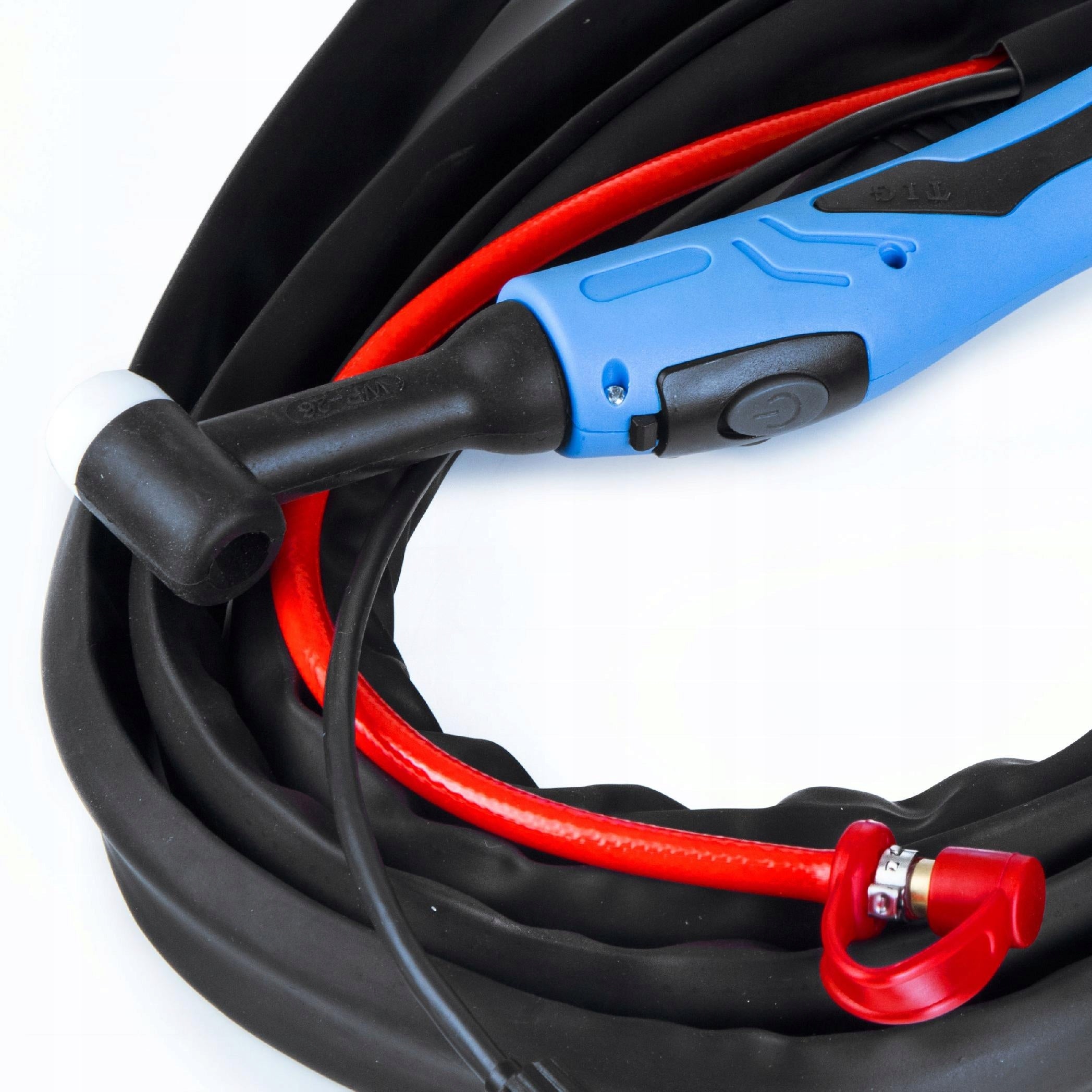

The device is equipped with a TIG SR 26 welding torch with a length of 4m. We add consumable parts to each handle to start, so that the handle is armed and ready to work. In addition, all spare parts of the handle are easily accessible and can be purchased at attractive prices.

2T/4T - welding modes. 2T allows welding as long as the button in the handle is pressed. 4T used for long welds, starts welding when pressing and releasing the button, and the end occurs after pressing the button in the handle again.

HF IONIZER - contactless arch glow using high frequencies. Thanks to this technological solution, it is possible to eliminate weld contamination with tungsten.

IGBT - the welding machine uses modern transistors, a solution that provides a minimum of electromagnetic interference small power losses in basic systems, allowing to increase the efficiency and reliability of the power source.

PULS - Pulse welding not only allows for better weld quality, but also allows for welding in various positions and welding of very thin elements. Reducing the linear energy of the arc, and thus reducing overheating or burnout of welded materials.

Thanks to the use of a soft control panel, we can easily control parameters such as:

  • gas outflow before and after welding
  • starting current
  • time of rise and fall of current
  • final current (extinguishing current)
  • work in two-bar and four-bar (2T/4T)

In addition, we control the parameters of PULS:

  • peak current
  • base current
  • frequency

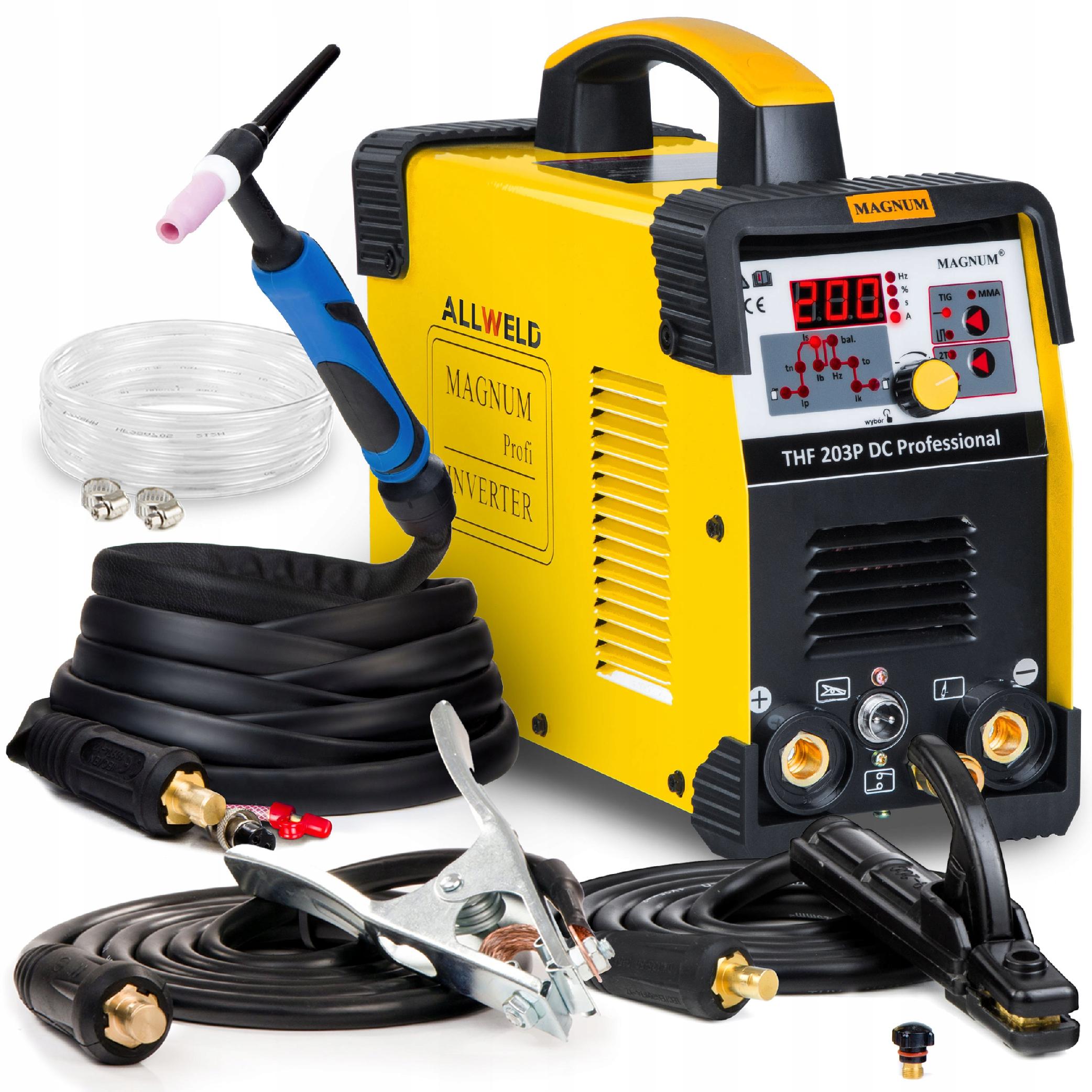

THE SET INCLUDES:

  • Welding machine MAGNUM THF 203P DC PROFESSIONAL
  • Welding torch TIG SR - 26 - 4m
  • Electrode holder - 2m
  • Bulk holder - 2m
  • Hose for gas connection - 1 pcs
  • Clamp ties - 2 pcs
  • User manual in Polish

Specifications

Group Name Value
Parametry Condition new
Parametry Invoice With VAT invoice
Parametry Brand Magnum
Parametry Supply voltage (V) 230
Parametry Duty cycle time 60%
Parametry Maximum electrode diameter 4 mm
Parametry Device weight 6 kg
Parametry Welding range 5–200 A
Parametry Height 280 mm
Parametry Length 350 mm
Parametry Width 140 mm
Parametry Length of ground cable 200 cm
Parametry Welding cable length 400 cm
Parametry Product weight with unit packaging 10 kg
Parametry Manufacturer code U I THF 203P
Parametry EAN (GTIN) 5901217100123
Parametry Packaging status original
Parametry Welding methods MMA,TIG
Parametry Additional features infinitely adjustable welding current,EURO handle,LCD display
