Suvirinimo inverteris MAGNUM THF 201 Pulse TIG DC MMA, 230V, 200A, IGBT

Trumpai apie prekę

Prekė: Suvirinimo inverteris MAGNUM THF 201 Pulse TIG DC MMA, 230V, 200A, IGBT. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: THF 201P
• Ilgis: 392 mm
• Plotis: 156 mm
• Aukštis: 242 mm

PROVEN MODEL WITH ARC FORCE FUNCTION ! EASY TO USE, IDEAL FOR THE WORKSHOP AND GARAGE, CHECK WHAT WE HAVE PREPARED IN A SPECIAL SET - HUGE SAVINGS!

Manufacturer: MAGNUM ║ Welding methods: TIG DC, PULS, MMA ║ Power supply: 230V ║ Welding current: 200A ║ Efficiency: 60%

• Light weight and small size
• Smooth regulation of welding current
• Regulation of current drop - IMPORTANT!
• Regulation of gas outflow after welding - IMPORTANT!
• High power of the device 200A in the work cycle 60%
• Weldable withPULSEM
• Single-phase power supply 230V
• Transistors IGBT!
• PULS - increases arc stability

IN ADDITION, IN THE PACKAGE YOU WILL RECEIVE A CYLINDER, HANDLE TIG SR 26 - LENGTH 4 METERS AND ADDITIONAL ACCESSORIES!

MAGNUM THF 201P: inverter welding machine for welding method TIG with direct current DC and electrode wrapped MMA. The welding machine allows for welding with a maximum current of 200A. It allows you to obtain 5mm melting and welding material up to a thickness of 10mm. MAGNUM THF 201 is a proven device, available on the market for several years. Due to its reliability and simplicity of operation, it collects only positive feedback. This TIG recommended is for assembly work, workshops, garage work and more using black steel, stainless steel and acid-resistant.

POWER SUPPLY PARAMETERS:

• Power supply voltage: 230V
• Number of phases: 1ph
• Power Current Frequency: 50Hz
• Current protection: 25A

TECHNICAL PARAMETERS:

• Maximum power consumption: 5,6kW
• TIG DC welding current range: 10-200A
• Efficiency: 60%
• Regulatory scope: liquid
• Idle voltage: 65 V

PHYSICAL PARAMETERS:

• Degree of protection: IP21S
• Cooling: fan
• Size: 390x155x240mm
• Mass: 8,5kg

INTUITIVE OPERATION

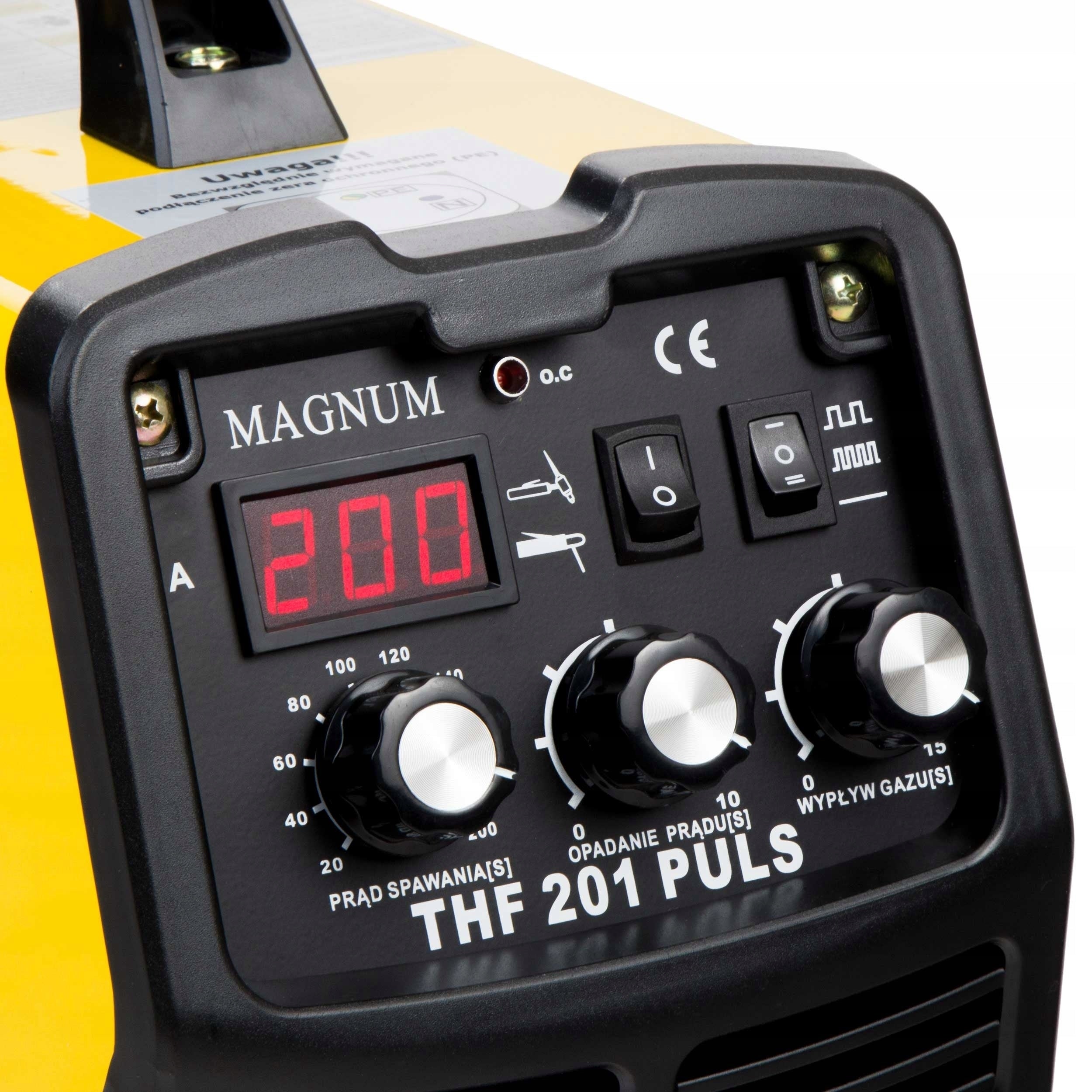

The THF 201P has a very simple control via knobs, which make the most important settings: welding current, current drop and gas outflow. From the control panel, we also select the welding method (TIG or MMA) and pulse functions (TIG welding without pulse, TIG welding with high frequency pulse, TIG welding with low frequency pulse).

LIGHT WEIGHT AND DIMENSIONS

The welder impresses with its small dimensions and weight of only approx. 8,5kg.

Small dimensions and low weight make the THF 201P unrivaled in its class of welding machines, they also guarantee high mobility and the ability to work even in DIFFICULT CONDITIONS!

INCLUDED IN THE SET:

• Factory new reusable cylinder with Argon gas with a capacity of 8l. The cylinders have 10-year-old legalizations and can be filled at any point with technical gases.
• Reducer with rotameter - precise reducer with adjustment. Our model features a pressure gauge for cylinder pressure control and a rotameter for precise operating pressure setting.
• Gas hose.

+ OPERATING ELEMENTS OF THE HANDLE:

• Ceramic nozzle - 3 pcs.
• Terminal bushing 1,6/2,4/2,0mm - 3 pcs.
• Connector 1,6/2,4/2,0mm - 3 pcs.
• TIG stopper medium SR 17/18/26 - 1 pc.
• Electrode TIG red 1,6/2,0/2,4mm - 3 pcs. - universal electrodes for welding.

NECESSARY SET NEEDED TO START WELDING WORK WITH TIG WELDING MACHINE.

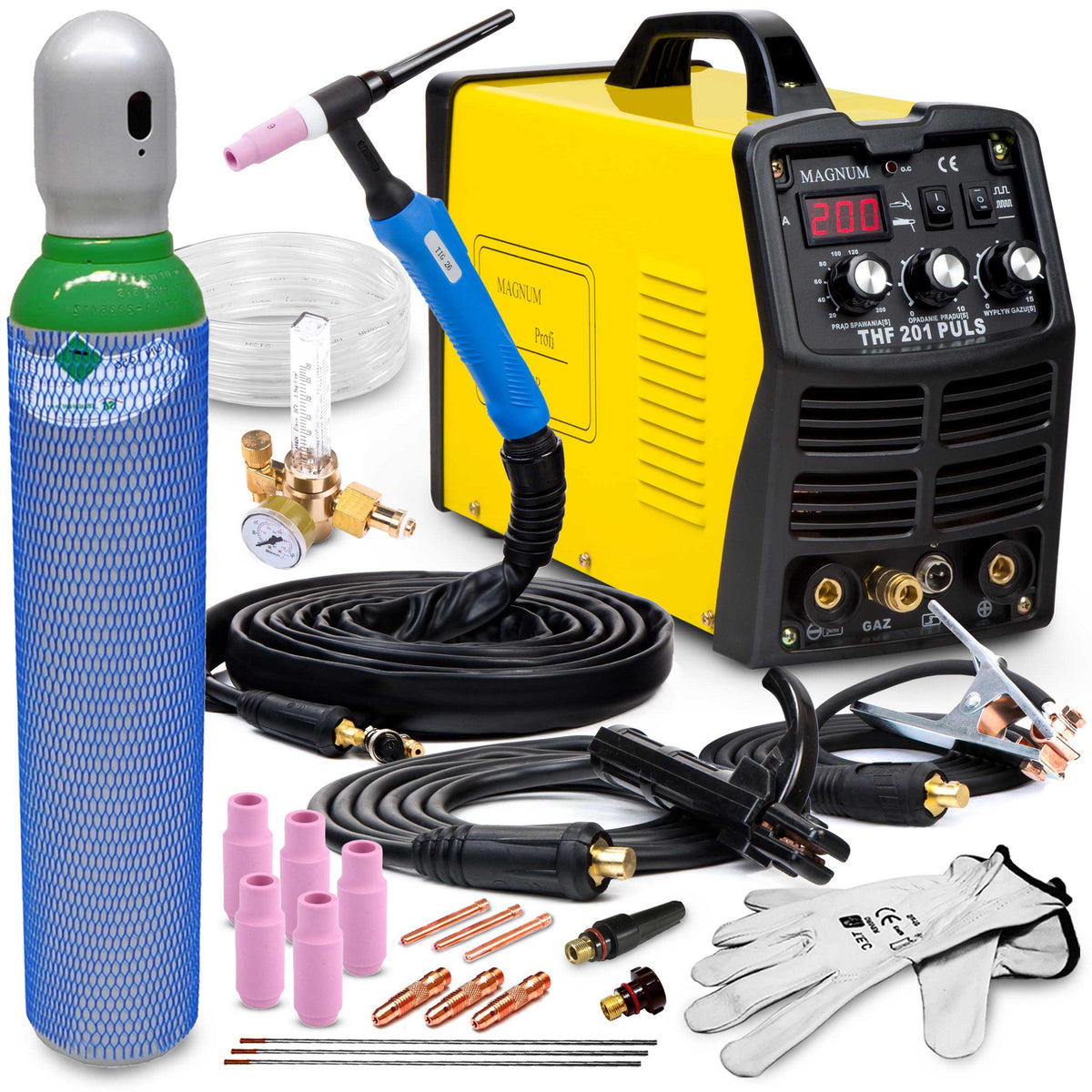

THE SET INCLUDES:

• Welding machine MAGNUM THF 201P

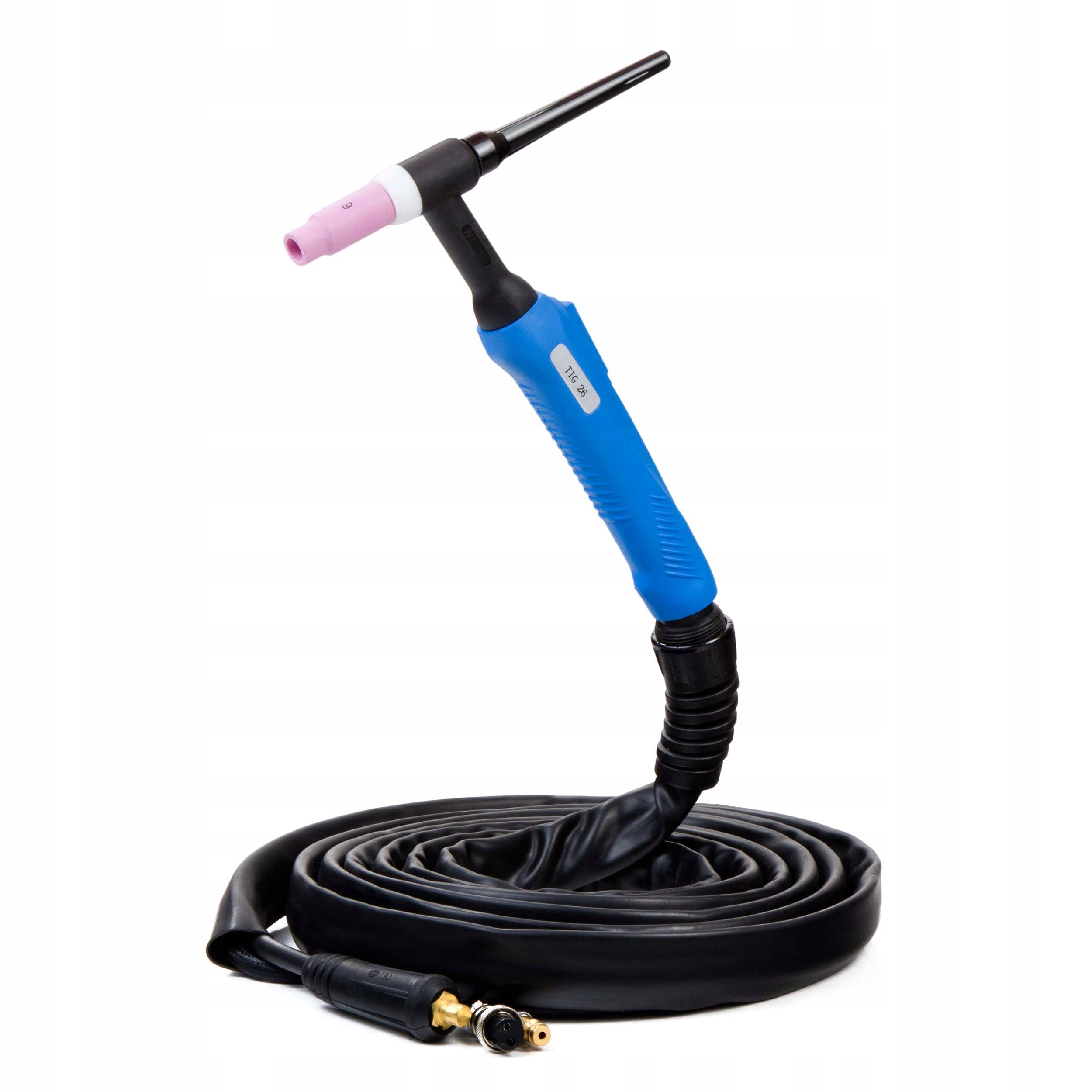

• Welding torch TIG SR - 26 - 4m
• Electrode holder
• Bulk Holder
• Instruction manual in Polish

+ ADDITIONAL ACCESSORIES:

• Gas cylinder Argon 8l
• Cylinder reducer Ar/CO2 with rotameter
• Welding gloves TIG
• Gas hose
• Basic consumables of the TIG handle (long and short stopper, ceramic nozzle x3, bushing x2, connector)

+ OPERATING ELEMENTS OF THE HANDLE:

• Ceramic nozzle - 3 pcs.
• Terminal bushing 1,6/2,4/2,0mm - 3 pcs.
• Connector 1,6/2,4/2,0mm - 3 pcs.
• TIG stopper medium SR 17/18/26 - 1 pc.
• Electrode TIG red 1,6/2,0/2,4mm - 3 pcs.

Do you need a visor or maybe additional accessories? WELCOME TO OUR OTHER AUCTIONS!

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Magnum
Parametry	Power consumption	5.6 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	4 mm
Parametry	Device weight	8.5 kg
Parametry	Welding range	10–200 A
Parametry	Height	242 mm
Parametry	Length	392 mm
Parametry	Width	156 mm
Parametry	Length of ground cable	300 cm
Parametry	Welding cable length	300 cm
Parametry	Additional features	infinitely adjustable welding current
Parametry	Product weight with unit packaging	8.5 kg
Parametry	Manufacturer code	THF 201P
Parametry	EAN (GTIN)	5905214999193
Parametry	Packaging status	original
Parametry	Welding methods	MMA,TIG
