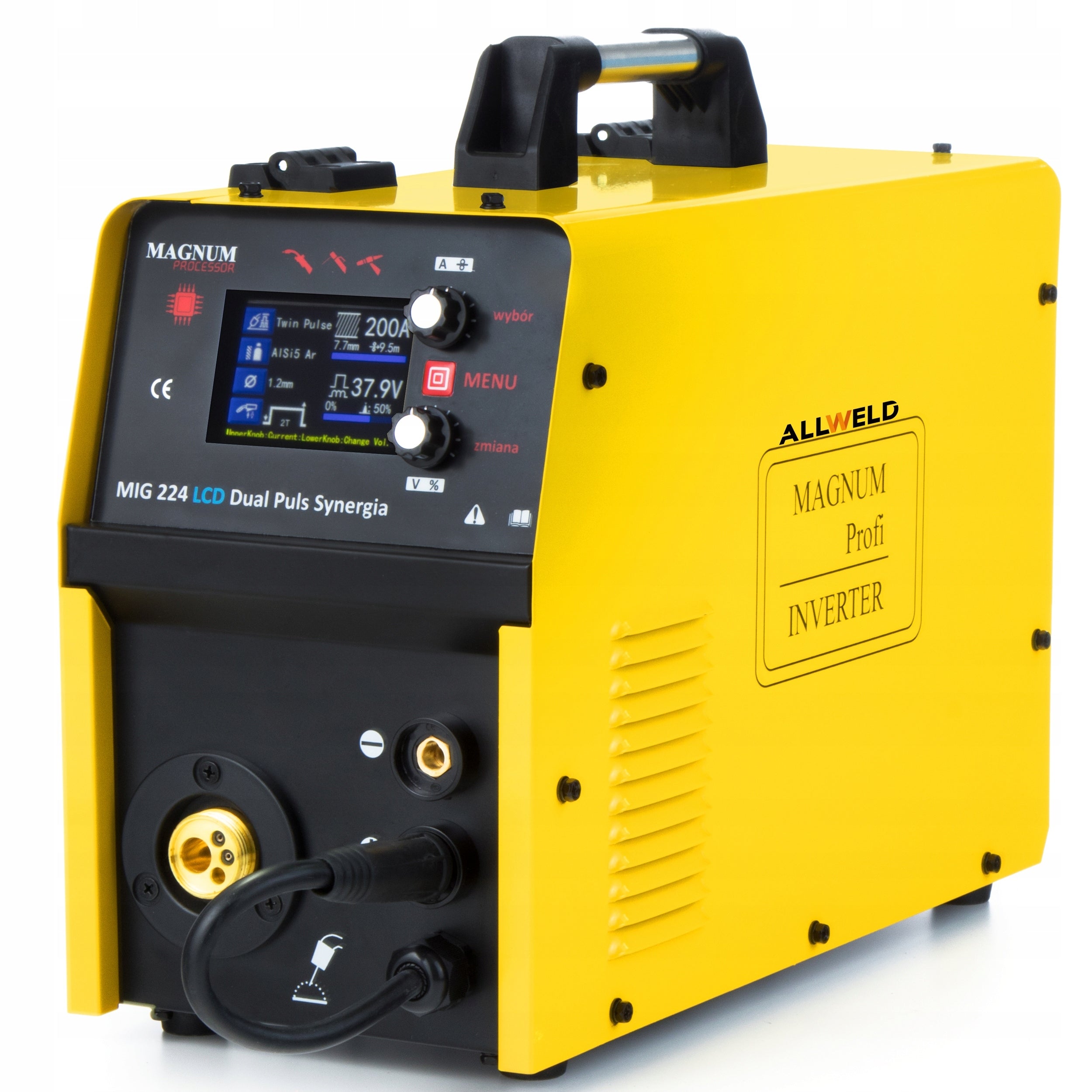

Suvirinimo inverteris MAGNUM 224 MMA MIG/MAG TIG

Trumpai apie prekę

Prekė: Suvirinimo inverteris MAGNUM 224 MMA MIG/MAG TIG. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: MIG 224 LCD
• Ilgis: 500 mm
• Plotis: 210 mm
• Aukštis: 380 mm

Magnum | MIG/MAG | MMA | TIG Lift | Flux | 200 A/60% | Synergy | 230 V | Pulse | Hot Start | Arc Force | VRD | 2T/4T | IGBT | EURO

• welding device
• welding torch MB 24 3,0 m
• mass cable
• electrode cable
• set of feeder rollers fi 0,8 mm / 1,0 mm V-shaped (mounted)
• set of feeder rollers fi 0,8 / 1,0 mm U-shaped Aluminium
• Teflon cartridge red 1,0 mm 1 pc. (mounted)
• instruction in Polish

The Magnum MIG 224 LCD Dual Pulse Synergy is a professional synergistic semi-automatic welding machine designed for manual, electric welding of low-carbon steel, low-alloy steel (MAG), alloy steel (MIG).

This modern migomat features a color liquid crystal display LCD all welding functions and parameters.

The device can also be welded using the MMA Cellulose method and the TIG Lift Pulse method.

It is designed for all kinds of welding work, in locksmith workshops, repair workshops, industrial, factories, etc.

Perfect for welding aluminum and stainless steels.

Thanks to the use of synergistic settings, the device is very easy to use and can be used by welders even with minimal experience.

The power source was built on IGBT transistors providing a minimum of electromagnetic interference, small power losses in basic systems, enabling increased efficiency and reliability of the power source. Very high efficiency, which translates directly into lower energy consumption, and high switching frequency, ensure rapid adjustment of the current to changes in parameters during welding.

The Magnum MIG 224 LCD Dual Pulse Synergy device has a synergistic program for welding aluminium alloys, and the function of single and double pulsation of welding current.

The design and software, combined with digital control, allows you to obtain the highest quality welding parameters, when welding any weldable materials, made of black steel, stainless steel, acid-resistant steel, aluminum and its alloys.

Functions to facilitate welding:

• liquid crystal color LCD display
• single and double current pulsation
• Hot Start "hot start" consists in temporarily increasing the welding current above the set value at the moment of arcing. This prevents the phenomenon of “sticking the electrode” in the initial phase of welding, making it easier to start the whole process.
• Arc Force “arch dynamics” – shortening the arc length is accompanied by an increase in welding current, which stabilizes the arc, regardless of its length.
• VRD (Voltage Reduction Device) reduces the output voltage (between the mass and the electrode) to a safe level, protecting against accidental shock in the intervals between weldings. The VRD voltage reduction system provides additional safety for the welder and people in the vicinity, especially in an environment where there is an increased likelihood of electric shock, e.g. hot environment, humid environment, etc.
• 2T/4T - has a two-bar and four-bar
• self-shielded wire welding
• synergy - program that automatically selects welding parameters.
• 36 memory channels
• welding TIG Lift Pulse
• additional functions: S4T, S2T, SPOT, CPOT

Technical parameters

• Max. welding current [A]: 200
• Welding current range [A]: MIG/MAG: 30 - 200 A, MMA: 20 - 180 A
• Current [A] / duty cycle [%]: 200 / 60
• Security [A]: 20
• Power supply [V]: 230
• Degree of protection: IP21
• Idle voltage [V]: 56

Functions

• Type of wire feeder: internal 2 roller
• Wire spool: 5,00 kg / D200
• Cooling: with gas
• Synergic control: Yes
• Soldering function: Yes
• Pulse function: Yes
• Current adjustment: Smooth
• 2T/4T function: Yes
• VRD: Yes
• Inductance adjustment: Yes
• Processes: MIG / MMA / TIG
• Additional functions: dual pulse, memory, gas-free welding, Hot Start, Arc Force, TIG Lift Pulse, S4T, S2T, SPOT, CPOT, LCD display

Physical parameters

• Weight: 11,5 kg

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Magnum
Parametry	Power consumption	8 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	4 mm
Parametry	Wire diameter (mm)	0,8-1,2
Parametry	Device weight	11.5 kg
Parametry	Welding range	30–200 A
Parametry	Height	380 mm
Parametry	Length	500 mm
Parametry	Width	210 mm
Parametry	Length of ground cable	200 cm
Parametry	Welding cable length	300 cm
Parametry	Product weight with unit packaging	11.5 kg
Parametry	Manufacturer code	U MI 224 LCD
Parametry	EAN (GTIN)	5901217100017
Parametry	Model	MIG 224 LCD
Parametry	Welding methods	MIG/MAG,MMA,TIG
Parametry	Additional features	infinitely adjustable welding current,EURO handle,LCD display
