Suvirinimo inverteris IDEAL MIGOMAT 200A, MIG/MAG/MMA/TIG, LCD ekranas

Trumpai apie prekę

Prekė: Suvirinimo inverteris IDEAL MIGOMAT 200A, MIG/MAG/MMA/TIG, LCD ekranas. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: EXMIG215LCD_pakiet6
• Ilgis: 500 mm
• Plotis: 240 mm
• Aukštis: 410 mm

| Manufacturer: Ideal | Welding methods: MIG/ MAG, MMA , FLUX ,TIG Lift, soldering, spot welding | Welding current: 200 A | Power supply: 230 V |

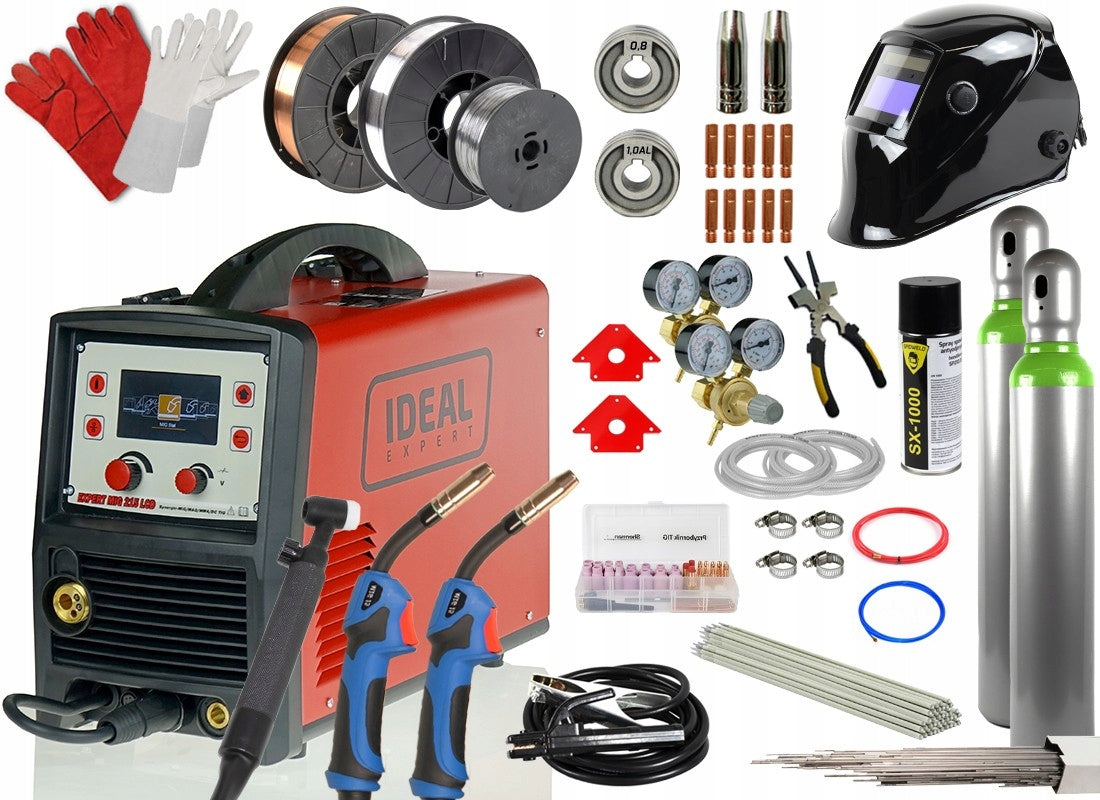

✅ This kit includes standard equipment and a comprehensive package of accessories for MIG/MAG, MMA, FLUX and TIG methods

❇ Standard equipment:

• Ideal Expert MIG 215 LCD welding machine
• welding torch BINZEL MIG 15 / 3,0 m with plug EURO
• mass cable 3,0 m
• feeder roll fi 0,8 mm / 1,0 mm V-shaped (mounted)
• steel insert for wire 0.8 mm 1 pc. (mounted)
• instruction manual in Polish

❇ Accessory Pack:

• TIG welding torch 4,0 m with valve
• welding torch MB 15 5,0 m (additional handle for aluminium)
• uelectrode holder 3,0 m
• self-tinting visor 718G
• bottle with mixture ARG/CO2 8 litres (new, full, 10-year legalization, valve cap)
• ARGON cylinder 8 litres (new, full, 10-year legalization, valve cap)
• gas reducer MINI 2 pressure gauges (for cylinders with mixture)
• MINI 2 gas reducer pressure gauges (for Argon cylinders)
• feeder roll fi 0,8 / 1,0 mm U-shaped Aluminium
• Teflon cartridge red for aluminium 1,0 mm 1 pcs.
• SG2 0,8 mm / 5,0 kg welding wire
• welding wire AlMg5 for aluminium fi 1,0 mm / 2,0 kg
• self-shielding welding wire 0,8 mm / 0,45 kg
• rutile welding electrodes / 1,0 kg
• anti-chipping preparation 400 ml
• MIG 1 pair welding gloves
• TIG welding gloves 1 pair
• MIG/MAG welding pliers
• magnetic angle 11,0 kg
• magnetic angle 22,0 kg
• gas nozzle 2 pcs.
• current tip fi 0,8 mm 5 pcs.
• current tip fi 1,0 mm ALU 5 pcs.
• TIG wire for black steel 1,6 mm / 1,0 kg
• TIG wire for black steel 2,0 mm / 1,0 kg
• TIG 308 LSi wire for stainless steel 1,6 mm / 1,0 kg
• TIG 308 LSi wire for stainless steel 2,0 mm / 1,0 kg
• toolbox, box for TIG/MIG parts - 1 pcs.
• tungsten electrode fi 1,6 / 2,0 / 2,4 mm / of 2 pcs. every
• terminal bushing fi 1,6 / 2,0 / 2,4 mm / 2 pcs. every
• Current switch fi 1,6 / 2,0 / 2,4 mm / 2 pcs. each
• ceramic nozzles No. 6 / 7 / 8 / of 2 pcs. every
• cork short and long / 1 pcs.
• hose for gas connection + clamps 2 set

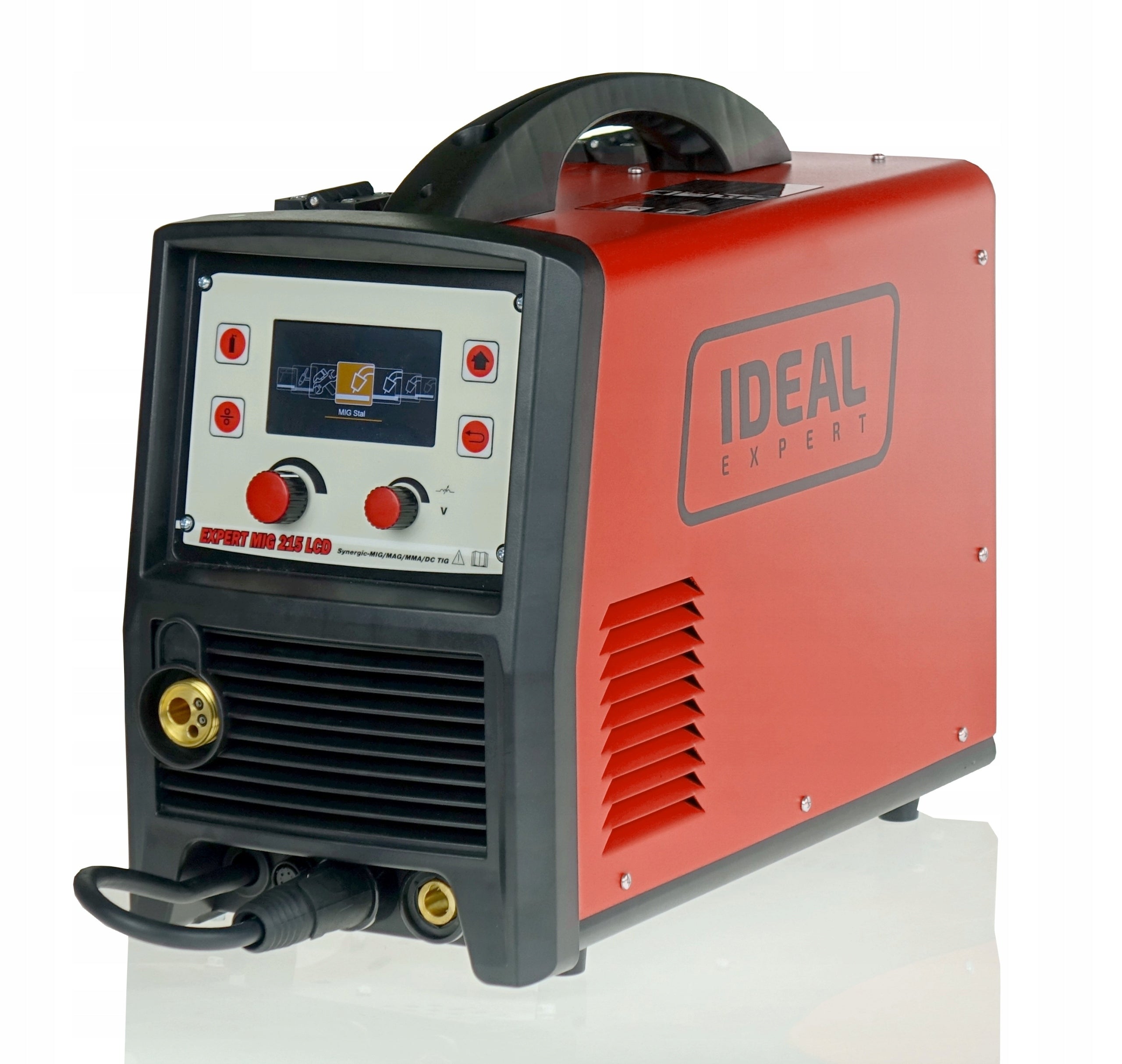

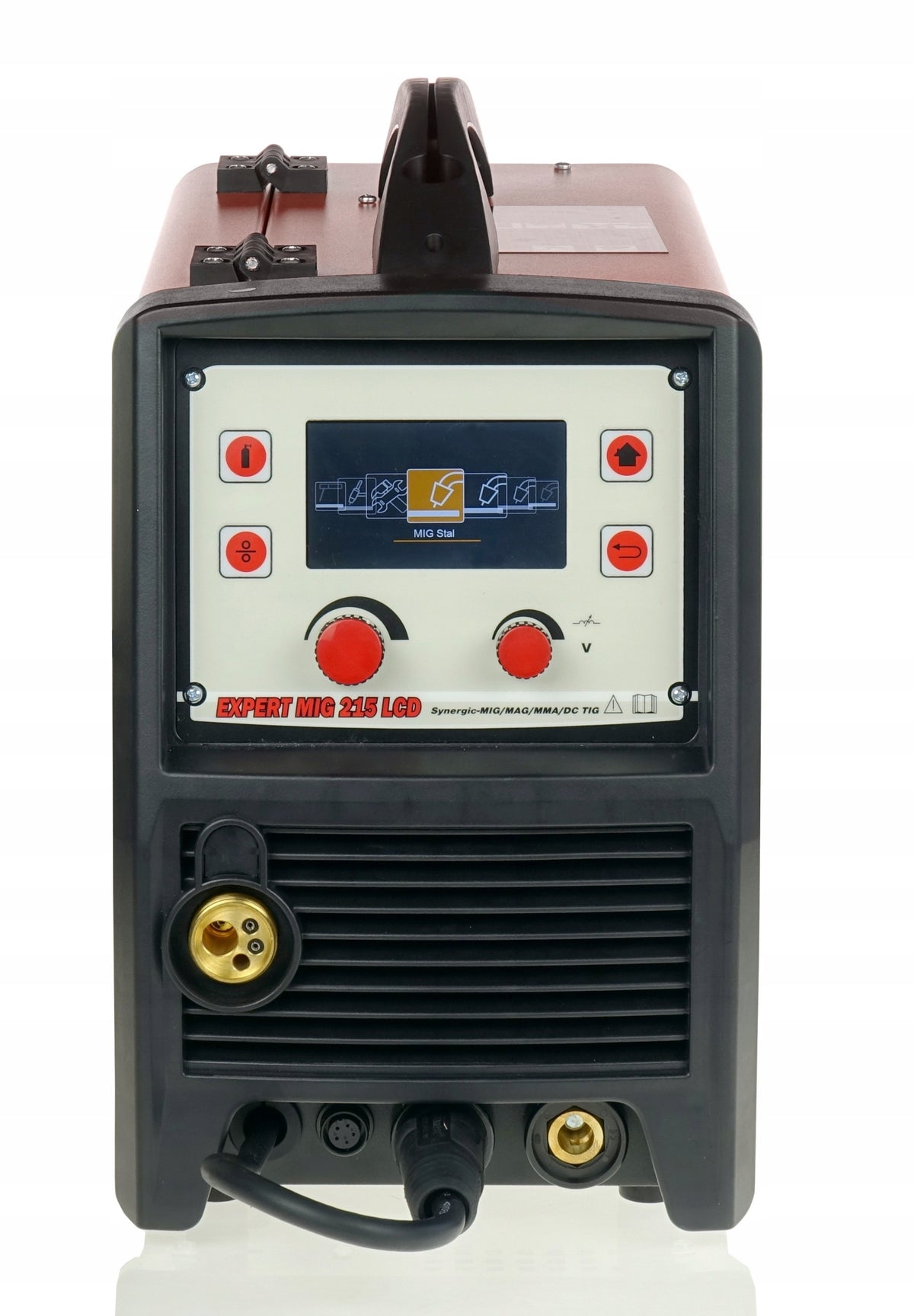

✅ The Ideal Expert Mig 215 LCD welding machine is a microprocessor controlled semi-automatic welding machine for welding methods:

• MIG/MAG gas shielded welding wire
• welding with soldering technology galvanized sheets
• welding by FLUX welding wire without shielding gas
• for welding with MMA DC electrode (DC)
• TIG DC method with tactile arc ignition

✅ It is the perfect solution for a wide range of applications: from maintenance work to car body repairs.

✅ Thanks to its flexibility, it can weld various types of materials such as:

• steel
• stainless steel
• aluminum
• galvanized bodies
• constantly high-strength.

✅ Quick synergistic adjustment of welding parameters via the LCD display in Polish makes the device very easy to use.

✅ All you need to do is set the thickness of the welded material and start welding: intelligent and automatic welding arc control system, step by step, will select the best parameters, for each welding position and for each material.

✅ The user can also set manually the length of the welding arc and adjust the appearance of the weld to suit their needs.

✅ Lightweight and very compact, it can be easily transported both inside and outside buildings.

• 2-bar/4-bar: The function allows you to choose between two operating modes, where 2-bar ensures constant welding when pressing the button, and 4-bar allows longer welding without constant pressing.
• Point welding: A function that allows you to perform short, precise welds in specific places.
• Wire access: Control the wire feed speed to the welding arc, ensuring an even and controlled welding process.
• Inductance: Adjusting the parameter affecting the depth and stability of the weld by controlling the amount of magnetic energy.
• Wire burning: Function to ensure that the wire tip is heated before welding, facilitating arc ignition.
• Gas outflow after welding: Automatic control of shielding gas outflow after welding process, ensuring proper weld protection.
• Accurate adjustment of welding arc length: Allows precise control of welding arc length, which affects the quality and appearance of the weld.
• LCD display: Provides the user with full control over the welding process by displaying key parameters such as current, voltage and wire feed speed on a clear LCD screen.

✅ Purpose:

• renovation works
• maintenance, repairs in car workshops
• repair workshops
• fieldwork

✅ Welding methods:

• MIG/MAG gas shielded welding
• FLUX self-shielding wire welding / gas-free welding
• MMA - welding with wrapped electrodes
• Soldering of galvanized sheets

• Height: 410 [mm]
• Width: 240 [mm]
• Weight: 19,00 [kg]
• Length: 500 [mm]
• Power supply [V]: 230
• Characteristics: Automatic retry of the number welding current [A]: 200
• Cooling: with gas
• Type of wire feeder: internal 2 roller
• Synergic control: Yes
• Soldering function: Yes
• Processes: MIG / MMA / TIG
• Welding current range [A]: 40 - 200
• Current [A] / duty cycle [%]: 200 A / 60%
• Security [A]: 16
• Power consumption: 5 [kW]
• Idle voltage [V]: 69
• Current adjustment: Smooth
• Function 2T/4T: Yes
• Additional features: TIG Lift, spot welding
• Degree of protection: IP 21
• Wire spool: 5,00 kg / D200
• Inductance adjustment: Yes
• Welding range from [A]: 40
• Welding range up to [A]: 200

Self-tinting visor 718G with variable degree of protection DIN 4/5-8/9-13, variable lightening time and the ability to set sensor sensitivity.

Designed for welding using MIG/MAG, TIG and TIG Pulse, MMA and plasma cutting and equipped with grinding function.

- Contrasting colors

• 4 independent sensors guarantee excellent work in small current welding using TIG method
• high quality LCD filters in optical class 1/1/1/2
• power source: photovoltaic cell + replaceable battery
• 4-spoke adjustable headrest for comfortable use
• shell compliant with EN175B for greater impact resistance
• variable degree of protection DIN 4/5-8/9-13
• variable lightening time
• Possibility to set sensor sensitivity

Cylinders filled with high quality mixture Ar/CO2 and Argon class 4.8 designed for welding in protective gas shielding and for other industrial applications.

The product has a protective cap protecting the valve, is factory new and much lighter than cylinders recovered from fire extinguishers.

Cylinders and valves are made in accordance with EN 1964:1999 and have the π mark of compliance with ADR/RID requirements.

• Capacity [l]: 8
• Amount of gas [m3]: 1,3
• Mass [kg]: ~15

✴ Advanced inverter technology with microprocessor.

✴ Synergic control allowing quick adjustment of welding parameters for different materials.

✴ Colour LCD display in Polish.

✴ Iintelligent and automatic welding arc control system.

✴ Prepared to work with power generators (+/-15%).

✴ Light and compact design for easy transport.

✴ Many functions: 2-bar/4-bar, spot welding, wire access, inductance, wire burning, gas outflow after welding and accurate adjustment of the welding arc length.

✴ LCD display for monitoring welding parameters such as current, voltage and wire feed speed.

✔ Looking for a multi-purpose yet compact welding machine - choose Ideal Expert MIG 215 LCD!

Specifications
