Suvirinimo inverteris IDEAL MIG 225 PRO, MIG/MAG, MMA, TIG, aliuminio lituoklis

Trumpai apie prekę

Prekė: Suvirinimo inverteris IDEAL MIG 225 PRO, MIG/MAG, MMA, TIG, aliuminio lituoklis. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: TMIG225CUSI MAPL-15

Manufacturer: IDEAL ║ Welding methods: MIG/MAG, MMA,TIG LIFT, FLUX ║ Power supply: 230V ║ Welding current: 225A ║ Efficiency: 60%

• Welding of all types of steel and aluminium
• Smooth regulation of welding parameters
• Readable display with excellent contrast
• Socket EURO - replaceable handle MIG/MAG
• Inductance adjustment - change of weld shape
• Variable polarity - welding without gas FLUX
• IGBT transistors of the latest generation
• Possibility of lutowelding
• Professional 2-Roll feeder with powerful motor
• Durable chassis with space for cylinder
• Possibility of dismantling the chassis
• Ideal for households and workshops
• Easy-to-use control panel
• Fan - air-cooled migomat
• Single-phase power supply 230 V
• Large duty cycle 60%
• Optimal size and weight
• Proven manufacturer
• The latest model on the market

UNIVERSAL WELDING MACHINE

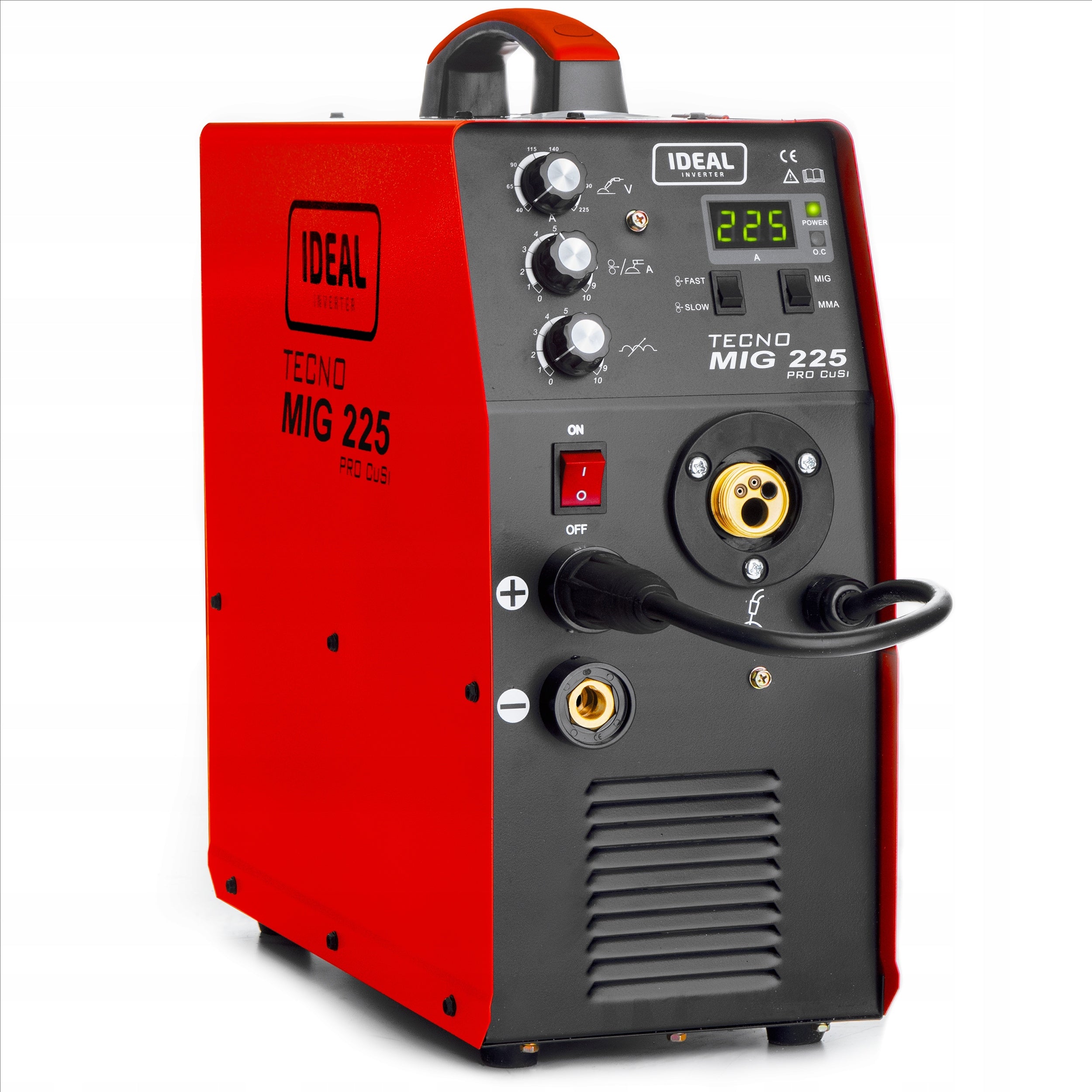

IDEAL TECNO MIG 225 PRO CuSi MMA is a semi-automatic welding machine designed for welding with MIG/MAG and MMA methods with a maximum current of 225A at 60% efficiency. The parameters of this device will allow us to work effectively in a home workshop or even a workplace.

WELDING WITHOUT GAS

The variable polarity used allows welding without gas using the FLUX method with self-shielding wire. IDEAL TECNO MIG 225 PRO CuSi MMA has an easy-to-use integrated function panel with knobs, enabling smooth adjustment of welding current, wire feed speed and inductance. This solution guarantees simplicity and ease of use.

WELDING MACHINE 3IN1 – an inverter source that efficiently and trouble-freely combines several welding methods. Migomat or inert and active gas welding MIG MAG together with welding MMA wrapped electrode. In addition, it allows the use of a TIG handle with a valve for welding in the Lift method with a tactile arc glow.

LUTOSPELING - this method is quite similar to MIG/MAG welding, but the energy supplied in this case is much less. Soldering is used to join thin sheets covered with a layer of zinc. The described method is a bonding process during which solder melts, not the material with which we work. The second part of the name, MIG/MAG, comes from the use of the method of melting wire in an electric arc surrounded by protective gas, as well as from the preparation of the edge of the material in the same way as for traditional welding. However, the soldering method is used not only for bonding galvanized sheets, but also thin sheets made of stainless steel and various connections, i.a. acid-resistant steel of ordinary quality steel or copper with steel.

FLUX - arc welding with powder wire, not requiring the use of gas cylinders. We use self-shielding wire, which is filled with flux or chemical substance producing protective gases during welding.

EUROCONNECTOR - allowing the interchangeable use of various types of handles.

OVERLOAD SWITCH - built-in protection against overheating of the device, prolonging its service life.

POWER SUPPLY PARAMETERS:

• Power supply voltage: 230V
• Number of phases: 1ph
• Power Current Frequency: 50Hz
• Security required: 29 A

TECHNICAL PARAMETERS:

• Efficiency: 60%
• Idle voltage: 42V
• Feeder: 2R
• Inductance adjustment: Yes
• Welding without gas: Yes

MIG/MAG WELDING PARAMETERS

• MIG/MAG welding current range: 40-225A
• Efficiency 60%
• Feeder: 2 roller
• Wire spool: D200 (2kg and 5kg)
• Aluminum wire diameter 0,8 - 1,0
• Diameter of self-shielding wire 0,8 - 1,2
• Diameter of steel wire 0,6 - 0,8
• Stainless steel wire diameter 0,6 - 0,8

WELDING PARAMETERS MMA

• Welding current range MMA: 40-160A
• Efficiency: 60%

PHYSICAL PARAMETERS:

• Degree of protection: IP21S
• Cooling: fan
• Dimensions: 465x200x450 mm
• Weight: 10kg

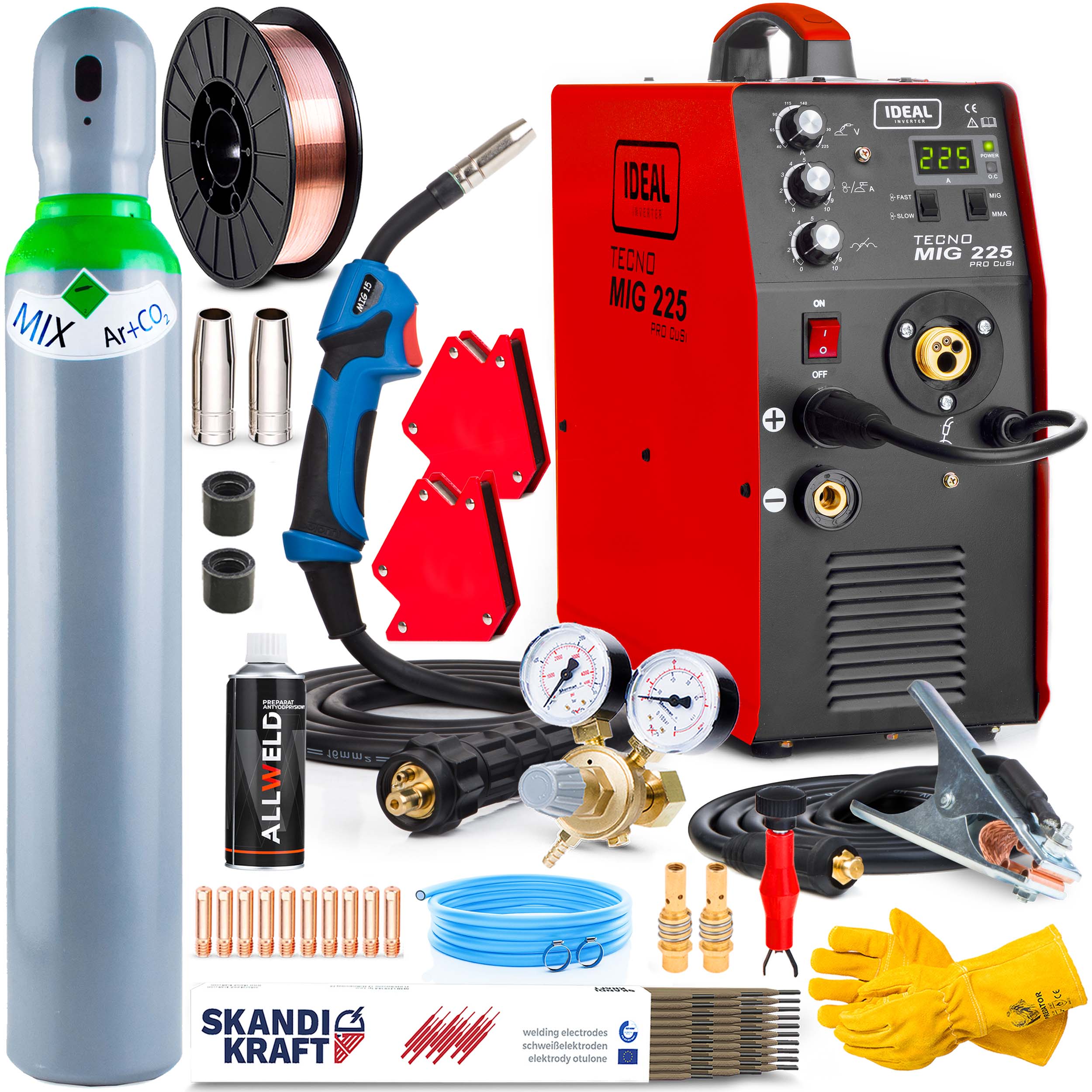

THE SET INCLUDES:

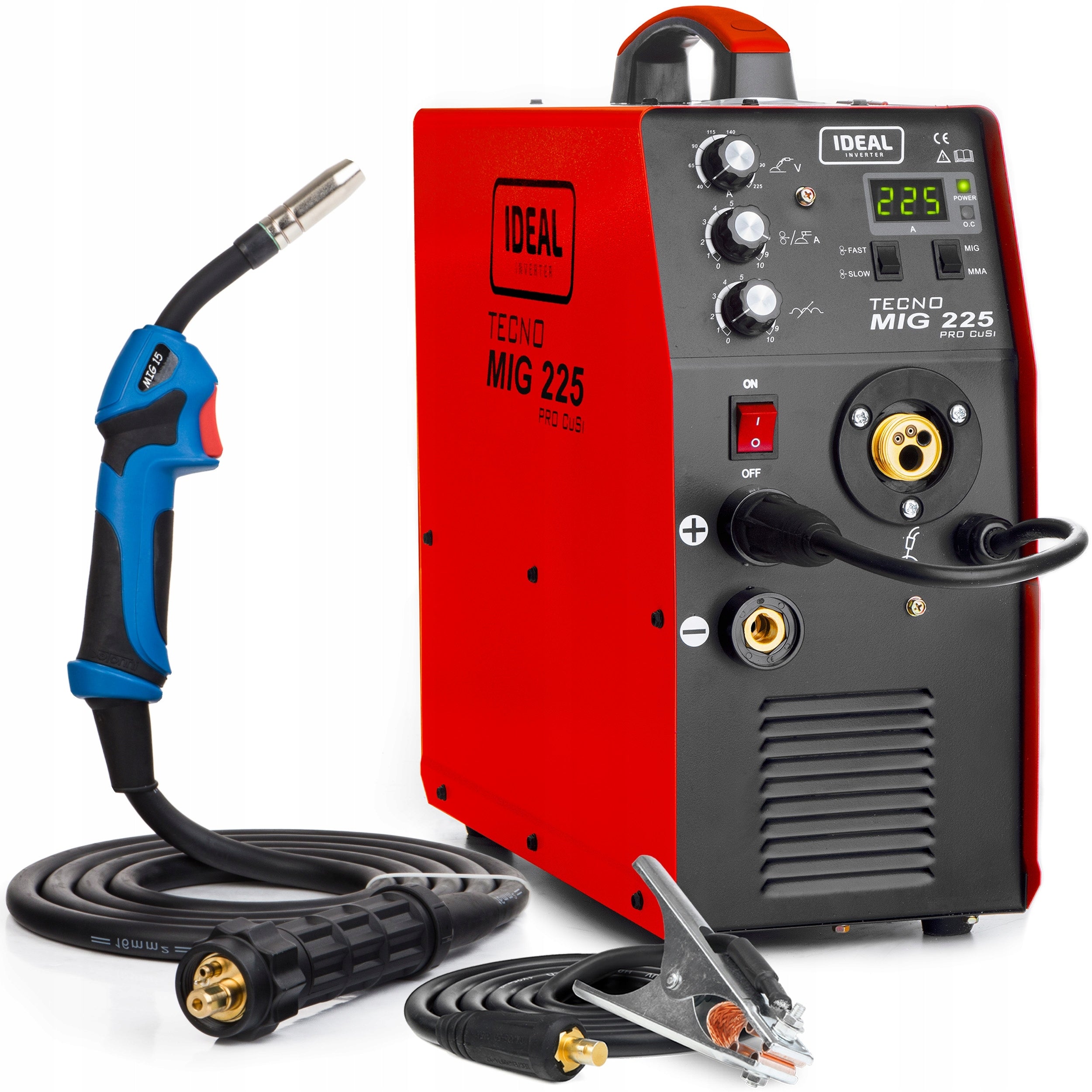

• Welding machine IDEAL TECNO MIG 225 PRO CuSi MMA
• MIG 15 welding torch - 3m
• Bulk cable - 2m

Buying in a set - YOU SAVE MONEY

• Factory new reusable cylinder with Ar (82%) / CO2 (18%) mixture with a capacity of 8l. The cylinders have 10-year-old legalizations and can be filled at any point with technical gases.
• Gas hose - for connecting the reducer to the welding machine.
• Reducer with two pressure gauges - precise reducer with adjustment. Our model has a pressure gauge to control the pressure in the cylinder and a second to the amount of gas flowing out.
• Anti-chipping preparation - protects the nozzle and metal against welding chipping.
• Welding wire SG2 5kg - precision winding
• Clamp ties - 2 pcs.
• Gloves welding - 1 pair
• Scraper for gas nozzles
• Set of MIG/MAG handle consumable parts (nozzles, connectors, tips, insulators)
• Angles magnetic 11kg - 2 pcs.
• Electrodes SKANDI KRAFT 1kg - 1 pack

NECESSARY SET NEEDED TO START WELDING WORK WITH MIGOMAT.

Welding visor, you can choose yourself, looking at our other auctions or rely on our help!

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	IDEAL
Parametry	Welding methods	MIG/MAG
Parametry	Power consumption	11.3 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	4 mm
Parametry	Wire diameter (mm)	0,6-0,8
Parametry	Device weight	9 kg
Parametry	Welding range	49–225 A
Parametry	Length of ground cable	300 cm
Parametry	Welding cable length	250 cm
Parametry	Product weight with unit packaging	30 kg
Parametry	Manufacturer code	TMIG225CUSI MAPL-15
Parametry	EAN (GTIN)	5907195560942
Parametry	Packaging status	original
Parametry	Additional features	welding mask included,infinitely adjustable welding current,EURO handle
