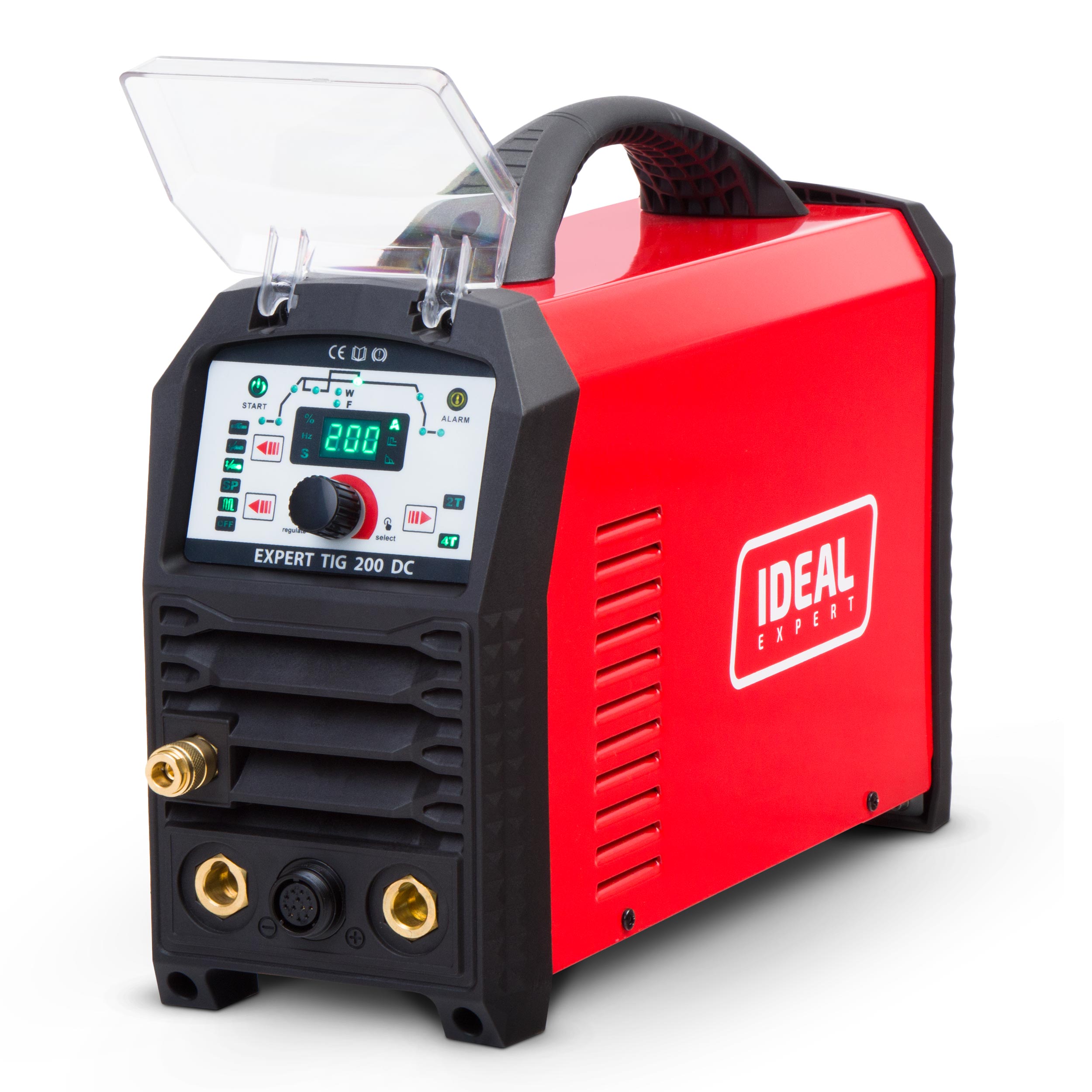

Suvirinimo inverteris IDEAL EXPERT TIG 200, 200A, 230V, HF, MMA, PULSE

Trumpai apie prekę

Prekė: Suvirinimo inverteris IDEAL EXPERT TIG 200, 200A, 230V, HF, MMA, PULSE. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: EXPERT TIG 200 DC

Manufacturer: IDEAL ║ Welding methods: TIG DC, PULS, MMA ║ Power supply: 230V ║ Welding current: 200A ║ Working cycle: 35%

PROFESSIONAL EXPERT SERIES - SUITABLE FOR THE TOUGHEST APPLICATIONS, WITH PROFESSIONAL TIG HANDLE WITH CONTROL.

The IDEAL EXPERT TIG 200 DC welding machine is a professional device for welding steel, copper, stainless steel, acid and other weldable materials using the TIG DC method. High power 200A, guarantees to obtain a melt approx. 5mm and gives us the ability to weld elements up to 10mm thick.

ADVANTAGES OF THE DEVICE:

• Contactless arc initiation HF
• Full panel TIG DC type "ladder"
• Welding TIG PULS with full adjustment
• IGBT transistors of the latest generation
• Full control panel type "ladder"

The welder impresses with its small dimensions and weight of only approx. 7kg. Small dimensions and weight make this model unrivaled in its class of welding machines, they also guarantee high mobility and the ability to work even in hard-to-reach places.

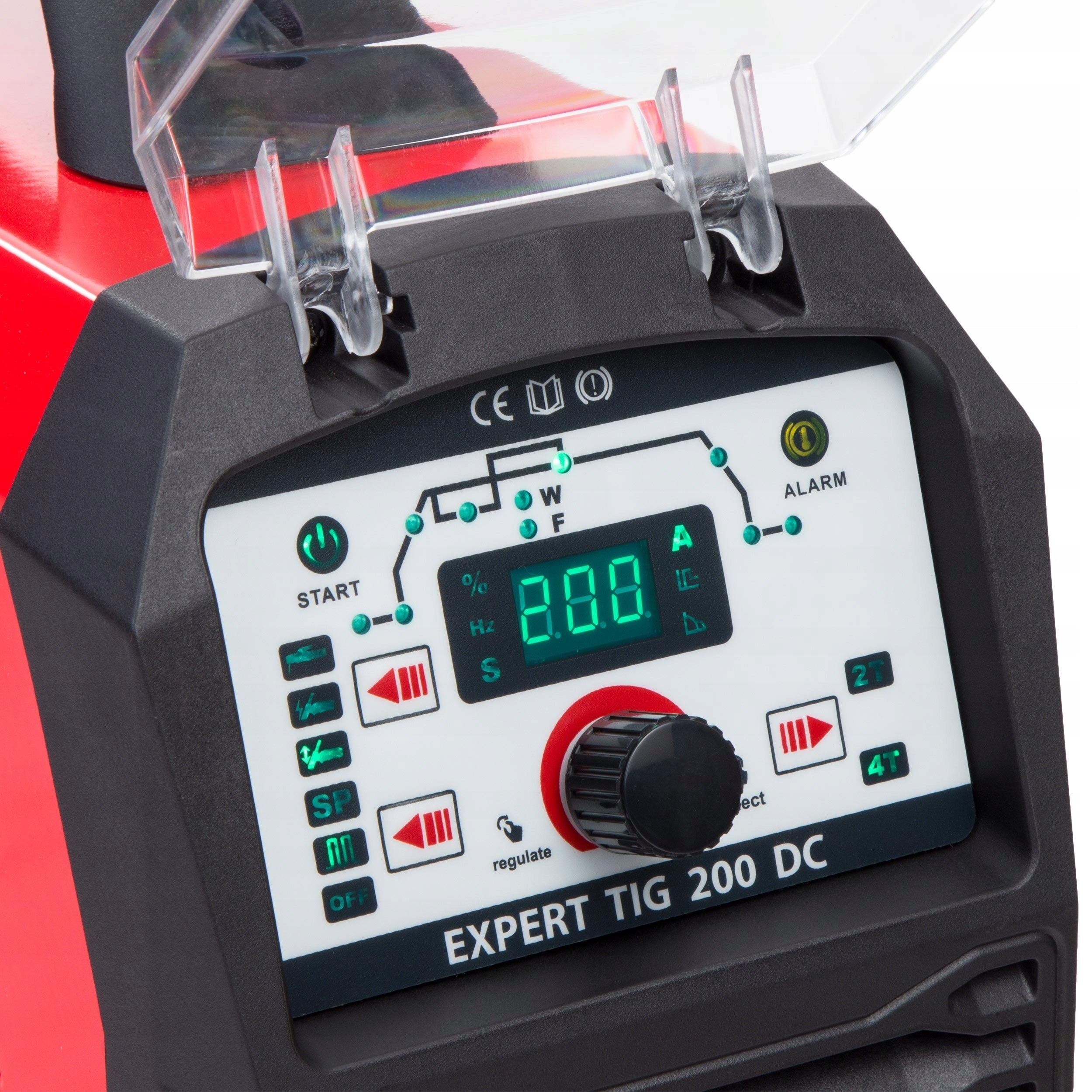

EASY OPERATION AND FULL CONTROL PANEL

The device has a clear and transparent "soft panel", and parameter adjustments are made using the multifunctional knob and several buttons, making setting the welding machine very easy and intuitive. From the control panel, you can choose the welding method and the 2T function (welding with the handle button pressed), or 4T used for longer welds (without having to hold the handle button). Arching is carried out without contact using the built-in HF ionizer. In addition, the HF system improves welding stability and ensures rapid adjustment of current to changes in parameters during welding.

WELDING WITH PULSE

The welder has options for pulsed current welding TIG PULS. Welding with pulse significantly reduces overheating of the material, reduces chipping giving very precise melting. Thanks to this function, the welder has higher control over the welding process, and the weld itself is narrower and prettier, and also allows welding of thin elements. Arching is done without contact using the built-in HF ionizer or in the LIFT touch mode.

WIDE RANGE OF APPLICATIONS

The welding machine is designed for all kinds of welding work in locksmith workshops, repair workshops, industrial, factories, etc. It allows welding of black, stainless and chrome-nickel steel.

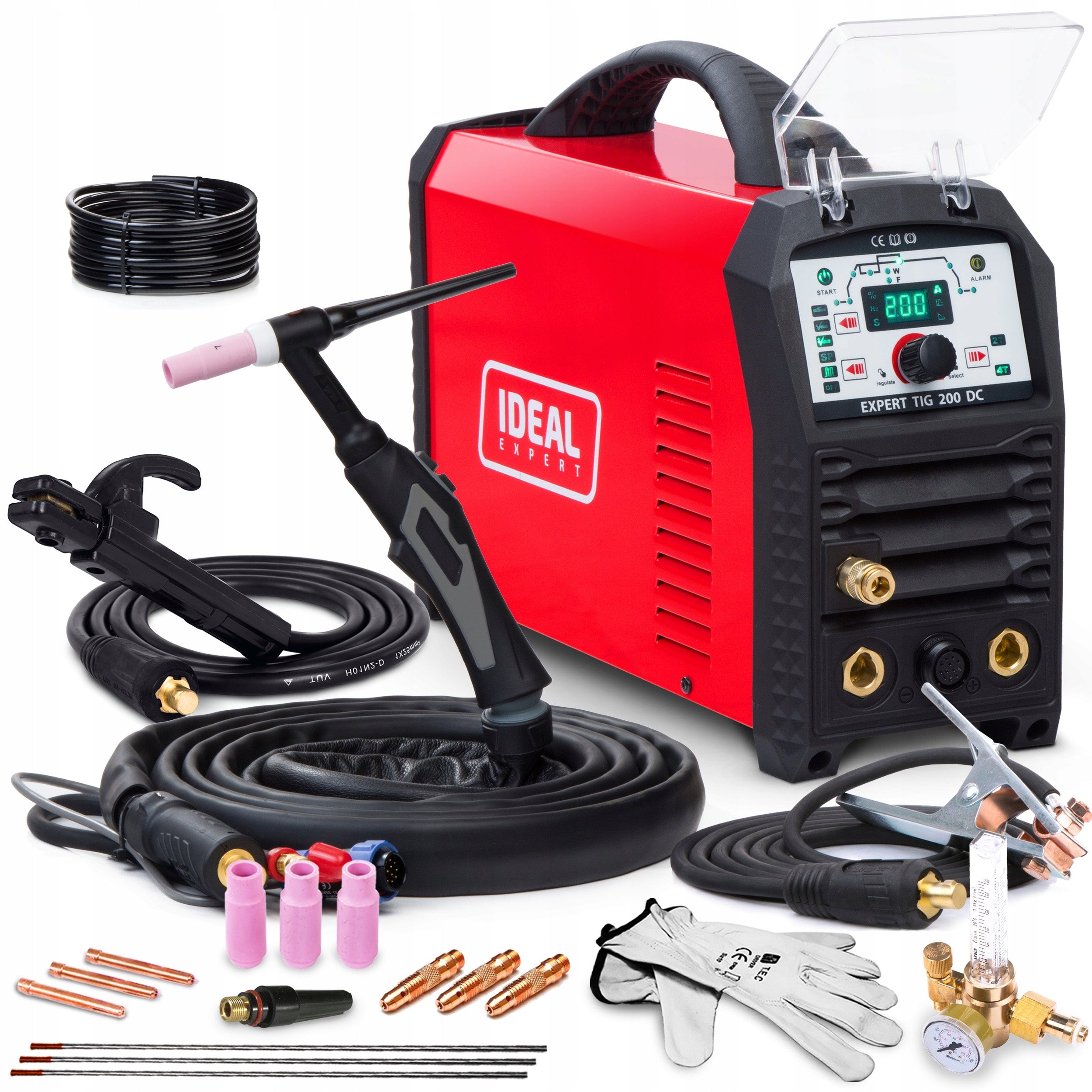

The device is equipped with a TIG SR 26 welding torch length 4m with a high current capacity, thanks to which it will withstand work even in long cycles. The handle also has remote control in the handle, which definitely facilitates work and it is possible to remotely change the current during welding. In addition, the leather sleeve significantly extends its durability and provides a more comfortable work.

We add consumable parts to each handle to start, so that the handle is armed and ready to work. In addition, all spare parts of the handle are easily accessible and can be purchased at attractive prices.

Arching is carried out without contact using the built-in HF ionizer. In addition, the HF system improves welding stability and ensures rapid adjustment of current to changes in parameters during welding.

POWER SUPPLY PARAMETERS

• Power supply: 230V
• Frequency: 50Hz
• Number of phases: 1ph
• Network security: 25A "C"
• Maximum power consumption: 6,9kW

TECHNICAL PARAMETERS

• TIG welding current range: 5 - 200 A
• Power build-up time: 0 - 10s
• Power drop time: 0 - 10s
• Pulse frequency Hz: 0,5 - 200
• Pulse length: 5 - 95%
• Gas after: 0 - 10s
• Gas before: 0 - 2s
• Power: 6,9 kW
• Idle voltage: 89 V
• Final current: 5 - 200 A
• Maximum current: 200 A - 35 %
• Power at work 100%: 120 A
• Power at work 60%: 155 A
• Starting current: 5 - 200 A
• Diameter of welding electrode: 1,6 - 4,0 mm

ADDITIONAL FUNCTIONS

• PULSE function: YES
• HF function: YES - non-contact glow
• 2T/4T function: YES
• PRE GAS: YES
• POST GAS: YES
• Increase in electricity: YES
• Power drop: YES
• HOT START function: YES
• ARC FORCE function: YES
• VRD function: YES

PHYSICAL PARAMETERS

• Degree of protection: IP23
• Weight: 7kg
• Dimensions: 620x270x390mm

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	IDEAL
Parametry	Power consumption	8 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	35%
Parametry	Maximum electrode diameter	4 mm
Parametry	Device weight	7 kg
Parametry	Welding range	5–200 A
Parametry	Length of ground cable	300 cm
Parametry	Welding cable length	400 cm
Parametry	Product weight with unit packaging	11 kg
Parametry	Manufacturer code	EXTIG200DC ZESTAW#0
Parametry	EAN (GTIN)	5907195560676
Parametry	Model	EXPERT TIG 200 DC
Parametry	Welding methods	MMA,TIG
Parametry	Additional features	infinitely adjustable welding current,LCD display
