Suvirinimo inverteris, 5,8/6,2 kW, vienfazis

Trumpai apie prekę

Prekė: Suvirinimo inverteris, 5,8/6,2 kW, vienfazis. Kategorija: Elektros generatoriai.

• Gamintojas: no brand
• Modelis: KD3234
• Įtampa: 230 V

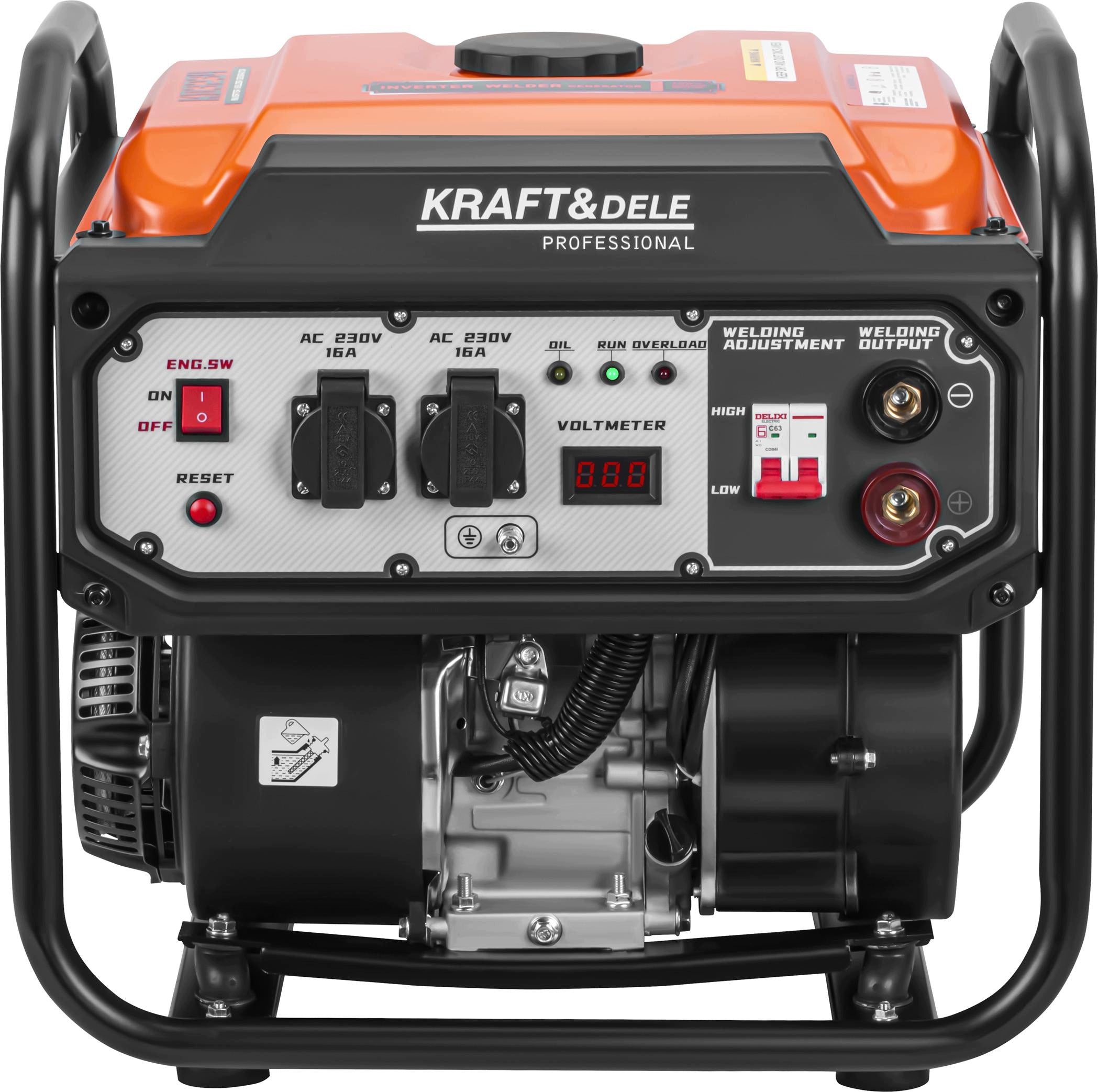

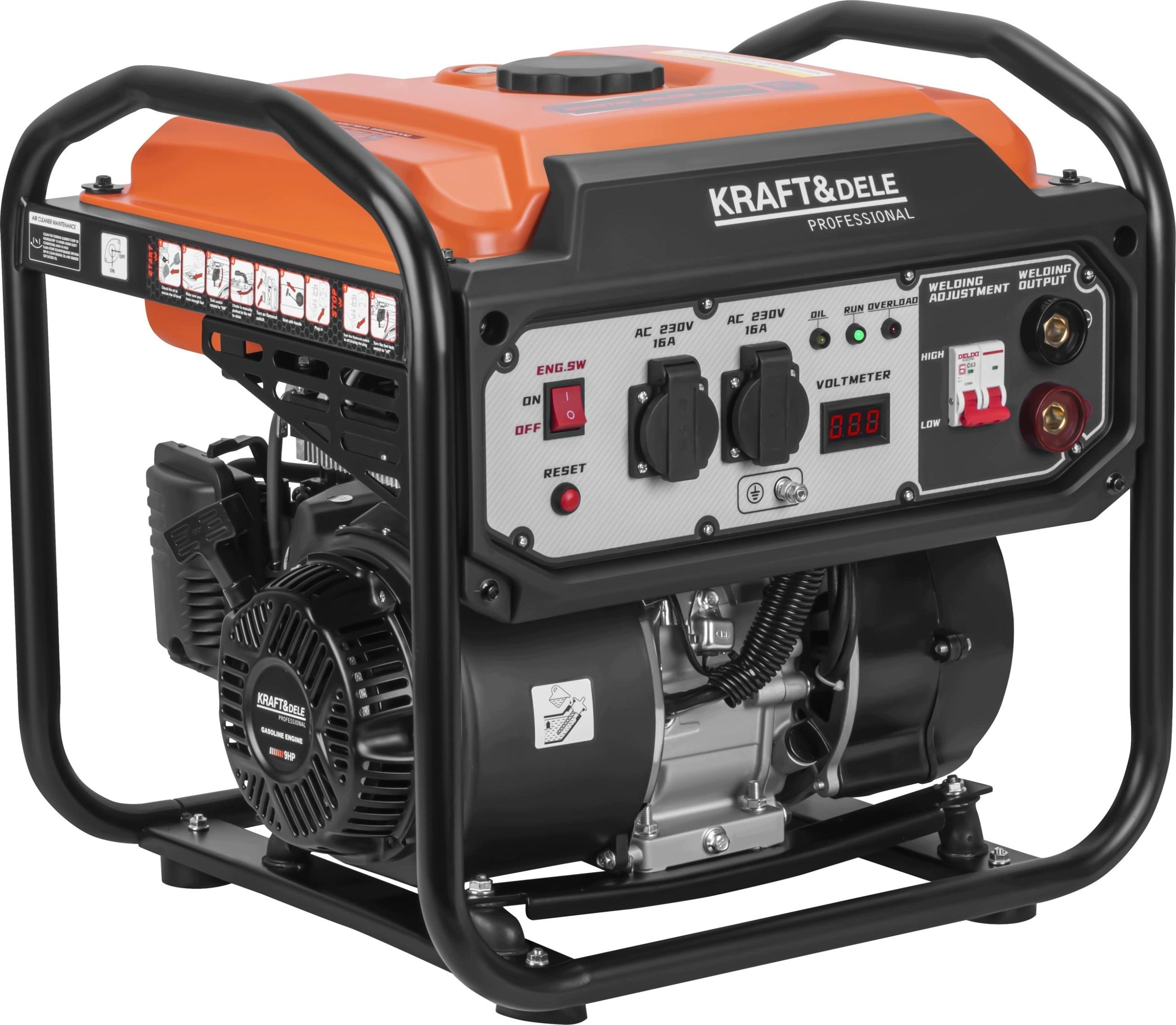

KD3234 is an inverter unit with a welding machine, designed to power electrical equipment and welding work. The combination of a power generator and a welding machine in one device makes this model perfect for the workshop, construction site, field and wherever an independent energy source is needed.

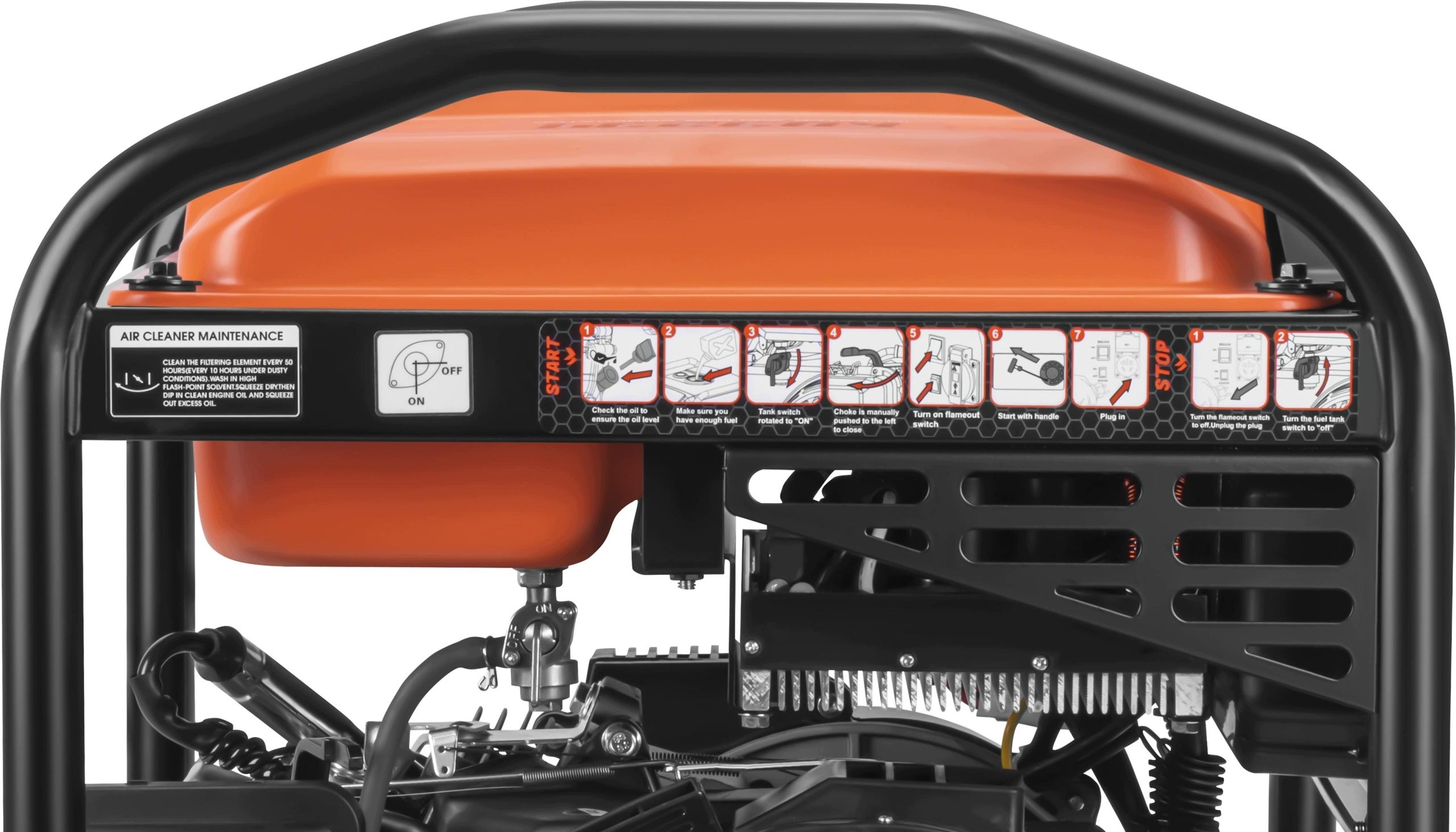

The device is equipped with a clear control panel with an oil level indicator, engine operation control and overload control. The ECO switch allows you to adjust the engine's operation to the load, helping to reduce fuel consumption and noise levels. The ground clamp increases the safety of use, and the function of the welding machine with a current of 250A allows for convenient work with welding wires of the recommended cross-section.

ATTENTION! Welding cables are not included in the product

PRODUCT FEATURES:

✅ Inverter unit combined with welding machine in one device

✅ Rated power 5,8 kW and maximum 6,2 kW

✅ 250A welding machine for field and workshop welding work

✅ Control panel with operating, oil and overload controls

✅ Oil protection automatically shuts off the engine when the oil level is too low

✅ Overload indicator light informs about too much load on connected receivers

✅ ECO switch helps reduce fuel consumption and reduce noise

✅ Ground clamp increases safety during operation

✅ Compact design makes it easy to transport and use in different locations

TECHNICAL DATA:

⚙ Model KD3234

⚙ Engine type Single cylinder, 4-stroke, air-cooled, 25° inclined cylinder

⚙ Displacement capacity 236 cc

⚙ Magneto Transistor Ignition System

⚙ Fuel tank capacity 14 L

⚙ Oil capacity 0,6 L

⚙ Rated speed 3800 rpm

⚙ Voltage 230 V

⚙ Rated power 5,8 kW

⚙ Maximum power 6,2 kW

⚙ Welding Current 250A 1,2 - 5,0

⚙ Recommended cross-section of welding wire Not less than 25 mm²

⚙ The recommended length of the welding wire should not exceed 3 m

⚙ Current capacity of copper conductors 4 – 6 A/mm²

⚙ Length 540 mm

⚙ Width 460 mm

⚙ Height 510 mm

⚙ Weight 35,5 kg

COMPOSITION OF THE PRODUCT:

✅ Inverter unit with KD3234 welding machine

✅ 2x 230V plug

✅ Funnel

✅ Service key

✅ User manual in Polish

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	no brand
Parametry	Model	KD3234
Parametry	Kind	portable
Parametry	Generator type	not specified
Parametry	Maximum power	6200 W
Parametry	Device weight	35.5 kg
Parametry	Fuel type	petrol
Parametry	Product height	51 cm
Parametry	Product width	46 cm
Parametry	Supply voltage	230 V
Parametry	Manufacturer code	KD3234
