Suvirinimo inverteris 200A MIG/MAG MMA MAGNUM MIG 240 LCD, 4x4, sinergetinis, Pulse

Trumpai apie prekę

Prekė: Suvirinimo inverteris 200A MIG/MAG MMA MAGNUM MIG 240 LCD, 4x4, sinergetinis, Pulse. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: spawarka migomat U MI 240 DP LCD
• Ilgis: 660 mm
• Plotis: 340 mm
• Aukštis: 450 mm

| Model: Magnum MIG 240 LCD Dual Puls Synergia | Welding methods: MIG/MAG, MMA, TIG Lift | Welding current: 200 A | 230 V | IGBT | Synergia | Dual Puls |

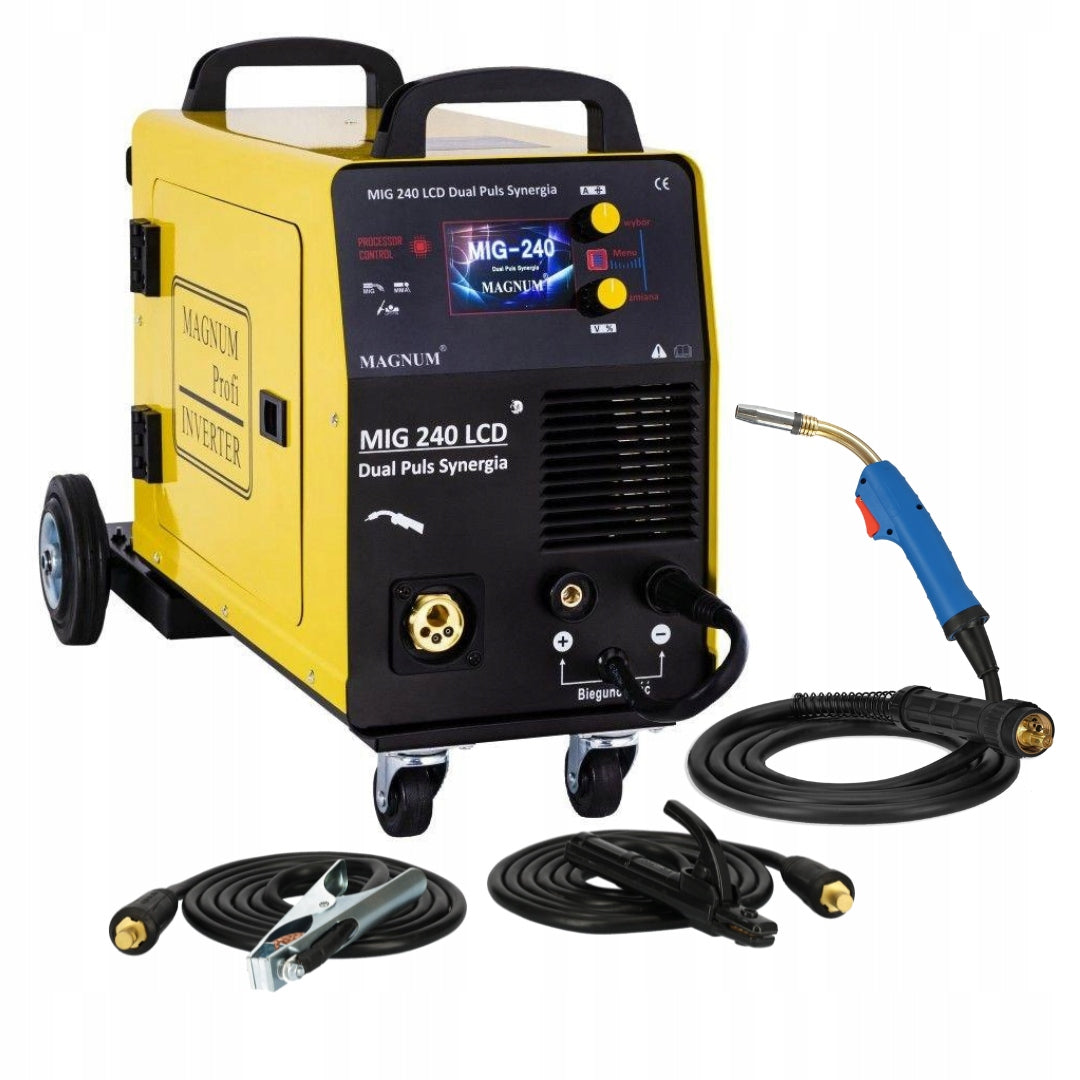

Standard equipment:

• Welding machine Magnum MIG 240 LCD Dual Pulse Synergy
• MIG MB-24 / 3 m welding torch
• mass cable / plug 35-50 mm2 / 2 m
• electrode cable / plug 35-50 mm2 / 200 A / 2 m
• set of feeder rollers (type D) fi 0,8 mm / 1,0 mm V-shaped
• set of feeder rollers (type D) fi 1,0 / 1,2 mm U-shaped Aluminium (mounted)
• red spiral steel cartridge
• Teflon cartridge red for ALU (mounted)
• instruction in Polish

❇ The Magnum MIG 240 Dual Pulse Synergy LCD is a lightweight and portable semi-automatic welding machine, providing a wide range of functions and efficiency.

❇ Migomat is powered from a single-phase 230 V network with a maximum welding current of 200 A.

❇ The welding machine is designed primarily for welding materials such as:

• materials made of stainless steel
• aluminium
• low carbon steels
• low-alloy steels
• high alloy steels

❇ Welding machine made in inverter technology with microcontroller MCU (integrated microprocessor system).

❇ The welder is equipped with a large easy-to-read LCD display and an intuitive, easy-to-use control panel, which allows you to quickly set all the most important welding parameters.

❇ It has single and double PULSE function, as well as synergistic control.

❇ The device has a synergic program for soldering with CuSi3 wire.

❇ Smooth adjustment of welding parameters, the migomat is equipped with a overload thermal protection system, preventing excessive overheating.

❇ The welder has soldiny 4-roll wire feeder with socket "euro connector" which allows you to connect different types of welding brackets.

• MIG - MIG / MAG synergistic welding
• MIG PULS - synergistic welding with single pulse
• MIG 2 PULS - synergistic welding with double pulse
• TIG LIFT DC - TIG LIFT / TIG LIFT welding with pulse
• MMA - wrapped electrodes (rutile, alkaline, acidic)

The welding machine is characterized by a wide range of applications, it is dedicated to all kinds of welding work in locksmith workshops, repair workshops, etc.

❇ The power source was built based on the latest technology using IGBT transistors , which translates into reduced electromagnetic interference, low power losses , increased efficiency and reliability of the power source and significantly reduced energy consumption .

• Network security 230 V [A]: 25
• Power supply [V]: 230
• Minimum welding current MIG [A]: 30
• Maximum welding current MIG [A]: 200
• Minimum welding current MMA [A]: 30
• Maximum welding current MMA [A]: 180
• MIG/MAG duty cycle [%]: 60
• TIG duty cycle [%]: 60
• Work cycle MMA [%]: 60
• Welding processes: MIG / MAG / MMA / TIG
• Supported wire spool diameter [mm]: 100 / 200
• Wire feeder type: 4-roll
• Control: synergistic
• Pulse function: YES
• Inductance regulation: YES
• Welding without gas: YES
• 2-bar/4-bar function: YES
• Point welding: YES
• Memory function: YES
• VRD function: YES
• Hot Start function: YES
• Arc Force function: YES
• Anti Stick function: YES
• Length [cm]: 66
• Width [cm]: 34
• Height [cm]: 45
• Weight [kg]: 16.4

✴ LCD screen - this model has a large and easy-to-read LCD screen that makes it easy to select and control the functions of the welding machine

✴ inductance - affects the shape of the weld, its width, depth of melting and the number of splashes

✴ two-bar 2T - pressing the button initiates gas outflow and welding current, releasing the button turns off welding current and gas outflow

✴ four-bar 4T - pressing and releasing the handle button initiates gas outflow and welding current, re-pressing and releasing the button turns off the welding current and gas outflow

✴ S-2T - special two-bar with HOT Start and final current (crater filling)

✴ S-4T - special four-point with HOT Start and final current (crater filling)

✴ synergy - andautomatically selects welding parameters, when adjusting the voltage, the wire feed speed is selected automatically

✴ PULS / DUAL PULS - synergistic welding functions with single or double pulse, thanks to which it is possible to obtain high-quality welds similar to the TIG method (husk effect)

✴ memory - the device has 36 memory channels on which the user can save and recall any settings

✴ MODE SPOT - spot welding (adjustable welding time)

✴ MODE CPOT - cyclic spot welding (adjustable welding time, welding break time between points)

✔ The Magnum MIG 240 Dual Pulse Synergy LCD welding machine is an advanced welding device that offers a variety of functions to facilitate work and high quality welds.

With its modern technology, easy-to-use control panel and wide range of applications, it is an ideal choice for various types of welding work.
