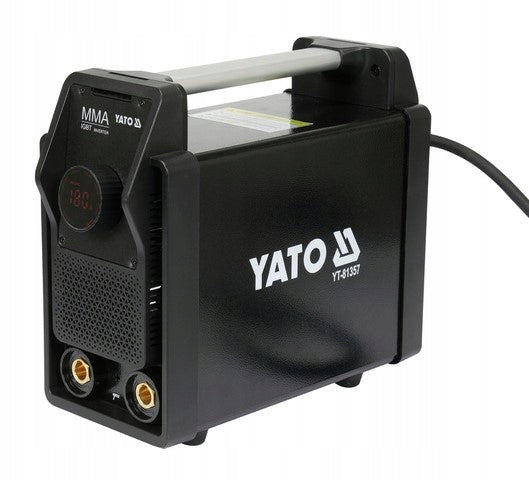

Suvirinimo aparatas YATO MMA TIG 180A LCD

Trumpai apie prekę

Prekė: Suvirinimo aparatas YATO MMA TIG 180A LCD. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Yato
• Modelis: YT-81357

✅ MMA TIG LIFT 180A YT-81357 INVERTER WELDING MACHINE

The MMA TIG LIFT 180A welding machine is based on the latest generation of IGBT transistors. Equipped with advanced functions that facilitate welding, thanks to a specially designed microprocessor that independently manages the entire welding process. The developed welding current sampling technology not only reduces the failure rate of the device, but above all significantly facilitates the welding process itself .

✅ HAS TWO TYPES OF WELDING

✔ Welding with buffer electrodes (MMA method)

✔ Welding with non-melting electrodes (TIG lift method)

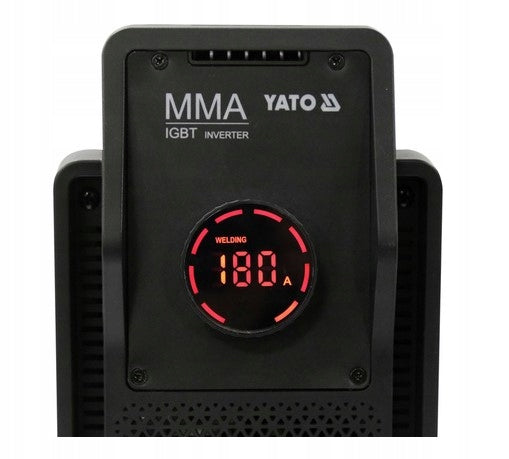

⚡ QUICK AND INTUITIVE CONTROL OF ONE KNOB WITH CLICK ⚡

✅ SPECIALLY DESIGNED PROCESSOR TO INCREASE WELDING QUALITY

Specially designed microprocessor manufactured in Taiwan based on ARM4 architecture, in 55nm technology, with 200Mhz clock speed in 32-bits. It allows you to control the latest generation transistors at up to 70Khz, which is almost twice as fast as comparable devices!

✅ RAPID ANALYSIS OF WELDING PARAMETERS

It has a proprietary solution for analyzing welding parameters at a speed of about two hundred million times per second. It eliminates the need to place additional layouts for functions such as ARC FORCE, ANTI STICK or HOT START. The lack of additional systems makes the impact of interference generated in the current transformation process on the welding quality marginal, not noticeable to the user.

✅ APPLICATION

Welding with buffer electrodes (MMA method) and non-melting electrodes (TIG Lift method) - acidic, alkaline, cellulosic, direct current steel, stainless steel, cast iron, copper, aluminum, etc.

✅ EQUIPPED WITH MANY FUNCTIONS

✔ HOT-START

When the electrode is applied to the welded material, the welding machine increases the welding current for a fraction of a second, which makes it much easier to light the arc. The parameters are permanently set to the most popular type of electrodes on the market, i.e. for rutile electrodes.

⏭ Allows you to adjust the function in the range of 0-10% and its duration from 0.0 to 1.0s

✔ ARC FORCE

It regulates the arc dynamics depending on the distance of the electrode from the welded element. The microprocessor examines welding parameters, and the goal of these activities is to obtain the best quality welding source for a given current setting. In this case, the parameters are also permanently set to the most popular type of electrodes on the market, i.e. for rutile electrodes.

⏭ It has a parameter adjustment of this function in the range of 0-10%.

✔ ANTI-STICK

It cuts off the welding current when the electrode is shorted, which allows the electrode to be detached from the welded material.

✅ REFINED VRD TECHNOLOGY

The welding machine has the ability to turn on VRD, which reduces the idle voltage from about 60V to a human-safe level. Most inverter welding machines examine the output current using analog sensors, which in short extends the reaction time and consequently makes it difficult to light the arc.

✅ INCREASED SAFETY WITHOUT AFFECTING ARC GLOW

The microprocessor generates a waveform in the welding current circuit with a frequency of about 200Mhz. In real time, it examines mileage deformations that vary depending on the welding stage. The moment of touching the electrode to the welded element is detected in a fraction of a second, then the VRD function is turned off, at the same time it starts to work HOT START. The problem of arcing does not occur.

✅ PROTECTION AGAINST OVERHEATING

The microprocessor examines the temperature of critical components in real time. Depending on the temperature, in the first place controls the fan speed, however, when the temperature reaches too high a level, the microprocessor smoothly lowers the output current, which will allow the electrode to burn out or control the end of the weld.

In most welding machines on the market, the moment of overheating means immediate shutdown of the welding current, which often results in the need to make mechanical corrections in the welded elements.

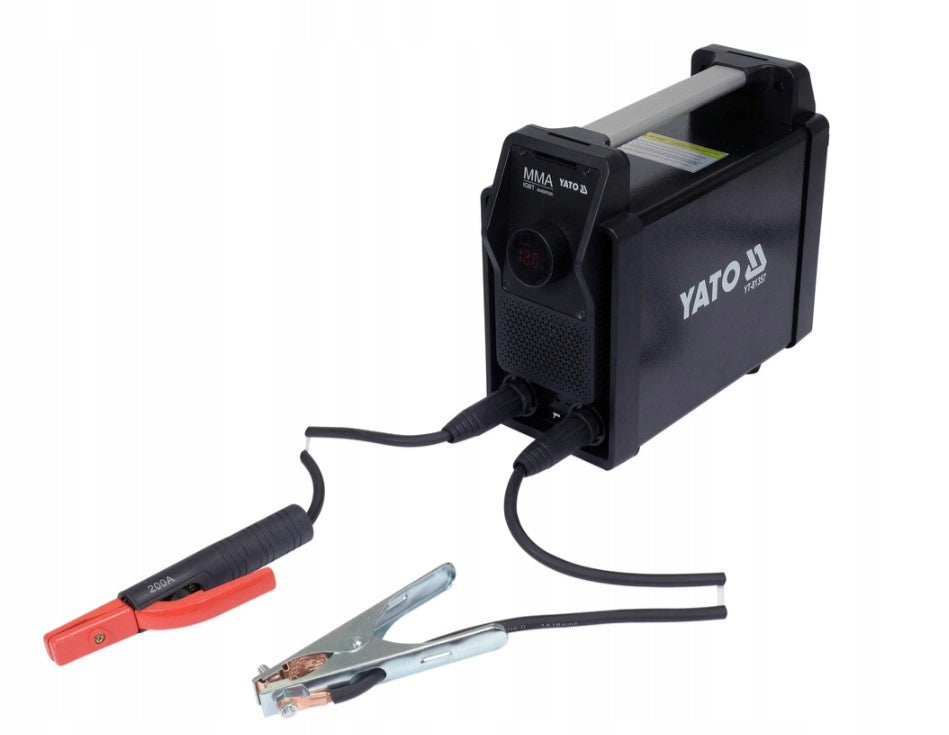

✅ CONTENTS OF THE SET:

✔ WELDING DEVICE ✔ MASS HOLDER 300A 3 m ✔ ELECTRODE HOLDER 200A 3 m ✔ SHOULDER STRAP

• Type of welding machine: IGBT
• Max welding current: 180 (MMA), 180 (TIG lift) A
• Min. welding current: 40 (MMA), 10 (TIG lift) A
• Voltage: 230 V a.c.
• Frequency: 50/60 Hz
• Power factor: 0.73
• Dimensions: 320x138x270 mm
• Diameter of electrode: 1.6~4 mm
• Working cycle: 20 %
• Power source efficiency: 80 %
• CPU Processor: yes
• VRD voltage reduction system: yes
• Arc stabilization: yes
• Hot start: yes
• Display type: LED, with knob
• Display range: 999
• Overheating protection: yes
• Short-circuit function: yes
• Power supply from generator: yes
• Isolation class of winding: F
• Electrical insulation class: I
• Degree of protection: IP21S
• Weight: 4.52 kg
• Welding method: MMA, TIG lift
• Model: YT-81357
• Brand: YATO
