Suvirinimo aparatas WUBER 250A, MIG/FLUX/MMA/TIG, IGBT

Trumpai apie prekę

Prekė: Suvirinimo aparatas WUBER 250A, MIG/FLUX/MMA/TIG, IGBT. Kategorija: Inverteriniai suvirinimo aparatai.

• Gamintojas: Wuber
• Modelis: W19005 SPAWARKA

► Synergy function ► IGBT transistor ► MIG FLUX / MMA / TIG / MIG-MAG / ► 15-250A ► Hot Start, Arc Force, Anti-Stick ► 5.3 kVA ► Pulsed welding ►Door to Door ► PRE GAS-POSTGAS ► Long cables 2.6 m ► Duty cycle 60% ► VRD ► WELDING WITHOUT GAS AND WITH GAS ► 3M euro torch

High Power Multi-Purpose Welding Machine

✅ Working cycle ► The welding machine offers a working cycle of 60% which means that it can work for 5 minutes on a full load, after which it requires a 5 minute break

✅ MIG FLUX (GAS FREE WELDING) / MMA / TIG / MIG-MAG ► weld as you comfortably with four different methods. The welder is an extremely versatile device

✅ Reliable wire feeder - work with wire with diameter from 0,6 to 1,0mm and weight 5kg

✅ Maximum electrode diameter ► The device supports electrodes with a maximum diameter of 4,0 mm, which allows for welding thicker elements that require higher power

✅ Welding current range ► ranging from 15A to 250A (depending on the method) allows precise adjustment of parameters to the thickness of the material and the type of weld

A range of features to make your work easier

✅ Synergy function ► automatically adjusts all welding parameters with a single knob, which significantly facilitates work, even for laymen

✅ IGBT ► transistor ensures high energy efficiency and stability of welding current

✅ Advanced cooling system ► effectively dissipates heat, which allows for longer operation without the risk of overheating the device

✅ Hot Start, Arc Force, Anti-Stick ► these functions will allow you to work comfortably, even among laymen. Forget about the electrodes sticking to the welded material!

✅ Long and thick wires 2,6m - 3m ► our wires are very long and have a thick copper winding, so you can comfortably weld in all conditions

Reliable and unrivaled

✅ Double-bar (2T) and four-bar (4T) ► Two-bar (2T) is ideal for short welds – welding begins at the push of a button and ends when it is released.

Four-point (4T) is a feature that facilitates long-term welding, where you do not have to constantly hold the button – you press once to start, and again to finish

✅ Pulse and spot ► The puls function provides control over the amount of heat supplied. Spot enables spot welding, ideal for fast, precise joining of components.

✅ Euro socket and holder ► Standard Euro socket allows for quick and convenient connection

✅ Gas selection ► The welding machine allows you to easily select the type of shielding gas, which allows you to adjust the parameters to different metals and welding techniques

✅ Spool gun ► Thanks to the possibility of connecting spool gun, the welding machine is ideal for welding aluminum and thinner sheets

⭐ Why should you choose our equipment?

✔ Our welding machines are made of high quality materials and using proven technological solutions,

This makes them the most advantageous in their price range

• ► High quality workmanship

• ► Care for the smallest details technical and visual

• ► Brand equipment with established market position

• ► Door to door, full access to spare parts and fast service

⚙ TECHNICAL DATA:

Producer: Wuber

Supply Voltage: 230-240V / 50Hz

Output current range MIG/MAG: 35-250A

MMA Output Current Range: 20-250A

TIG output current range: 15-250A

Operating cycle < 25°C : 60%

Operating cycle 26-35°C< : 40%

Idle Voltage: 60V

Rated Power Consumption: 5,3kVa

Rated current consumption: 24A

Possibility of welding with electrodes with diameter: 1.6-4.0 mm

Wire diameter: 0,6-1.0 mm

Wire feed roller: 0,8/1,0 mm

Wire spool weight: max. 5 kg

Protection class: F

Degree of protection: IP21S

Length of mass cable: 2,6m

Length of electrode cable: 2,6m

EURO MIG/MAG holder: 3m

Dimensions: 38x21x32 (W x debt. x H )

Weight: 8.5kg

⭐ WELDING MACHINE ALLOWS WELDING BY FOUR METHODS

► MIG FLUX: 35-250A

In MIG FLUX mode (wire welding without gas), the welding machine allows you to work with output current in the range from 35A to 250A

✔ For thinner sheets, the lower current ensures softer melting of the material, minimizing the risk of puncture and allowing the creation of aesthetic, even welds

✔ When welding thicker components, the ability to increase the current to 250A guarantees a deeper melt, which is crucial for achieving durable, robust connections.

­

► MMA: 20-250A

In MMA mode (electrode welding) current range from 20A to 250A

✔ This allows the welding machine to effectively work with both thin and thick components, which makes it suitable for a wide range of jobs, from minor repairs to heavier structures

✔ The ability to adjust the current in such a wide range also provides appropriate weld properties, regardless of the type of material, such as carbon steel, stainless steel or cast iron

­

► MIG/MAG: 35-250A

In MIG/MAG mode (welding with shielding gas), the welding machine operates in the current range from 35A to 250A.

✔ Lower current settings (from 35A) will work well for welding thin materials, ensuring precise melting and aesthetic welds without piercing metal

✔ Higher current values (up to 250A) are ideal for welding thicker components, allowing for deep melting and creating durable connections that guarantee the durability of the structure

­

► TIG: 15-250A

In TIG mode (welding with a non-melting tungsten electrode), the welding machine offers a current range of from 15A to 250A

✔ Lower current settings (from 15A) allow for gentle and controlled welding of thin elements, where precision is crucial

✔ In turn, the possibility of increasing the current to 250A gives the user flexibility in working with thicker materials, ensuring a strong melt and durable welds, without losing the accuracy and quality of the finish

­

* ATTENTION! The TIG holder is not part of the set

⚡ Gas selection:

• Co2 - 100% ► The use of pure CO2 is ideal for welding steel, providing deep melting and solid welds

• MIX - Argon/Co2 blend ► The mixture of argon and CO2 (usually 80% argon, 20% CO2) works perfectly when welding steel, guaranteeing good quality of welds and less chipping

• Aluminium - ► A pure argon is used for welding aluminum, which protects the material from oxidation and ensures a smooth weld finish

• Flux ► Shielding gas-free welding using core wire, ideal for outdoor and open-space applications

Welding machine full of practical functions

✔ ► Pulse welding

Allows for precise control of welding current, which facilitates welding of thin materials, prevents overheating and burning of metal

The current changes cyclically, which improves the quality of the weld, reducing the amount of chipping

✔ ► SPOT welding

This is spot welding, which is used for precise joining of thin elements, especially for sheet metal welding

✔ ► Double-bar 2T

Welding begins when you press the button on the handle, and ends when you let it go

Used mainly in shorter welds, where no long-term continuous operation is needed

✔ ► Four-bar 4T

The welding process is more automatic.

Simply press the button once to start welding, and the welding continues until you press the button again to finish it

✔ ► Spoolgun

This is a special handle to which you can load a small spool of wire, which is ideal for welding materials such as aluminum, where the wire is softer and harder to feed through a long wire.

And this isn't the end!

✔ ► Pre-gas

This phase before welding, allows control of the gas shield in the range of 0-2 seconds, which protects the material and electrode from oxidation.

✔ ► Post-gas

This phase after welding, allows control of the gas shield in the range of 0-2 seconds, which prevents the formation of oxides on the fresh weld.

✔ ► Inductance

Thanks to the inductance adjustment, you can control the amount of heat that goes into the weld, and the amount of chipping

Regulation in the range -10% - + 10%

Higher inductance causes softer arc and less chipping

Lower inductance gives a more aggressive arc

✔ ► Wire feeding control

Allows for precise adjustment of the speed at which the welding wire is fed (range 0-10m/min)

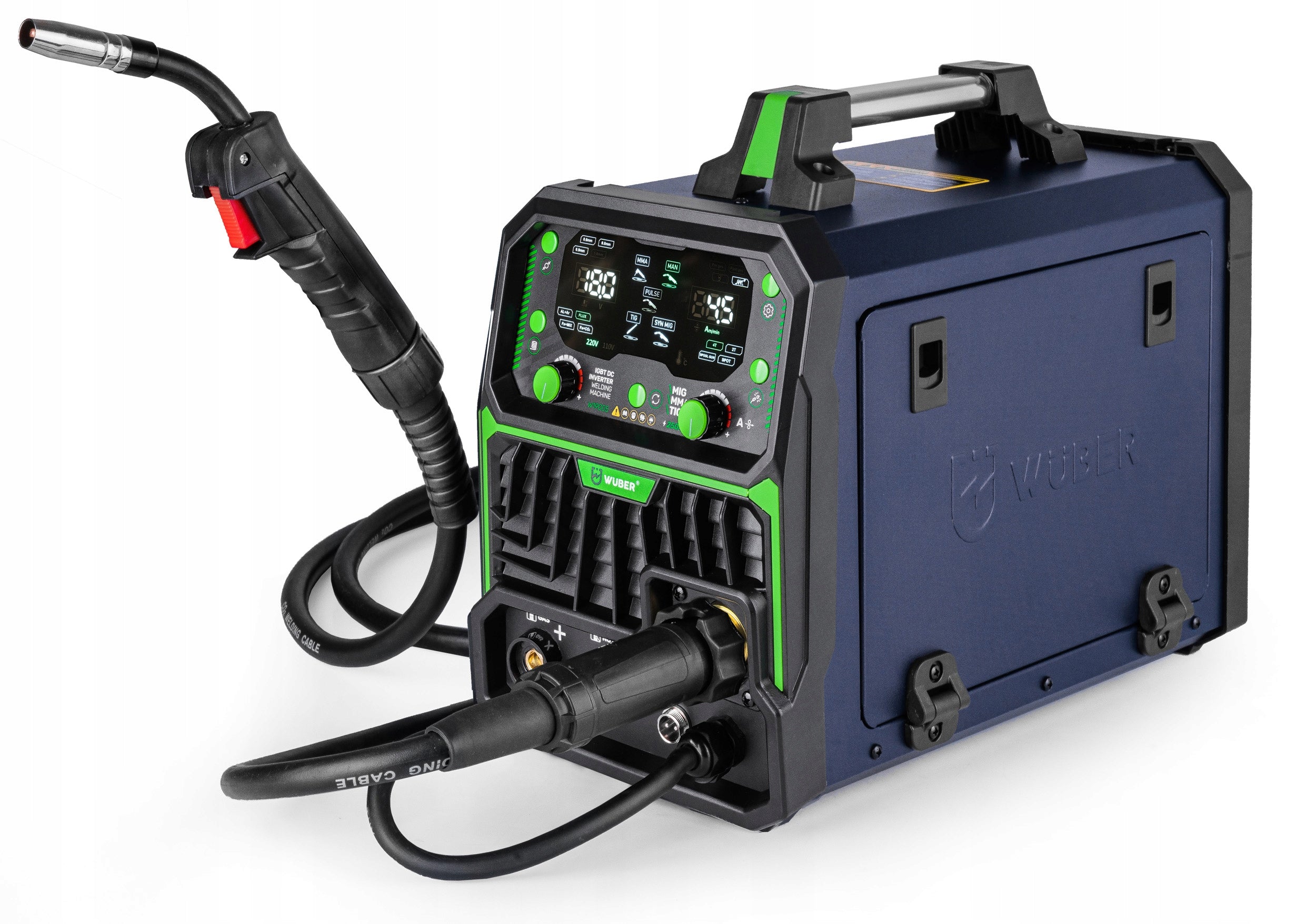

⭐ EURO MIG/MAG 3m socket and holder

The welder equipped with a EURO socket allows you to connect the included MIG/MAG handle with a length of 3 meters, which provides convenience and flexibility.

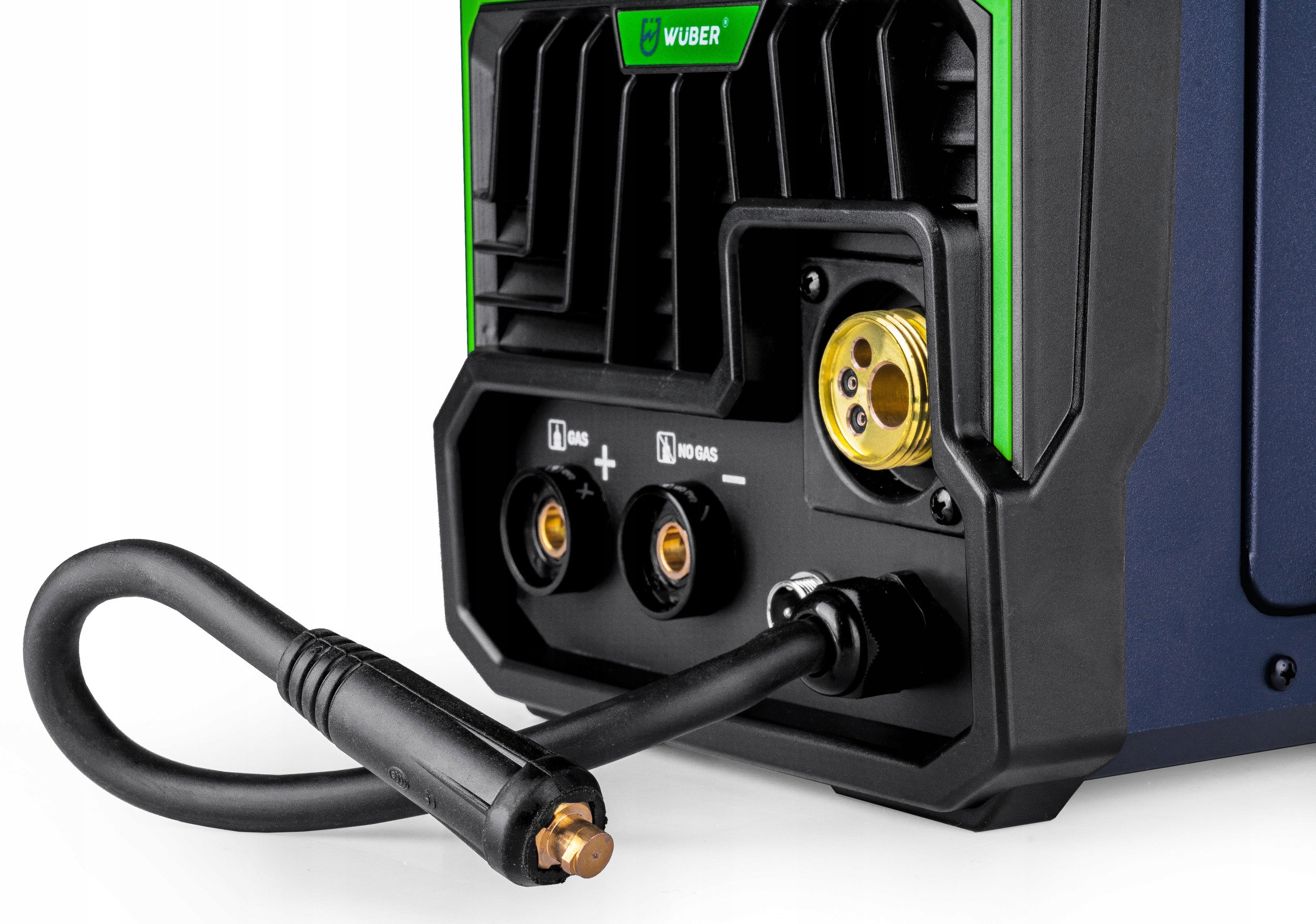

✅ Welding polarity change

Thanks to the polarity change function, it is possible to weld with self-shielding wire without the use of protective gas, which increases the versatility and practicality of the device in various conditions.

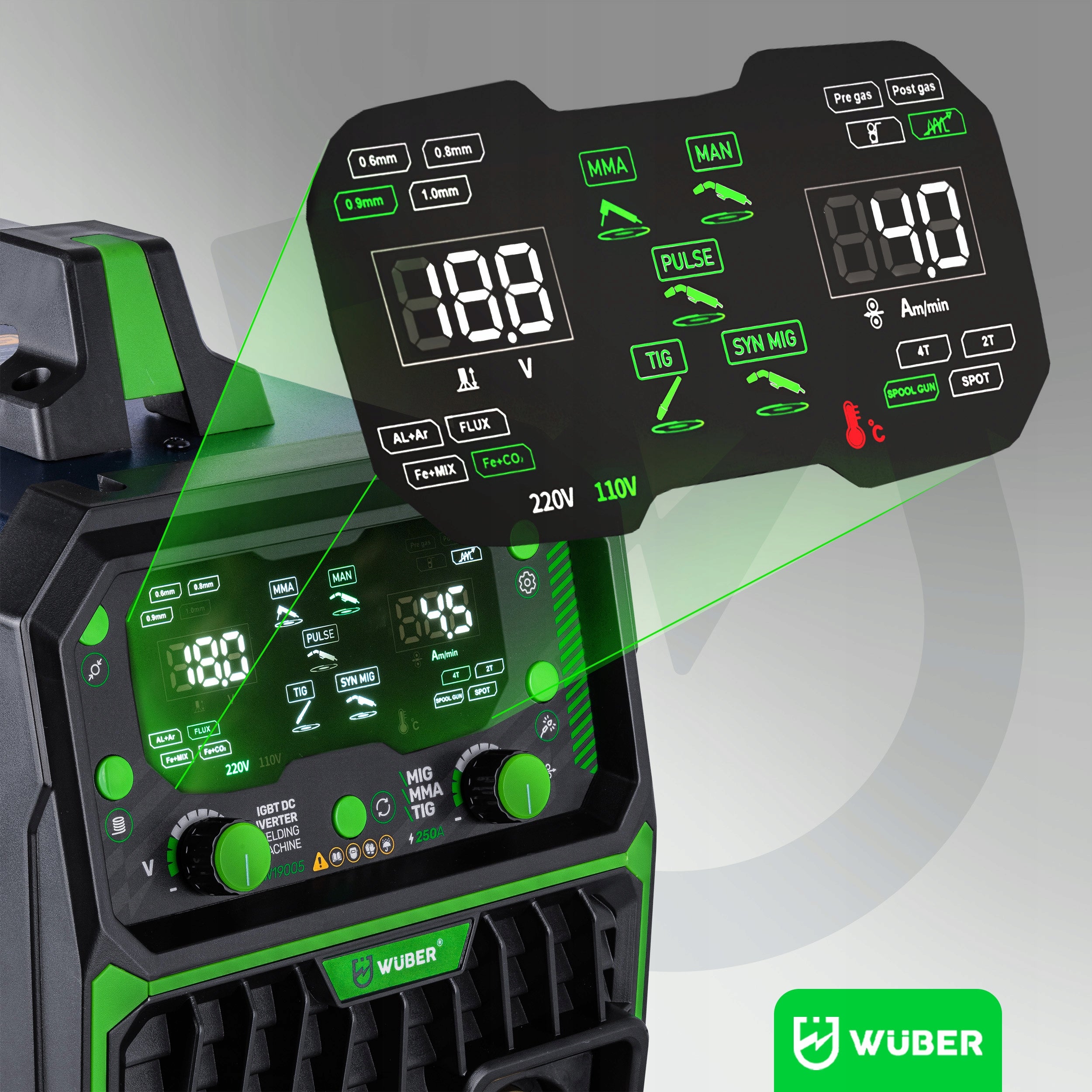

⚡ Clear DIGITAL panel

All values and the selected welding mode/type will be shown on the screen, so you will always see the current amp level and operating mode

⚡ Synergy Function

• The welder is equipped with a synergy function, which automatically adjusts all welding parameters - all you have to do is use one knob

This is especially useful for less experienced users, allowing them to achieve professional results without having to manually adjust all settings

⭐ MAN MIG function (manual)

• The welder has the MAN MIG function, which allows full manual control over all welding parameters, which means that the user can independently adjust settings such as welding current, voltage or wire feed speed

Thanks to this feature, more advanced welders have the ability to fine-tune the device to specific materials and working conditions, which is ideal for more demanding projects

✅ DESCRIPTION OF PANEL ELEMENTS:

⭐ Hot Start

Hot Start function automatically increases the welding current at the beginning of operation, which facilitates fast and stable arc glow, especially when welding difficult materials

⭐ Arc Force

Arc Force stabilizes the welding arc by dynamically adjusting the current when the arc becomes too short, making welding more smooth and stable

⭐ Anti-Stick

Anti-Stick prevents the electrode from sticking to the material, automatically reducing current when the electrode gets too close, which minimizes the risk of the electrode sticking

⚡ High quality + attractive price = perfect weld

You don't have to be an expert in welding to achieve a deep melt with this welding machine

✔ Features that are usually only available in the most expensive IGBT devices can also be found in WUBER welding machines.

Making a nice, superficial weld is simple, but the real art is achieving deep penetration , which ensures a clean, complete and extremely durable weld.

✔ Our welding machine has parameters that will allow even laymen to achieve such effects!

⚙ Wire feeder

► Built-in failure-free wire feeding system works with rolls of wires with diameters of 0,6/1,0 mm and a maximum weight of 5 kg, and its design excludes slipping

► Access to the feeder is very easy, just open the side cover and you can start to mount the spool!

► The welding machine enables work with a precise SPOOL GUN handle. Simply mount it and change the switch under the device cover

­

⭐ Electrodes

► In addition, the welding machine allows welding with electrodes with a diameter of 1,6-4,0 mm

⚡ MIG holder

✔ Welding using the MIG FLUX and MIG/MAG method is very convenient thanks to this handle, which automatically feeds the wire for welding - just press the trigger

✔ His connection and installation of the wire roller is very simple, so you will certainly be able to handle the assembly and get started quickly!

­

✔ The wires of our handles are very long, which will make your work easier!

• Bulk holder - 2,6 m
• MMA DIN handle - 2,6 m
• EURO MIG holder - 3 m

The wires have a thick copper winding, which increases their strength

How long are our cables?

In the form of a curiosity, we will help you visualize the length of our cables, which can be compared to the length of a typical van, which is from 2,6 to 3 meters

⭐ Cycle of Work

✔ The welder offers a work cycle of 60%, which means that it can work continuously for 5 minutes at full power, after which it requires a break of similar length

✔ Such a work cycle means that during the welding process you will not have to take a break at all. Weld long items without worrying about the device overheating!

­

⭐ VRD

This system is responsible for reduction of voltage on the wrapped electrode, as well as for switching off the power supply within a few milliseconds after welding

This makes welding with our welding machine convenient, efficient and pleasant even for beginners

✅ IGBT Technology – Ideal for Beginners Welders

The welder is based on IGBT (Insulated Gate Bipolar Transistor) technology, which makes it an excellent choice for those just starting their welding adventure

► IGBT technology is characterized by high energy efficiency and stability of welding current, which is crucial for obtaining high quality welds

► IGBT- based devices are more forgiving of errors that may occur during welding, such as uneven gun guidance or suboptimal parameter settings

⚡ Lightness and Compactness

The device is characterized by compact dimensions and light weight, which makes it an ideal solution for people who need mobile equipment

Thanks to the length of the wires (2,6 m for mass wire, electrode, 3m for euro MIG holder), the device ensures comfortable operation in various conditions, allowing free access to the welded material

✅ Motherboard with AWC system

Control board with AWC (Advanced WeldControl), i.e. advanced electronic module, which integrates all necessary functions, such as current, voltage regulation, etc.

► 3x Powerful capacitors

Provide constant and stable power supply for electronic components

Their performance has a direct impact on the welding machine's ability to deal with voltage fluctuations

► 3x Efficient Heatsinks

They provide adequate cooling and prevent overheating of key electronics components

They are responsible for efficient heat dissipation from the components generating the most heat, such as the processor and IGBT transistors.

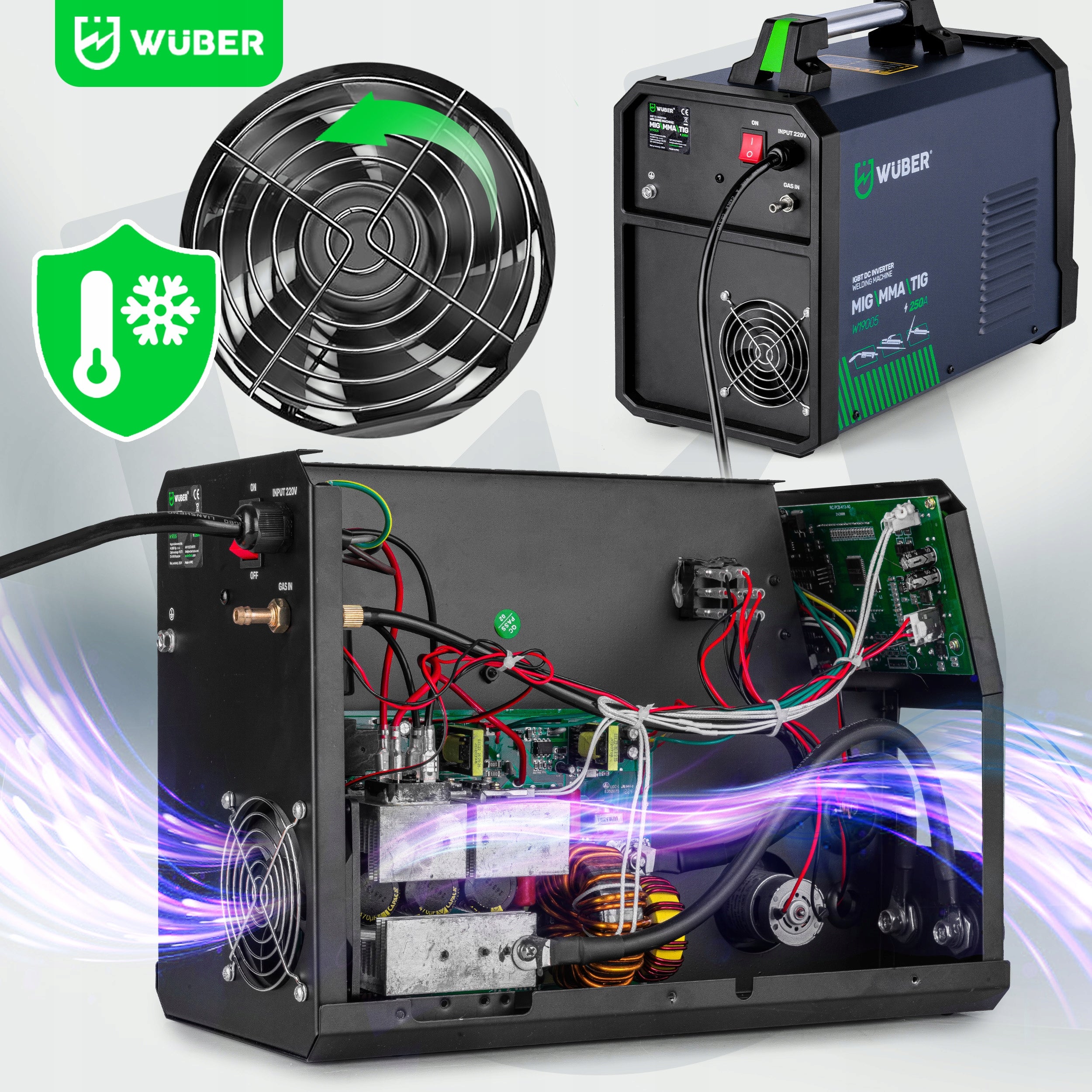

❄ Advanced Heat Shield Cooling System

Thanks to the advanced cooling system, the Wuber welding machine is able to maintain stable operating parameters even in difficult conditions, minimizing the risk of overheating

• This system is particularly effective under heavy use, which increases the life of the device

► Powerful fan and three reliable heat sinks effectively dissipate excess heat and maintain the optimal operating temperature of the device

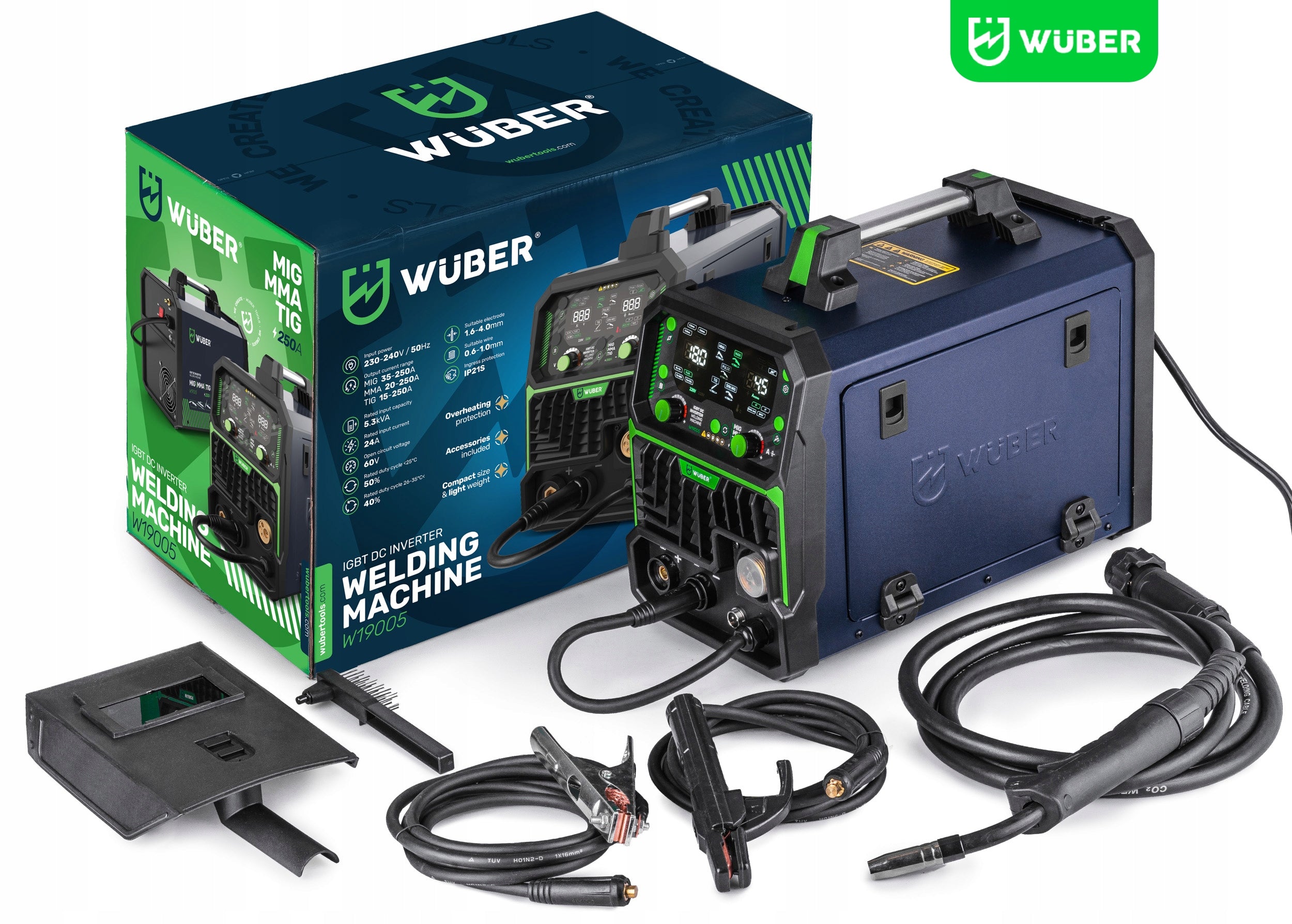

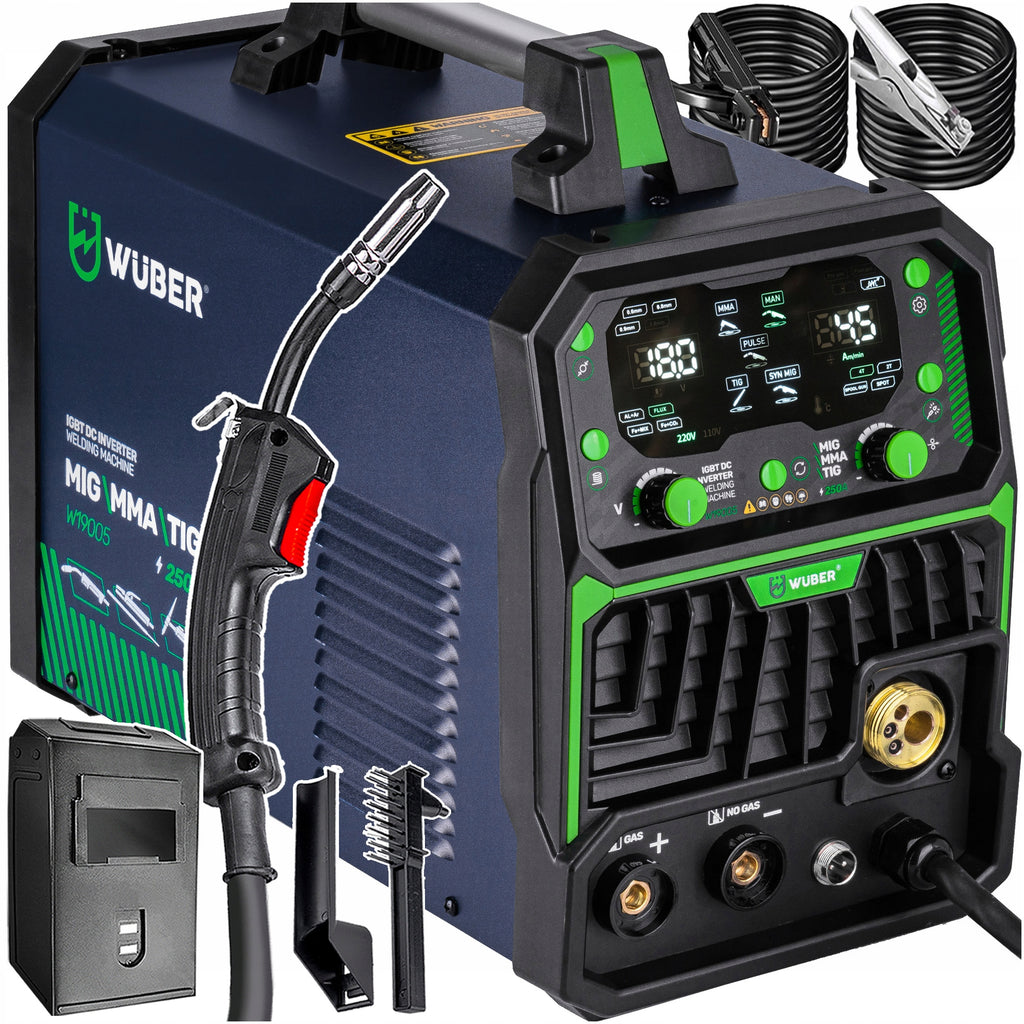

THE SET INCLUDES:

• ► Welding machine WUBER

• ► MIG Euro holder

• ► Bulk cable

• ► Electrode cable

• ► Protective shield with fast

• ► Wire brush

• ► Clear User Manual

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Wuber
Parametry	Power consumption	5.3 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	5 mm
Parametry	Device weight	8.5 kg
Parametry	Welding range	15–250 A
Parametry	Length of ground cable	260 cm
Parametry	Welding cable length	300 cm
Parametry	Product weight with unit packaging	12.5 kg
Parametry	Manufacturer code	W19005 SPAWARKA INWERTOROWA MIGOMAT WUBER
Parametry	EAN (GTIN)	5905873300712
Parametry	Packaging status	original
Parametry	Model	W19005 SPAWARKA
Parametry	Welding methods	MIG/MAG,MMA,TIG
Parametry	Additional features	welding mask included,infinitely adjustable welding current,EURO handle,LCD display
