Suvirinimo aparatas WELDMAN MIG 235 LCD, 3in1, MMA, TIG, aliuminiui, dvigubo impulso

Trumpai apie prekę

Prekė: Suvirinimo aparatas WELDMAN MIG 235 LCD, 3in1, MMA, TIG, aliuminiui, dvigubo impulso. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Weldman
• Modelis: SMART MIG 235

DOUBLE PULSE MIGOMAT WITH MENU AND VOICE MESSAGES IN POLISH !

Manufacturer: WELDMAN ║ Welding methods: MIG/MAG, FLUX, MMA, TIG LIFT ║ Power supply: 230V ║ Welding current: 200A ║ Efficiency: 60%

DISCOVER ALL THE ADVANTAGES OF THE WELDMAN SYNERGISTIC SEMI-AUTOMATIC

• 3in1 welder: MIG/MAG, MMA, TIG DC
• Double Pulse - the best welding quality
• Menu in Polish
• Voice messages in Polish
• Efficiency 60% for power 200A

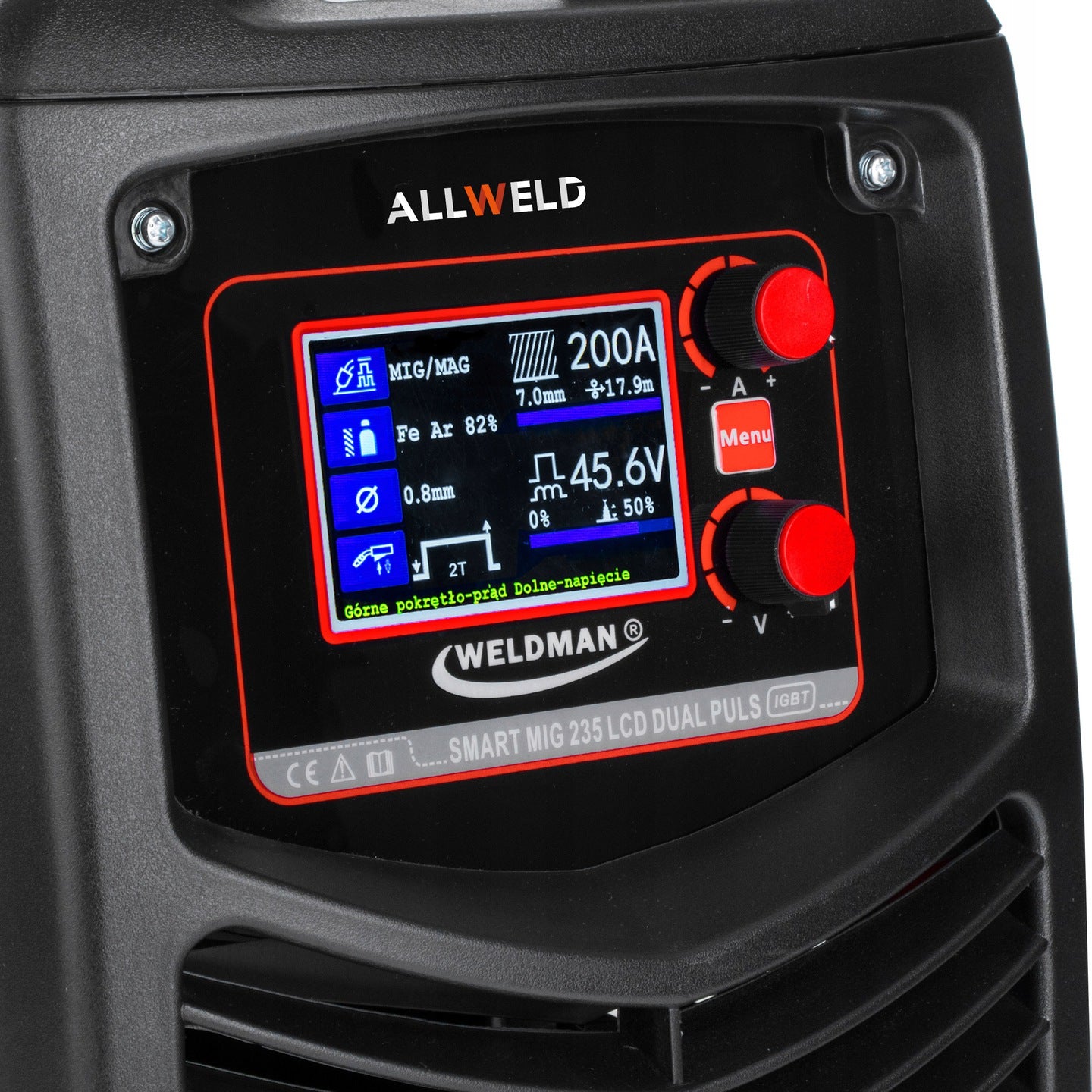

• Colourful and easy to read LCD display
• Excellent semi-automatic for welding ALUMINIUM in MIG method
• Great equipment for professional use
• Brazing
• INDUCTANCE regulation - less chipping
• 2T/4T mode
• Operation in S2T / S4T mode
• Channels memory - 20 write options
• Overload switch
• Point welding - the ability to adjust the time
• Welding with FLUX self-shielding wire - without gas
• BURN BACK function
• VRD
• HOT START
• ARC FORCE

The WELDMAN SMART MIG 235 LCD DUAL PULS inverter welder is an easy-to-use migomat that allows smooth regulation of welding current. The device allows welding with a maximum current of 200A at an efficiency of 60% by MIG/MAG, MMA and TIG methods. The device uses a large and easy-to-read LCD display. An additional advantage is the menu in Polish and voice messages also in Polish. The welder has a built-in settings memory, so we can save them and return to them at any time. This solution is helpful for people who have repeatability of cycles and do not want to re-set the welding machine every time. We have 20 memory channels. It will be used in locksmith workshops, repair workshops of assembly works. The SMART MIG 235 model will allow you to combine low-alloy, non-alloy steels, as well as magnesium, aluminum, nickel, copper and their alloys. WELDMAN SMART MIG can also be used for thin sheet metal processing, especially in the automotive industry.

ADDITIONAL FEATURES AND BENEFITS

SPOT WELDING - point joining of elements: ordinary SPOT (we can adjust the break time from 0,1 to 9,9s between welds)

S-2T - two-bar operation mode with hot start, useful when welding materials that require preheating.

S-4T - four-bar operation mode with hot start, useful when welding materials that require preheating.

IGBT - The welding machine uses modern transistors, a solution that provides a minimum of electromagnetic interference small power losses in basic systems, allowing to increase the efficiency and reliability of the power source.

2T/4T - at two bars after pressing the start button, the welding process takes place after releasing the button, the welding process is stopped - at four bars after the first press and release of the button, the welding process stops at the second press. This is a more convenient solution for longer welds.

FULL SYNERGY - this is a modern electronic microprocessor control that automatically selects operating parameters depending on the wire diameter, type and thickness of the material.

SYNERGIC PROGRAMS FOR MIG/MAG WITH PULSE AND MIG/MAG WITH DOUBLE PULSE

Fe CO2 - 0,8-1,0 - MAG welding of carbon steel in CO2 shield (not available in pulse or double pulse welding)

Fe Ar82% - 0,8-1,0 - MAG welding of carbon steel in Ar82%+CO2 18% compound sheath

AlMg5 Ar - 1,0-1,2 - Welding of aluminium alloys with magnesium by MIG method in argon sheath

AlSi5 Ar - 1,0-1,2 - Welding of aluminium alloys with silicon by MIG method in argon sheath

E308 Ar98% - 0,8-1,0 - MIG welding of SS 308 stainless steel in Ar 82%+CO2 2% compound sheath

E316 Ar98% - 0,8-1,0 - MIG welding of SS 316 stainless steel in Ar 98%+CO2 2% compound sheath

POWER SUPPLY PARAMETERS

• Power supply: 230V
• Number of phases: 1ph
• Frequency: 50Hz
• Power protection: 20A

TECHNICAL PARAMETERS OF MIG MAG

• MIG/MAG welding current: 40 ÷ 200A
• MIG/MAG welding voltage: 22 ÷ 24 V
• Efficiency: 60%

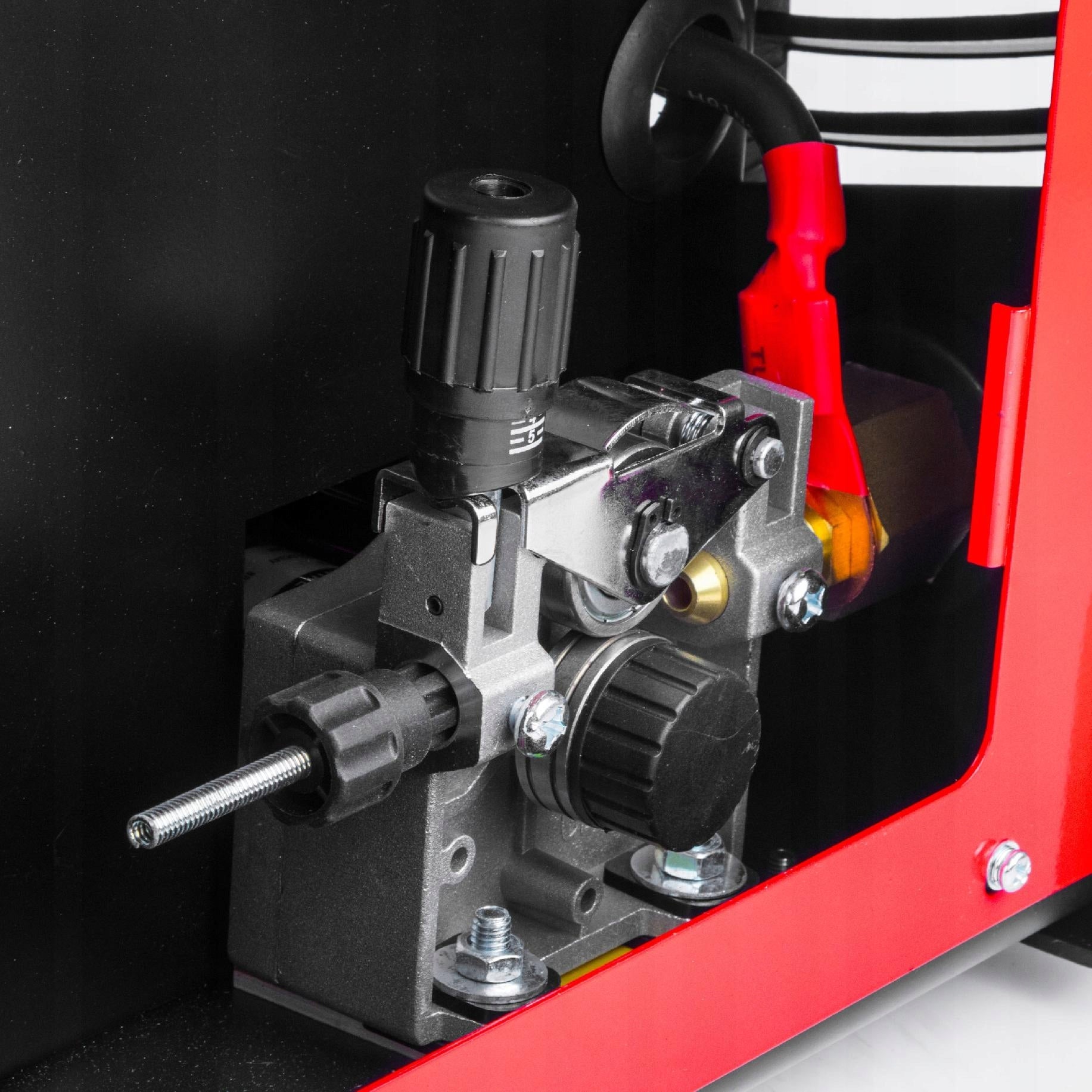

• Feeder: 2R
• Spool diameters with wire: to 200mm
• - Subwoofer Spool size: 5kg
• Wire diameter: 0.8/1.0/1.2 mm

PARAMETERS MMA

• MMA welding current range: 20 ÷ 180A
• Work cycle: 60%
• Diameter of electrode: 1,6-4,0

TIG DC PARAMETERS

• TIG DC welding current: 10 ÷ 180A
• Work cycle: 60%

ADDITIONAL FUNCTIONS

• DOUBLE PULSE: YES
• SINGLE PULSE: YES
• MMA function: YES
• PULSE function: YES
• SYNERGY function: YES
• HOT START function: YES
• ARC FORCE function: YES
• 2T/4T function: YES
• HOT 2T/4T function: YES
• SPOT function: YES
• TIG LIFT function: YES
• VRD function: YES
• Point welding: YES
• Welding without gas: YES

PHYSICAL PARAMETERS

• Housing protection: IP21S
• Cooling: fan
• Weight: 14 kg
• Dimensions: 540x260x450mm

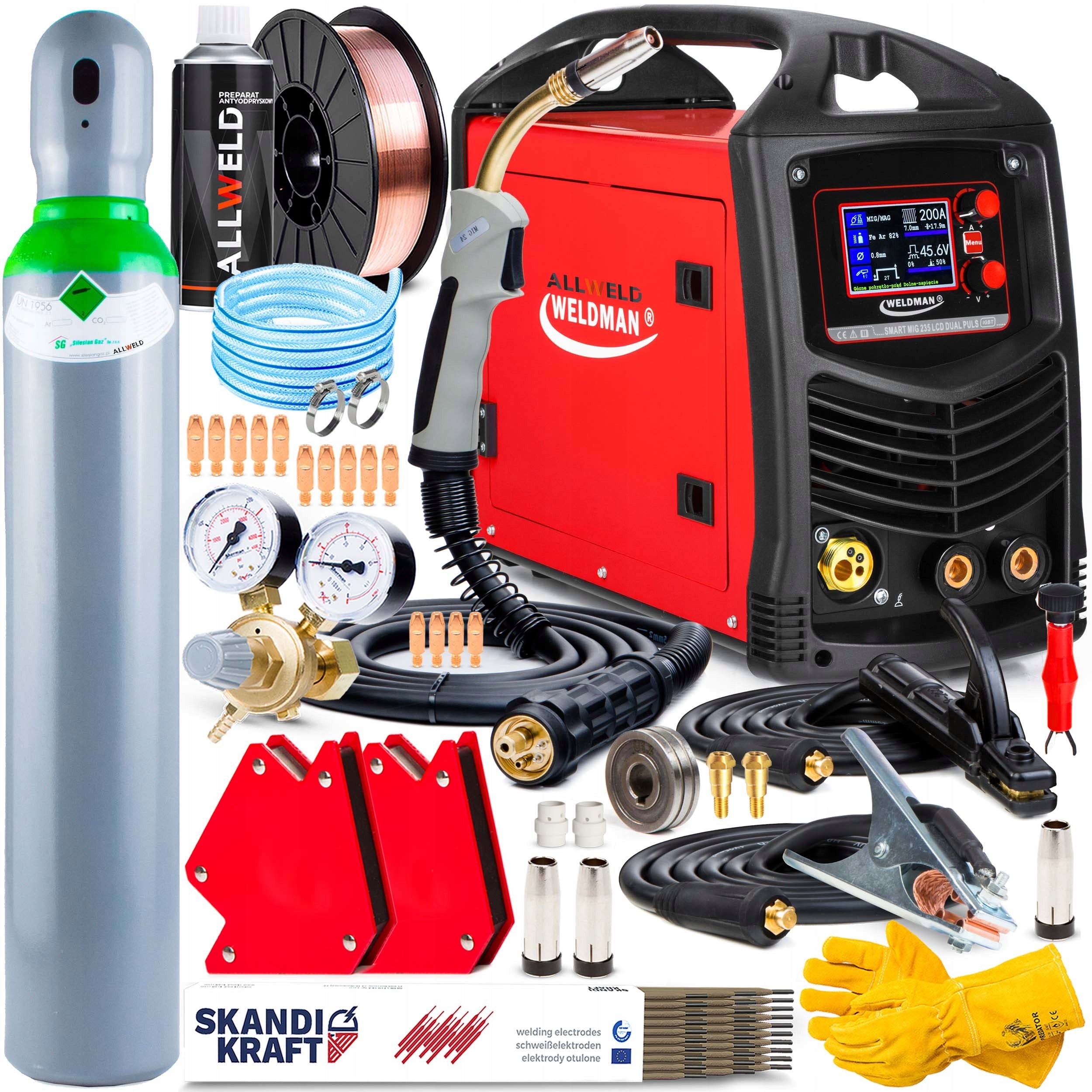

Buying in a set - YOU SAVE MONEY

• Factory new reusable cylinder with Ar (82%) / CO2 (18%) mixture with a capacity of 8l. The cylinders have 10-year-old legalizations and can be filled at any point with technical gases.
• Gas hose - for connecting the reducer to the welding machine.
• Reducer with two pressure gauges - precise reducer with adjustment. Our model has a pressure gauge to control the pressure in the cylinder and a second to the amount of gas flowing out.
• Anti-chipping preparation - protects the nozzle and metal against welding chipping.
• Welding wire SG2 5kg - precision winding
• Clamp ties - 2 pcs.
• Gloves welding - 1 pair
• Scraper for gas nozzles
• Set of MB 15 handle consumable parts (nozzles, connectors, tips, insulators)
• Angles magnetic 11kg - 2 pcs.
• Electrodes SkandiKraft 1kg - 1 pack

NECESSARY SET NEEDED TO START WELDING WORK WITH MIGOMAT.

Welding visor, you can choose yourself by looking at our other auctions or rely on our help!

THE SET INCLUDES:

• Welding machine WELDMAN SMART MIG 235 LCD SYN DUAL PULS
• Welding torch MIG/MAG type MB 24 - 3m
• Electrode holder - 2,5m
• Bulk holder - 2,5m
• Teflon cartridge - 1 pc.
• Aluminium wire feeder roller - 1 pc.
• Steel wire feeder roller - 1 pc.
• Gas nozzle - 1 pc.
• Current terminals - 4 pcs.
• User manual in Polish

ADDITIONAL ACCESSORIES:

• Bottle with gas mixture Argon/CO2
• Reducer cylinder Ar/CO2 MINI with two pressure gauges
• Welding wire SG2 0,8mm - 5kg
• Preparation anti-chipping ALLWELD
• Angle magnetic 11kg - 2 pcs.
• Electrodes SkandiKraft - 1kg
• Flame-retardant gloves for welding
• Gas hose - 2m
• Clamping bands - 2 pcs.
• Scraper for gas nozzles

+HANDLE CONSUMABLE PARTS:

• Gas nozzles - 2 pcs.
• Current connectors - 2 pcs.
• Ends current - 10 pcs.
• Gas distributor - 2 pcs.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Weldman
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	4 mm
Parametry	Device weight	14 kg
Parametry	Product weight with unit packaging	17 kg
Parametry	Manufacturer code	103 134 MAPL-24
Parametry	EAN (GTIN)	5907195561444
Parametry	Packaging status	original
Parametry	Model	SMART MIG 235
Parametry	Welding methods	MIG/MAG,MMA,TIG
Parametry	Additional features	infinitely adjustable welding current,LCD display
