Suvirinimo aparatas Weldman MIG 160 FCAW FLUX pusiau automatinis be dujų

Trumpai apie prekę

Prekė: Suvirinimo aparatas Weldman MIG 160 FCAW FLUX pusiau automatinis be dujų. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Weldman
• Modelis: MINI MIG 160 SYN
• Ilgis: 350 mm
• Plotis: 160 mm
• Aukštis: 280 mm

MANUFACTURER: WELDMAN || WELDING METHODS: FLUX (FCAW), MMA, TIG Lift || SELECTED ADVANTAGES: Welding without gas, Synergy || POWER SUPPLY: 230V 1ph

• Power Supply: 230V
• Welding Methods: FLUX, MMA
• Maximum welding current: 160A
• Working cycle: 60%
• Net weight: 5,6kg
• Degree of protection: IP21
• Idle current voltage 62 V

Welding parameters

• Welding Current: 35 - 160A
• Welding Voltage: 15,5-22V
• Parameter adjustment: smooth
• Wire diameter: 0,8 /0,9/1,0 mm
• Wire spool weight: max. 1kg - D100

Welding parameters TIG LIFT

• TIG LIFT 15A/10.4V-160A/16.4V
• Efficiency (at 40°C) 60%: 160 A
• Efficiency (at 40°C) 100%: 130 A
• Welding Current Voltage:16,4 V

Welding parameters MMA

• Efficiency (at 40°C) 60% 160A
• Efficiency (at 40°C) 100% 130A
• Welding current 160 A
• Welding Current Voltage 26,4 V

+ ADDITIONAL ▶ GAS NOZZLES MB-15 FOR THE BURNER! ◀ and ▶ FLUX WIRE 1KG ◀

▶ Efficient migomat for welding with self-shielding wire, wrapped electrode and tungsten electrode

Semi-automatic welding machine MINI MIG 160 SYN powered by single-phase 230V, made in IGBT technology, has a SYNERGY function, is designed for MIG welding without gas shield (FLUX) wire on a spool of 1 kg sheets with a thickness of max 4 mm.

The power source was built on IGBT transistors providing a minimum of electromagnetic interference, small power losses in basic systems, enabling increased efficiency and reliability of the power source, lower power consumption and rapid adjustment of the current to change parameters during welding.

It can weld with DC electrodes and Tungsten electrodes (TIG DC LIFT).

The device is designed for small welding work in repair workshops, farms, DIY, etc.

ADVANTAGES OF THE DEVICE:

• smooth regulation of welding current,
• synergy function,
• built-in fan - good air circulation,
• electric welding - no need to purchase gas cylinders,
• processes: MIG/MAG, MMA, TIG Lift
• compact dimensions and light weight.

Professional Wire Feeder

Professional 2R feeder - reliable and precise wire feeding, thanks to the use of a professional feeder - ensures smooth wire feeding to the handle and stable welding parameters.

Welding FCAW

The FCAW method is arc welding with core (powder) wire. It is a welding method similar to the MIG/MAG method, except that the wire inside is filled with flux or a chemical that produces protective gases during welding. FCAW welding combines the advantages of both wrapped electrode welding and MAG welding.

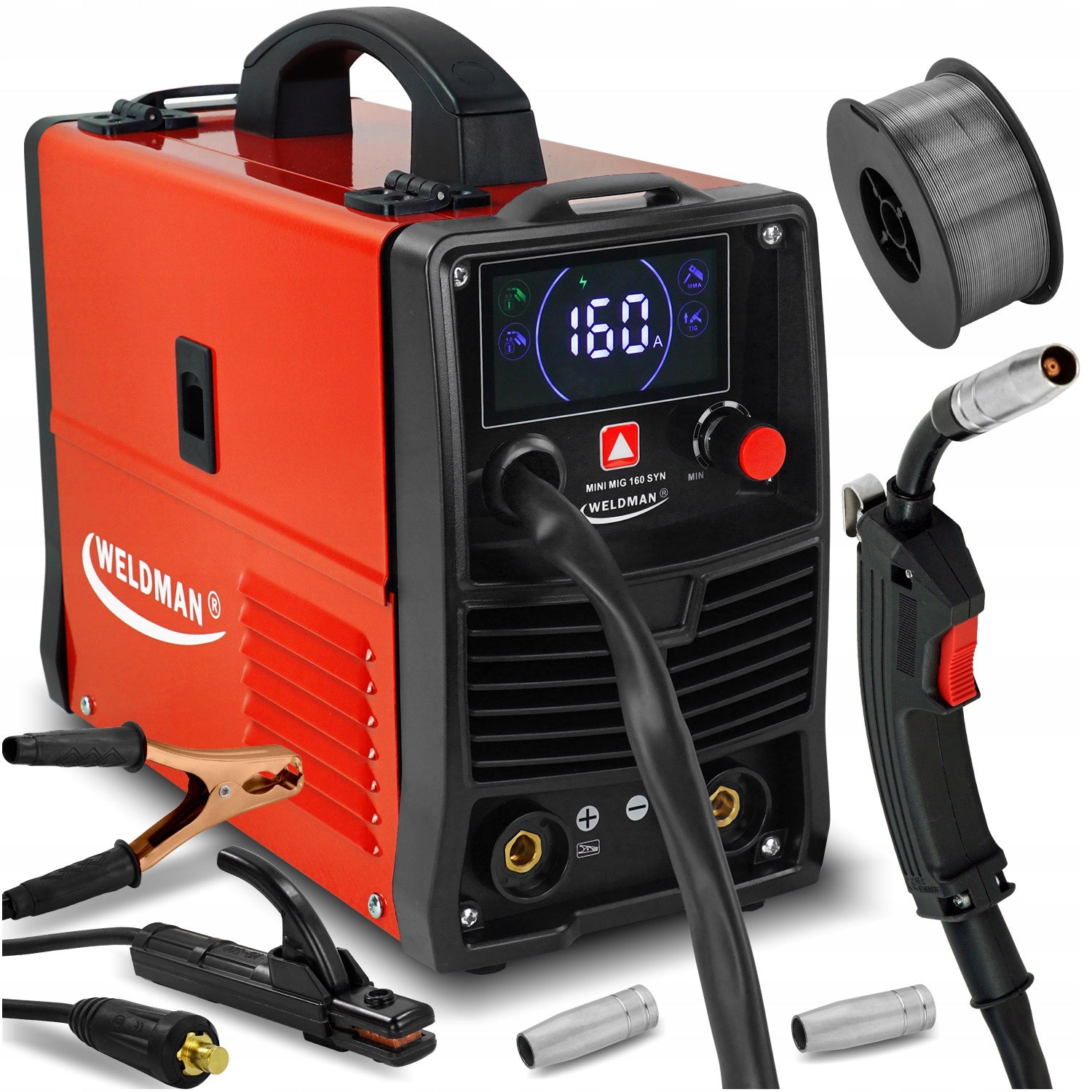

• Device Weldman MINI MIG 160 Synergy
• Welding torch MIG TW-14/2m
• MMA electrode cable
• Mass cable
• User manual in Polish

+ ADDITIONAL ACCESSORIES FOR FREE

• welding disc,
• hammer with brush.

▶ + Gas nozzle for burner - 2pcs ◀

▶ + Welding wire FLUX 0,8mm x 0,9kg – welding without gas ◀
