Suvirinimo aparatas WELDMAN MIDI MIG 220 MMA 230V 220A IGBT aluminium flux

Trumpai apie prekę

Prekė: Suvirinimo aparatas WELDMAN MIDI MIG 220 MMA 230V 220A IGBT aluminium flux. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Weldman
• Modelis: MIDI MIG 220
• Ilgis: 552 mm
• Plotis: 242 mm
• Aukštis: 422 mm

Manufacturer: WELDMAN ║ Welding methods: MIG/MAG, MMA, FLUX ║ Power supply: 230V ║ Welding current: 220A ║ Efficiency: 60% (*at 40°C)

• Welding current MIG/MAG 220A with voltage 25V in 60% cycle at 40°C
• Welding current MMA 200A with voltage 24,4V in 60% cycle at 40°C
• Device powered by 230V
• Continuous operation with current 170A (MIG/MAG) i 120A (MMA)
• Welding by MIG/MAG (gas shielded), MMA DC and FLUX (without gas shield)
• Device in inverter technology IGBT
• MMA method for welding carbon steels, alloy steels, stainless steels and aluminium
• MIG/MAG method for welding aluminium, cast iron, low alloy steel (MAG), low carbon steel and alloy steel (MIG)

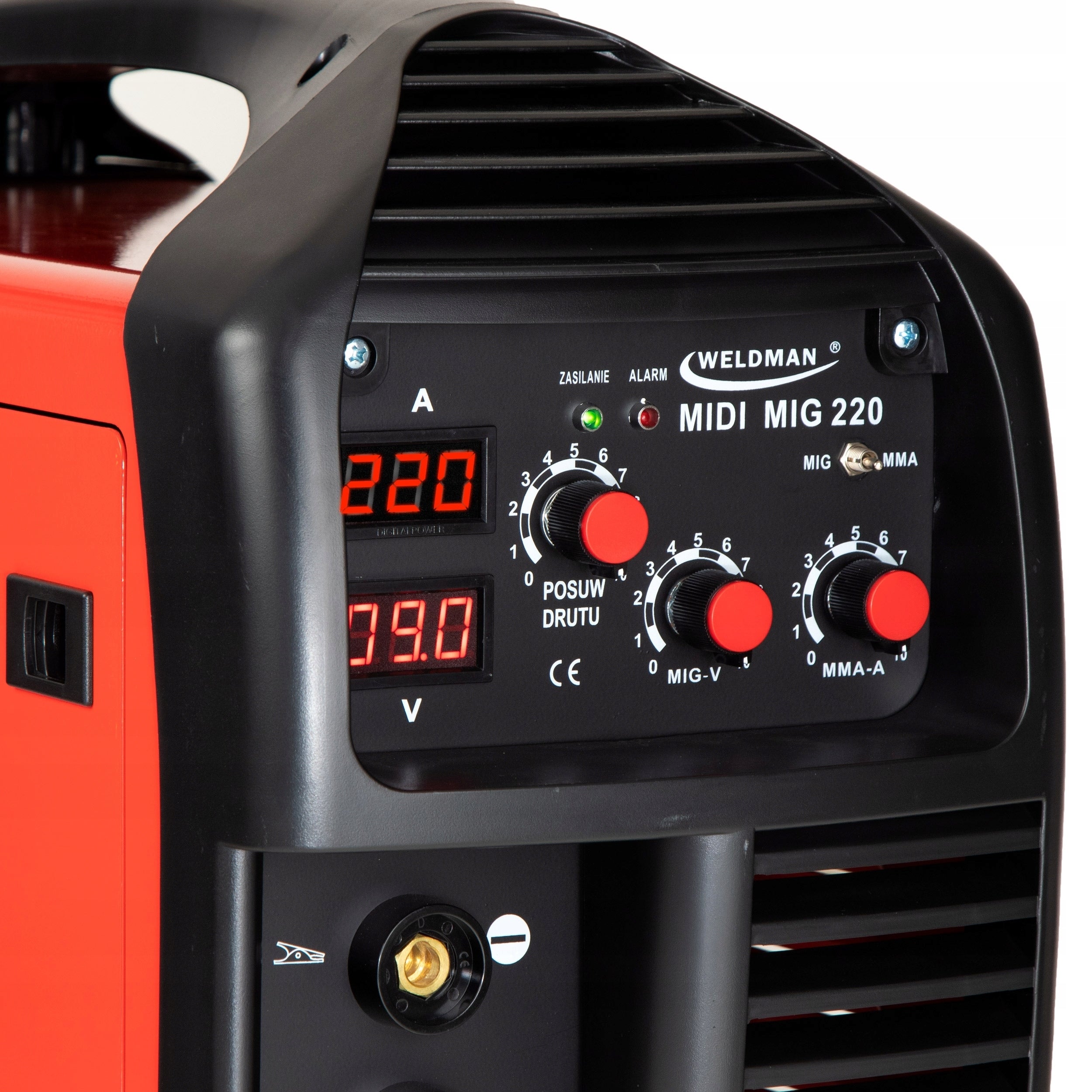

• Convenient front control panel for easy and quick setting of parameters - 3 knobs and one switch
• Welding machine designed for home and workshop users, professionals and amateurs
• Efficient cooling with fan for high efficiency
• Built-in protection against overheating together with a high temperature signaling diode ensure safe work
• The device supports spool D200 up to 5KG

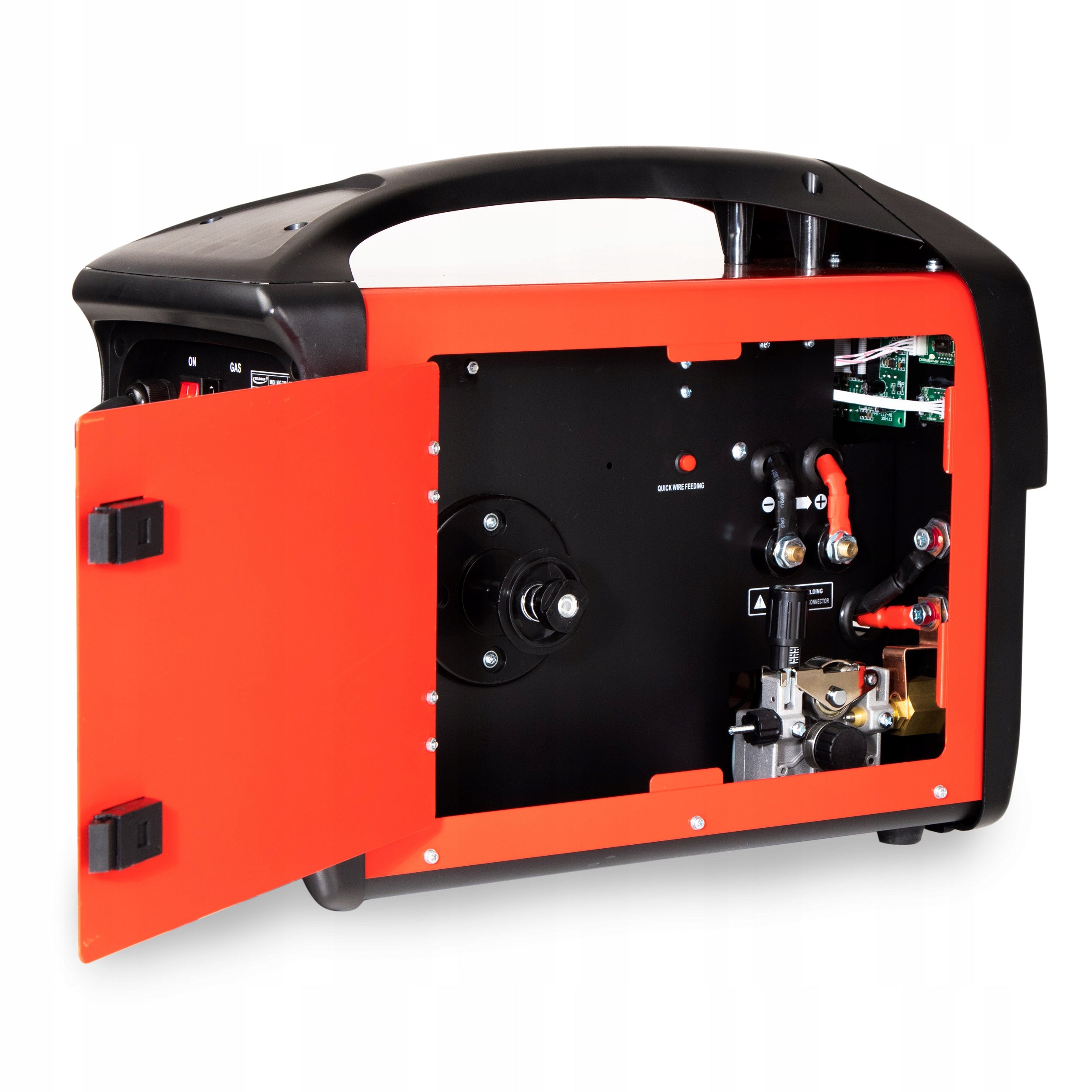

• Solid 2-roll wire feeder for smooth operation
• EURO connector for quick replacement
• Easy-to-use control panel in Polish
• fast wire extension button and smooth welding adjustment

MIDI MIG 220 welding machine is a device used for efficient operation using the MIG/MAG and MMA method with single-phase power supply, made in IGBT technology, which significantly reduces the size of the device and improves its efficiency. The product is great for welding using the FLUX method (without gas shield), which makes it easier to work wherever there is no space for a cylinder. Most semi-automatics of this class and at this price do not exceed the maximum operating current of 200A, thanks to which MIDI MIG 220 is a device presenting excellent price-quality ratio and offered parameters.

FOR PROFESSIONALS AND AMATEURS

The semi-automatic welding machine MIDI MIG 220 has been designed for welding with self-shielded wires 0,9 mm, welding wires with a diameter of 0,6-1,0 mm, as well as electrodes wrapped with a diameter of up to 4 mm. The Midi Mig 220 welder was created for work taking place both in the workshop and in the field, while at the same time belonging to the group of products that are effective in their operations and very durable.

The Midi Mig 220 semi-automatic welding machine is one of the best solutions in terms of performance and reliability.

POWER SUPPLY PARAMETERS

• Power supply: 230V
• Number of phases: 1ph
• Frequency: 50Hz
• Power protection: 25A

TECHNICAL PARAMETERS

• MIG/MAG welding current: 50 ÷ 220A
• MIG/MAG welding voltage: 16,5 ÷ 25 V
• Idle voltage: 56 V
• Efficiency: 60%
• Feeder: 2R - professional
• Spool diameters with wire: 100, 200mm
• Max. Spool size: 5kg
• Wire diameter: 0.6/0.8/0,9/1.0 mm

ADDITIONAL FUNCTIONS

• Welding MIG MAG: Yes
• Welding MMA: Yes
• Welding without gas: Yes
• Built-in fan: Yes

PHYSICAL PARAMETERS

• Housing protection: IP21
• Cooling: fan
• Dimensions: 550x240x420mm
• Weight: 14kg

IGBT - the welding machine uses modern transistors, a solution that provides a minimum of electromagnetic interference small power losses in basic systems, allowing to increase the efficiency and reliability of the power source.

SWITCH OVERLOAD -built-in protection against overheating of the device, prolonging its service life.

FLUX - arc welding with powder wire, not requiring the use of gas cylinders. The wire itself is filled with flux or a chemical that produces protective gases during welding.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Weldman
Parametry	Power consumption	6.9 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	4 mm
Parametry	Wire diameter (mm)	0,6-1,0
Parametry	Device weight	22 kg
Parametry	Welding range	50–220 A
Parametry	Height	422 mm
Parametry	Length	552 mm
Parametry	Width	242 mm
Parametry	Length of ground cable	200 cm
Parametry	Welding cable length	300 cm
Parametry	Product weight with unit packaging	25 kg
Parametry	Manufacturer code	103 111 #ZESTAW2AK
Parametry	EAN (GTIN)	5905214997601
Parametry	Model	MIDI MIG 220
Parametry	Welding methods	MIG/MAG,MMA
Parametry	Additional features	welding mask included,infinitely adjustable welding current,EURO handle
