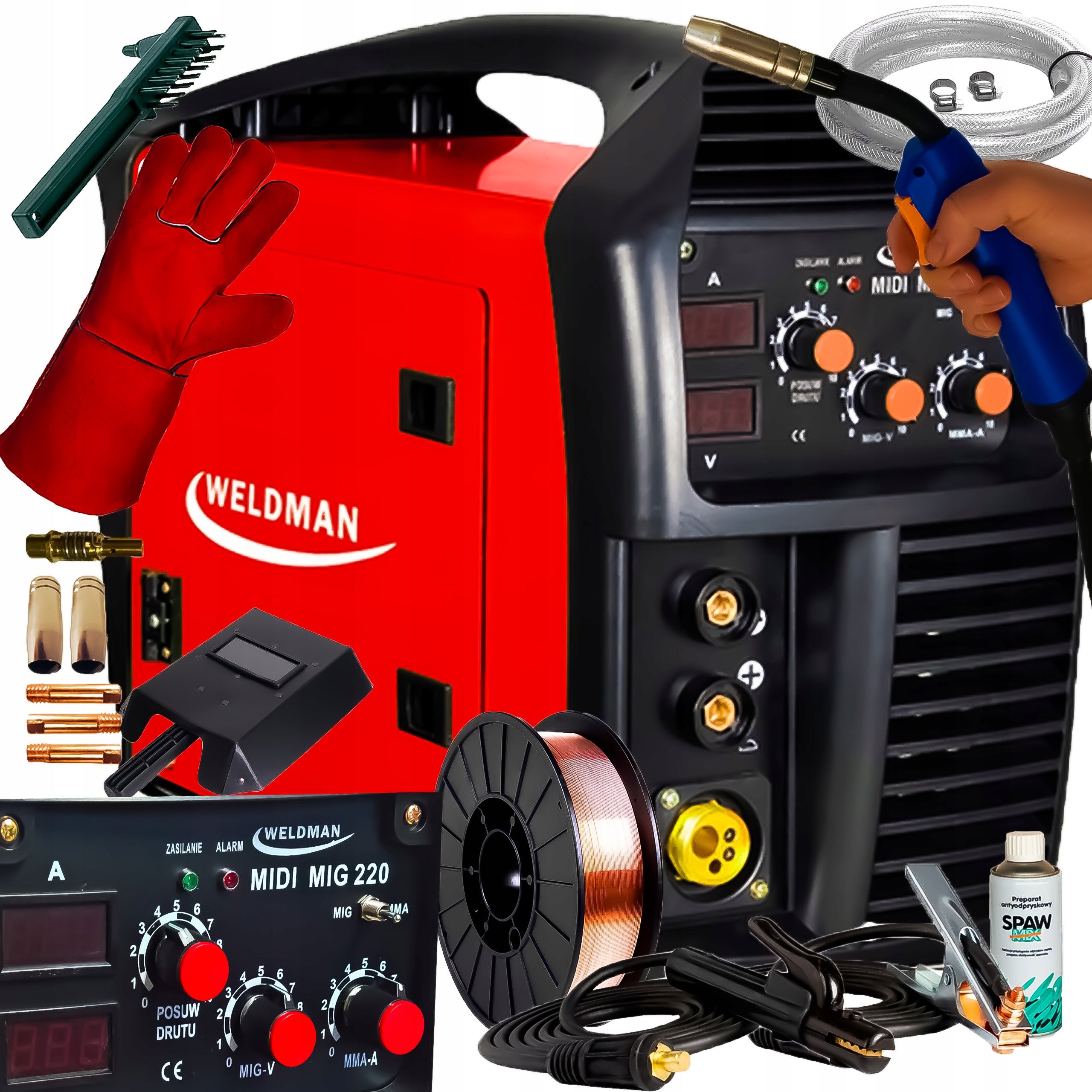

Suvirinimo aparatas Weldman MIDI MIG 220 220A MMA TIG 3in1

Trumpai apie prekę

Prekė: Suvirinimo aparatas Weldman MIDI MIG 220 220A MMA TIG 3in1. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Weldman
• Modelis: 103 109 MAMP-15-T
• Ilgis: 523 mm
• Plotis: 223 mm
• Aukštis: 403 mm

MIG/MAG, MMA | Power supply: 230V | Maximum welding current: 220A | EURO socket | MIG holder 4m | Manufacturer: Weldman

• full free support after purchase
• You can call us at any time and we will help you set the parameters and operate the device

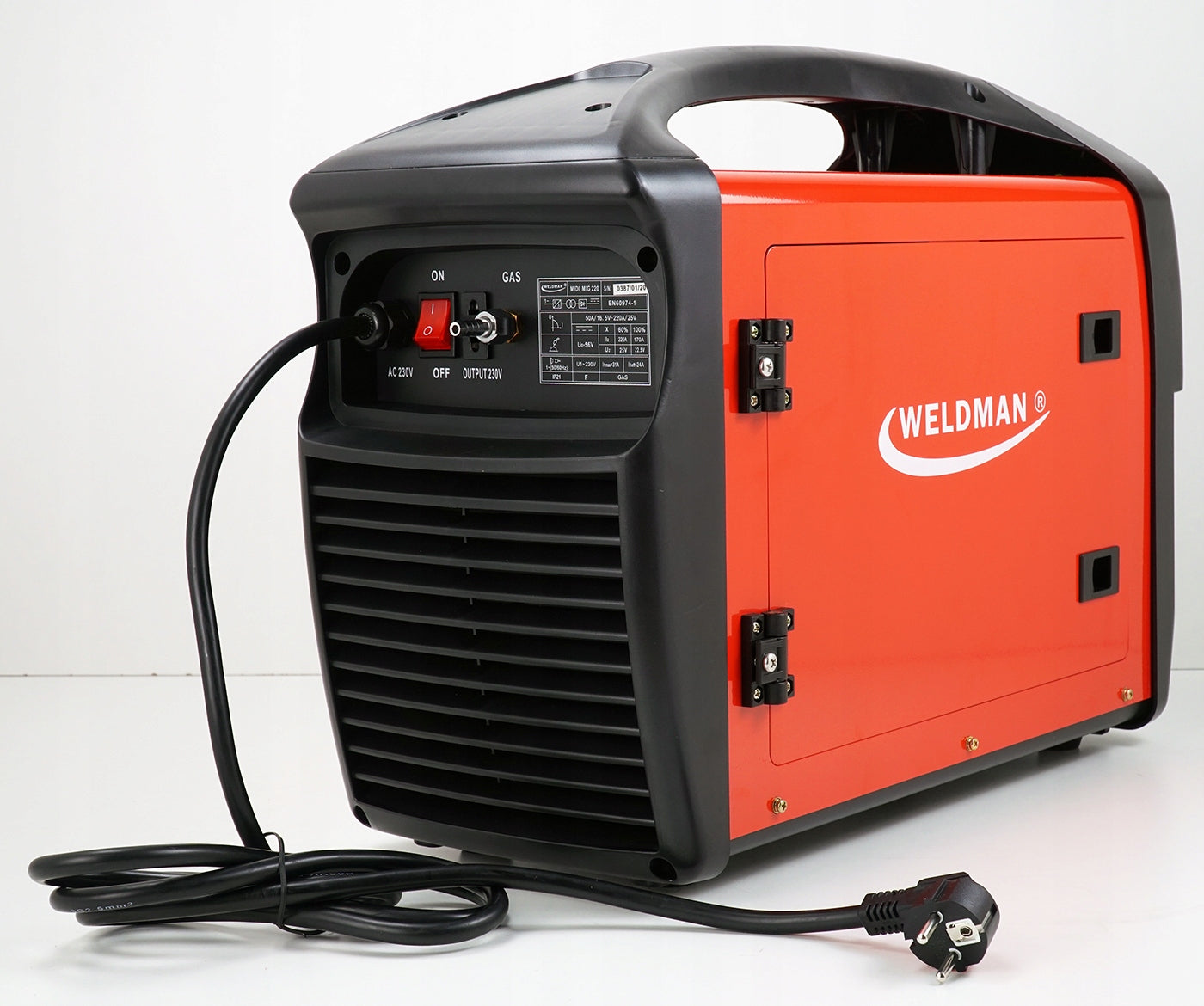

Weldman MIDI MIG 220 - migomat and MMA welding machine in one device.

The Weldman MIDI MIG 220 welder is addressed to both home and workshop users. This is one of the most frequently chosen models - characteristic for this device are good parameters and low failure rate. More details in the description.

IMPROVED MODEL:

• additional function of self-shielding wire welding (FCAW,FLUX),
• MIG MB15 handle with a length of 4m included!

Good MIGOMAT for small spool and 230V power supply - learn about the advantages of inverter technology

Weldman MIDI MIG 220 is a good migomat based on inverter technology. IGBT components were used for the production of this model. This semi-automatic machine is relatively small in size, and a secure handle allows you to move the welding machine freely from place A to place B.

Due to the fact that this welding machine also has an MMA welding function, MIDI MIG can be used both during semi-automatic MIG/MAG welding in the production of steel structures and during minor renovation works.

Why choose this model:

• Modern electronics inside - good welding parameters.
• 2in1 device - MIG/MAG welding, MMA
• Good product at an affordable price
• Maximum welding current 220A for MIG/MAG and MMA welding
• Power supply 230V

WELDMAN MIDI MIG 220 ENABLES WELDING BY:

• MIG/MAG - welding with a hot melt electrode (in the form of wire wound on a spool) in a gas shield. It is a popular welding process that is characterized by high efficiency and good quality of the welded joint. Semi-automatic MIG/MAG welding is one of the most popular methods both in workshop conditions as well as in high-performance production. This method is also relatively easy to learn by novice users.
• FCAW (FLUX) - a popular variant of the MAG method - semi-automatic welding with a hot melt electrode (welding wire on a spool). The main difference is that it is welded with a special self-shielding wire, which does not require the use of shielding gas. Simplifying, we can say that this method combines two processes: MAG welding and MMA electrode welding.
• MMA - the oldest variety of arc welding - the so-called. welding with a wrapped electrode. This is probably the best known and widespread welding method. The type and diameter of the wrapped electrode is selected depending on the type of material being welded.

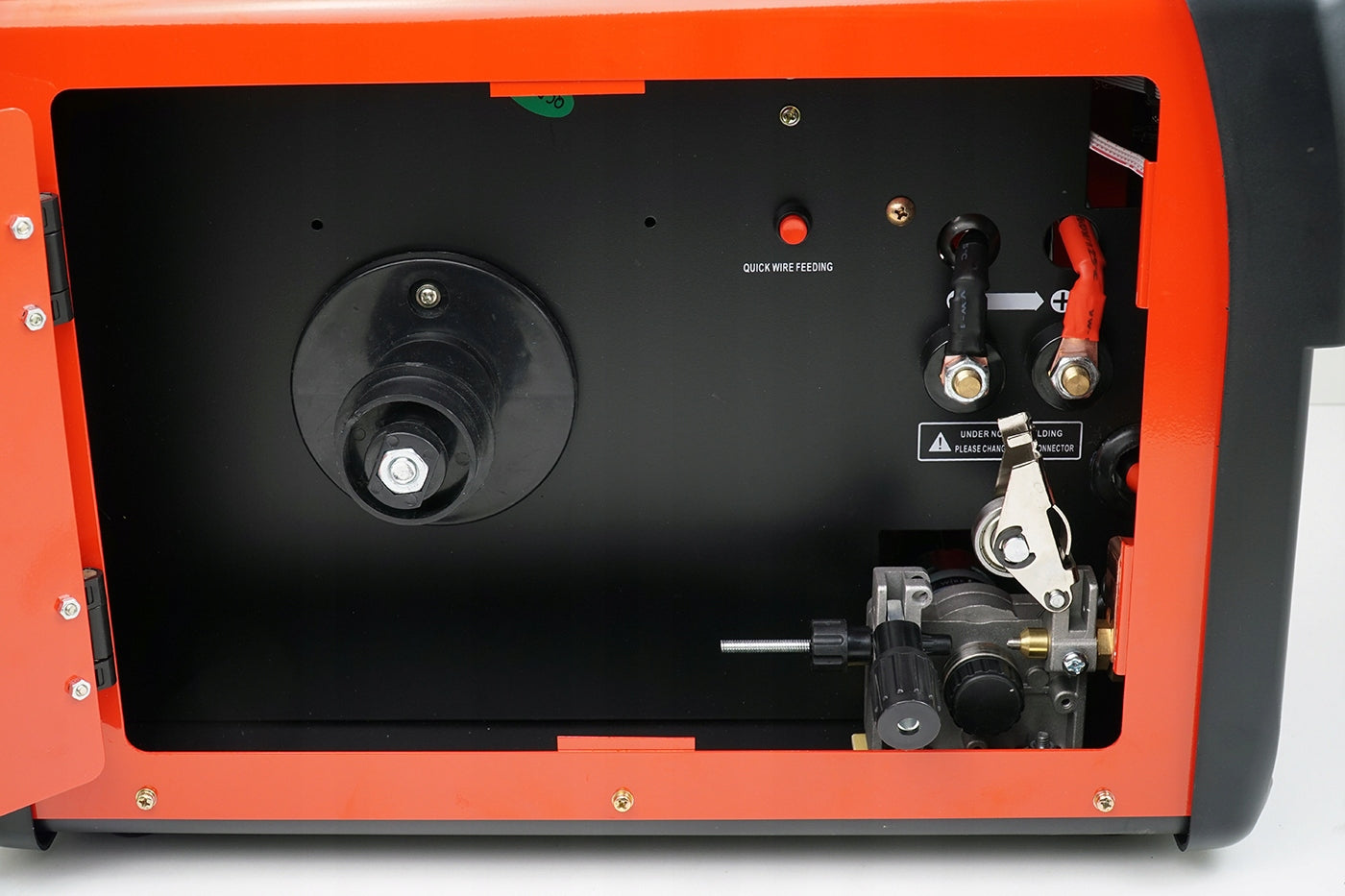

PROFESSIONAL WIRE FEEDER

Professional 2R feeder - reliable wire feeding, thanks to the use of a professional feeder.

CHANGE IN WELDING POLARITY (NEW)

The new, improved Weldman MIDI MIG 220 now has the ability to change the polarity of MIG/MAG welding. Thanks to this, it can be welded using self-shielding wire - without the need for shielding gas.

• Supply Voltage: Single Phase 230V
• Technology: IGBT Inverter
• Network Security Requirement: 25A
• Degree of protection: IP 21
• Weight 19,0kg

MIG/MAG welding parameters:

• Welding Current: 50 - 220A
• MIG/MAG duty cycle: 60% 220A / 100% 170A
• MIG/MAG welding voltage: smooth adjustment
• Wire feed speed: 2,5 - 13 m/min
• Spool with wire: max 5kg (D200)
• Wire diameter: 0,6/0,8/0,9/1,0 mm
• Change in MIG/MAG welding polarity

MMA welding parameters:

• Welding Current: 20 - 180A
• Electrode diameter: 1,6 / 2,0 / 3,2 / 4,0
• MMA Welding Current Adjustment: Smooth
• Idle Current Voltage: 56V

• Weldman Midi Mig 220 user manual
• Welding torch MIG EURO 4M
• MMA electrode holder
• Mass cable
• User manual PL
• Welding wire 0,8/5kg
• Anti-chipping preparation
• Welding gloves
• Consumable parts for MIG holder
• gas line

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Weldman
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	4 mm
Parametry	Wire diameter (mm)	0,6-1,0
Parametry	Device weight	13 kg
Parametry	Welding range	40–220 A
Parametry	Height	403 mm
Parametry	Length	523 mm
Parametry	Width	223 mm
Parametry	Length of ground cable	200 cm
Parametry	Welding cable length	300 cm
Parametry	Product weight with unit packaging	15 kg
Parametry	Manufacturer code	103 109 MAMP-15-T
Parametry	EAN (GTIN)	5905214998196
Parametry	Welding methods	MIG/MAG,MMA,TIG
Parametry	Additional features	welding mask included,infinitely adjustable welding current,EURO handle
