Trumpai apie prekę

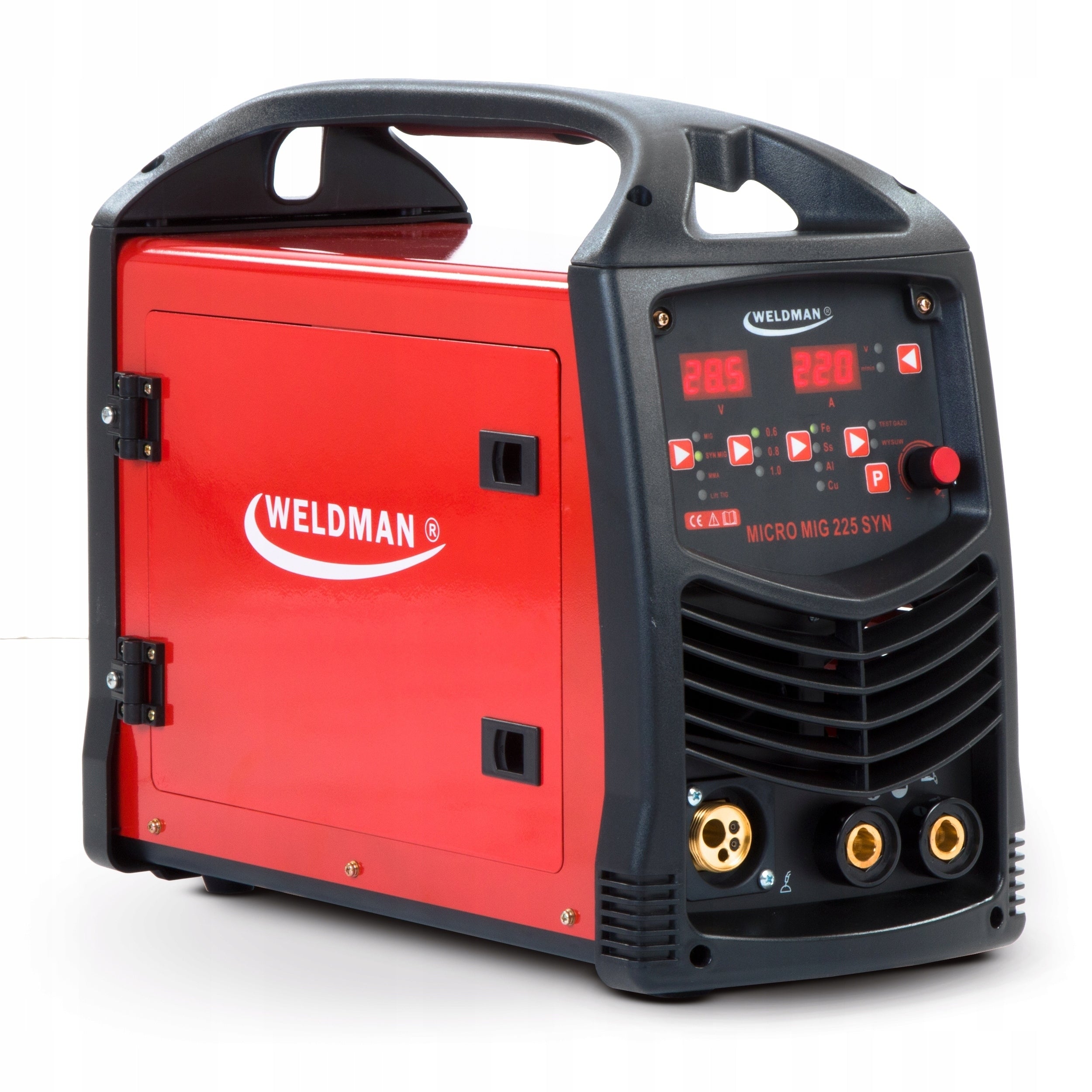

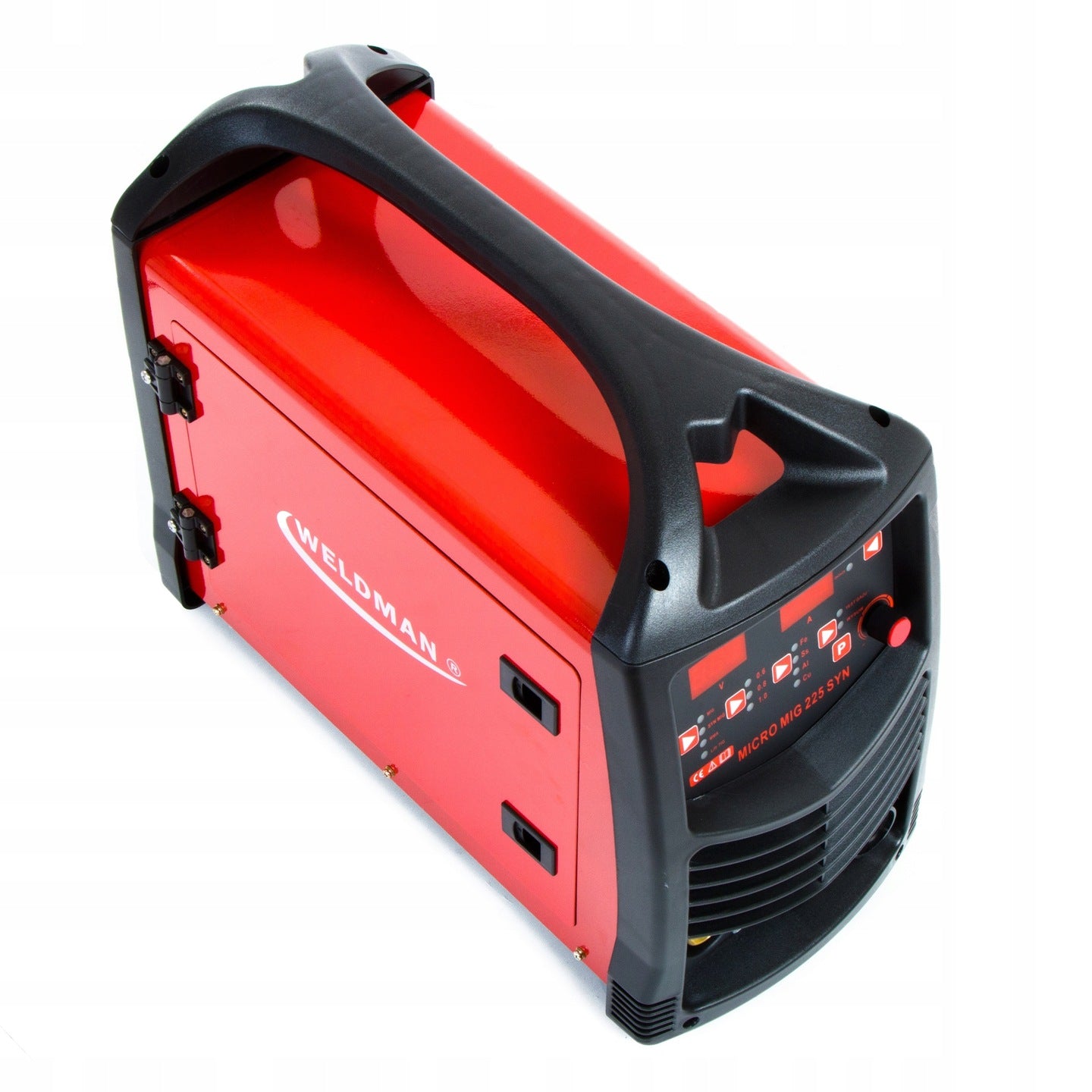

Prekė: Suvirinimo aparatas WELDMAN MICRO MIG 225 SYNERGY MMA/TIG, 220A, 230V, 3in1. Kategorija: Pusiau automatiniai suvirinimo aparatai.
- Gamintojas: Weldman
- Modelis: 103 107 ZESTAW
- Ilgis: 521 mm
- Plotis: 241 mm
- Aukštis: 431 mm
Manufacturer: WELDMAN ║ Welding methods: MIG/MAG, MMA, TIG LIFT ║ Power supply: 230V ║ Welding current: 220A ║ Efficiency: 60% ║ Weight: 15kg
FEATURES OF THE DEVICE:
- Large duty cycle 60% at 220A current
- TIG handle included!
- Simple setting of the welding machine
- Modern welding machine - IGBT transistors
- Built-in programs for: STEEL, ALUMINUM, INOX and SOLDERING CuSi
- Inductance regulation - LUTOWELDING of galvanized sheets
- Wide applications
- Lower energy consumption
- Optimal sizes and weight
- Proven manufacturer
- Handle for easy transport
- The multifunctional knob and universal buttons make it easy to set up.
- Feeder 2R
- Burnback
- Overload switch
WELDMAN MICRO MIG is a welding machine made in IGBT inverter technology. This results in lower electricity consumption, greater resistance to interference, voltage drops, but also trouble-free operation. The use of IGBT technology guarantees rapid adjustment of the current to changes in parameters during welding. The welder has easy control via the multifunctional knob and dedicated buttons. Each of them is responsible for a different parameter and allows you to set the welding machine very precisely. After choosing the welding method and thickness of the wire used, we indicate what material we weld, and the welding machine will select the rest automatically. With the knob, we adjust the wire feed speed and voltage, which adjust automatically between each other. Thanks to this solution, you can weld any material very precisely, without unnecessary waste of time on the selection of appropriate settings.
POWER SUPPLY PARAMETERS
- Power supply: 230V
- Number of phases: 1PH
- Frequency: 50Hz
TECHNICAL PARAMETERS
- MIG/MAG welding current: 10-220A
- Welding current MMA, TIG: 170A
- Efficiency: 60%
- Idle voltage: 62V
- SYNERGY: YES - STEEL, ALUMINIUM, INOX, SOLDERING
- Feeder: 2R - professional
- Applied spool weights: 1-5kg
- Spool size: D100/D200
- Wire diameter: 0.6/0.8/1.0/1.2mm
OTHER PARAMETERS
- Housing protection: IP21S
- Cooling: fan
- Weight: 15kg
- Dimensions: 520x240x430mm
PROFESSIONAL FEEDER 2R - professional feeder with a powerful motor that will ensure stable wire feeding without jams.
BURNBACK - regulation of the burning time of the end of the welding wire allows to eliminate the risk of welding wire sticking to the current tip.
FLUX - arc welding with powder wire, not requiring the use of gas cylinders. We use self-shielding wire, which is filled with flux or chemical substance producing protective gases during welding
LUTOSPELING - a process by which you can freely connect galvanized sheets, which are often used in car bodies. The main advantage is the maintenance of a protective zinc coating at the solder-zinc interface.
OVERLOAD SWITCH - built-in protection against overheating of the device, prolonging its service life.
IGBT - the welding machine uses modern transistors, a solution that provides a minimum of electromagnetic interference small power losses in basic systems, enabling increased efficiency and reliability.

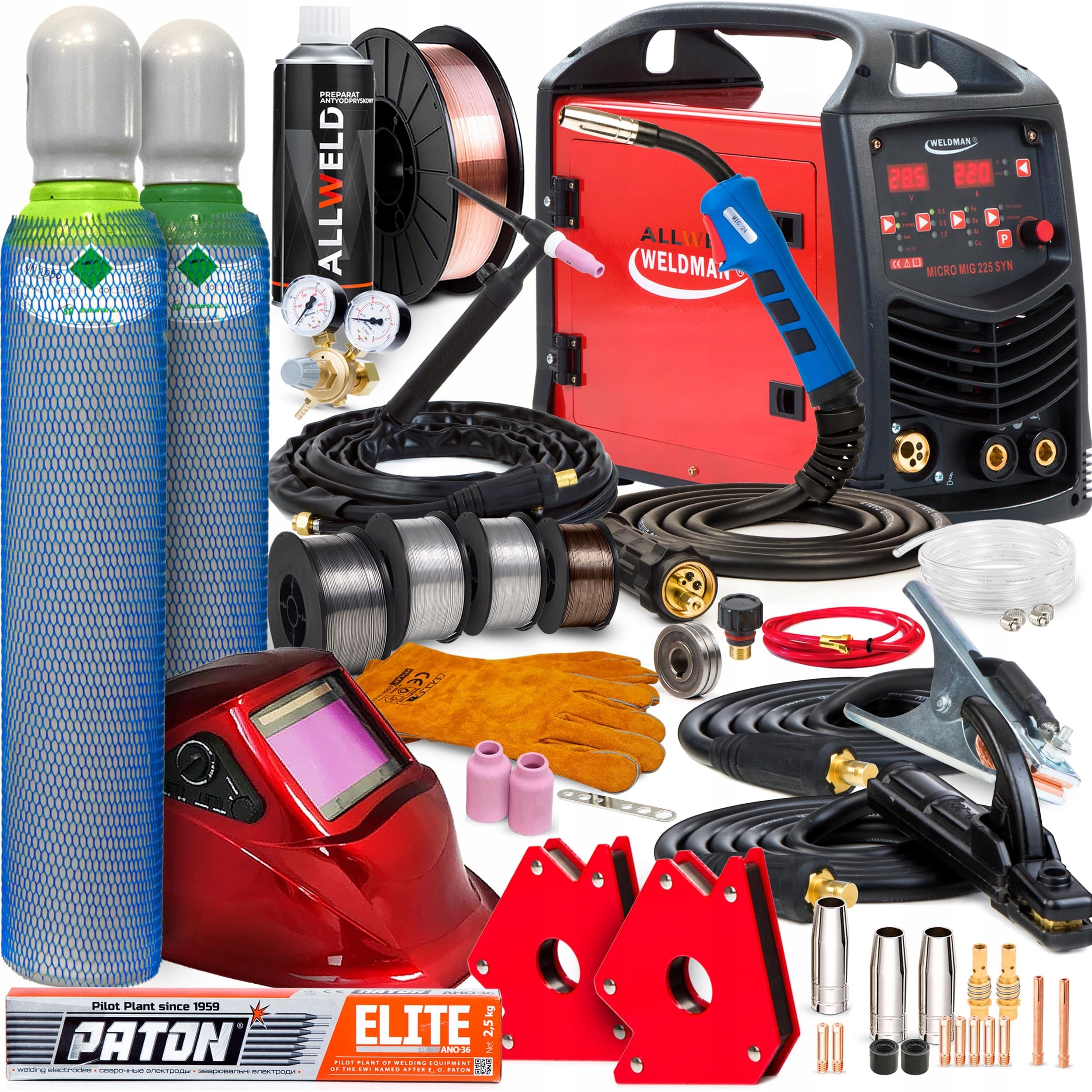

COMPOSITION OF THE SET:
- Self-tinting visor MAGNUM TURBO - a safe mask with an enlarged field of view of 100x60mm, 4 sensors and a reaction time of 1/30 000s so that you do not illuminate your eyes. Colours to choose from: black, blue, red, silver.
- Factory new reusable cylinder with Ar(82%)/CO2(18%) mixture with a capacity of 8l. The cylinders have 10-year-old legalizations and can be filled at any point with technical gases.
- Factory new reusable cylinder with 8l argon. The cylinders have 10-year-old legalizations and can be filled at any point with technical gases.
- Reducer with two pressure gauges - precise reducer with adjustment. Our model has a pressure gauge to control the pressure in the cylinder and a second to the amount of gas flowing out.
- Welding wire AlMg - 0,45kg
- AlSi welding wire - 0,45kg
- Welding wire 308LSI - 1kg
- Welding wire CUSI3 - 1kg
- Wire welding SG2 5kg - precision winding
- Angles magnetic 22kg - 2pcs
- Gloves welding - 1 pair
- Anti-chipping preparation - protects the nozzle and metal against welding chipping.
- Electrodes PATON - 1kg
- Clamping bands - 2pcs
- Gas hose - for connecting the reducer to the welding machine
- Set of MB15 handle consumable parts (nozzles, connectors, tips, insulators)
THE SET INCLUDES:
- Semi-automatic welding machine WELDMAN MICRO MIG 225
- Welding torch MB 15 - 3m
- Welding torch TIG with valve - 4m
- Electrode holder - 2m
- Bulk holder - 2m
- User manual in Polish
+ WELDING ACCESSORIES:
- Welding visor MAGNUM TURBO
- Cylinder with gas mixture Argon/CO2
- Cylinder with Argon - 8l
- Teflon insert for aluminium wire - 1pcs
- Roll for feeder for ALUMINIUM - 1pcs
- Cylinder reducer Ar/CO2 MINI with two pressure gauges
- Welding wire AlMg5 - 0,45kg
- Welding wire AlSi5 - 0,45kg
- Welding wire 308LSI - 1kg
- Welding wire CUSI3 - 1kg
- Welding wire SG2 - 5kg
- Magnetic angles 22kg - 2pcs
- Welding gloves - 1 pair
- Anti-chipping preparation ALLWELD
- Electrodes PATON - 1kg
- Clamp bands - 2pcs
- Gas connection hose - 1 pc
+HANDLE CONSUMABLE PARTS:
- Gas nozzles - 2 pcs
- Current switches with spring - 2 pcs
- Current terminals - 5 pcs
- Burner insulators - 2 pcs
PLEASE INFORM US IN THE ORDER NOTES ABOUT THE COLOR OF THE VISOR WHICH YOU WYBIERAJĄ.W IN THE ABSENCE OF INFORMATION WE SEND RANDOMLY THE VISOR.
IN THE ABSENCE OF THE VISOR COLOR CHOSEN BY YOU, WE RESERVE THE RIGHT TO SEND THE CURRENTLY AVAILABLE VERSION.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Weldman |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 60% |
| Parametry | Maximum electrode diameter | 4 mm |
| Parametry | Wire diameter (mm) | 0,8-1,2 |
| Parametry | Device weight | 16 kg |
| Parametry | Welding range | 10–220 A |
| Parametry | Height | 431 mm |
| Parametry | Length | 521 mm |
| Parametry | Width | 241 mm |
| Parametry | Length of ground cable | 200 cm |
| Parametry | Welding cable length | 300 cm |
| Parametry | Product weight with unit packaging | 18 kg |
| Parametry | Manufacturer code | 103 107 ZESTAW |
| Parametry | EAN (GTIN) | 5907195561574 |
| Parametry | Packaging status | original |
| Parametry | Welding methods | MIG/MAG,MMA,TIG |
| Parametry | Additional features | welding mask included,infinitely adjustable welding current,EURO handle,LCD display |
