Trumpai apie prekę

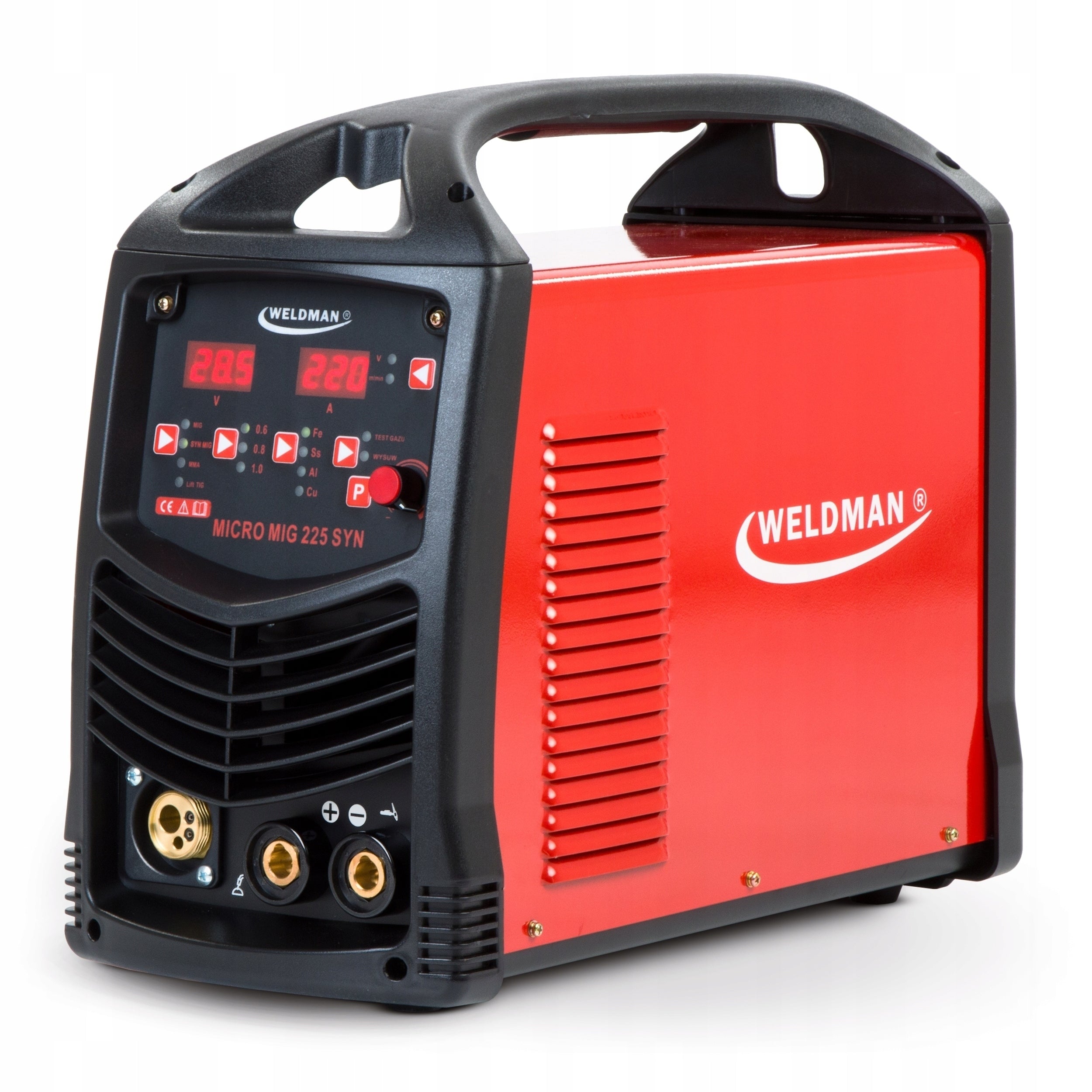

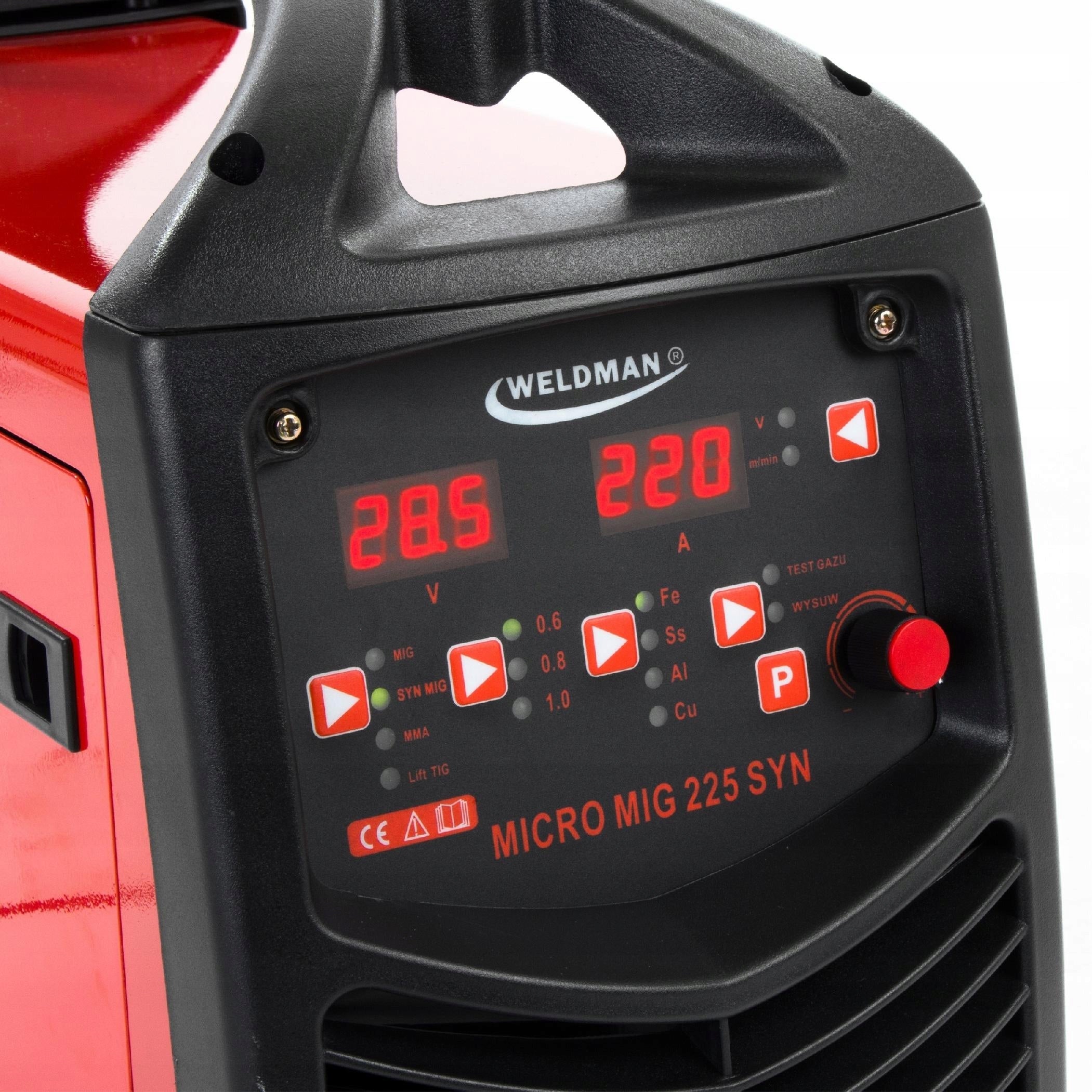

Prekė: Suvirinimo aparatas WELDMAN MICRO MIG 225 SYN 230V 220A MMA TIG. Kategorija: Pusiau automatiniai suvirinimo aparatai.
- Gamintojas: Weldman
- Modelis: MICRO MIG 225 SYN
- Ilgis: 520 mm
- Plotis: 240 mm
- Aukštis: 430 mm
- Welding methods: MIG/MAG, MMA, TIG LIFT, SYNERGY, SOLDERING
- Power supply: 230V
- Operating cycle 60% at maximum welding current 220A
- Synergistic programs for: steel, aluminium, INOX and lutowelding
- Professional metal 2-roll wire feeder
- BURN BACK function
- Overload switch
- Cooling with fan
- Clean, aesthetic welds
- Made in IGBT technology
AUTOMATIC ADJUSTMENT OF SETTINGS
The Synergy function ensures automatic selection of welding parameters, which significantly facilitates work and reduces the time of device configuration. In addition, smooth adjustment allows for precise adjustment of parameters to the user's needs, guaranteeing high quality of welds regardless of the type and thickness of the material.
SCARY ARC GLOW
TIG LIFT is a method of arc welding, consisting in rubbing the tungsten electrode against the material, which allows non-contact welding. It is particularly useful in places where there is a risk of interference in devices sensitive to high-frequency current.
✔ FEATURES AND ADVANTAGES:
- LUTOSPELING - a method that uses less energy; for joining thin galvanized sheets, stainless steels, and various connections,
- BURN BACK - does not allow the electrode wire to be melted to the current tip,
- OVERLOAD SWITCH - protects against overvoltage, cutting off power to protect the network and device from damage,
- IGBT- bipolar transistors increase the efficiency and reliability of the device, ensure lower power consumption.
⚙ TECHNICAL SPECIFICATION:
- Power Supply: 230V 50Hz 1ph
- Network security: 20A
- Welding current: MIG/MAG: 40 - 220A | TIG: 10 - 220A | MMA: 20 - 200A
- Max. power supply: MIG: 27A | TIG: 20.5A | MMA: 31A
- Power supply current effective: MIG: 21A | TIG: 16A | MMA: 24A
- Idle voltage: 62V
- Wire diameter: 0.6 / 0.8 / 0.9 / 1.0 / 1.2 mm
- Spool with wire: up to 5kg; up to 200mm
- Diameter of electrode: 1.6 - 4.0 mm
- Protection rating: IP21S "F"
- Dimensions: 50 x 24 x 43 cm
- Weight: 14.5kg

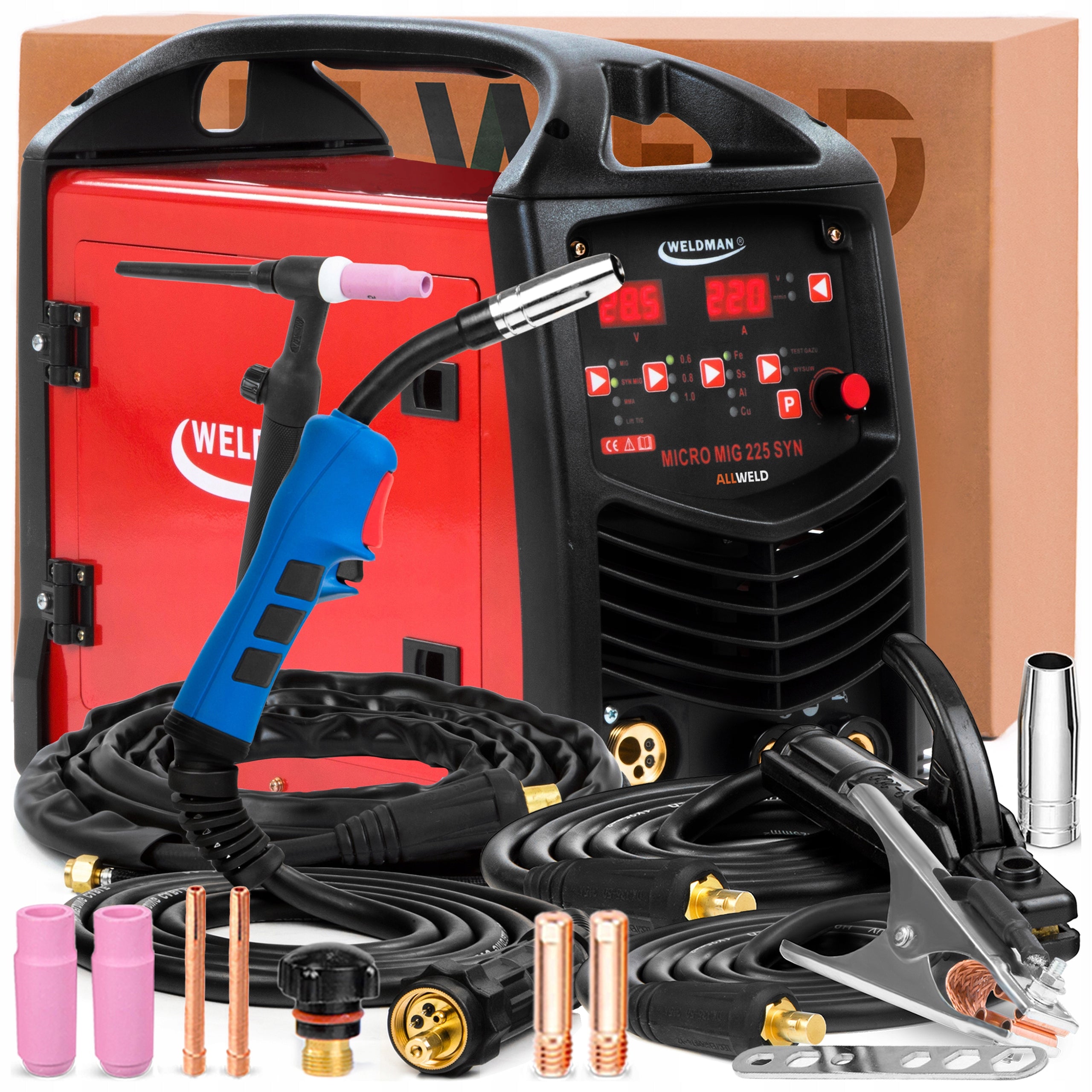

THE SET INCLUDES:
- Welding machine WELDMAN MICRO MIG 225,
- Welding torch MIG/MAG type MB 15 - 3m,
- Welding torch TIG with valve - 4m,
- mass handle - 2m,
- electrode handle - 2m,
- Gas connection - 1pcs ,
- Operating parts TIG and MIG handle
- User manual in Polish.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Weldman |
| Parametry | Power consumption | 6.8 kVA |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 60% |
| Parametry | Maximum electrode diameter | 4 mm |
| Parametry | Wire diameter (mm) | 0,8-1,2 |
| Parametry | Device weight | 15 kg |
| Parametry | Welding range | 10–220 A |
| Parametry | Height | 430 mm |
| Parametry | Length | 520 mm |
| Parametry | Width | 240 mm |
| Parametry | Length of ground cable | 200 cm |
| Parametry | Welding cable length | 300 cm |
| Parametry | Manufacturer code | Micro MIG 225 SYN |
| Parametry | EAN (GTIN) | 5902701751012 |
| Parametry | Packaging status | original |
| Parametry | Model | MICRO MIG 225 SYN |
| Parametry | Welding methods | MIG/MAG,MMA,TIG |
| Parametry | Additional features | infinitely adjustable welding current,EURO handle,LCD display |
