Suvirinimo aparatas WELDMAN MICRO MIG 225 220A MMA TIG Synergy

Trumpai apie prekę

Prekė: Suvirinimo aparatas WELDMAN MICRO MIG 225 220A MMA TIG Synergy. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Weldman
• Modelis: MICRO MIG 225 SYNERGY MIG/TIG/MMA
• Ilgis: 520 mm
• Plotis: 240 mm
• Aukštis: 430 mm

Manufacturer: WELDMAN ║ Welding methods: MIG/MAG, MMA, TIG LIFT ║ Power supply: 230V ║ Welding current: 220A ║ Efficiency: 60% ║ Weight: 15kg

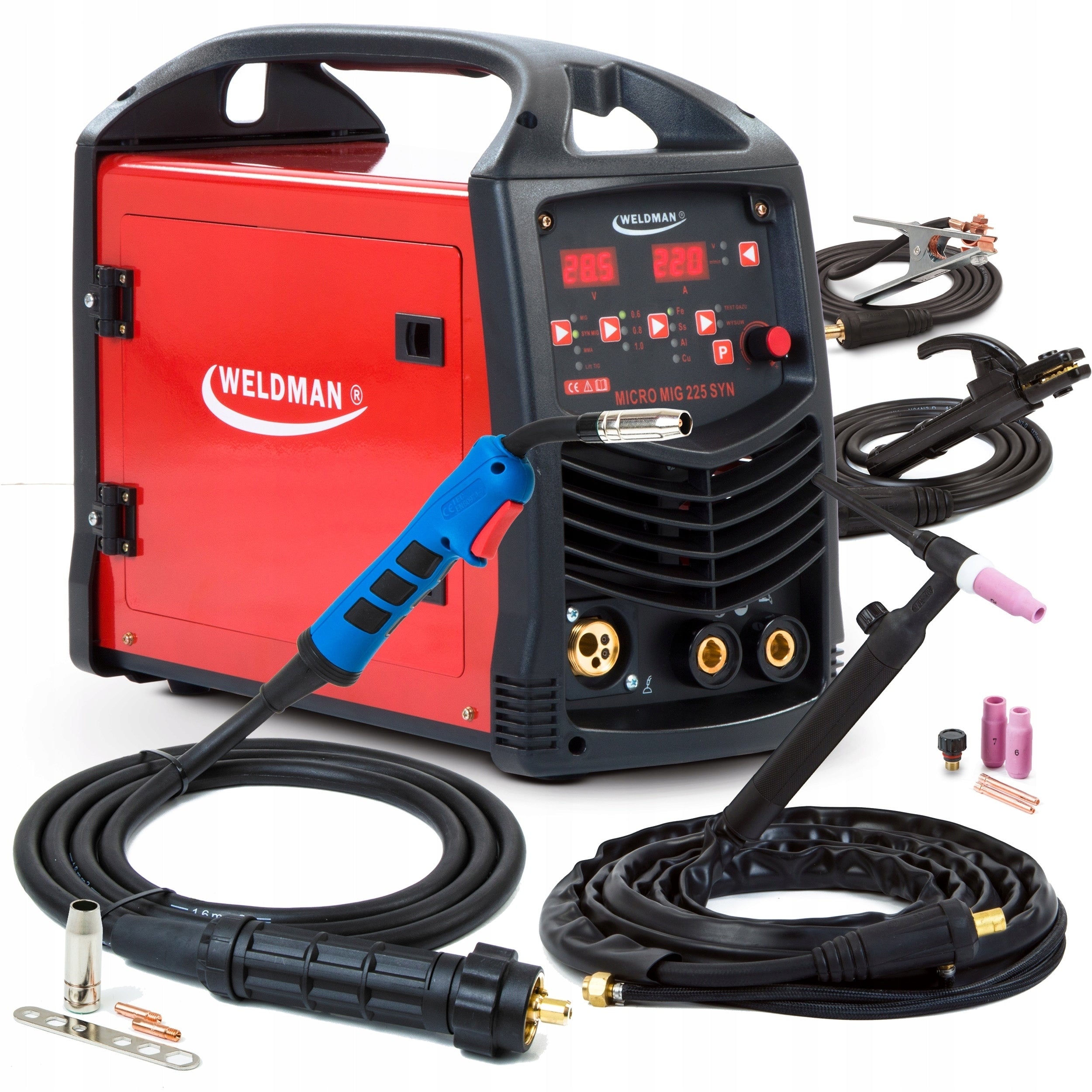

SET INCLUDES:

• Semi-automatic welding machine WELDMAN MICRO MIG 225
• 2m power cord with 230V plug
• welding torch MB 15 3m
• TIG WP 26 welding torch with 4m valve (DX 50)
• welding wire 2m with electrode holder 200A (DX 50)
• 2m mass cable with 300A terminal (DX 50)
• gas connection for technical hose 8mm
• 230V output socket on rear panel
• welding disc
• brush

FEATURES OF THE DEVICE:

• Large duty cycle 60% at 220A current
• TIG handle included!
• Simple setting of the welding machine
• Modern welding machine - IGBT transistors
• Built-in programs for: STEEL, ALUMINUM, INOX and SOLDERING CuSi
• Inductance regulation - LUTOWELDING of galvanized sheets
• Wide applications
• Lower energy consumption
• Optimal sizes and weight
• Proven manufacturer
• Handle for easy transport

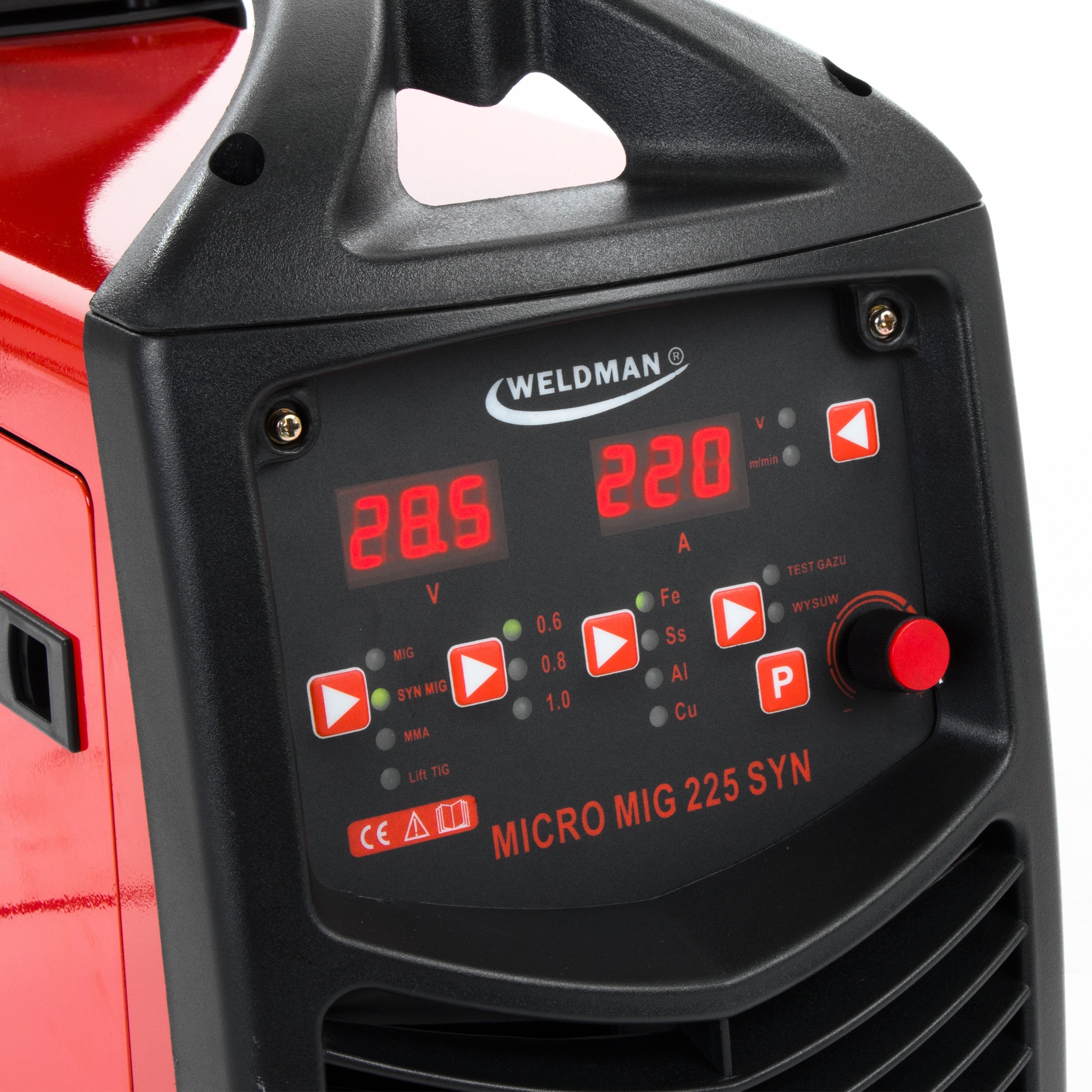

• The multifunctional knob and universal buttons make it easy to set up.
• Feeder 2R
• Burnback
• Overload switch

WELDMAN MICRO MIG is a welding machine made in IGBT inverter technology. This results in lower electricity consumption, greater resistance to interference, voltage drops, but also trouble-free operation. The use of IGBT technology guarantees rapid adjustment of the current to changes in parameters during welding. The welder has easy control via the multifunctional knob and dedicated buttons. After choosing the welding method and thickness of the wire used, we indicate what material we weld, and the welding machine will select the rest automatically. With the knob, we adjust the wire feed speed and voltage, which adjust automatically between each other. Thanks to this solution, you can weld any material very precisely, without unnecessary waste of time on the selection of appropriate settings.

POWER SUPPLY PARAMETERS

• Power supply: 230V
• Number of phases: 1PH
• Frequency: 50Hz

TECHNICAL PARAMETERS

• MIG/MAG welding current: 10-220A
• Welding current MMA, TIG: 170A
• Efficiency: 60%
• Idle voltage: 62V
• SYNERGY: YES - STEEL, ALUMINIUM, INOX, SOLDERING
• Feeder: 2R - professional
• Applied spool weights: 1-5kg
• Spool size: D100/D200
• Wire diameter: 0.6/0.8/1.0/1.2mm

OTHER PARAMETERS

• Housing protection: IP21S
• Cooling: fan
• Weight: 15kg
• Dimensions: 520x240x430mm

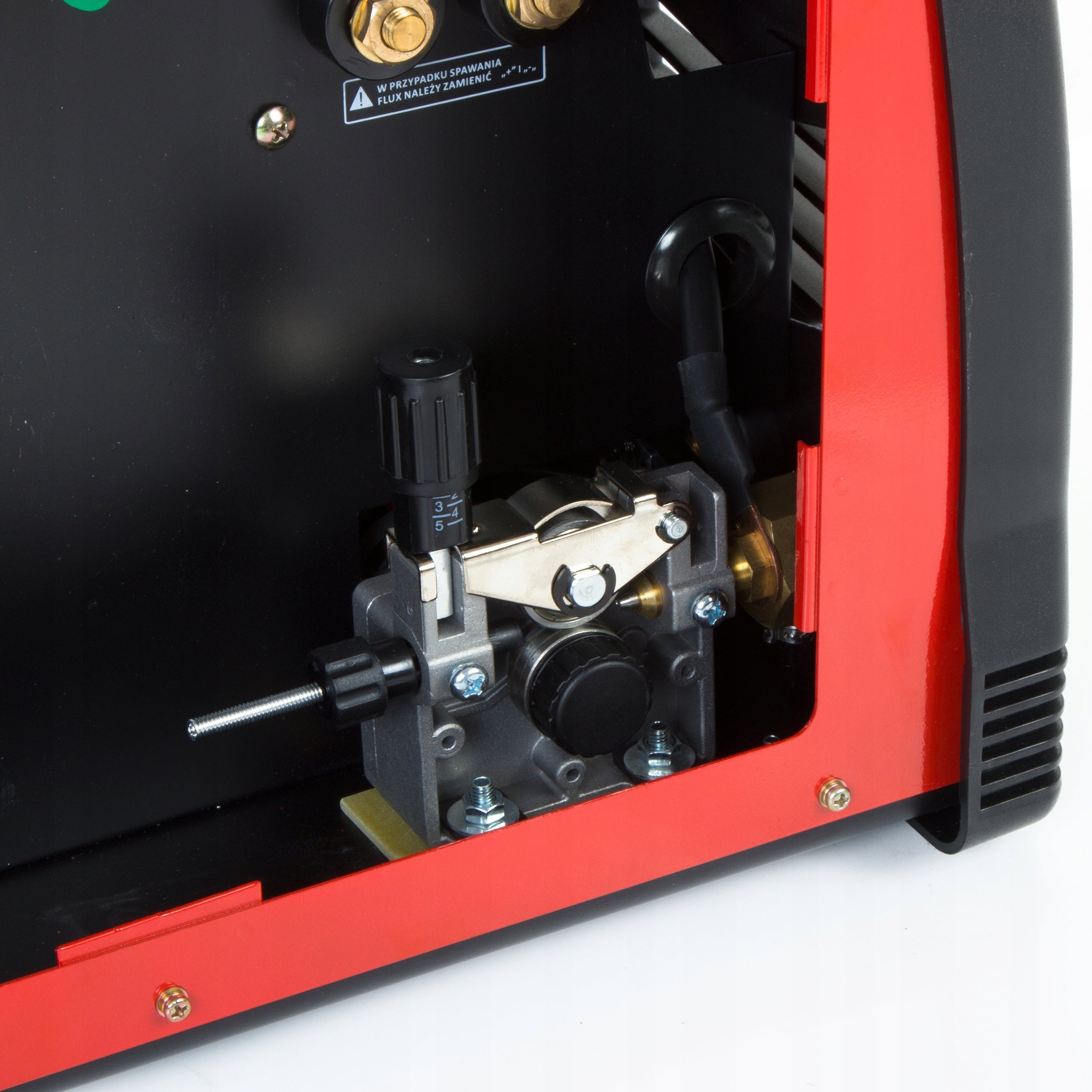

PROFESSIONAL FEEDER 2R - professional feeder with a powerful motor that will ensure stable wire feeding without jams.

BURNBACK - regulation of the burning time of the end of the welding wire allows to eliminate the risk of welding wire sticking to the current tip.

FLUX - arc welding with powder wire, not requiring the use of gas cylinders. We use self-shielding wire, which is filled with flux or chemical substance producing protective gases during welding

LUTOSPELING - a process by which you can freely connect galvanized sheets, which are often used in car bodies. The main advantage is the maintenance of a protective zinc coating at the solder-zinc interface.

OVERLOAD SWITCH - built-in protection against overheating of the device, prolonging its service life.

IGBT - the welding machine uses modern transistors, a solution that provides a minimum of electromagnetic interference small power losses in basic systems, enabling increased efficiency and reliability.

SET INCLUDES:

• Semi-automatic welding machine WELDMAN MICRO MIG 225
• 2m power cord with 230V plug
• welding torch MB 15 3m
• TIG WP 26 welding torch with 4m valve (DX 50)
• welding wire 2m with electrode holder 200A (DX 50)
• 2m mass cable with 300A terminal (DX 50)
• gas connection for technical hose 8mm
• 230V output socket on rear panel
• welding disc
• brush
