Trumpai apie prekę

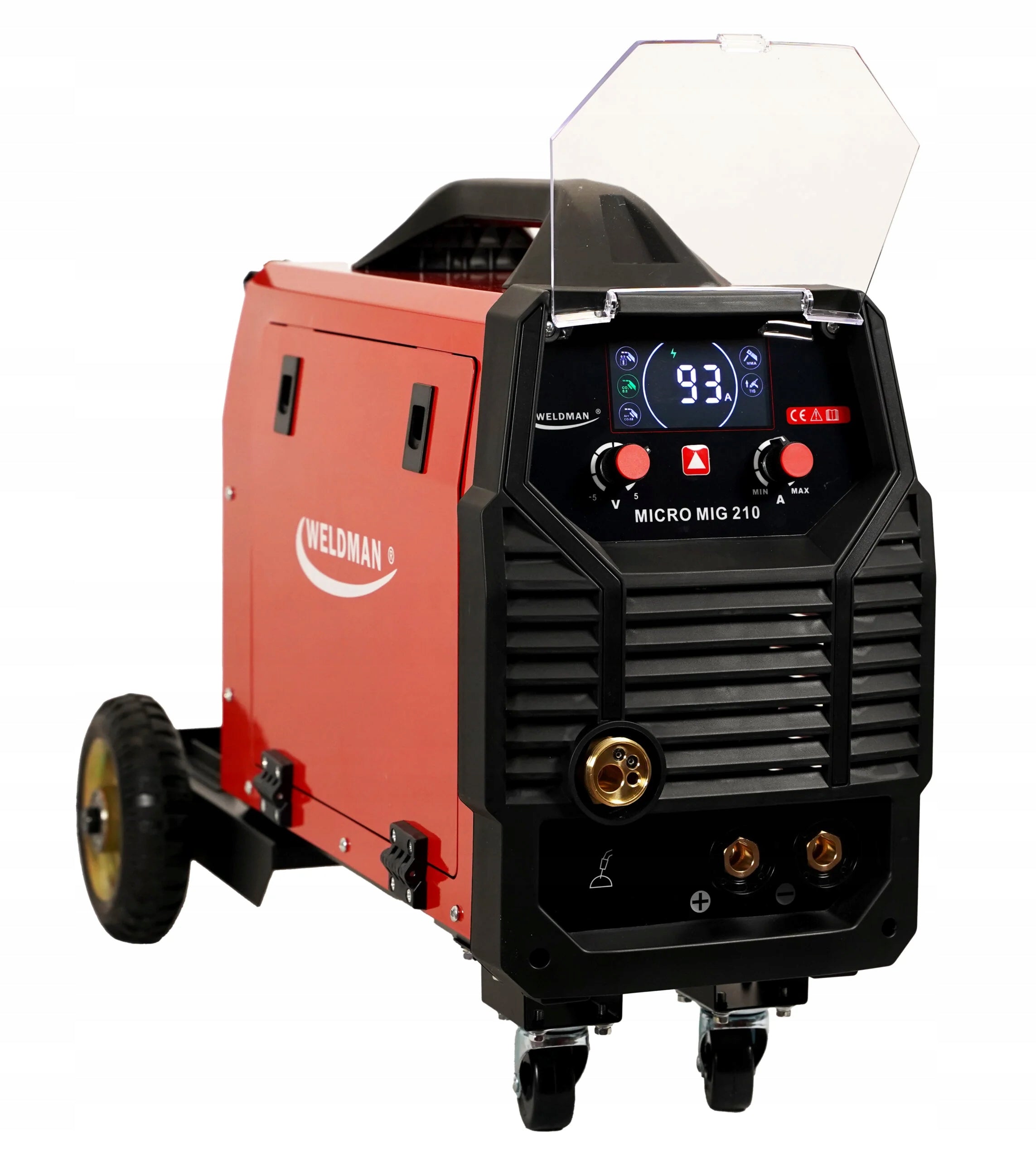

Prekė: Suvirinimo aparatas Weldman Micro MIG 210 Synergy, 20–200 A, 230 V. Kategorija: Pusiau automatiniai suvirinimo aparatai.
- Gamintojas: Weldman
- Modelis: Micro MIG 210 Syn
- Ilgis: 680 mm
- Plotis: 320 mm
- Aukštis: 460 mm
Weldman | MIG/MAG | Synergy | MMA | TIG Lift | 230 V | 200 A / 60% | EURO | FLUX | IGBT
Weldman Micro MIG 210 Syn semi-automatic welding machine is a single-phase (230 V) powered device, manufactured using IGBT technology and designed for welding using the MIG/MAG methods (gas shielded, wire 0.6-1.0 mm), FLUX (without gas shielded, wire 0.8-1.0 mm), MMA (coated electrodes 1.6-5.0 mm, direct current DC) and TIG DC Lift (tungsten electrodes).
It is equipped with the SYNERGY function.
The device incorporates general safety features such as protection against overvoltage, overcurrent, device overheating, etc.
It was designed for welding using the following methods:
- MIG/MAG (CO2 shielding gas),
- MIX (in a protective gas shield of CO2/Argon),
- FLUX (without gas shield),
- MMA (DC coated electrode welding),
- TIG DC Lift (contact arc ignition)...
...carbon steel, stainless steel, alloy steel, iron castings and aluminum.

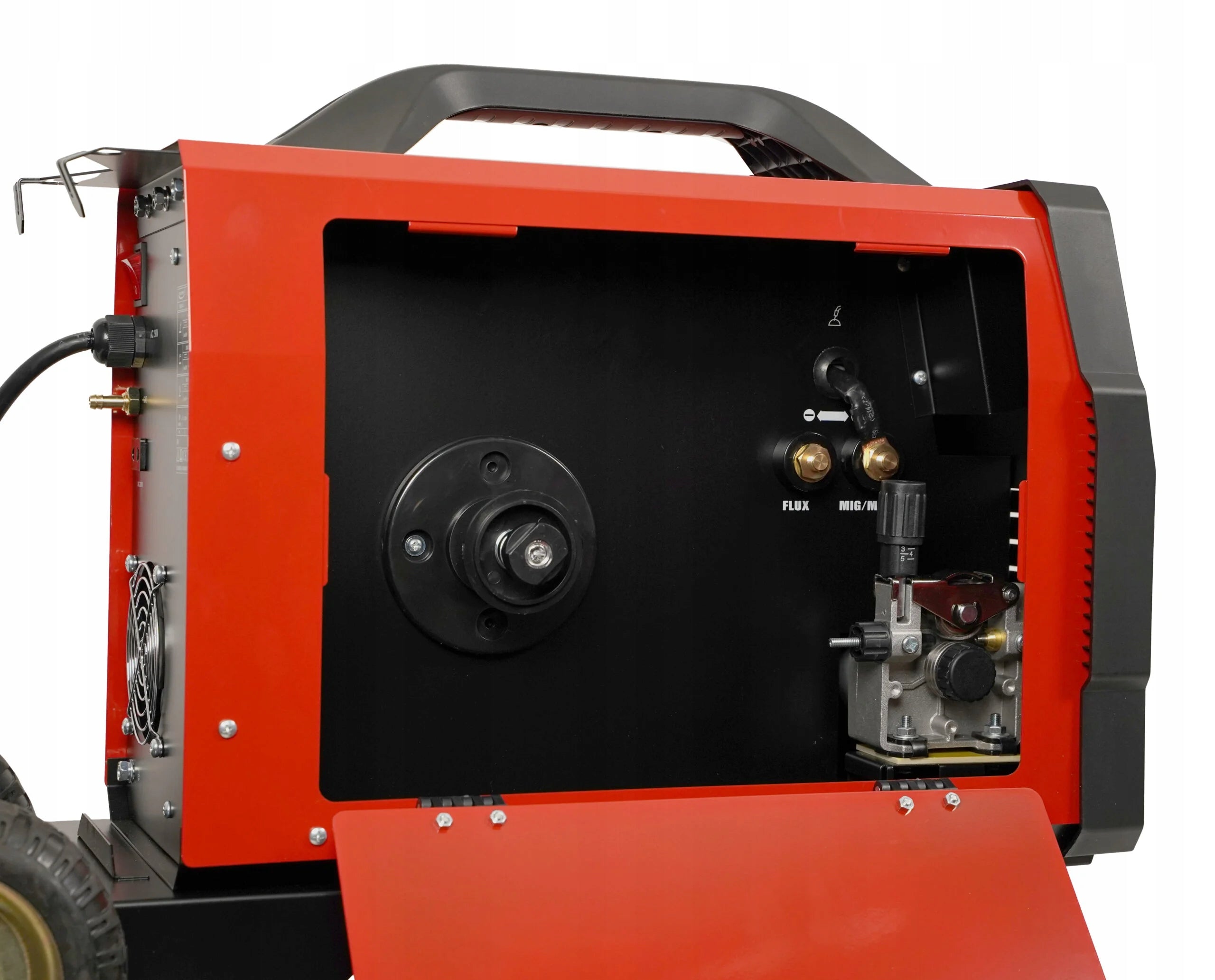

Inside the welding machine there is a wire feeder that allows you to attach a spool up to 5 kg. Next to the wire feeder there are sockets for changing the polarity of the power supply of the handles, which must be replaced in the case of welding without a gas shield (FLUX).
The welder is designed for home and semi-professional users.
Setting other parameters of the device is carried out using the control panel on which the displays and control knobs are placed. The above solution allows easy and quick setting and reading of all welding parameters.
Description of the front panel (graphics in the gallery):
- V voltage compensation knob in the range from -5 to 5
- LCD display
- function button
- welding current adjustment knob A (MIN-MAX)
- connection socket with negative polarity (-)
- connection socket with positive polarity (+)
- MIG work handle socket
Technical parameters:
- Supply Voltage: 230V/50Hz
- Power Protection: 20 A
- Welding Current Range: 20 - 200 A
- Operating cycle: 180 A/60%, 140 A/100%
- MIG/MAG welding current voltage: 15 - 24 V
- MMA welding current voltage: 20,8 - 28 V
- TIG Lift welding current voltage: 10,8 - 18 V
- Idle Current Voltage: 56 V
- Max spool weight: 5 kg
- Wire diameter steel/stainless steel: 0,6-1,0 mm
- Wire diameter FLUX: 0,8-1,0 mm
- Electrode diameter: 1,6/2,0/3,2/5,0 mm
- Cooling: fan
- Insulation Class: F
- Degree of enclosure protection: IP21
- Dimensions: 68x32x46 cm
- Weight: 15,5 / 19,5 kg
Standard equipment
- device Weldman Micro MIG 210 Syn
- MIG MB-15 / 3 m welding torch
- welding wire with electrode holder 200 A (DX50) / 2,5 m
- mass cable with terminal 300 A (DX50) / 2 m
- power cord with plug 230 V / 2 m
- transport wheels
- welding disc
- welding brush
- instruction manual in Polish
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Weldman |
| Parametry | Power consumption | 6 kVA |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 60% |
| Parametry | Maximum electrode diameter | 4 mm |
| Parametry | Wire diameter (mm) | 0,6-1,0 |
| Parametry | Device weight | 15.5 kg |
| Parametry | Welding range | 20–200 A |
| Parametry | Height | 460 mm |
| Parametry | Length | 680 mm |
| Parametry | Width | 320 mm |
| Parametry | Length of ground cable | 200 cm |
| Parametry | Welding cable length | 300 cm |
| Parametry | Product weight with unit packaging | 19.5 kg |
| Parametry | Manufacturer code | 103 104 |
| Parametry | EAN (GTIN) | 5902701752415 |
| Parametry | Model | Micro MIG 210 Syn |
| Parametry | Welding methods | MIG/MAG,MMA,TIG |
| Parametry | Additional features | transport wheels,welding mask included,infinitely adjustable welding current,EURO handle,LCD display |
