Suvirinimo aparatas Weldman Micro MIG 210 SYN 230V 200A

Trumpai apie prekę

Prekė: Suvirinimo aparatas Weldman Micro MIG 210 SYN 230V 200A. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Weldman
• Modelis: WELDMAN MICRO MIG 215 SYN KPW6
• Ilgis: 520 mm
• Plotis: 220 mm
• Aukštis: 400 mm

+ MIG/MAG, MMA, TIG WELDING KIT, WHICH INCLUDES I.A.:

• ✔ CYLINDER WITH REDUCER
• ✔ WELDING ACCESSORIES

WELDING MACHINE WELDMAN MICRO MIG 210 SON

it is a professional, technologically advanced semi-automatic welding machine designed for welding using the following methods:

➡ MIG/MAG:

Arc welding in gas shields (CO2 or Argon+CO2) is one of the most commonly used processes for the production of welded structures. The semi-automatic welding process involves melting the edges of the welded object and the welding material (welding wire on a roll) with an electric arc produced between the welding wire fed by the handle and the welded material.

Available Modes:

• FLUX / FCAW - self-shielding wire welding. This is a similar welding process as MIG/MAG but does not require a gas cylinder. On the wire there is a thin layer of powder, which at the time of arc formation produces gas covering the working area.

➡ TIG LIFT DC - welding with a non-melting electrode (tungsten) in an inert gas shield (Argon) using an additional handle. In the TIG DC Lift mode, the arc glow occurs when the electrode with the welded element is contacted (the button in the handle does not arc, the gas is connected directly from the reducer to the handle). In TIG Lift DC mode, the current is constant.

➡ MMA - classic welding with wrapped electrodes (rutile, alkaline, acidic).

The WELDMAN MICRO MIG 210 SYN welding machine is used for welding:

✔ low alloy steels (MMA, MIG/MAG, TIG Lift DC),

✔ low carbon steel (MMA, MIG/MAG, TIG Lift DC),

✔ alloy steels (MMA, MIG/MAG, TIG Lift DC),

✔ cast iron and aluminium (MMA, MIG/MAG, TIG Lift DC),

The device has been designed for all kinds of welding work in automotive, locksmith, repair, industrial workshops etc.

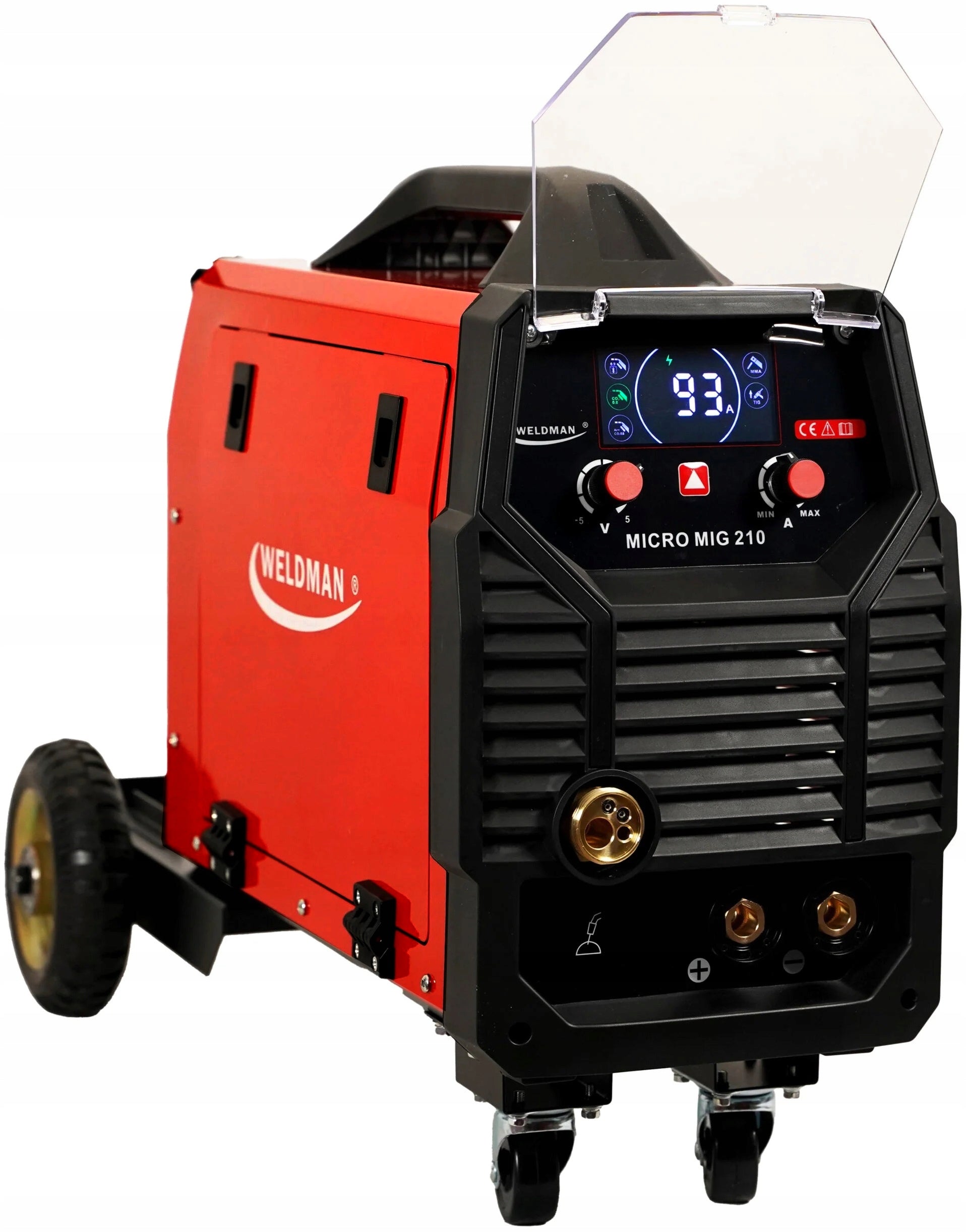

WELDMAN MICRO MIG 210 SYN has a readable and easy to use function panel, on which there is m.in.:

• Voltage compensation knob in the range from -5 to 5,
• LCD display,
• Functional button,
• Welding current adjustment knob A (MIN-MAX).

On the back of the device there is:

• Power main switch,
• Power cord socket 230V,
• Power socket 230V,
• Gas connection.

• ✔ REPAIR WORKSHOPS,
• ✔ AUTOMOTIVE INDUSTRY,
• ✔ LOCKSMITH WORKSHOPS,
• ✔ ALL BODYWORK REPAIRS,
• ✔ FARMS,
• ✔ HOMEWORK,

AND WHEREVER RELIABILITY MATTERS!

✔ SYNERGY – is an advanced feature available in professional welding equipment class PREMIUM. Thanks to the intelligent system, after entering the basic settings, the device automatically selects optimal parameters such as current and voltage. Stable arc, better weld quality, less chipping and full repeatability of results – all with minimal effort of the operator.

✔ WORK IN INDUSTRY - thanks to its high quality and multifunctionality, the device can be used in professional and hobby work

✔ INVERTER TECHNOLOGY IGBT - is a modern technology based on bipolar transistors with an isolated gate. It combines the ease of control of field transistors with high breakdown voltage and switching speed of bipolar transistors. The use of IGBT technology has the effect of significantly extending the reliable operation of welding equipment.

✔ MOBILITY AND CONVENIENCE - CHASSIS WITH SPACE FOR A CYLINDER - The welding machine has a tightening chassis. On the back of the device there is a place for a cylinder with shielding gas.

✔ CONTROL PANEL - The welding machine is equipped with an easy-to-use control panel and display, so it can be used even by amateurs.

✔ PRECISION SETTINGS - inverter welding machines are equipped with very sensitive potentiometers, which allows even more precise adjustment of operating parameters and provide high versatility in the use of equipment for professionals and amateurs.

✔ OVERLOAD PROTECTION, ensures the reliability of the device.

EFFICIENT OPERATION THANKS TO PROFESSIONAL WIRE FEEDER

The welder is equipped with a professional wire feeder, which guarantees stability and continuity of operation of the device.

The 2-roll feeder allows precise extension of the welding wire excluding its slippage.

The feeder has a quick wire change knob as well as a wire feed roller.

Next to the wire feeder there are change pole sockets of the handles, which must be replaced in the case of welding without a (FLUX) gas shield.

➡ The device is equipped with overload protection, which increases its reliability.

❄ The device has a fan cooling system which significantly increases its efficiency.

⏩ TECHNICAL DATA:

• Power supply voltage: 230V/50Hz
• Power protection: 20 A
• Idle current voltage: 56 V

⏩ WELDING PARAMETERS MMA:

• Welding power range: 20 - 200 A
• Power supply current max: 44,4 A
• Power supply current effective: 34,4 A
• Working cycle: 60% - 180 A , 100% - 140 A
• Electrode diameter: 1,6/2,0/3,2/5,0

⏩ MIG/MAG WELDING PARAMETERS:

• Welding power range: 20 - 200 A
• Power supply current max: 38,5 A
• Power supply current effective: 29,8 A
• Working cycle: 60% - 180 A , 100% - 140 A
• Max spool weight: 5 kg
• Wire diameter steel/stainless steel: 0,6-1,0
• FLUX wire diameter: 0,8-1,0

⏩ WELDING PARAMETERS TIG:

• Welding power range: 20 - 200 A
• Power supply current max: 29 A
• Power supply current effective: 292,5 A
• Working cycle: 60% - 180 A , 100% - 140 A

⏩ OTHER:

• Cooling: fan
• Isolation class: F
• Housing protection degree: IP21
• Dimensions: 68x32x46 cm
• Weight: 15,5 kg

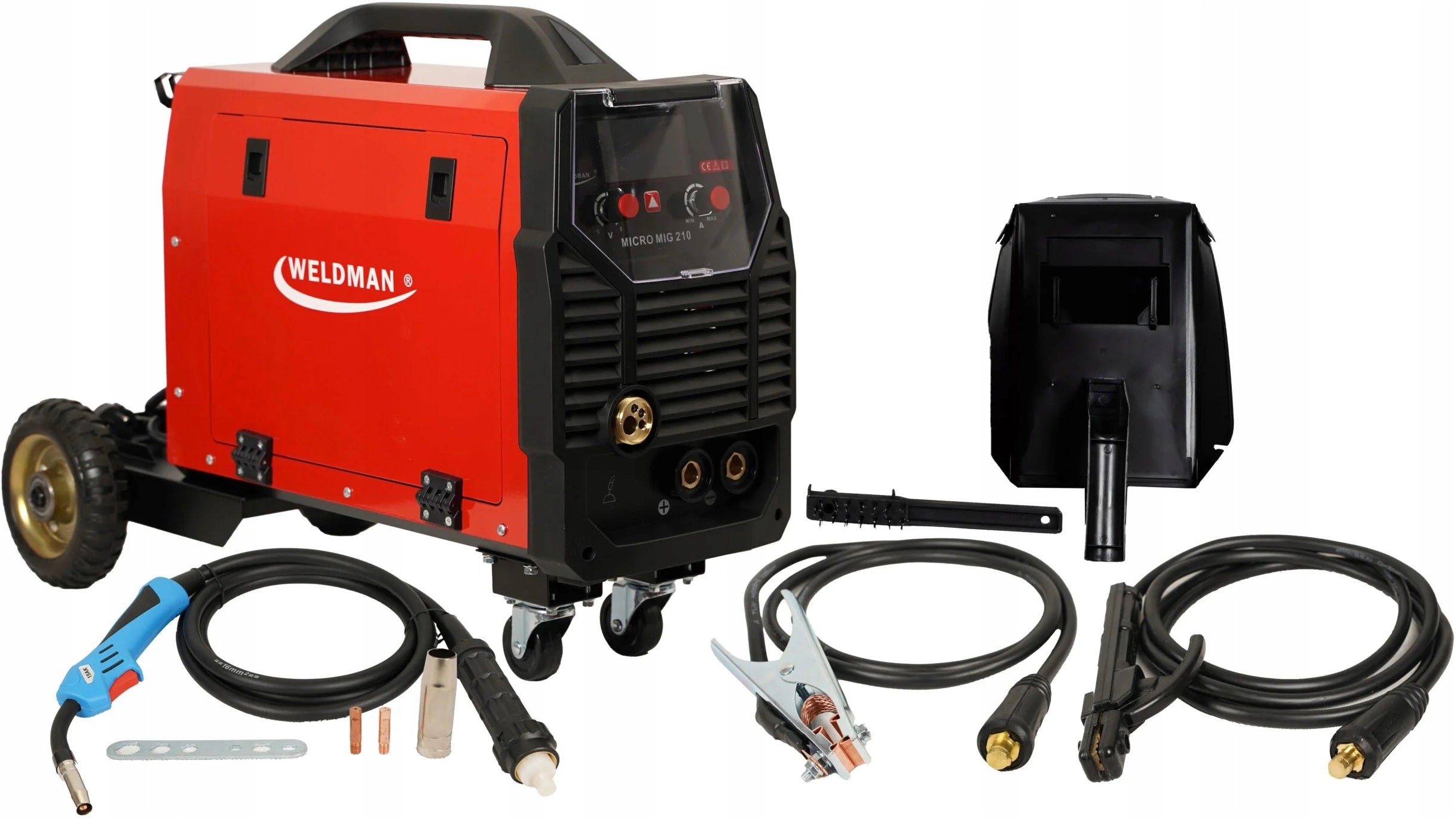

ORIGINAL PRDUCENT SET, WHICH INCLUDES:

• WELDING MACHINE WELDMAN MICRO MIG 210 SYN - 1 pcs.
• Welding torch - WELDMAN MB 15/3m - 1 pc.
• Mass cable with mass clamp 300A - 2m - 1 pc.
• Cable with electrode holder 200A - 2,5m - 1 pc.
• Power cord with plug - 2m - 1 pc.
• Welding brush - 1 pc.
• Welding disc - 1 pc.

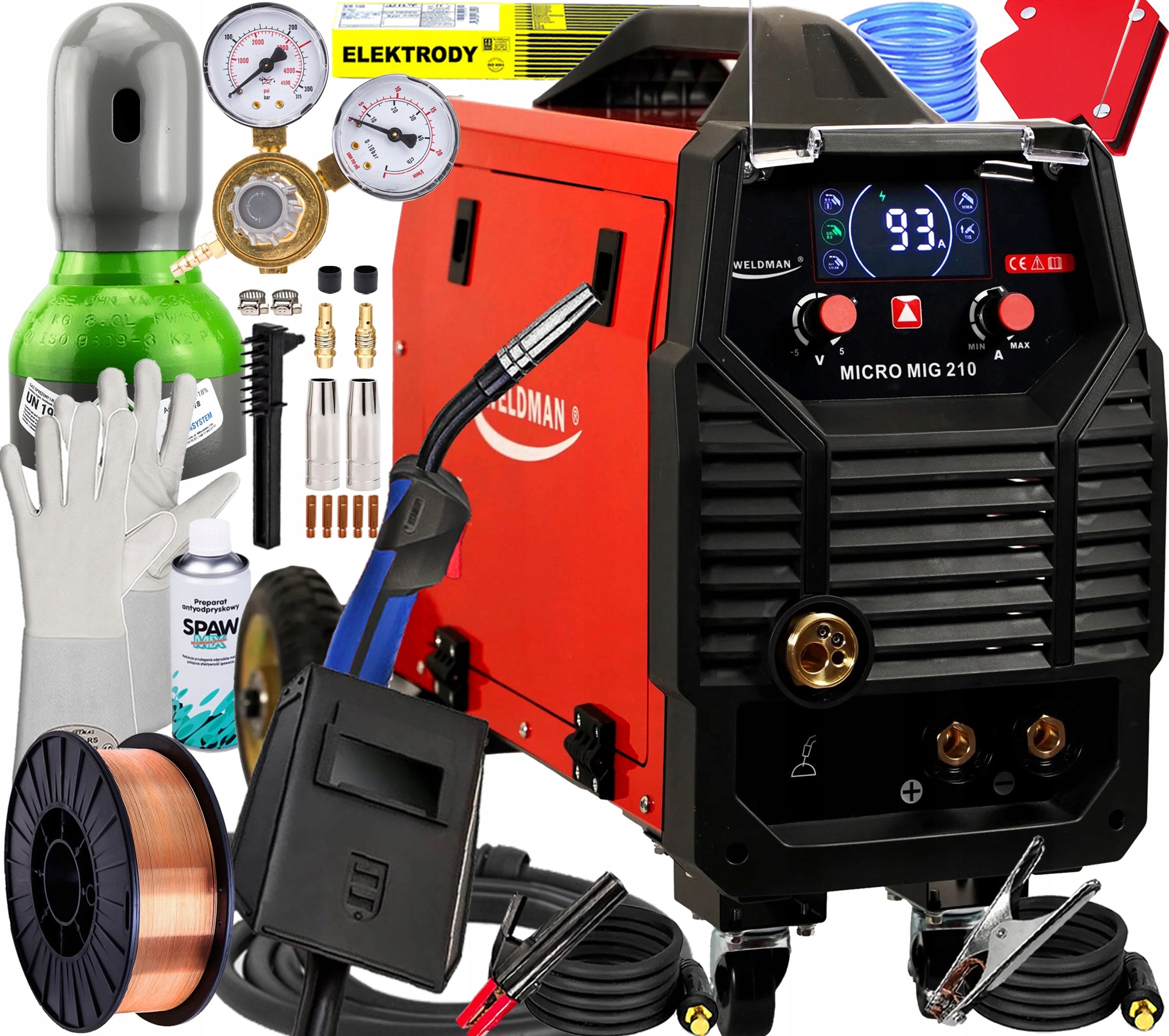

+ SET OF ACCESSORIES FROM WELDEXPERT:

• New 8L cylinder for MIX or CO2 with 10-year legalization - 1 pc.
• Gas reducer Co2/Ar with 2 pressure gauges - 1 pc.
• Professional gloves - 1 pair
• Spray anti-chipping - 1 pc.
• Angle magnetic - 11 kg - 1 pc.
• Welding wire FOR BLACK STEEL 0,8 mm - 5 kg - 1 pc.
• Tip current 0,8 mm - 5 pcs.
• Gas nozzle for handle - 2 pcs.
• Socket current - 2 pcs.
• Insulator - 2 pcs.
• Electrode pack - 1 kg
• Gas hose
• Gas hose bands - 2 pcs.

SET OF 8 MIG WITHOUT MB15 INDUCTION.

M.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Weldman
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	4 mm
Parametry	Wire diameter (mm)	0,6-1,0
Parametry	Device weight	13 kg
Parametry	Welding range	40–210 A
Parametry	Height	400 mm
Parametry	Length	520 mm
Parametry	Width	220 mm
Parametry	Length of ground cable	200 cm
Parametry	Welding cable length	300 cm
Parametry	Product weight with unit packaging	20 kg
Parametry	Manufacturer code	WELDMAN MICRO MIG 215 SYN KPW6
Parametry	EAN (GTIN)	5902701751371
Parametry	Packaging status	original
Parametry	Welding methods	MIG/MAG,MMA,TIG
Parametry	Additional features	welding mask included,infinitely adjustable welding current,EURO handle,LCD display
